L4A-PDMDF-1M-3GSH

Description
Interconnection Device, ROHS COMPLIANT
CategoryThe connector    The connector
File Size304KB,2 Pages
ManufacturerCommScope Inc
Environmental Compliance
Download Datasheet Parametric View All

L4A-PDMDF-1M-3GSH Overview

Interconnection Device, ROHS COMPLIANT

L4A-PDMDF-1M-3GSH Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCommScope Inc
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Connector typeINTERCONNECTION DEVICE

L4A-PDMDF-1M-3GSH Preview

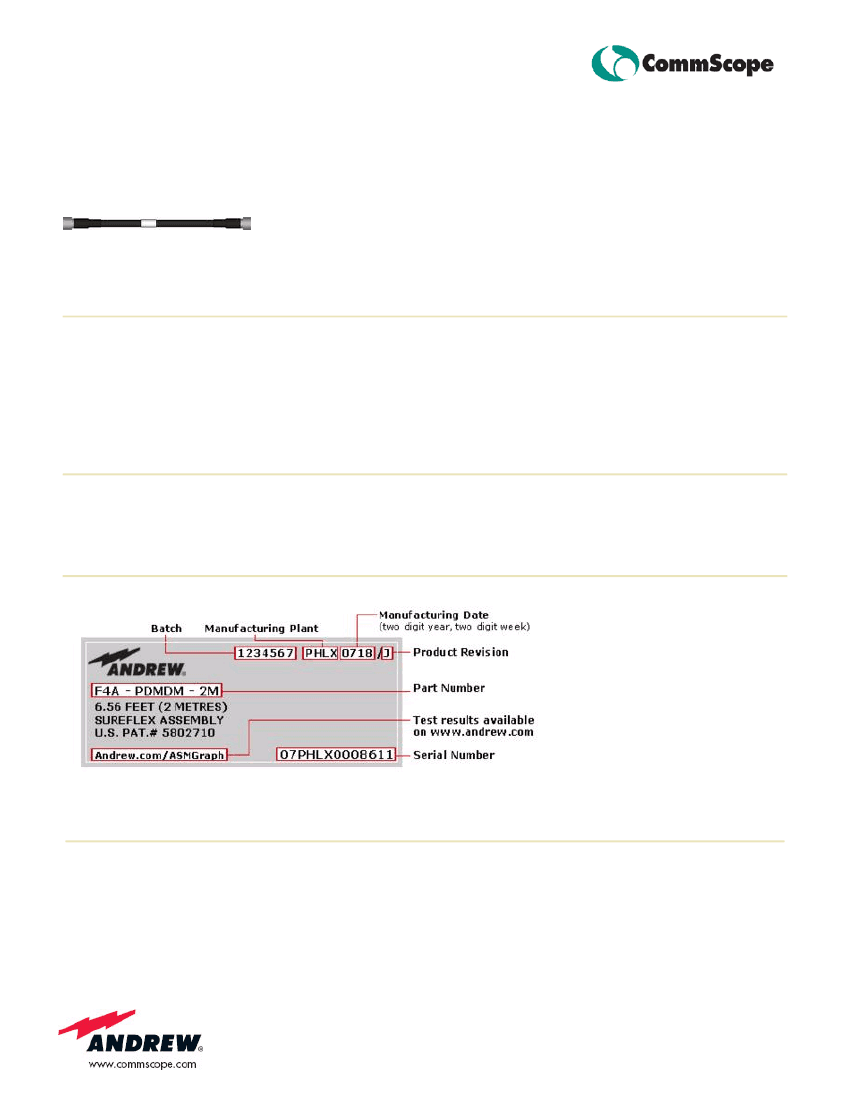

Product Specifications
L4A-PDMDF-1M-3GSH
LDF4­50A SureFlex™ Jumper with interface types 7­16 DIN Male and 7­16 DIN Female, 1 m


CHARACTERISTICS
General Specifications
Body Style, Connector A  Straight
Body Style, Connector B  Straight
Cable Family
LDF4­50A
Interface, Connector A  7­16 DIN Male
Interface, Connector B  7­16 DIN Female
Length

1.000 m   |   3.281 ft
Electrical Specifications
3rd Order IMD
DTF, Connector A
DTF, Connector B

­116.00 dBm
­34.00 dB
­34.00 dB
Jumper Assembly Sample Label



Return Loss
Frequency Band
806–960 MHz
1700–2170 MHz
VSWR
1.06
1.06
Return Loss (dB)
30.00
30.00
©2009 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.
All specifications are subject to change. See www.commscope.com for the most current information.
page 1 of 2
3/4/2009
Product Specifications
L4A-PDMDF-1M-3GSH
Regulatory Compliance/Certifications
Agency
RoHS 2002/95/EC
China RoHS SJ/T 11364­2006
Classification
Compliant by Exemption
Above Maximum Concentration Value (MCV)

Included Products




LDF4­50A
LDF4­50A, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket

©2009 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.
All specifications are subject to change. See www.commscope.com for the most current information.
page 2 of 2
3/4/2009
