NM25C020MT8X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> NM25C020MT8X

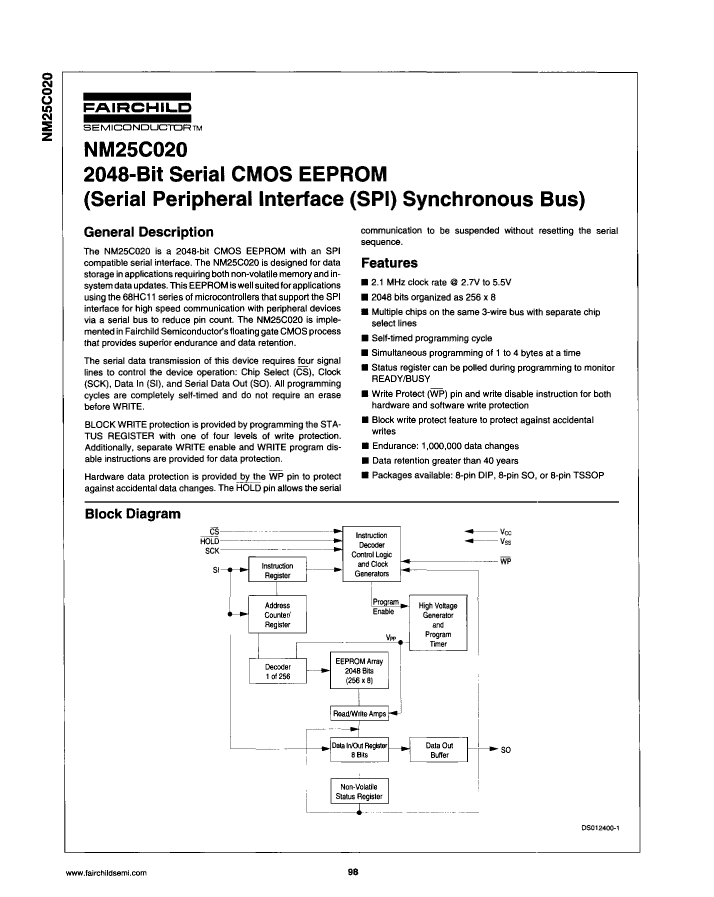

NM25C020MT8X: DescriptionEEPROM, 256X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8; Categorystorage storage; File Size299KB，9 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

NM25C020MT8X Overview

EEPROM, 256X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8

NM25C020MT8X Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SOIC
package instruction	TSSOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DATA RETENTION > 40 YEARS
Maximum clock frequency (fCLK)	2.1 MHz
Data retention time - minimum	40
JESD-30 code	R-PDSO-G8
length	4.4 mm
memory density	2048 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	256 words
character code	256
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256X8
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	1.2 mm
Serial bus type	SPI
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	3 mm
Maximum write cycle time (tWC)	10 ms

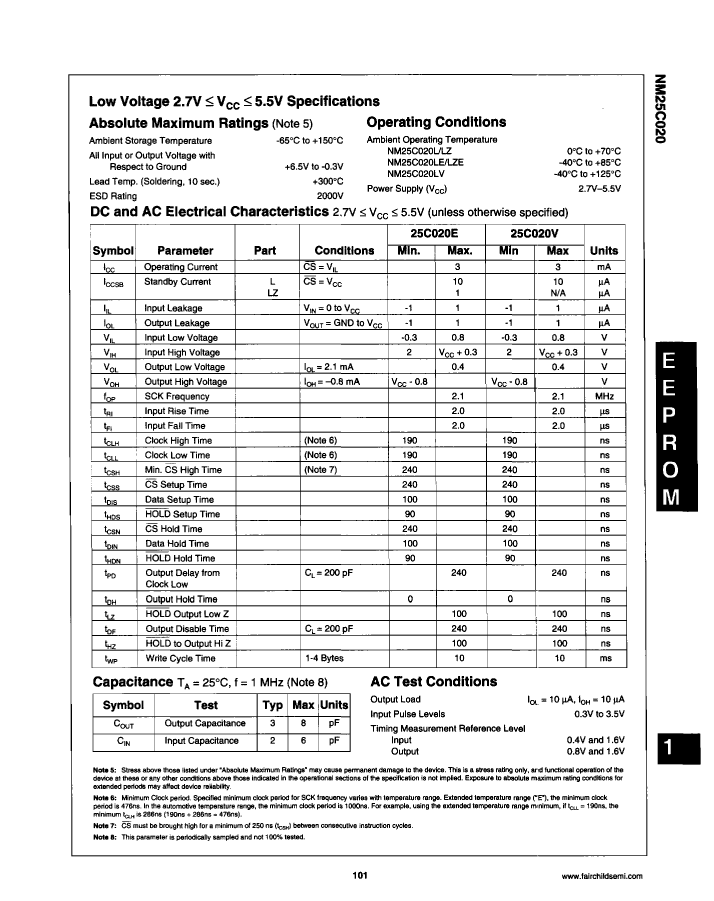

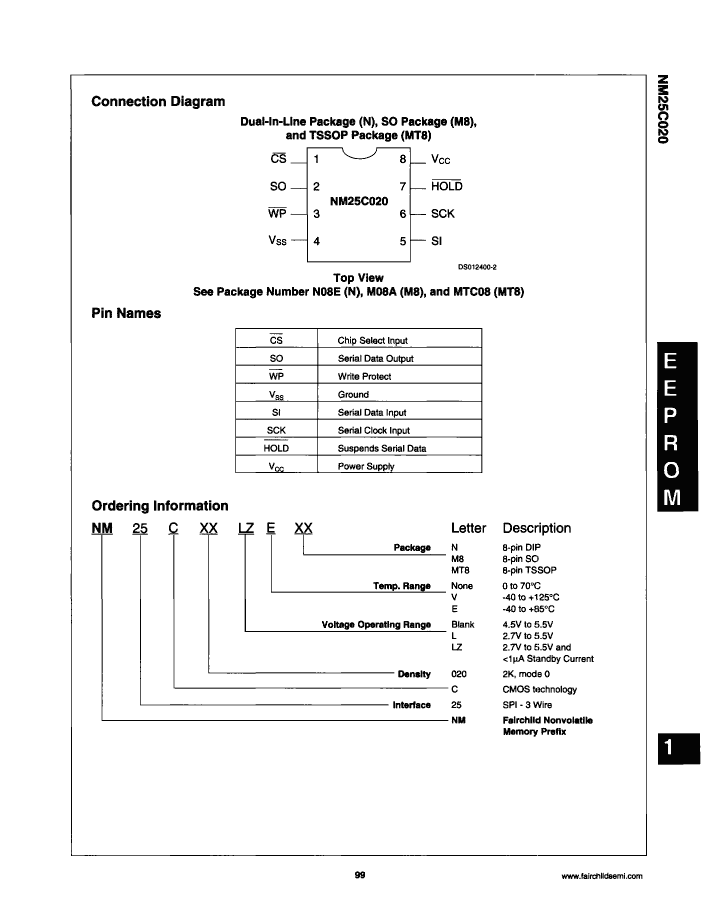

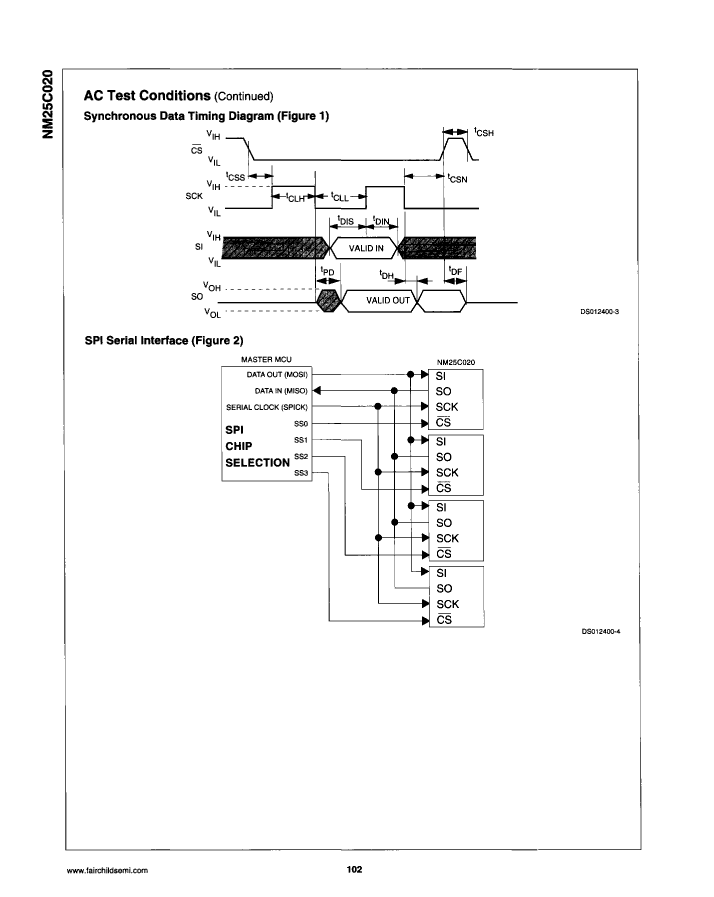

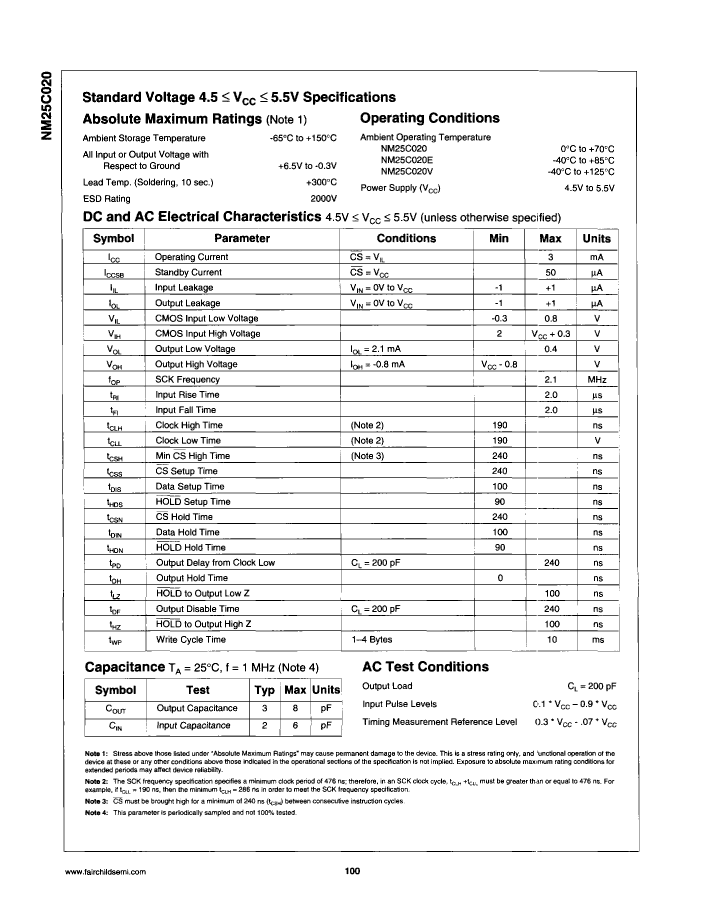

Preview

Download Datasheet

View All

NM25C020MT8X Related Products

	NM25C020MT8X	NM25C020LVM8X	NM25C020EMT8X	NM25C020VMT8X	NM25C020LZMT8X	NM25C020LVMT8X	NM25C020LZVM8X	NM25C020LZVMT8X	NM25C020LMT8X
Description	EEPROM, 256X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8	EEPROM, 256X8, Serial, CMOS, PDSO8, 0.150 INCH, PLASTIC, SOP-8	EEPROM, 256X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8	EEPROM, 256X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8	EEPROM, 256X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8	EEPROM, 256X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8	EEPROM, 256X8, Serial, CMOS, PDSO8, 0.150 INCH, PLASTIC, SOP-8	EEPROM, 256X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8	EEPROM, 256X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	TSSOP,	SOP,	TSSOP,	TSSOP,	TSSOP,	TSSOP,	SOP,	TSSOP,	TSSOP,
Contacts	8	8	8	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	DATA RETENTION > 40 YEARS	DATA RETENTION > 40 YEARS	DATA RETENTION > 40 YEARS	DATA RETENTION > 40 YEARS	DATA RETENTION > 40 YEARS	DATA RETENTION > 40 YEARS	DATA RETENTION > 40 YEARS	DATA RETENTION > 40 YEARS	DATA RETENTION > 40 YEARS
Maximum clock frequency (fCLK)	2.1 MHz	2.1 MHz	2.1 MHz	2.1 MHz	1 MHz	2.1 MHz	2.1 MHz	2.1 MHz	1 MHz
Data retention time - minimum	40	40	40	40	40	40	40	40	40
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	4.4 mm	4.9 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.9 mm	4.4 mm	4.4 mm
memory density	2048 bit	2048 bit	2048 bit	2048 bit	2048 bit	2048 bit	2048 bit	2048 bit	2048 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8
word count	256 words	256 words	256 words	256 words	256 words	256 words	256 words	256 words	256 words
character code	256	256	256	256	256	256	256	256	256
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	125 °C	85 °C	125 °C	70 °C	125 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-
organize	256X8	256X8	256X8	256X8	256X8	256X8	256X8	256X8	256X8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SOP	TSSOP	TSSOP	TSSOP	TSSOP	SOP	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.75 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.75 mm	1.2 mm	1.2 mm
Serial bus type	SPI	SPI	SPI	SPI	SPI	SPI	SPI	SPI	SPI
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	2.7 V	4.5 V	4.5 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	5 V	3.3 V	5 V	5 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	AUTOMOTIVE	INDUSTRIAL	AUTOMOTIVE	COMMERCIAL	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	1.27 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3 mm	3.9 mm	3 mm	3 mm	3 mm	3 mm	3.9 mm	3 mm	3 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	10 ms	15 ms	10 ms	10 ms	10 ms	15 ms
