AICT-LP-102

Description
General Purpose Inductor, 975uH, 20%, 1 Element, RADIAL LEADED-2
CategoryPassive components    inductor
File Size176KB，1 Pages
ManufacturerAbracon
Websitehttp://www.abracon.com/index.htm
Environmental Compliance
Download Datasheet Parametric View All

AICT-LP-102 Overview

General Purpose Inductor, 975uH, 20%, 1 Element, RADIAL LEADED-2

AICT-LP-102 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAbracon
Reach Compliance Codecompliant
ECCN codeEAR99
DC Resistance2.6 Ω
Nominal inductance(L)975 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberAICT-LP
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Maximum rated current0.5 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsINDUCTANCE MEASURED WITH 0.5 A RATED DC CURRENT
surface mountNO
Terminal locationRADIAL
Terminal shapeWIRE
Tolerance20%

Preview

Download Datasheet

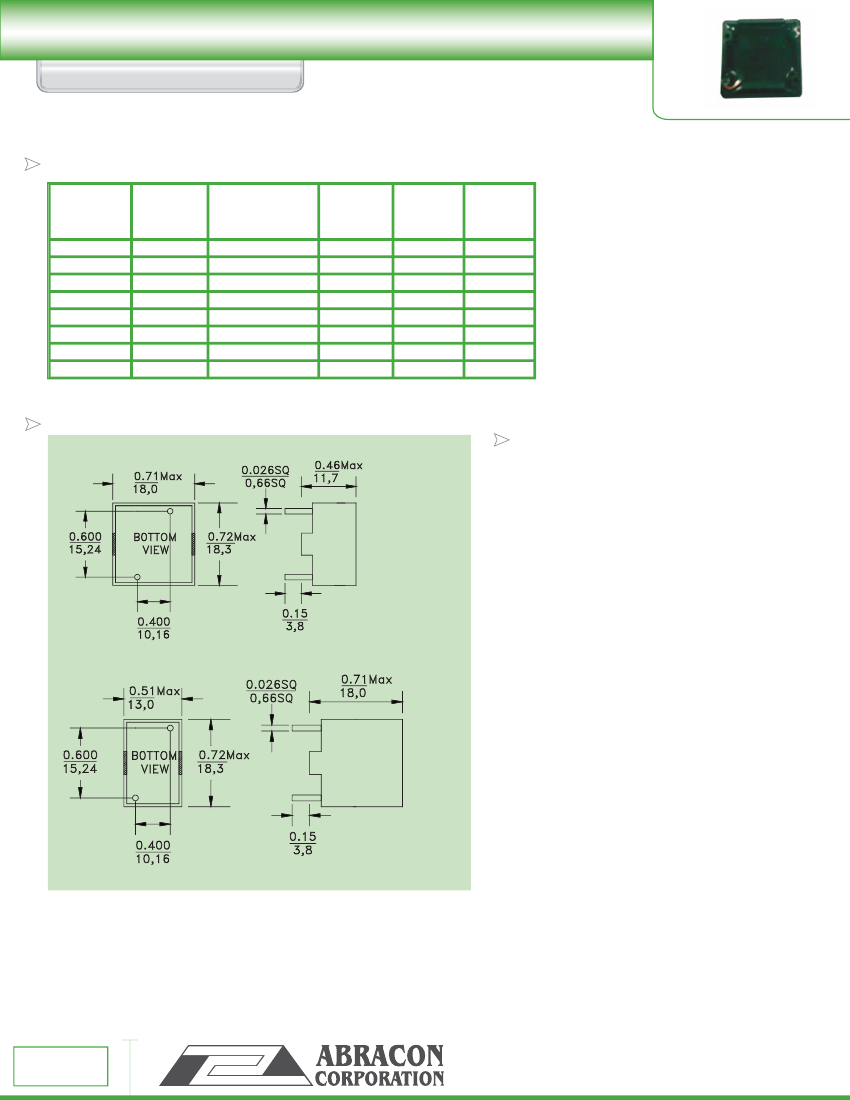

POWER INDUCTORS
AICT-LP (VM) SERIES
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
Part #
AICT-LP
AICT-VM
151
221
331
471
681
821
102
680
L (µH)
±20%
145
226
316
480
690
780
975
68
20KHz
Test (mV)
No DC
110
140
170
210
250
270
300
100
R
DC
Max
(Ω)
0.42
0.42
0.78
1.26
1.50
2.40
2.60
0.25
I
DC
(A)
1.70
1.50
1.00
0.90
0.85
0.75
0.50
2.50
1
Energy
Storage
1
(µJ)
215
240
165
190
245
230
125
150
PHYSICAL CHARACTERISTICS:
AICT-LP-XXX
TECHNICAL INFORMATION:
•
•
•
•
IDC rated for 40°C temperature rise @ low Etop.
Derate current 20% at this Etop
Operating Temperature: -40°C to +125°C
Dimension: LP = Low Profile, VM = Vertical Mount
Note:
All specifications subject to change
without notice. RoHS Compliance Product,
label on box.
AICT-VM-XXX
Dimension: inch/mm
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
rev1.1-9/06
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
