High temperature deflection prevents damage from solder reflow
Pb
RoHS
Compliant
APPLICATIONS:
•
VDSL & ADSL
•
OA equipment
•
PC cards
•
DC to DC converter
6.6 x 4.45 x 2.92mm
ELECTRICAL SPECIFICATIONS:
ABRACON P/N:
Operating Temperature:
Storage Temperature:
ASPI-0402T-xxx
-40ºC to +85 ºC
-40ºC to +85 ºC
PART NUMBER
ASPI-0402T-1R0
ASPI-0402T-1R5
ASPI-0402T-2R2
ASPI-0402T-3R3
ASPI-0402T-4R7
ASPI-0402T-6R8
ASPI-0402T-100
ASPI-0402T-150
ASPI-0402T-220
ASPI-0402T-330
ASPI-0402T-470
ASPI-0402T-680
ASPI-0402T-101
ASPI-0402T-151
ASPI-0402T-221
ASPI-0402T-331
ASPI-0402T-471
ASPI-0402T-681
ASPI-0402T-102
INDUCTANCE
(uH) ±20%
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
SRF (MHz)
Min
80
60
54
44
27
23
24
13
11
10
8
6
3
3
3
3
3
3
2
DCR (Ω)
max
0.050
0.050
0.070
0.080
0.09
0.13
0.16
0.23
0.37
0.51
0.64
0.86
1.27
2.00
3.11
3.80
6.20
9.20
13.80
Isat (A)
max
2.90
2.60
2.30
2.00
1.50
1.20
1.10
0.90
0.70
0.58
0.50
0.40
0.31
0.27
0.22
0.18
0.16
0.14
0.10
Irms (A)
max
2.90
2.80
2.40
2.00
1.50
1.40
1.10
1.20
0.80
0.60
0.35
0.40
0.30
0.25
0.20
0.16
0.15
0.12
0.07
Test Conditions
Inductance:
100kHz, 0.1V
Isat:
∆L/L
(initial)
≥
-10%
Irms:
∆T ≤
40˚C
OPTIONS AND PART IDENTIFICATION
ASPI-0402T -
Inductance Code
Please refer to the
table above
Tolerance %
M: ± 20%
-
Packaging
T: Tape and Reel
(2,500pcs / reel)
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised:08.06.12
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-800
|
fax 949-546-800
| www.abracon.com
0
1
Visit www.abracon.com for Terms & Conditions of Sale
SMD POWER INDUCTOR
ASPI - 0402T

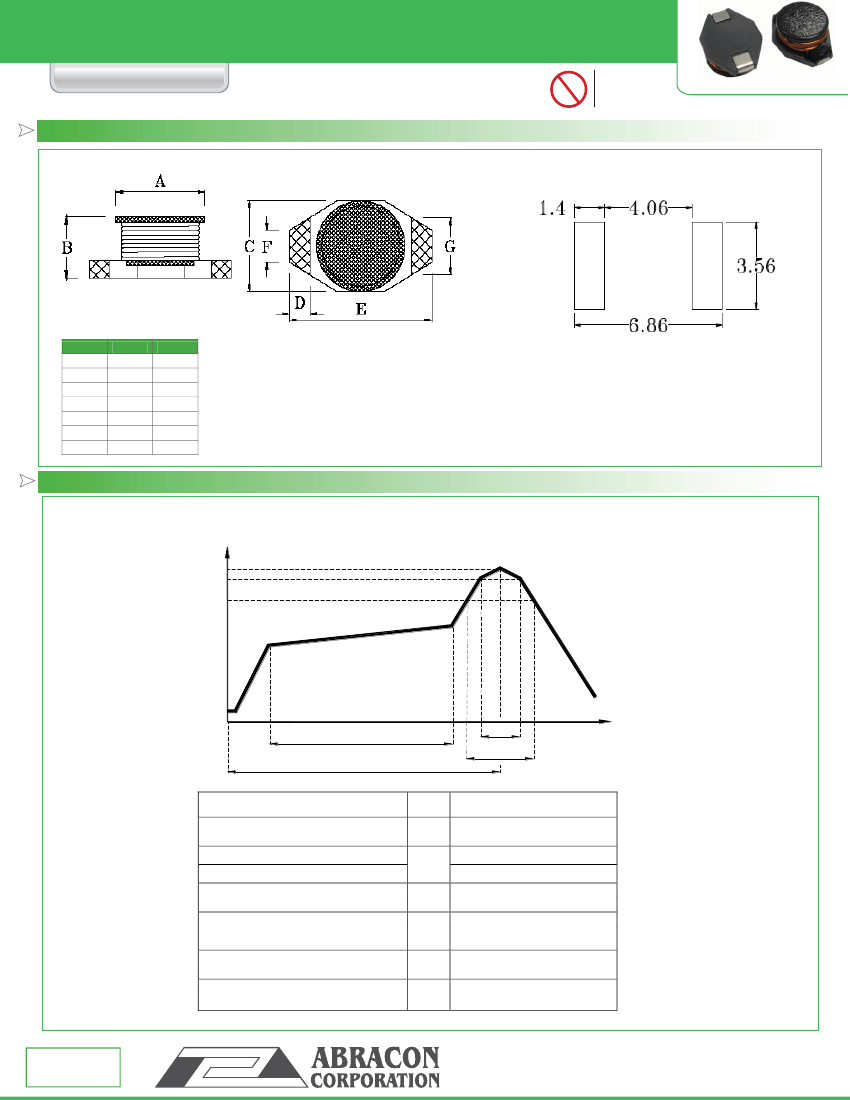

OUTLINE DRAWING:
Recommended Land Pattern
Pb
RoHS
Compliant
6.6 x 4.45 x 2.92mm
A
B
C
D
E
F
G
DIM.
4.0
2.92
4.45
1.02
6.60
1.27
3.05
TOL.
±0.2
Max.
Max.
0.05
Max.
±0.05
±0.05
REFLOW PROFILE:
Temperature(° C)
Tpeak
t
3
t
1
25° C
Tsoak
T
ime 25° C to peak
Item
Temperature rise gradient
Heating time
Heating temperature
Time over 217
Time within 5
of actual peak temperature
Tsoak
t1
t3
Tpeak
mark
3 /sec (max)
50s
½
150s
120
½180
70 sec
10½30 sec
250 ( +0 / -5
)
t
3
t
1
Time (sec)
Peak temperature
Time 25
to peak Temperature
6 minutes max.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised:08.06.12
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-800
|
fax 949-546-800
| www.abracon.com
0
1
Visit www.abracon.com for Terms & Conditions of Sale
SMD POWER INDUCTOR
ASPI - 0402T

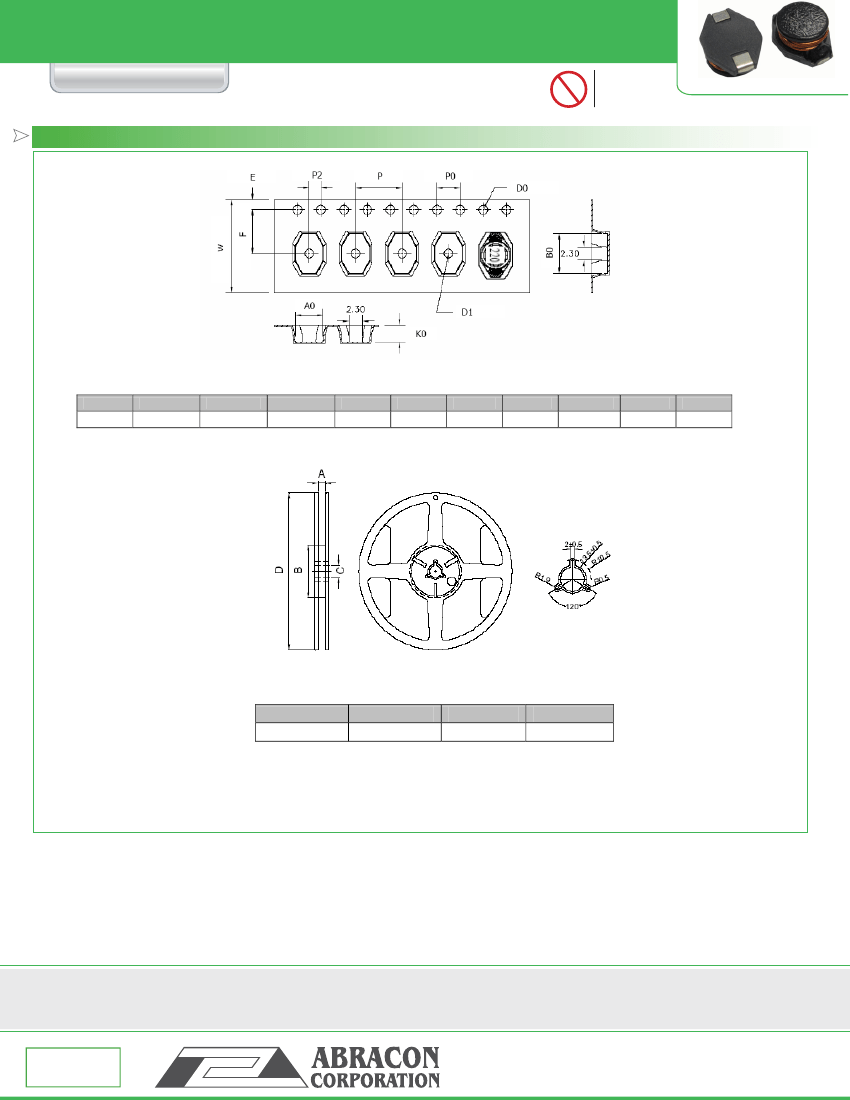

TAPE & REEL:
T= tape and reel (2500 pcs/reel)
Pb
RoHS
Compliant
6.6 x 4.45 x 2.92mm
A0
4.8±0.1
B0
7.0±0.1
K0
3.0±0.1
P
8.0±0.1
P0
4.0±0.1
P2
2.0±0.1
W
16±0.3
F
7.5±0.1
E
1.75±0.1
D0
1.5 min.
D1
1.5 min.
A
16.5±0.2
B
100±0.5
C
13.2±0.3
D
330±1.0
Dimension: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised:08.06.12
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-800
|
fax 949-546-800
| www.abracon.com
0
1
Visit www.abracon.com for Terms & Conditions of Sale
