BAT15-099LRH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT15-099LRH

BAT15-099LRH: DescriptionSILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE; CategoryDiscrete semiconductor diode; File Size977KB，17 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAT15-099LRH Overview

SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE

BAT15-099LRH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Infineon
Parts packaging code	DFN
package instruction	ROHS COMPLIANT, LEADLESS, TSLP-4-7, 4 PIN
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW NOISE
Configuration	SEPARATE, 2 ELEMENTS
Maximum diode capacitance	0.35 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
Maximum forward voltage (VF)	0.32 V
frequency band	X BAND
JESD-30 code	R-XBCC-N4
JESD-609 code	e3
Number of components	2
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	4 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	NO LEAD
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Schottky barrier type	LOW BARRIER
Base Number Matches	1

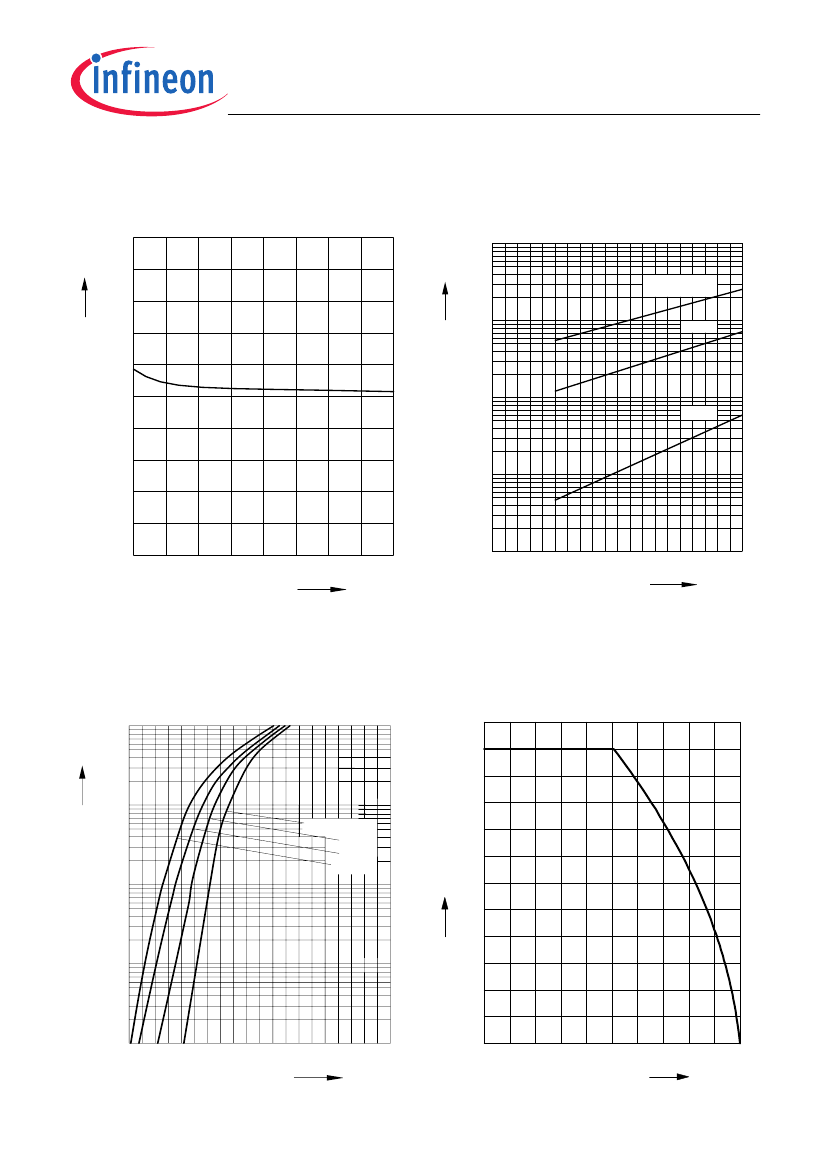

Preview

Download Datasheet

View All

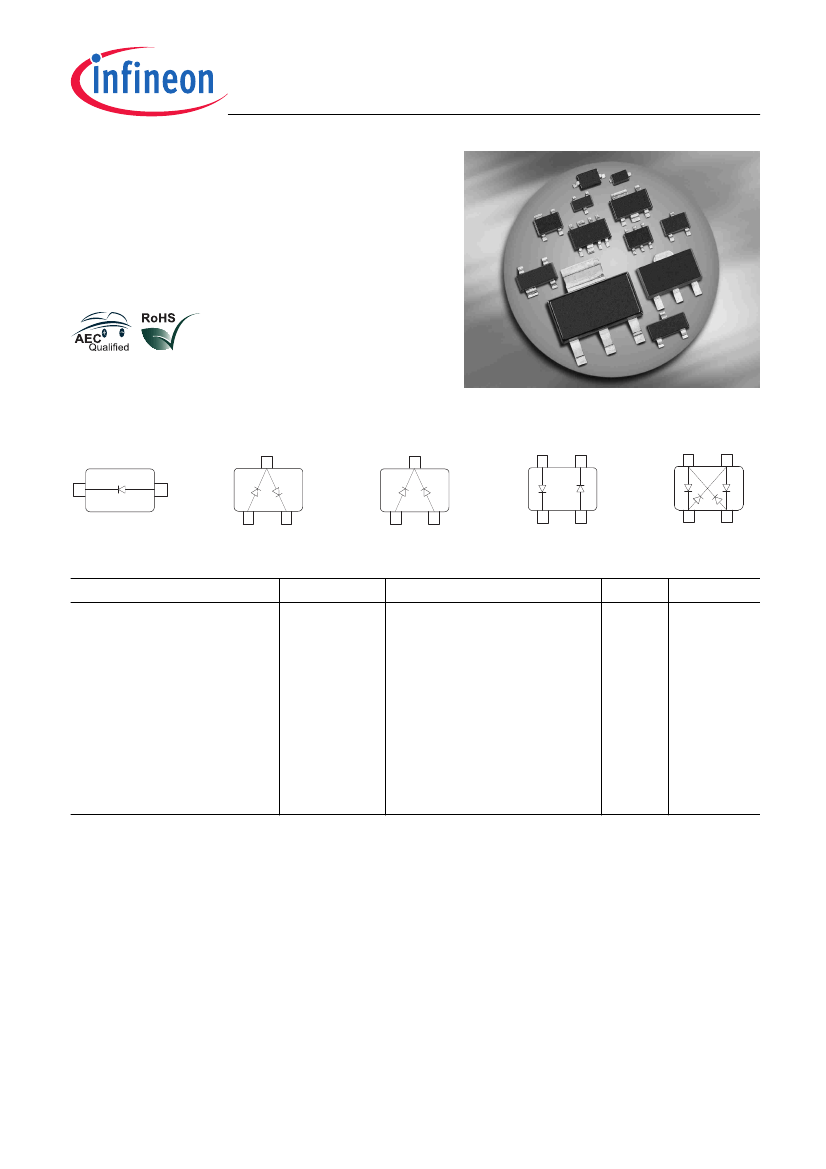

BAT15...

Silicon Schottky Diodes

•

Low barrier type for DBS mixer applications

up to 12 GHz, phase detectors and modulators

•

Low noise figure

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BAT15-02LRH

BAT15-03W

BAT15-04W

BAT15-05W

BAT15-099

BAT15-099LRH

BAT15-099R

, !

, "

ESD

(Electrostatic

discharge)

sensitive device, observe handling precaution!

Type

BAT15-02LRH

BAT15-03W

BAT15-04W

BAT15-05W

BAT15-07LRH

BAT15-098LRH

BAT15-099

BAT15-099R

BAT15-099LRH

Pb-containing

Package

TSLP-2-7

SOD323

SOT323

TSLP-4-7

SOT143

TSLP-4-7

Configuration

single, leadless

single

series

common cathode

parallel pair, leadless

anti-parallel pair, leadless

anti-parallel pair

cross-over ring

anti-parallel pair, leadless

(nH)

0.4

1.8

1.4

0.4

Marking

white P

S8s

S5s

S6s

package may be available upon special request

2010-03-05

BAT15-099LRH Related Products

	BAT15-099LRH	BAT15-05W	BAT15-098LRH	BAT15-07LRH	BAT15-099R
Description	SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE	SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE	SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE	SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE	SILICON, LOW BARRIER SCHOTTKY, X BAND, MIXER DIODE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, LEADLESS, TSLP-4-7, 4 PIN	R-PDSO-G3	ROHS COMPLIANT, LEADLESS, TSLP-4-7, 4 PIN	ROHS COMPLIANT, LEADLESS, TSLP-4-7, 4 PIN	R-PDSO-G4
Contacts	4	3	4	4	4
Reach Compliance Code	compliant	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE
Configuration	SEPARATE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	CROSSOVER RING, 4 ELEMENTS
Maximum diode capacitance	0.35 pF	0.35 pF	0.35 pF	0.35 pF	0.5 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE
frequency band	X BAND	X BAND	X BAND	X BAND	X BAND
JESD-30 code	R-XBCC-N4	R-PDSO-G3	R-XBCC-N4	R-XBCC-N4	R-PDSO-G4
Number of components	2	2	2	2	4
Number of terminals	4	3	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE	CHIP CARRIER	CHIP CARRIER	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum power dissipation	0.1 W	0.1 W	0.1 W	0.1 W	0.1 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	NO LEAD	GULL WING	NO LEAD	NO LEAD	GULL WING
Terminal location	BOTTOM	DUAL	BOTTOM	BOTTOM	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Schottky barrier type	LOW BARRIER	LOW BARRIER	LOW BARRIER	LOW BARRIER	LOW BARRIER
Maker	Infineon	Infineon	Infineon	Infineon	-
Parts packaging code	DFN	-	DFN	DFN	-
Maximum forward voltage (VF)	0.32 V	-	0.32 V	0.32 V	-
JESD-609 code	e3	-	e3	e3	-
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-
Maximum repetitive peak reverse voltage	4 V	-	4 V	4 V	-
Terminal surface	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)	-
Base Number Matches	1	-	-	1	1
