AM9080ADIB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> AM9080ADIB

AM9080ADIB: DescriptionMicroprocessor, 8-Bit, 2MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size382KB，12 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM9080ADIB Overview

Microprocessor, 8-Bit, 2MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40

AM9080ADIB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	2 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.324 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	1
Number of serial I/Os
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5,12 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	5.715 mm
speed	2 MHz
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

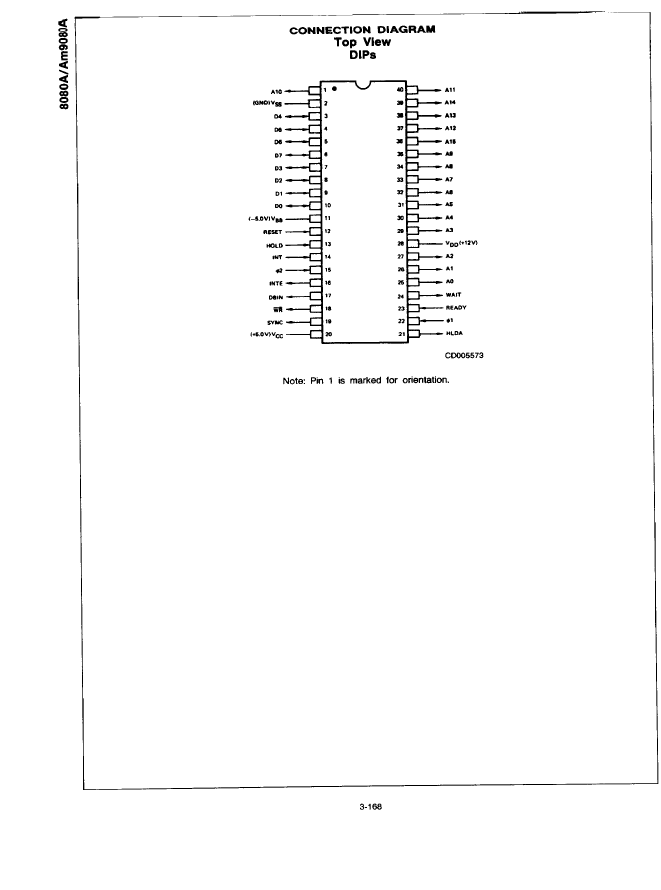

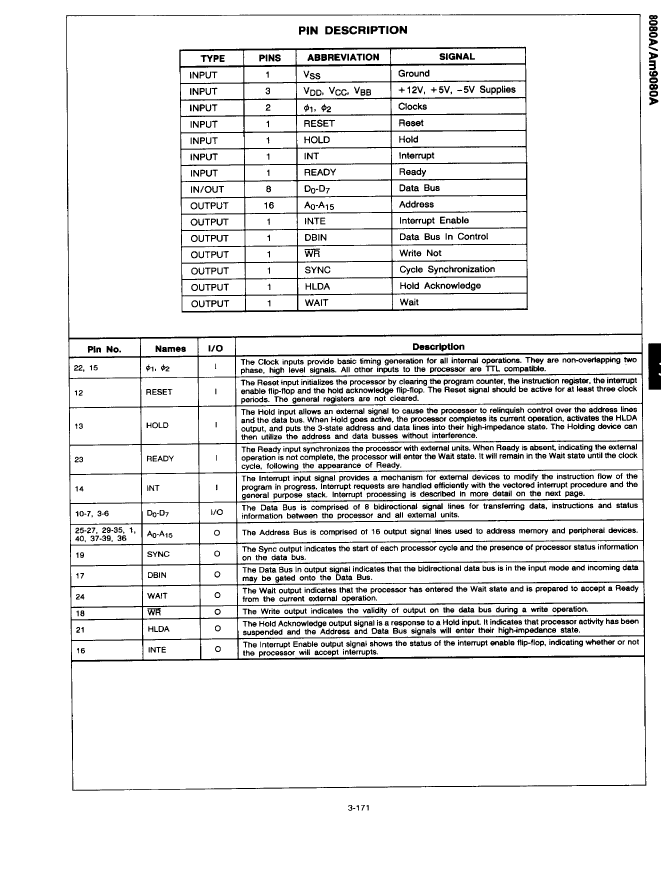

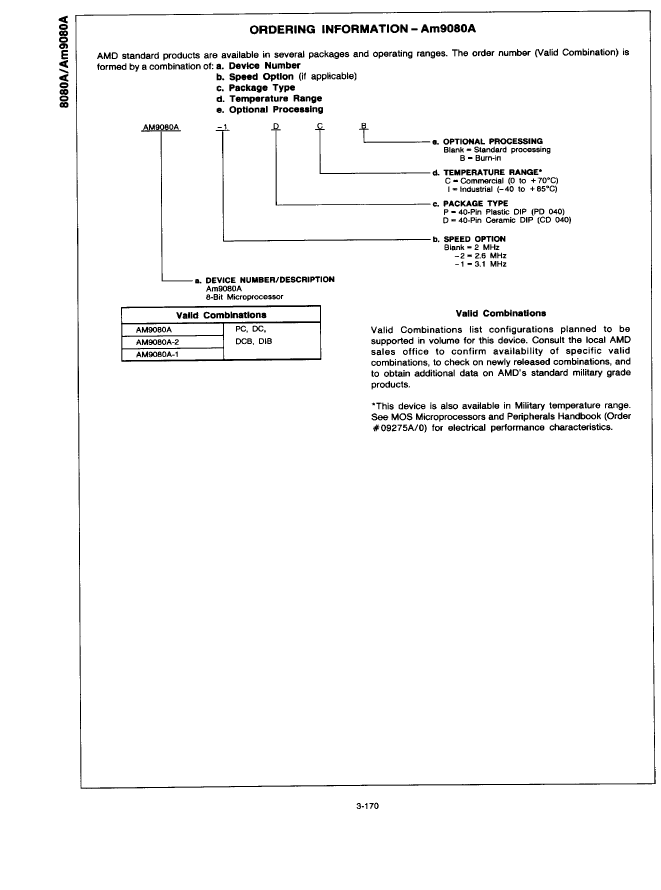

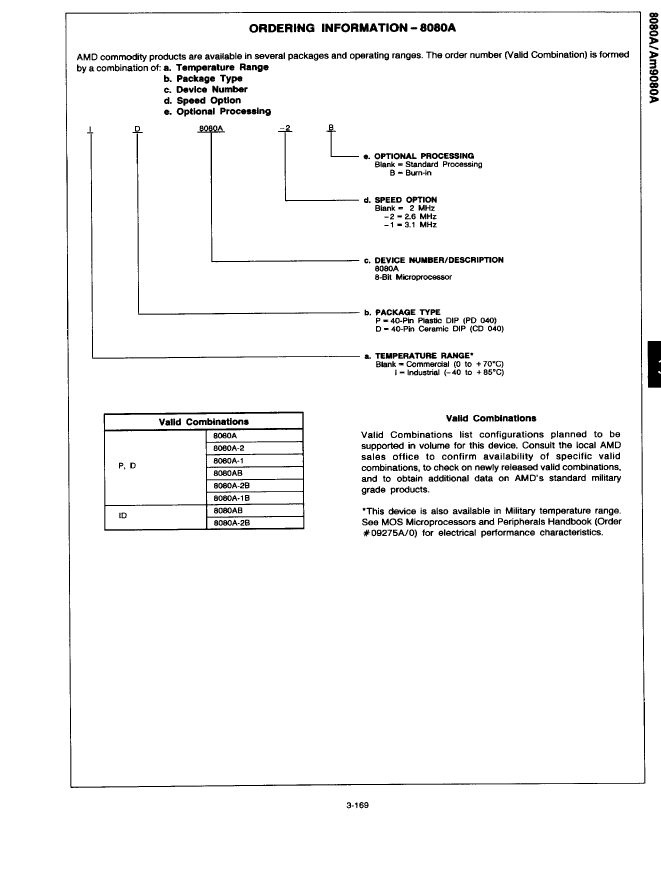

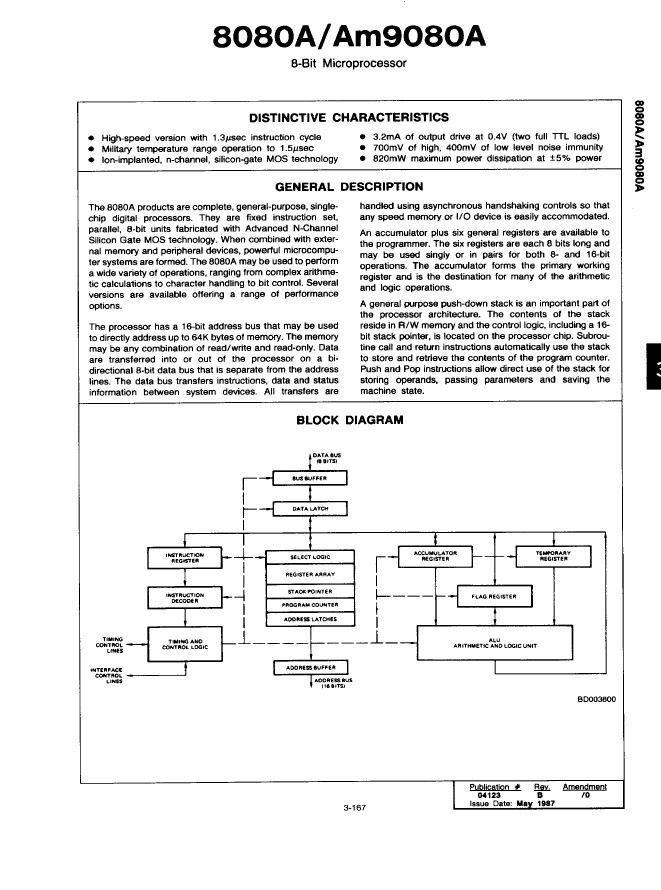

Preview

Download Datasheet

View All

AM9080ADIB Related Products

	AM9080ADIB	AM9080A-2DCB	AM9080ADC	AM9080ADCB	AM9080A-2PC	AM9080APC	AM9080A-1DC	AM9080A-1DCB	AM9080A-2DC	AM9080A-2DIB
Description	Microprocessor, 8-Bit, 2MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 2.63MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 2MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 2MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 2.63MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 8-Bit, 2MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 8-Bit, 3.12MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 3.12MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 2.63MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40	Microprocessor, 8-Bit, 2.63MHz, NMOS, CDIP40, HERMETIC SEALED, CERDIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	AMD	AMD	AMD	AMD	AMD	AMD	AMD	AMD	AMD	AMD
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Contacts	40	40	40	40	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Address bus width	16	16	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	2 MHz	2.63 MHz	2 MHz	2 MHz	2.63 MHz	2 MHz	3.12 MHz	3.12 MHz	2.63 MHz	2.63 MHz
External data bus width	8	8	8	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-PDIP-T40	R-PDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	52.324 mm	52.324 mm	52.324 mm	52.324 mm	52.0065 mm	52.0065 mm	52.324 mm	52.324 mm	52.324 mm	52.324 mm
low power mode	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Number of external interrupt devices	1	1	1	1	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40	40	40	40	40
Maximum operating temperature	85 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	85 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-5,12 V	+-5,12 V	+-5,12 V	+-5,12 V	+-5,12 V	+-5,12 V	+-5,12 V	+-5,12 V	+-5,12 V	+-5,12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.715 mm	5.715 mm	5.715 mm	5.715 mm	5.461 mm	5.461 mm	5.715 mm	5.715 mm	5.715 mm	5.715 mm
speed	2 MHz	2.63 MHz	2 MHz	2 MHz	2.63 MHz	2 MHz	3.12 MHz	3.12 MHz	2.63 MHz	2.63 MHz
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
Maximum slew rate	-	80 mA	80 mA	80 mA	80 mA	80 mA	80 mA	80 mA	80 mA	-
Maximum supply voltage	-	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	-
Minimum supply voltage	-	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	-
