55091-2479

Description

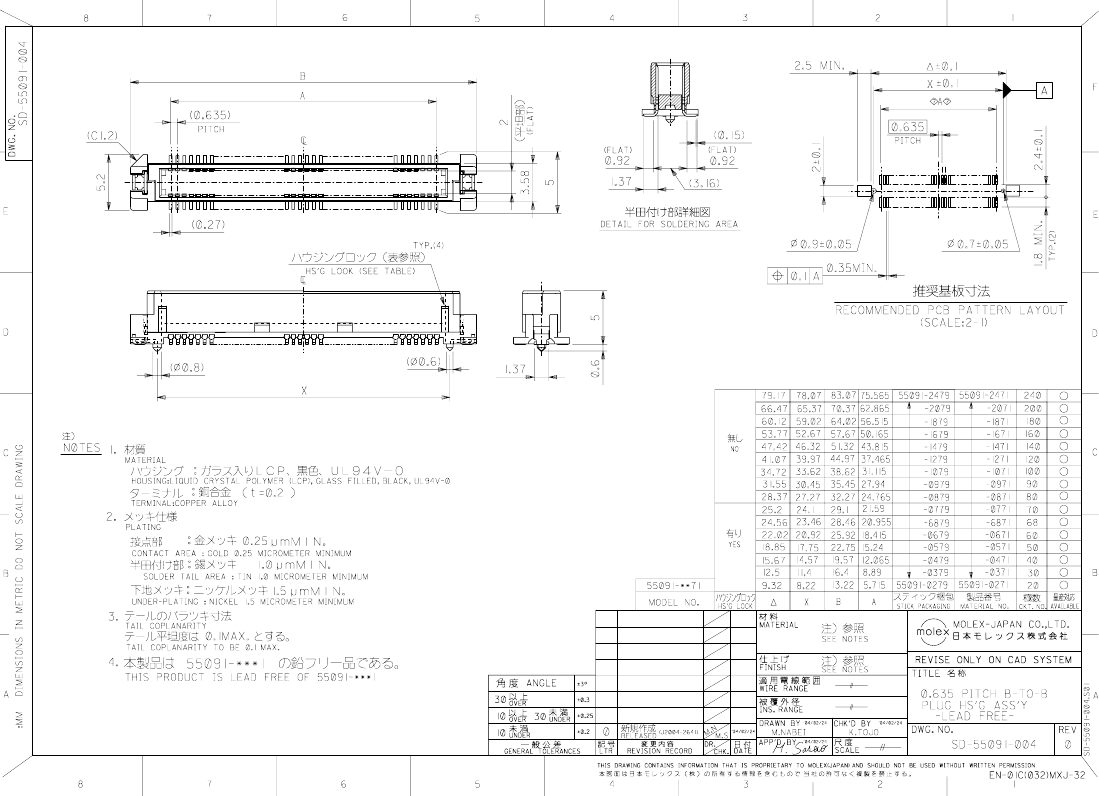

Board Stacking Connector, 240 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug, LEAD FREE
CategoryThe connector    The connector
File Size105KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

55091-2479 Overview

Board Stacking Connector, 240 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug, LEAD FREE

55091-2479 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS,ELV COMPLIANT
Board mount optionsPEG
body width0.205 inch
subject depth0.197 inch
body length3.27 inch
Body/casing typePLUG
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
DIN complianceNO
Filter functionNO
IEC complianceNO
maximum insertion force.695 N
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.025 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness10u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.635 mm
Termination typeSURFACE MOUNT
Total number of contacts240
UL Flammability Code94V-0
