TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092D − SEPTEMBER 1987 − REVISED MARCH 2001
D
Trimmed Offset Voltage:
D
D
D
D
D
D
D
D
D
D
description
NC − No internal connection
The TLC274 and TLC279 quad operational
amplifiers combine a wide range of input offset
voltage grades with low offset voltage drift, high
input impedance, low noise, and speeds
approaching that of general-purpose BiFET
devices.
Percentage of Units − %
DISTRIBUTION OF TLC279
INPUT OFFSET VOLTAGE
30
290 Units Tested From 2 Wafer Lots
VDD = 5 V
TA = 25°C
N Package
25
These devices use Texas Instruments silicon-
gate LinCMOS technology, which provides
offset voltage stability far exceeding the stability
available
with
conventional
metal-gate
processes.
The extremely high input impedance, low bias
currents, and high slew rates make these
cost-effective devices ideal for applications which
have previously been reserved for BiFET and
NFET products. Four offset voltage grades are
available (C-suffix and I-suffix types), ranging
from the low-cost TLC274 (10 mV) to the high-
precision TLC279 (900
µV).
These advantages, in
combination with good common-mode rejection
and supply voltage rejection, make these devices
a good choice for new state-of-the-art designs as
well as for upgrading existing designs.
LinCMOS is a trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
20
15
10
5
0
−1200
2IN −
2OUT
NC
3OUT
3IN −
TLC279 . . . 900
µV
Max at 25°C,
V
DD
= 5 V
Input Offset Voltage Drift . . . Typically
0.1
µV/Month,
Including the First 30 Days
Wide Range of Supply Voltages Over
Specified Temperature Range:
0°C to 70°C . . . 3 V to 16 V
−40°C to 85°C . . . 4 V to 16 V
−55°C to 125°C . . . 4 V to 16 V
Single-Supply Operation
Common-Mode Input Voltage Range
Extends Below the Negative Rail (C-Suffix
and I-Suffix Versions)
Low Noise . . . Typically 25 nV/√Hz
at f = 1 kHz
Output Voltage Range Includes Negative
Rail
High Input Impedance . . . 10
12
Ω
Typ
ESD-Protection Circuitry
Small-Outline Package Option Also
Available in Tape and Reel
Designed-In Latch-Up Immunity
D, J, N, OR PW PACKAGE
(TOP VIEW)
1OUT
1IN −
1IN +
V
DD
2IN +
2IN −
2OUT
1
2
3
4
5
6
7
14
13
12
11
10
9
8
4OUT
4IN −
4IN +
GND
3IN +
3IN −
3OUT
FK PACKAGE
(TOP VIEW)
1IN +
NC
V
DD
NC
2IN +
4
5
6
7
8
3 2 1 20 19
18
17
16
15
14
9 10 11 12 13
1IN −
1OUT
NC
4OUT
4IN −
4IN +
NC
GND
NC
3IN +
−600
0
600
VIO − Input Offset Voltage −
µV
1200
Copyright
2001, Texas Instruments Incorporated
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
1
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092D − SEPTEMBER 1987 − REVISED MARCH 2001
description (continued)
In general, many features associated with bipolar technology are available on LinCMOS operational
amplifiers, without the power penalties of bipolar technology. General applications such as transducer
interfacing, analog calculations, amplifier blocks, active filters, and signal buffering are easily designed with the
TLC274 and TLC279. The devices also exhibit low voltage single-supply operation, making them ideally suited
for remote and inaccessible battery-powered applications. The common-mode input voltage range includes the
negative rail.
A wide range of packaging options is available, including small-outline and chip-carrier versions for high-density
system applications.
The device inputs and outputs are designed to withstand −100-mA surge currents without sustaining latch-up.
The TLC274 and TLC279 incorporate internal ESD-protection circuits that prevent functional failures at voltages
up to 2000 V as tested under MIL-STD-883C, Method 3015.2; however, care should be exercised in handling
these devices as exposure to ESD may result in the degradation of the device parametric performance.
The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized
for operation from − 40°C to 85°C. The M-suffix devices are characterized for operation over the full military
temperature range of −55°C to 125°C.
AVAILABLE OPTIONS
PACKAGED DEVICES
TA
VIOmax
AT 25°C
900
µV
2 mV
5 mV
10 mV
900
µV
2 mV
5 mV
10 mV
900
µV
10 mV
SMALL
OUTLINE
(D)
TLC279CD
TLC274BCD
TLC274ACD
TLC274CD
TLC279ID
TLC274BID
TLC274AID
TLC274ID
TLC279MD
TLC274MD
CHIP
CARRIER
(FK)
—
—
—
—
—
—
—
—
TLC279MFK
TLC274MFK
CERAMIC
DIP
(J)
—
—
—
—
—
—
—
—
TLC279MJ
TLC274MJ
PLASTIC
DIP
(N)
TLC279CN
TLC274BCN
TLC274ACN
TLC274CN
TLC279IN
TLC274BIN
TLC274AIN
TLC274IN
TLC279MN
TLC274MN
TSSOP
(PW)
—
—
—
TLC274CPW
—
—
—
—
—
—
CHIP
FORM
(Y)
—
—
—
TLC274Y
—
—
—
—
—
—
0°C to 70°C
−40°C to 85°C
−55°C to 125°C
The D package is available taped and reeled. Add R suffix to the device type (e.g., TLC279CDR).
2
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092D − SEPTEMBER 1987 − REVISED MARCH 2001
equivalent schematic (each amplifier)
VDD
P3
P4
R6
R1
IN −
P2
R2
N5
P5
P6
P1
IN +
R5
C1
OUT
N3
N1
R3
N2
D1
R4
D2
N4
N6
R7
N7
GND
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
3
TLC274, TLC274A, TLC274B, TLC274Y, TLC279
LinCMOS PRECISION QUAD OPERATIONAL AMPLIFIERS
SLOS092D − SEPTEMBER 1987 − REVISED MARCH 2001

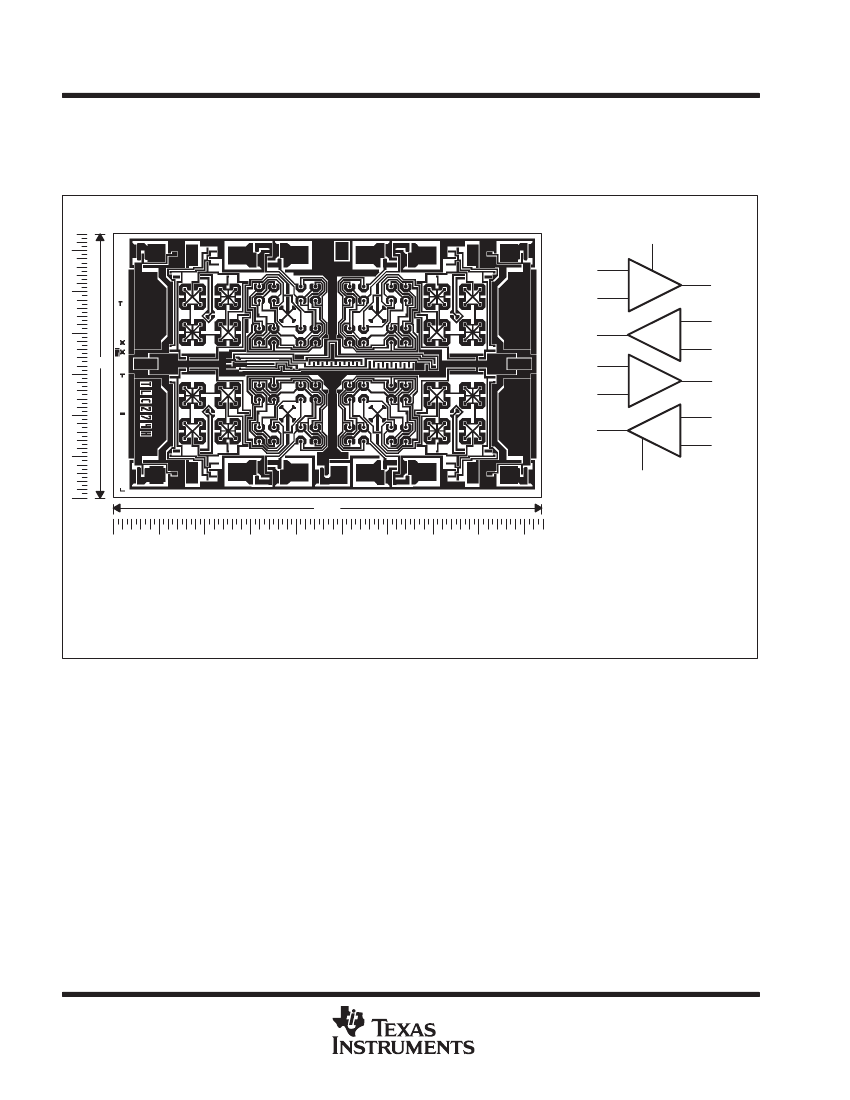

TLC274Y chip information
These chips, when properly assembled, display characteristics similar to the TLC274C. Thermal compression
or ultrasonic bonding may be used on the doped-aluminum bonding pads. Chips may be mounted with
conductive epoxy or a gold-silicon preform.
BONDING PAD ASSIGNMENTS
(14)
(12) (11)
(8)
1IN +
1IN −
(2)
(7)
2OUT
68
(10)
3IN +
(9)
3IN −
4OUT
(14)
−
+
−
+
−
11
(1)
(2)
(3)
(4)
108
CHIP THICKNESS: 15 TYPICAL
BONDING PADS: 4
×
4 MINIMUM
TJmax = 150°C
TOLERANCES ARE
±
10%.
ALL DIMENSIONS ARE IN MILS.
PIN (11) IS INTERNALLY CONNECTED
TO BACK SIDE OF CHIP.
(5)
(6)
(7)
GND
(12)
(13)
4IN +
4IN −
VDD
(4)
+
−
+
(5)
(6)
(8)
3OUT
2IN +
2IN −
(1)
1OUT
(13)
(10)
(9)
(3)
4
POST OFFICE BOX 655303
•
DALLAS, TEXAS 75265
