CL05B221JB5NNNC datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CL05B221JB5NNNC

CL05B221JB5NNNC: DescriptionCapacitor, Ceramic, Chip, General Purpose, 220pF, 50V, ±5%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel; CategoryPassive components capacitor; File Size268KB，3 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance; Related ProductsFound20parts with similar functions to CL05B221JB5NNNC

Download Datasheet Parametric View All

CL05B221JB5NNNC Overview

Capacitor, Ceramic, Chip, General Purpose, 220pF, 50V, ±5%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel

CL05B221JB5NNNC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	0402
package instruction	, 0402
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.00022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, CARDBOARD PAPER, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	0.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

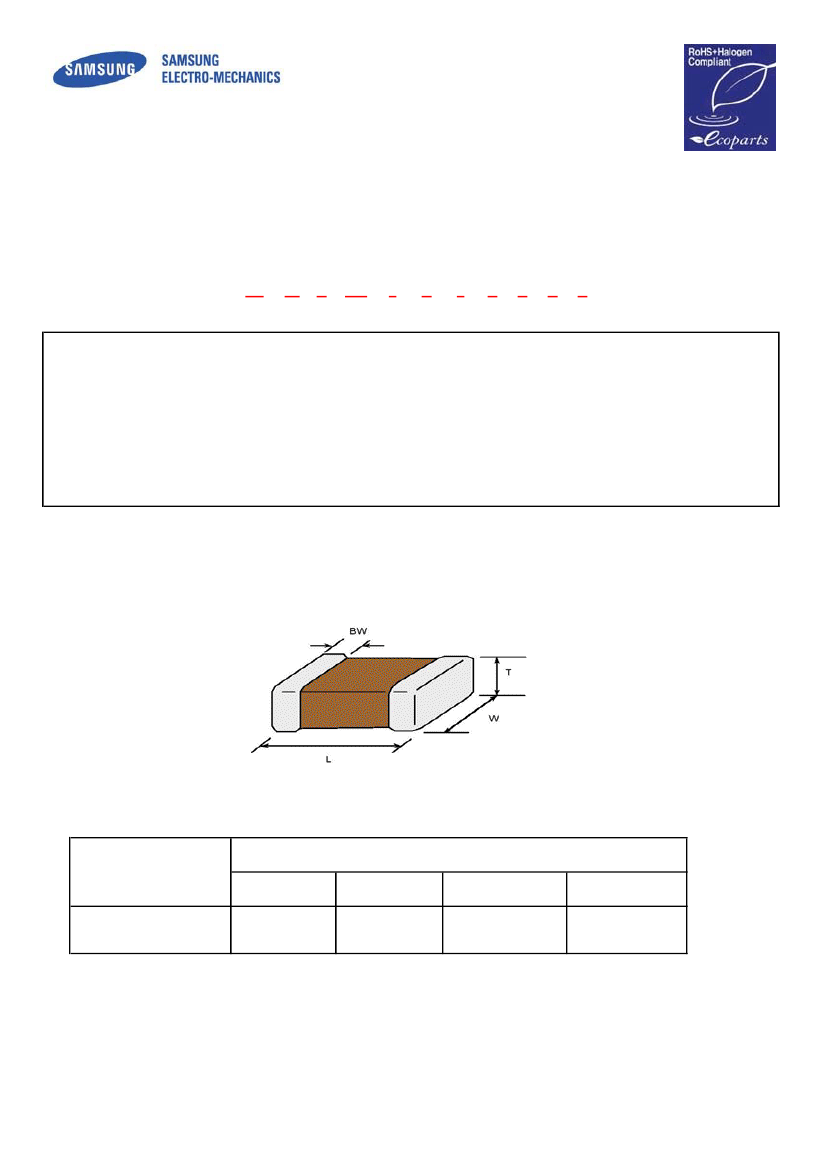

SPECIFICATION

· Supplier : Samsung electro-mechanics

· Product : Multi-layer Ceramic Capacitor

A. Samsung Part Number

①

Series

②

Size

③

Dielectric

④

Capacitance

⑤

Capacitance

tolerance

⑥

Rated Voltage

⑦

Thickness

②

③

221

④

⑤

⑥

⑦

⑧

· Samsung P/N:

· Description :

(Reference sheet)

CL05B221JB5NNNC

CAP, 220pF, 50V, ±5%, X7R, 0402

⑨

⑩

⑪

Samsung Multi-layer Ceramic Capacitor

0402 (inch code)

1.00 ± 0.05 ㎜

X7R

220 pF

±5 %

50 V

0.50 ± 0.05 ㎜

⑧

Inner electrode

Termination

Plating

⑨

Product

⑩

Special

⑪

Packaging

0.50 ± 0.05 ㎜

Sn 100%

(Pb Free)

Normal

Reserved for future use

Cardboard Type, 7" reel

B. Structure & Dimension

Dimension(㎜)

Samsung P/N

CL05B221JB5NNNC

1.00 ± 0.05

0.50 ± 0.05

0.25 ± 0.10

Recommended Resources

Overcurrent detection circuit

HM4246 touch step dimming light circuit

LA3220 audio preamplifier circuit diagram

Tape recorder preamplifier circuit using LM382 and NE532

traffic light controller

CL05B221JB5NNNC Similar Products

Part Number	Manufacturer	Description
C0402T221J5RBLTM	KEMET(基美)	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0402, CHIP
C0402T221J5RCCTM	KEMET(基美)	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT
VJ0402Y221JXAPW1BC	Vishay(威世)	Multilayer Ceramic Capacitors MLCC - SMD/SMT 0402 220pF 50volts X7R 5%
C0402T221J5RAC7867	KEMET(基美)	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0402, CHIP
CC0402JRX7R9BB221	YAGEO(国巨)	精度：±5% 容值：220pF 额定电压：50V 温漂系数（介质材料)：X7R X7R
VJ0402Y221JXACW1BC	Vishay(威世)	Multilayer Ceramic Capacitors MLCC - SMD/SMT 0402 220pF 50volts X7R 5%
500R07W221JV4-RC	Johanson Dielectrics	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0402, CHIP
VJ0402Y221JXATW1BC	Vishay(威世)	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT
04025C221J4Z2A	AVX	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0402, CHIP
VJ0402Y221JXARW1BC	Vishay(威世)	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT
VJ0402Y221JXAAT	Vishay(威世)	CAPACITOR, CERAMIC, MULTILAYER, 50 V, X7R, 0.00022 uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT
04025C221J4Z4A	AVX	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0402, CHIP
500R07W221JV4T-RC	Johanson Dielectrics	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00022uF, Surface Mount, 0402, CHIP
VJ0402Y221JNAAB	Vishay(威世)	CAPACITOR, CERAMIC, MULTILAYER, 50 V, X7R, 0.00022 uF, SURFACE MOUNT, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT
GRM36X7R221J050AJ	Murata(村田)	CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.00022uF, SURFACE MOUNT, 0402, CHIP
GRM36X7R221J050AD	Murata(村田)	CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.00022uF, SURFACE MOUNT, 0402, CHIP
GRM36X7R221J050AB	Murata(村田)	CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.00022uF, SURFACE MOUNT, 0402, CHIP
GRM36X7R221J050AC	Murata(村田)	CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.00022uF, SURFACE MOUNT, 0402, CHIP
VJ0402Y221JNAAB2L	Vishay(威世)	CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.00022uF, SURFACE MOUNT, 0402, CHIP
GRM36X7R221J050AQ	Murata(村田)	CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.00022uF, SURFACE MOUNT, 0402, CHIP
