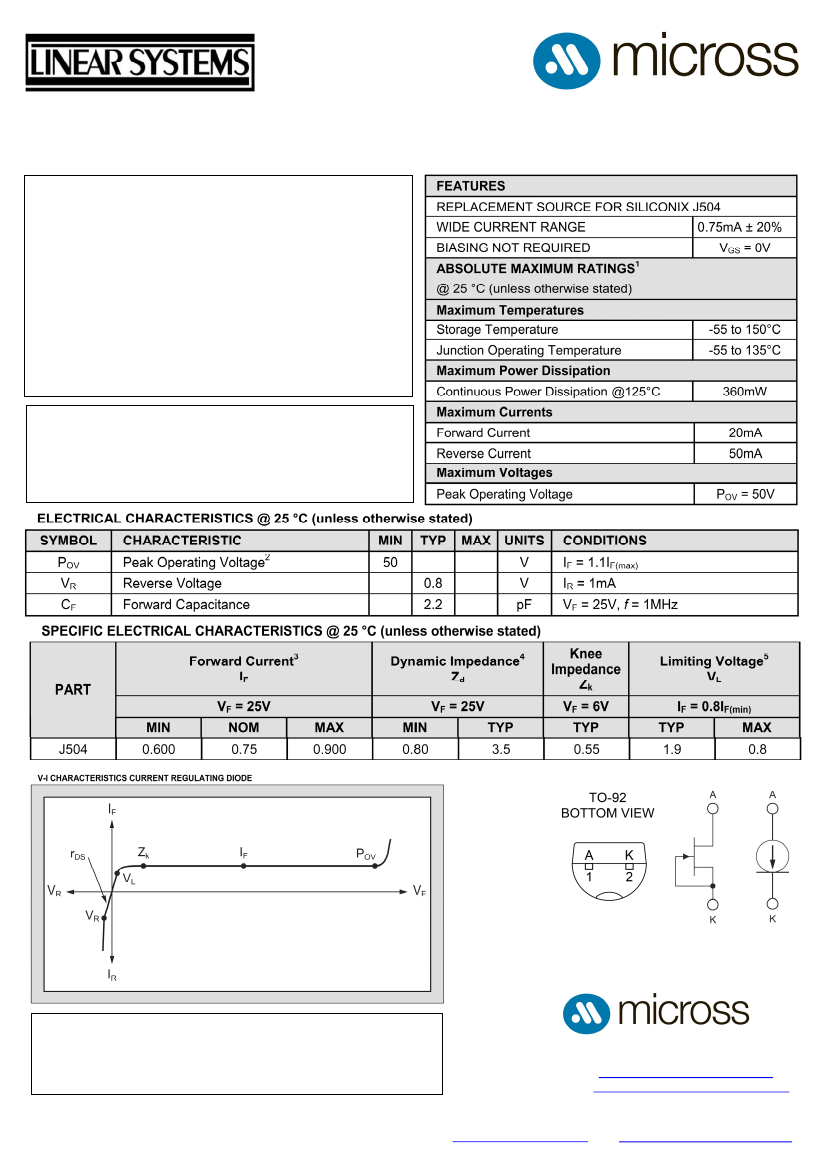

LSJ504
Current Regulator Diode
Linear Systems replaces discontinued Siliconix J504
The Linear Systems LSJ504 is a ± 20% range current regulator
The LSJ504 is a ±20% range current regulator designed for
demanding applications in test equipment and instrumentation.
The LSJ504 utilizes JFET techniques to produce a single two-
leaded device which is extremely simple to operate.
•
•
•
•
•
•
•
•
Two-Lead Plastic Package
Guaranteed ±20% Tolerance
Operation up to 50V
Excellent Temperature Stability
Simple Series Circuitry, No Separate Voltage Source
Tight Guaranteed Circuit Performance
Excellent Performance in Low-Voltage/Battery Circuits
and High-Voltage Spike Protection
High Circuit Stability vs. Temperature
LSJ504 Applications:
•
•
•
Constant-Current Supply
Current-Limiting
Timing Circuits
Available
Packages:
TO-92
Bare Die.
Please contact Micross for full package and die dimensions
Micross Components Europe
Notes:
1. Absolute maximum ratings are limiting values above which serviceability may be impaired.
2. Pulsed, t = 2ms. Maximum V
F
where IF < 1.1
IF
(max).
3. Pulsed, t = 2ms. Continuous currents may vary.
4. Pulsed, t = 2ms. Continuous impedances may vary.
5. Min V
F
required to ensure I
F
= 0.8
IF
(min).
Tel: +44 1603 788967
Email:
chipcomponents@micross.com
Web:
http://www.micross.com/distribution
Information furnished by Linear Integrated Systems and Micross Components is believed to be accurate and reliable. However, no responsibility is assumed for its use; nor for any infringement of
patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Linear Integrated Systems.
