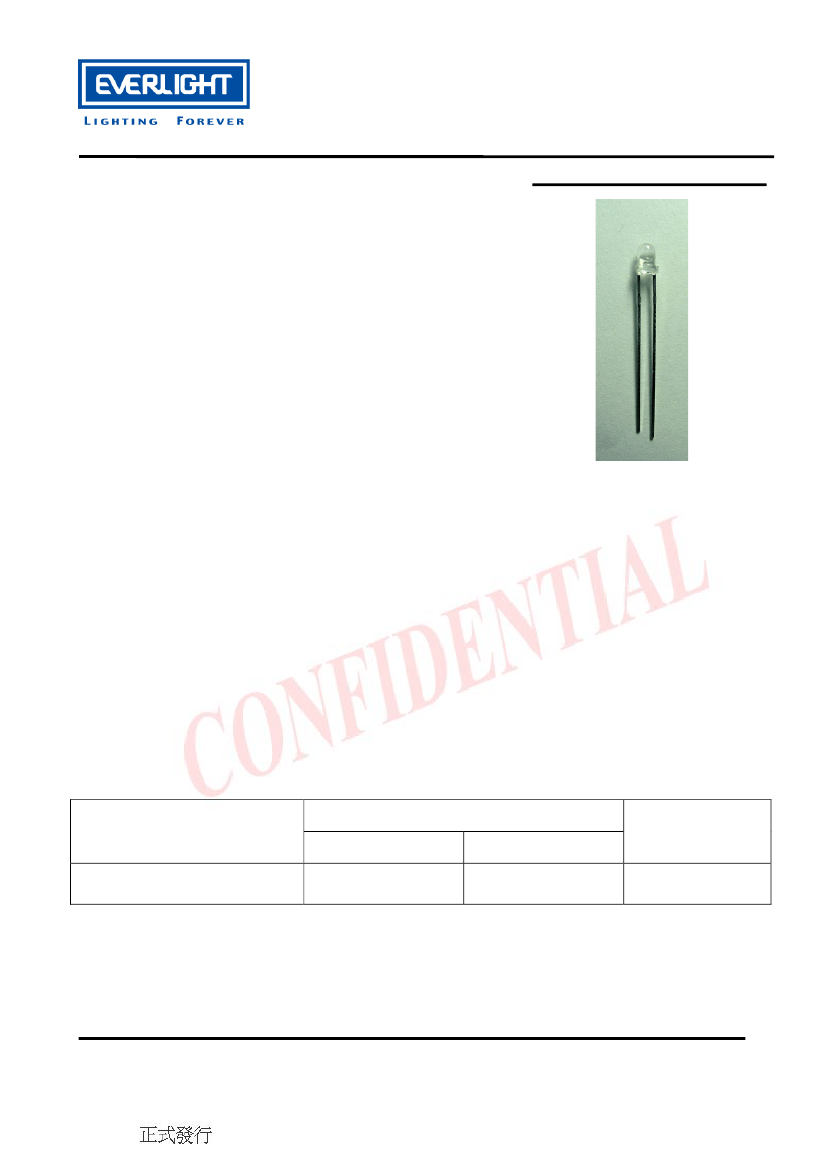

Technical Data Sheet
204-15/T1C3-4QSA
Features
․Popular
T-1 round package
․
High luminous power.
․Typical
chromaticity coordinates x=0.30, y=0.29
according to CIE1931.
․Bulk,
available taped on reel.
․ESD-withstand
voltage: up to 4KV
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
series is designed for application required
high luminous intensity.
․The
phosphor filled in the reflector converts the
blue emission of InGaN chip to ideal white.
Applications
․Message
panels
․Optical
Indicators
․Backlighting
․Marker
Lights
Device Selection Guide
PART NO.
204-15/T1C3-4QSA
Chip
Material
InGaN
Emitted Color
White
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device Number:
DLE-0001425
http\\:www.everlight.com
Established date:05-12-2009
Rev
1
Page: 1 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-05-13 20:07:53.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
204-15/T1C3-4QSA

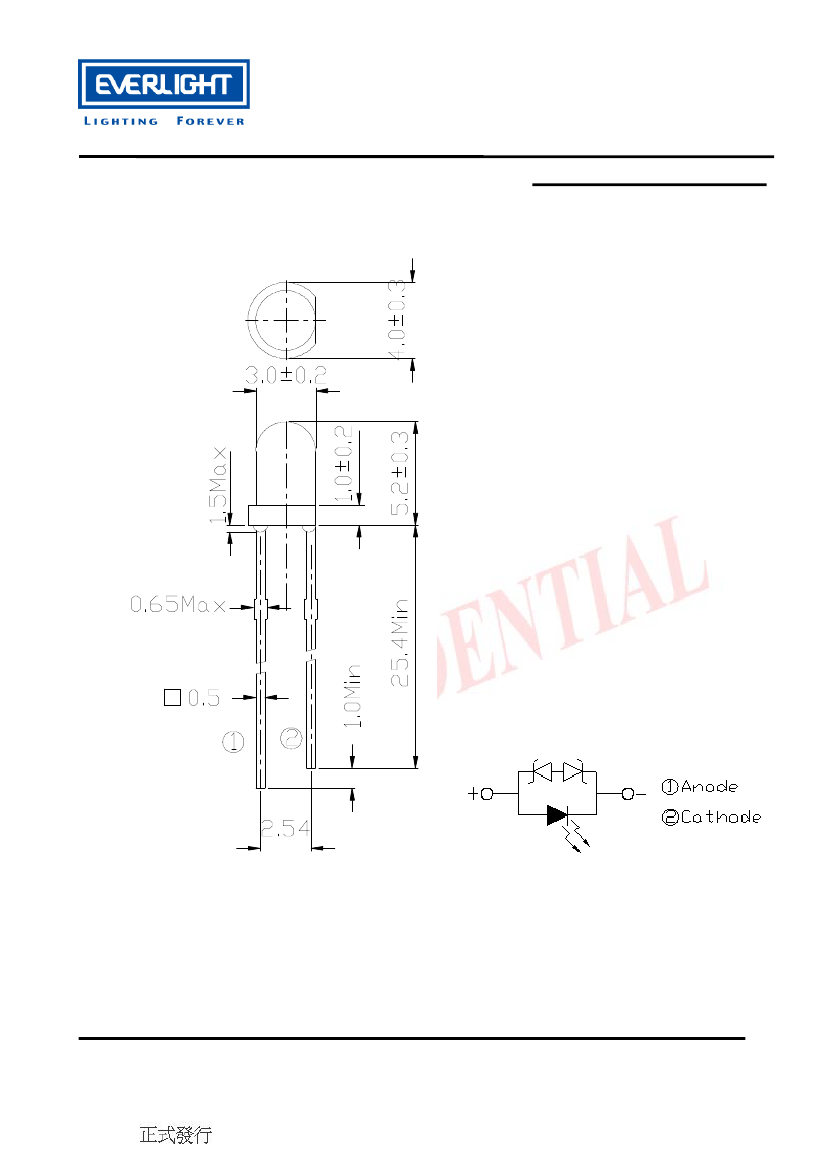

Package Dimensions
Notes:
1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified.
2.Lead spacing is measured where the lead emerges from the package.
3.Protruded resin under flange is 1.5mm Max. LED.
Everlight Electronics Co., Ltd.
Device Number:
DLE-0001425
http\\:www.everlight.com
Established date:05-12-2009
Rev
1
Page: 2 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-05-13 20:07:53.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
204-15/T1C3-4QSA
Absolute Maximum Ratings (Ta=25
℃
)
Parameter
Continuous Forward Current
Peak Forward Current(Duty /10 @ 1KHZ)
Zener Reverse Current
Operating Temperature
Storage Temperature
Reverse Voltage
Soldering Temperature (T=5 sec)
Power Dissipation
Electrostatic Discharge
Symbol
I
F
I
FP
Iz
T
opr
T
stg
V
R
T
sol
P
d
ESD
Rating
30
100
100
-40 ~ +85
-40 ~ +100
5
260
110
4K
Unit
mA
mA
mA
℃
℃
V
℃
mW
V
Everlight Electronics Co., Ltd.
Device Number:
DLE-0001425
http\\:www.everlight.com
Established date:05-12-2009
Rev
1
Page: 3 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-05-13 20:07:53.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
204-15/T1C3-4QSA
Production Designation
204-15/T1C3-
□□□□
Voltage Group
Luminous Intensity Bins
Color Group
Electro-Optical Characteristics (Ta=25
℃
)
Parameter
Forward Voltage
Reverse Current
Zener Reverse Voltage
Luminous Intensity
Viewing Angle
Symbol
V
F
I
R
Vz
I
V
2θ1/2
x
Chromaticity Coordinates
y
I
F
=20mA
--
0.29
--
--
Condition
I
F
=20mA
V
R
=5V
Iz=5mA
I
F
=20mA
I
F
=20mA
Min.
2.8
--
5.2
3600
--
--
Typ.
--
--
--
--
30
0.30
Max.
3.6
50
--
7150
--
--
Units
V
uA
V
mcd
deg
--
Everlight Electronics Co., Ltd.
Device Number:
DLE-0001425
http\\:www.everlight.com
Established date:05-12-2009
Rev
1
Page: 4 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-05-13 20:07:53.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
204-15/T1C3-4QSA
Luminous Intensity Combination (
mcd at 20mA)
Rank
Q
R
S
Min
3600
4500
5650
Max
4500
5650
7150
*Measurement Uncertainty of Luminous Intensity: ±10%
Forward Voltage Combination (
V at 20mA)
Rank
Forward Voltage
0
2.8~3.0
1
3.0~3.2
2
3.2~3.4
3
3.4~3.6
*Measurement Uncertainty of Forward Voltage：±0.1V
Color Combination ( at 20mA)
Group
4
Bins
A0+ B5+B6
Everlight Electronics Co., Ltd.
Device Number:
DLE-0001425
http\\:www.everlight.com
Established date:05-12-2009
Rev
1
Page: 5 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-05-13 20:07:53.0
Expired Period: Forever
LifecyclePhase:
