STA3KA13.6JE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> STA3KA13.6JE

STA3KA13.6JE: DescriptionUNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR; CategoryDiscrete semiconductor diode; File Size76KB，3 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

STA3KA13.6JE Overview

UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

STA3KA13.6JE Parametric

Parameter Name	Attribute value
Maker	SSDI
Parts packaging code	TO-257JE
package instruction	R-MSFM-P2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Breakdown voltage nominal value	13.6 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-MSFM-P2
Maximum non-repetitive peak reverse power dissipation	3000 W
Number of components	1
Number of terminals	2
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
polarity	UNIDIRECTIONAL
Maximum power dissipation	10 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	11 V
surface mount	NO
technology	AVALANCHE
Terminal form	PIN/PEG
Terminal location	SINGLE

Preview

Download Datasheet

View All

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

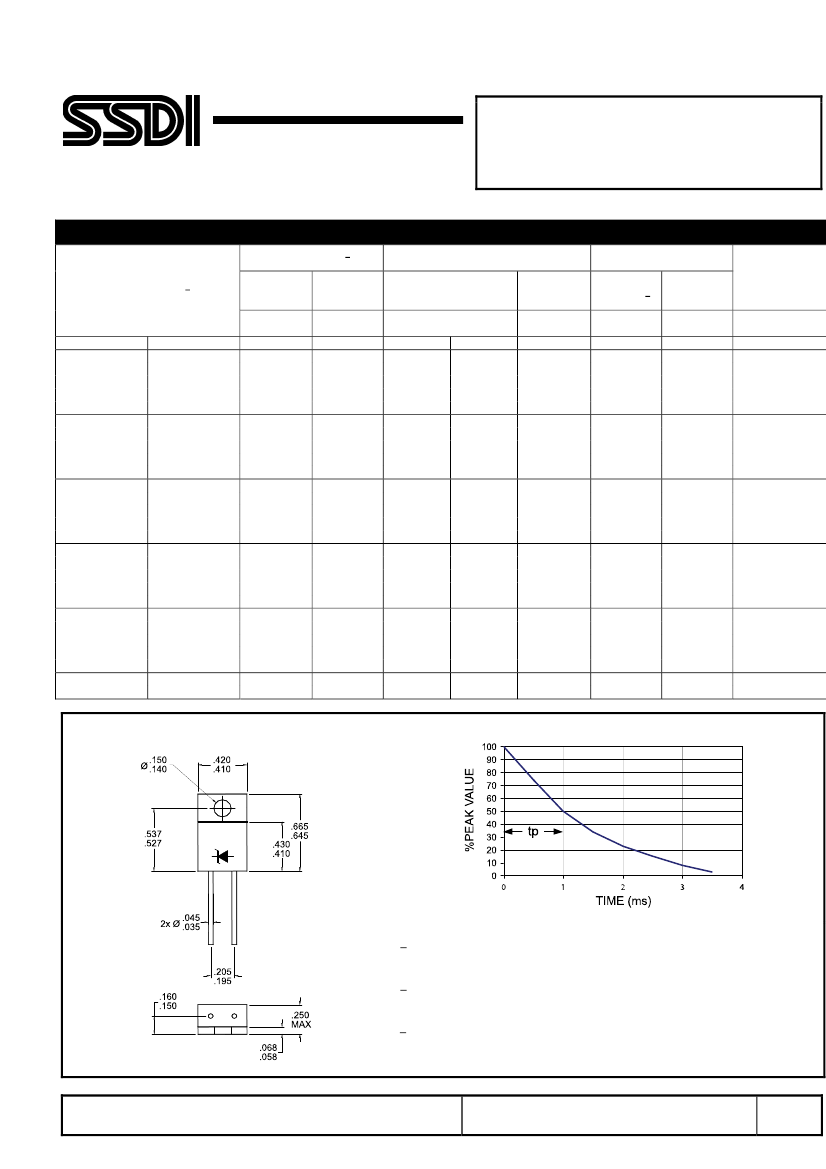

STA3KA13.6JE

thru

STA3KA800JE

3,000 WATT

PEAK PULSE POWER

UNIDIRECTIONAL TRANSIENT

VOLTAGE SUPPRESSOR

13.6 – 800 VOLTS

FEATURES:



13.6 – 800 volts unidirectional in TO-257 package

Glass passivated junction, epoxy encapsulated assembly

Meets all environmental requirements of MIL-PRF-19500

Custom configuration available

Reverse polarity available (add suffix “R”)

150°C maximum operating temperature

TX and TXV level screening available

DESIGNER’S DATA SHEET

Part Number / Ordering Information

STA3K __ __ __ __

│

│ │ └

Screening

= Not Screened

TX = TX Level

│

│ │

TXV = TXV Level

│

│ │

│

│ │

│ └

Package

│

JE = TO-257JE

│

└

Voltage

13.6 – 800 Volts

│

└

Voltage Tolerance

A = 10%

B = 5%

APPLICATIONS:



Voltage sensitive components protection



Protection against power interruption



Lightning protection

MAXIMUM RATINGS

Stand Off Voltage

Steady State Power Dissipation

Peak Pulse Power @ 1.0 msec

Peak Surge Current

(8.3 ms pulse, half sine wave)

Operating and Storage Temperature

Symbol

Value

13.6 - 800

3000

200

-65 to +150

Units

RWM

FSM

& T

stg

Volts

Watts

Amps

°C

NOTES:

1/ For ordering information, price, and availability – contact factory.

2/ Screening based on MIL-PRF-19500. Screening flows available on request.

3/ SSDI’s Transient Voltage Suppressors offer standard breakdown voltage tolerances of ±10% (A)

and ±5% (B). For other voltages and voltage tolerances, contact SSDI’s Marketing Department.

TO-257JE

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: TVS001D

DOC

STA3KA13.6JE Related Products

	STA3KA13.6JE	STA3KA13.6JE_1	STA3KA800JE
Description	UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR	UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR	UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
Maker	SSDI	-	SSDI
Parts packaging code	TO-257JE	-	TO-257JE
package instruction	R-MSFM-P2	-	R-MSFM-P2
Contacts	2	-	2
Reach Compliance Code	compli	-	compli
ECCN code	EAR99	-	EAR99
Breakdown voltage nominal value	13.6 V	-	800 V
Configuration	SINGLE	-	SINGLE
Diode component materials	SILICON	-	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	-	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-MSFM-P2	-	R-MSFM-P2
Maximum non-repetitive peak reverse power dissipation	3000 W	-	3000 W
Number of components	1	-	1
Number of terminals	2	-	2
Package body material	METAL	-	METAL
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	FLANGE MOUNT	-	FLANGE MOUNT
polarity	UNIDIRECTIONAL	-	UNIDIRECTIONAL
Maximum power dissipation	10 W	-	10 W
Certification status	Not Qualified	-	Not Qualified
Maximum repetitive peak reverse voltage	11 V	-	648 V
surface mount	NO	-	NO
technology	AVALANCHE	-	AVALANCHE
Terminal form	PIN/PEG	-	PIN/PEG
Terminal location	SINGLE	-	SINGLE
