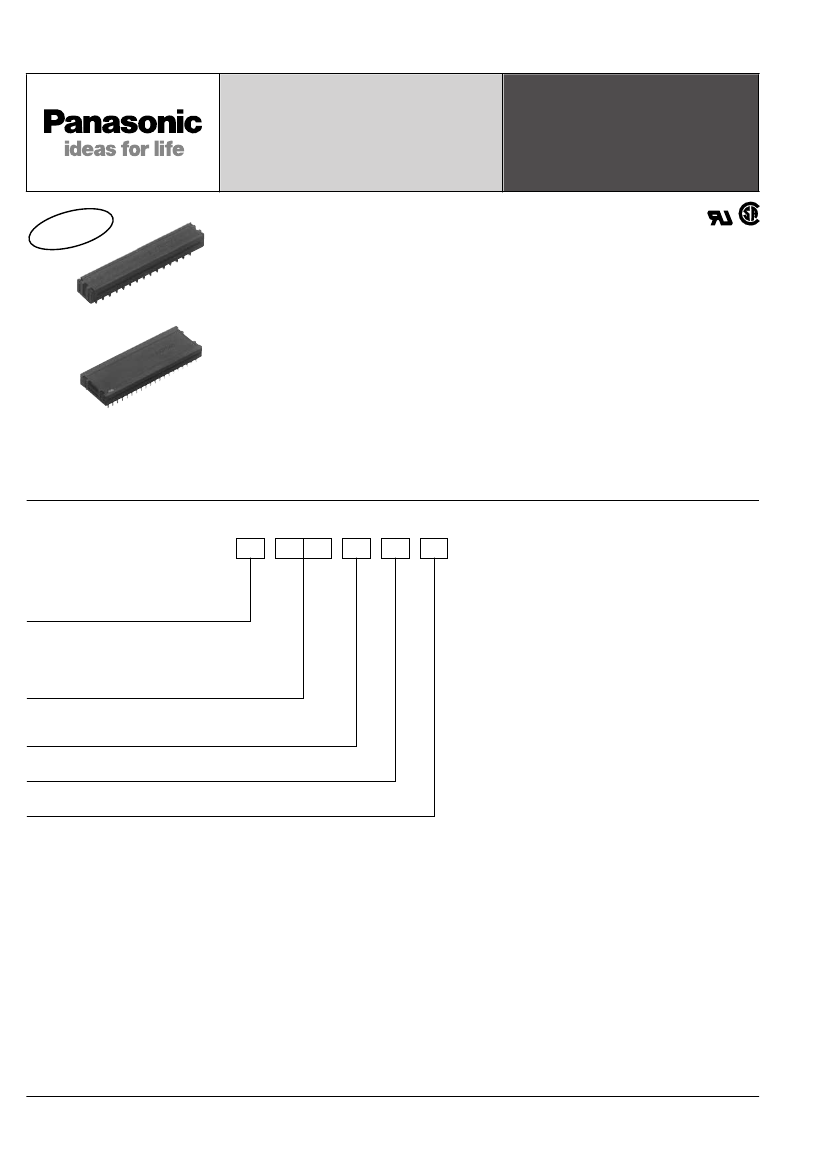

AXP
FOR PC BOARD
TO FLAT CABLE
PCB TYPE
CONNECTORS
(AXP)
le
profi
Low mm
5.7
FEATURES
1. High density mounting can be done.
Because of its 5.7mm high and low
profile, its effectiveness for PC board
mounting is broad.
2. Labor saving in making
connections is achieved.
All terminals can be connected as a
group in this pressure connection
construction, and by means of the
temporary cover stop, cable insertion is
easily carried out, and connection labor is
minimized.
3. Compliance with RoHS’ Directive
Environmentally friendly, the connectors’
comply with Europe’s RoHS’ Directive.
Cadmium, lead, mercury, hexavalent,
chromium, PBB and PBDE are not used.
Mini-dip type
IC type
ORDERING INFORMATION
AXP
PCB type
4: Mini-dip type
5: IC type (14, 16, 24, 40 contacts)
6: IC type (20 contacts)
<No. of contacts (2 digits)>
10: 10 contacts 14: 14 contacts
20: 20 contacts 24: 24 contacts
30: 30 contacts 34: 34 contacts
50: 50 contacts 60: 60 contacts
<Terminal layout>
2: Standard terminal layout
6: Reverse terminal layout
<Terminal shape>
1: DIP type
<Surface treatment (Pressured portion/Terminal portion)>
8: Au plating/Au plating
16: 16 contacts
26: 26 contacts
40: 40 contacts
64: 64 contacts
1
8
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
AXP
PRODUCT TYPES
No. of contacts
10
14
16
20
24
26
30
34
40
50
60
64
Mini-Dip type
Standard terminal layout
AXP410218
AXP414218
AXP416218
AXP420218
—
AXP426218
AXP430218
AXP434218
AXP440218
AXP450218
AXP460218
—
Reverse terminal layout
AXP410618
AXP414618
AXP416618
AXP420618
—
AXP426618
AXP430618
AXP434618
AXP440618
AXP450618
AXP460618
AXP464618
IC type
(Reverse terminal layout)
—
AXP514618
AXP516618
AXP620618
AXP524618
—
—
—
AXP540618
—
—
—
Notes) 1. Tray packaging: Outer carton 200 pcs.
2. The upper surface of a connector with mini dip type standard pin layout is marked with “MAXP4
2”. Connectors with reverse pin layout is
marked with “LAXP4
”.
The orientation of the triangle distinguishes standard from reverse pin layouts.
3. The IC type PCB type connectors are reverse terminal layout only.
4. For available foreign standard products, refer to “STANDARDS CHART” on the end of the catalog.
SPECIFICATIONS
1. Characteristics
Item
Rated current
Breakdown voltage
Insulation resistance
Contact resistance
Environmental
characteristics
Ambient temperature
Vibration resistance
Shock resistance
Specifications
1A
650V AC for 1 min.
Min. 1,000MΩ
Max. 15mΩ
–55°C to +105°C
10 to 55Hz at the double amplitude of 1.52mm
490m/s
2
{50G}
Conditions
Detection current: 1mA
at 500V DC megger
Measured based on the HP4338B measurement
method of JIS C 5402
No opening more than 1µsec. at Max. 100mA
carrying current
Electrical
characteristics
2. Material and surface treatment
Part name
Molded portion
Contact
Materials
Glass reinforced PBT (UL94V-0)
Copper alloy
Surface treatment
—
Ni plating on base, Au plating on surface
3. Applicable cable
Flat cable (stranded wire)
Pitch 1.27mm/conductor, AWG28 (7 conductors/0.127 dia.)
mm General tolerance:
±0.3
Recommended PC board pattern
(BOTTOM VIEW)
7.0
2.54±0.1
0.9±0.05 dia.

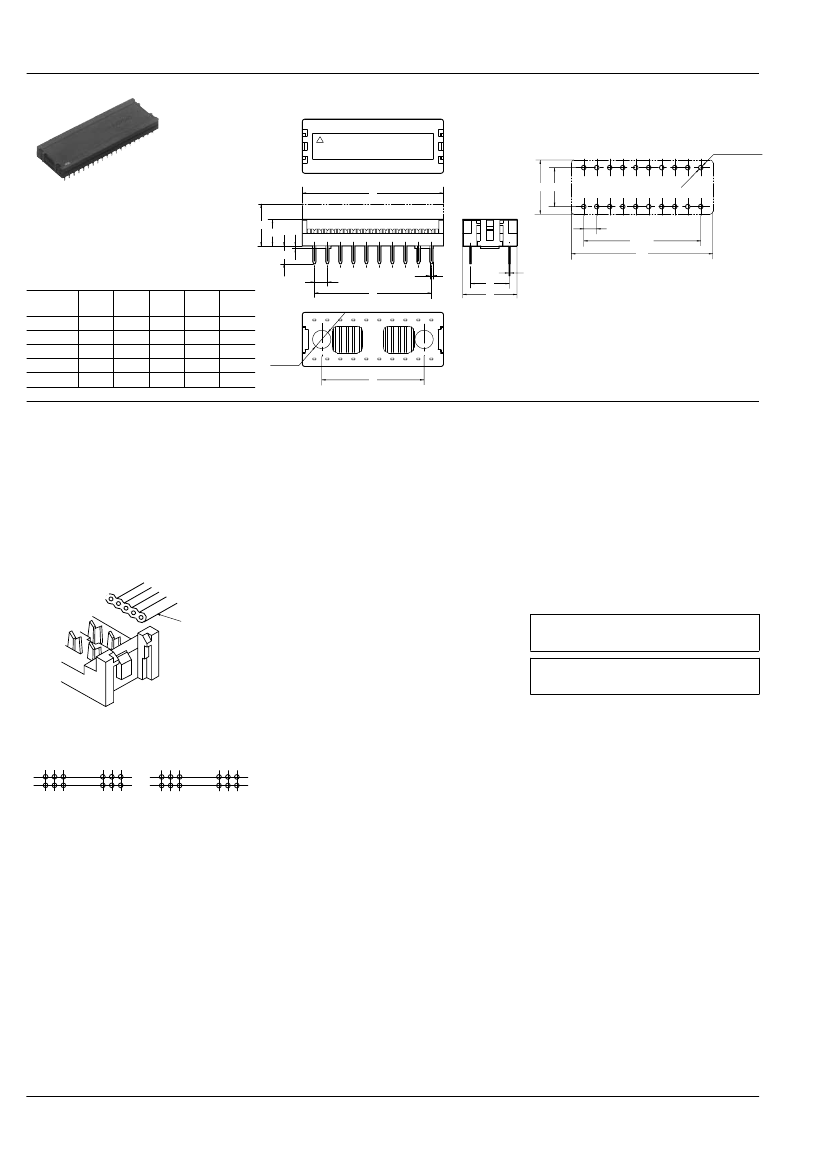

DIMENSIONS
• Mini-dip type
(7.0)
(When cover is
temporarily fixed)
A
2.54±0.1
B±0.1
(A)
Dimension table (mm)
No. of
contacts
10
14
16
20
26
30
34
40
50
60
64
A
17.5
22.7
25.1
30.2
37.9
42.9
48.0
55.6
68.3
81.0
86.1
B
10.16
15.24
17.78
22.86
30.48
35.56
40.64
48.26
60.96
73.66
78.74
C
10.3
15.5
17.9
23.0
30.6
35.7
40.8
48.4
61.1
73.8
78.9
8.2
5.2
3.5
0.5
2.54
B
0.6
0.25
2.54
5.6
6-0.8 dia.
C
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
AXP
• IC type
mm General tolerance:
±0.3
Recommended PC board pattern
(BOTTOM VIEW)
0.9±0.05 dia.
(When cover is
temporarily fixed)
8.2
5.2
A
(E) D±0.1
0.5
2.54±0.1
B±0.1
(A)
2.54
B
0.6
D
E
0.25
3.5
Dimension table (mm)
No. of
contacts
14
16
20
24
40
A
20.0
22.5
27.6
32.7
53.0
B
15.24
17.78
22.86
27.94
48.26
C
13.0
15.0
20.0
25.0
45.2
D
7.62
7.62
7.62
15.24
15.24
E
10.6
10.6
10.6
18.2
18.2
3.6 dia.
C
CABLE NO. AND
TERMINAL POSITION
CORRELATION DRAWING
Terminal layout
Terminal numbers are not indicated on
the connector. When the cable numbers
are temporarity assigned from the end as
1, 2, 3, 4......, the corresponding
terminals are as shown in the drawing
below.
4
3
2
1
Cable No.
NOTES
1. Regarding design of PC board
The connector terminal numbers are not
indicated. Using the triangle mark on the
cover as reference, the PC board design
and the cable connections can be carried
out.
2. Regarding the soldering operation
Soldering should be carried out under the
conditions given below.
260°C: Within 10 seconds
300°C: Within 5 seconds
350°C: Within 3 seconds
3. Regarding external force applied to
the cable
Because no strain relief is provided for
the PC board type connector, care should
be taken not to apply external force to the
cable. Sufficient slack should be provided
in the cable length.
4. Regarding handling of terminals
Care should be teken with the terminals
because repeated bending of the
terminals can lead to damage.
5. Regarding handling of the cover
After the cover has been inserted into the
base, when it is to be removed, care
should be teken not to apply excessive
force to displace the radius section of the
cover since that will cause damage.
6. Regarding the cable pressure
connection tool
The special tool provided for cutting the
cable and making the pressure
connections should be used.
Regarding general notes, please refer
to page 12.
For other details, please verify with the
product specification sheets.
Cable No. layout (Top view)
Standard terminal
layout
n-1
5 3 1
Reverse terminal
layout
n
6 4 2
n
6 4 2
n-1
5 3 1
