Model No.
REV.
OSPL4X01-
XXZ3E1C1E
C1
4PCS Xeon 1 Power LED
Descriptions:
•
•
•
Green light source, fast response
Long life, easy installation
LED model number: XXZ3E1C1E
1
Features:
•
•
•
•
•
Available in white
Super Bright
Big Emitting Angle
Superior ESD Protection
Superior UV Resistance
1
Application:
•
•
Small space lighting
Mechanical equipment lights
1

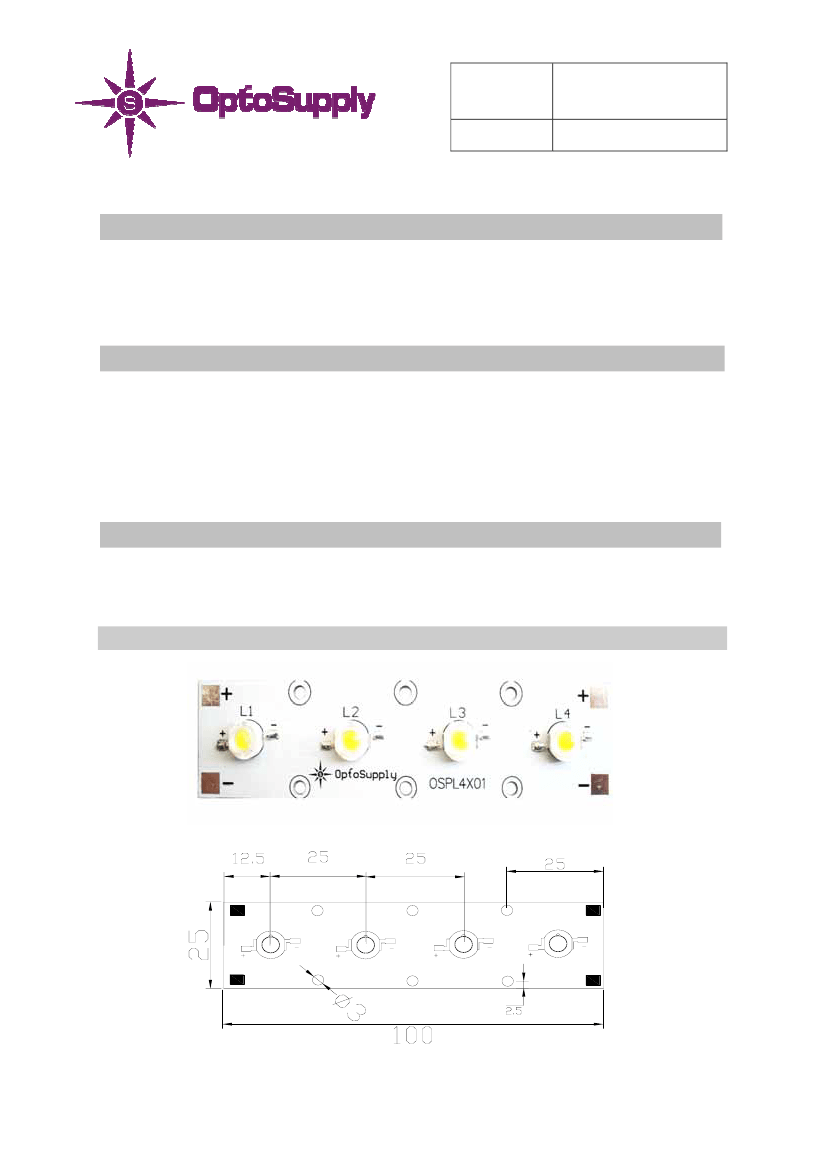

Product Picture and Dimensions:
+
-
Unit:mm
Tolerance:+0.30mm
1
+
-
Model No.
REV.
OSPL4X01-
XXZ3E1C1E
C1
Device Selection Guide
Module No.
M5Z3E1C1E
W4Z3E1C1E
1
Wavelength
(Typ.)
X=0.45,Y=0.41
X=0.31,Y=0.33
Color
Warm
White
Pure
White
Overall luminous flux
340lm
360lm
Absolute Maximum Ratings(Ta=25℃)
Items
Operating supply range(DC)
Input Current (DC)
Power Dissipation
Operating Temperature
Storage Temperature
1
Values
11.4
600
6.8
-10 ~ +40
-20 ~ +80
Symbol
Vidc
Ii
Pa
Tope
Tstg
Units
V
mA
W
DegC
DegC
Typical Performance (Ta=25℃)
Items
LED Module Power
Input Voltage(DC)
Product Input Current
Beam Pattern
Total Diameter of PCB
Net Weight
1
Min.
-
-
-
-
-
---
Symbol
Pm
Vi
If
BP
Lmod.
Wei.
Typ.
4.8
10
480
120
100*25
14
Max.
6.8
11.4
600
-
-
---
Units
w
V
mA
Deg
mm
g
2
Model No.
REV.
OSPL4X01-
XXZ3E1C1E
C1

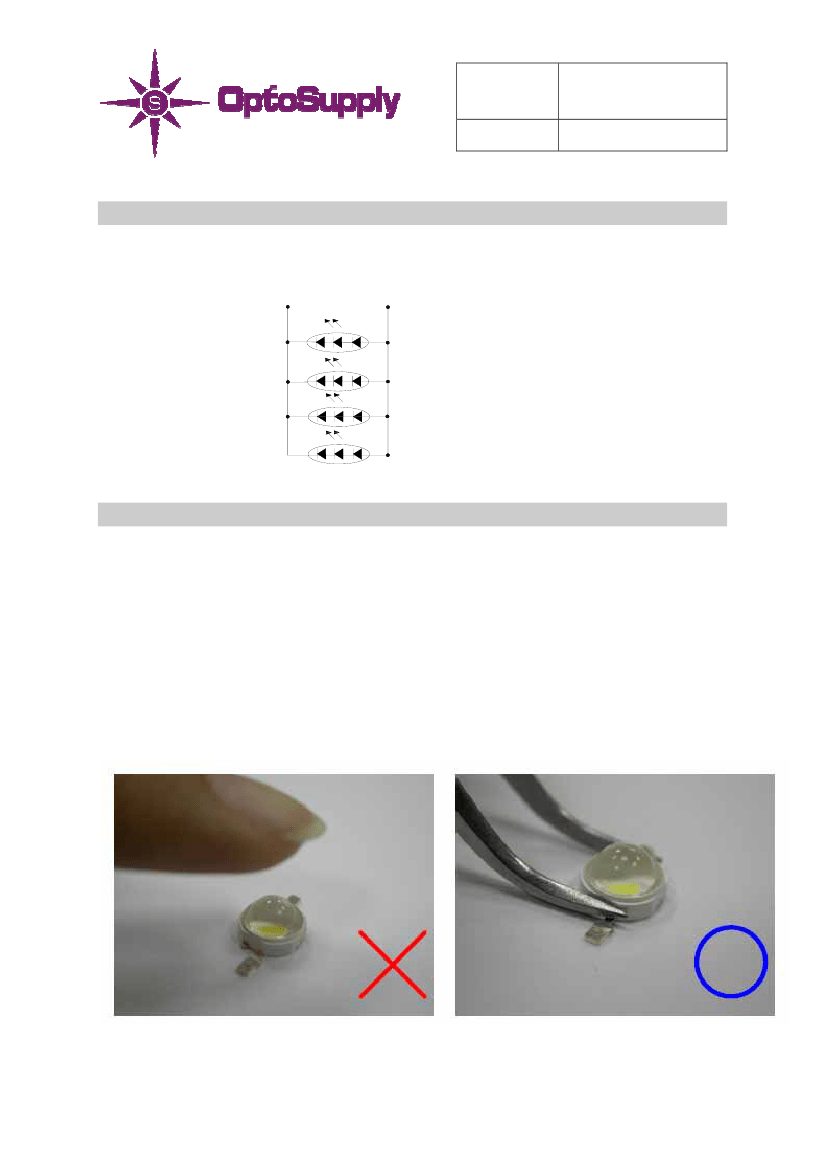

Product circuit
V SS-
VDD+
Product handling
●
Please do not use a force of over 3kgf impact or pressure on the silicone lens, otherwise it will
cause a catastrophic failure.
●
The LEDs should only be picked up by making contact with the sides of the LED body.
●
Avoid touching the silicone lens especially by sharp tools such as Tweezers.
●
Avoid leaving fingerprints on the silicone lens.
●
Please store the LEDs away from dusty areas or seal the product against dust.
●
When populating boards in SMT production, there are basically no restrictions regarding the form
of the pick and place nozzle, except that mechanical pressure on the silicone lens must be
prevented.
●
Please do not mold over the silicone lens with another resin. (epoxy, urethane, etc)
3
