PB20A30FAGA Overview

THT Pushbutton Switches

Preview

Download Datasheet

View All

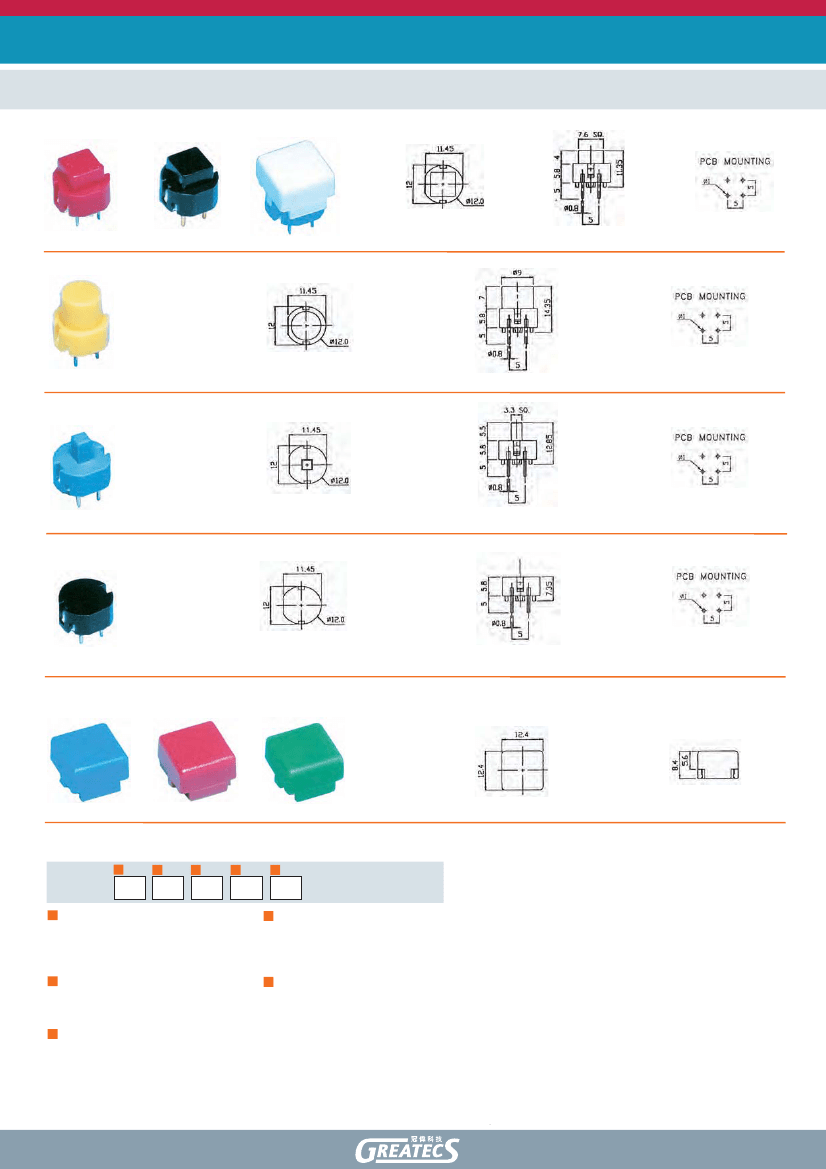

Pushbutton Switches

THT Pushbutton Switches

Type A

PB20 Series

PB20A_CAGN

PB20A_AAUN

PB20A_GAGB

Type B

PB20B_EAGN

Type C

PB20C_GAGN

Type D

PB20D_AAGN

Square Buttons (Only for Type A, not available to snap over Type B, C and D)

How to order:

General Specifications:

MECHANICAL

Dimensions: See Drawings ( Unit: mm)

Life: 500,000 Cycles Min.

Travel: 0.8 mm

Temperature Range: -20°C ~ +85°C

ELECTRICAL

Rating: 10mA 35VDC

Contact Resistance: 20m Max.

Insulation Resistance: 100M Min.

Inter Terminal Capacity: 1 pF

Relative Humidity: 96%RH Min., +40°C

SOLDER ABILITY

Soldering: 240°C 5 seconds Max.

PB20

SWITCH TYPE (See Drawings):

Type A

Type B

Type C

Type D

OPERATING FORCE:

1.3N ± 30%

1.8N ± 30%

3.0N ± 30%

BODY COLOR:

Black

White

Red

Yellow

Green

Blue

Grey

CLOTHED MATERIAL:

Silver (Standard)

Gold (Subject to our final confirmation)

CAP COLOR:

Without Cap

Black (Only for Type A)

White (Only for Type A)

Red (Only for Type A)

Yellow (Only for Type A)

Green (Only for Type A)

Blue (Only for Type A)

Grey (Only for Type A)

sales@greatecs.com

www.greatecs.com
