RD83THS308RTR: Description10 x 10 mm Sealed Rotary DIP Switches (THR); File Size392KB，3 Pages; ManufacturerGREATECS; Websitehttp://www.greatecs.com/

Download Datasheet View All

RD83THS308RTR Overview

10 x 10 mm Sealed Rotary DIP Switches (THR)

Preview

Download Datasheet

View All

Rotary Switches

10 x 10 mm Sealed Rotary DIP Switches (THR)

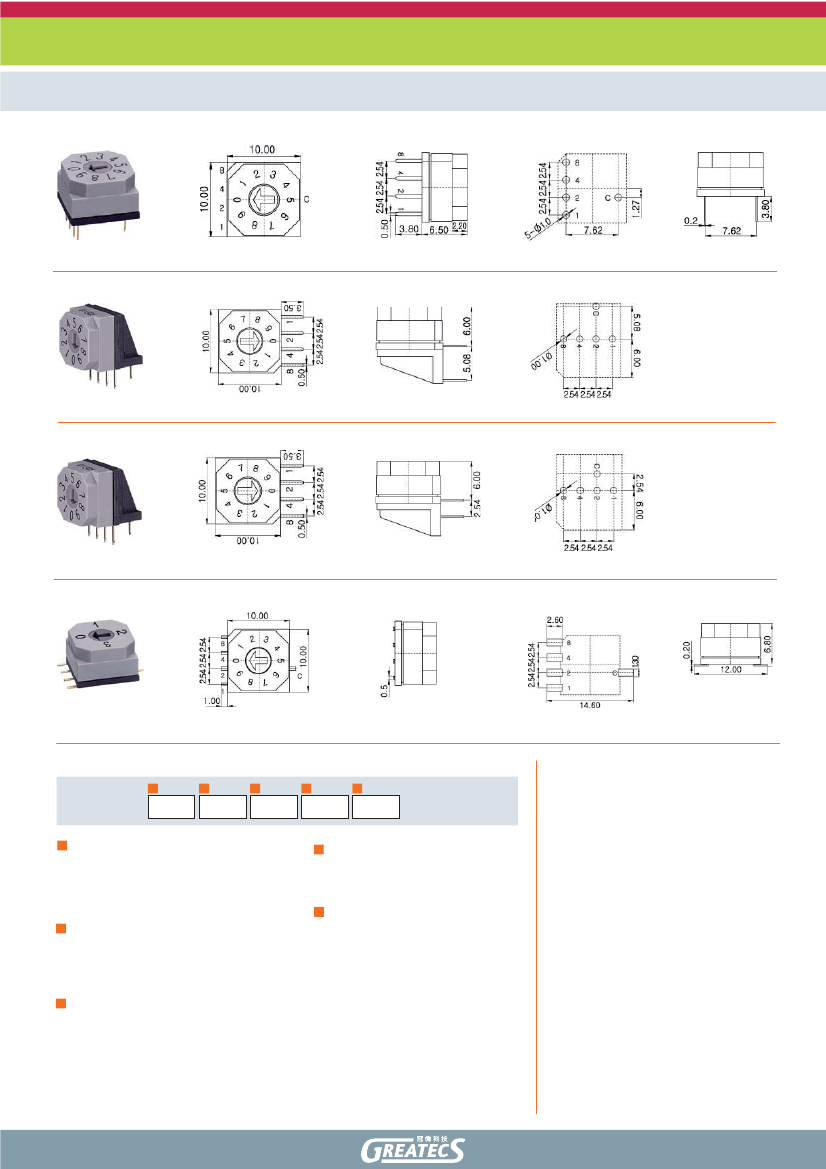

RD83T Series

RD83TH

THT Top Adjust Type Terminals

RD83TA1

THT Angel Type (5.08) Terminals

RD83TA2

THT Angel Type (2.54) Terminals

RD83TS

SMT Top Type Terminals

How to order:

1

2

3

4

5

General Speciﬁcations:

FEATURES

» Sealing: IP 67(Dust & Waterproof )

» THR (Thru Hole Reflow solderable)

MECHANICAL

» Life Cycle: 10.000 steps

» Operating Force: 700 gf max.

ELECTRICAL

» Contact Rating: 150mA, 24V (Switching)

400mA, 24V (None-Switching)

» Contact Resistance: 80mΩ

Max

» Insulation Resistance: 100MΩ

Min

SOLDERING PROCESSES

» Solder Condition: Solder reflow max: 10s/260°C

Solder iron max: 4s./350°C

Solder bath max: 5s/280°C

PACKING

» Tube: 50pcs / Tube

» Reel: 600pcs / Reel

RD83T

TYPE OF TERMINALS:

H

THT Top Adjust Type

A1

THT Angel Type (5.08)

A2

THT Angel Type (2.54)

SMT Top Type

S

1

2

CODE:

R

Real Code

S

Complementary Code

4

S1

S2

S3

3

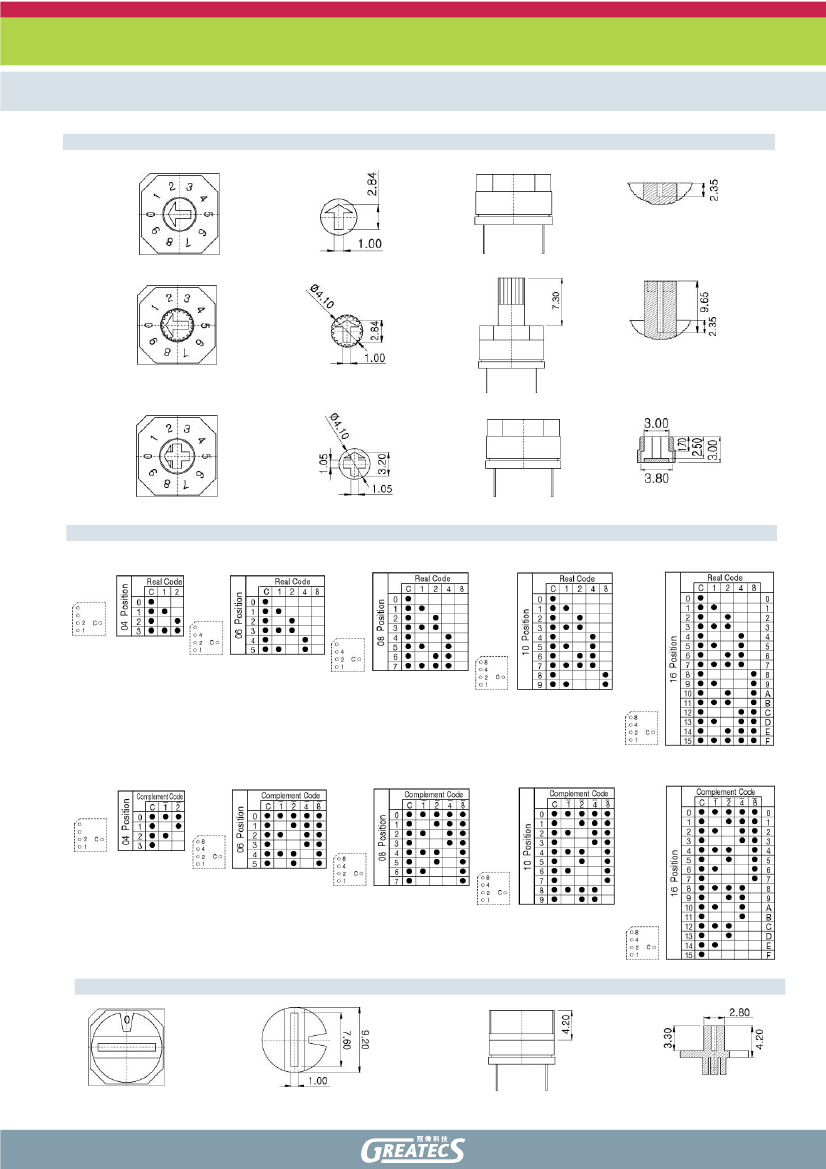

ROTOR TYPE (See Above Drawings):

Arrow Type

Shaft Type

Cross Type

NO. OF POSITIONS:

04 Positions

06 Positions

08 Positions

10 Positions

16 Positions

PACKAGING TYPE:

TB

Tube

TR

Tape & Reel (RD83S Only)

5

04

06

08

10

16
