TSE66N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TSE66N

TSE66N: DescriptionKeypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 1.6N, Solder Terminal, Through Hole-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size119KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/; Environmental Compliance

Download Datasheet Parametric View All

TSE66N Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 1.6N, Solder Terminal, Through Hole-straight, ROHS COMPLIANT

TSE66N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Knitter-switch
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	STEM
body width	6.2 mm
body height	2.35 mm
Body length or diameter	6.3 mm
Circuit configuration	1X1
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT
Number of switches	1
Maximum operating force	1.6 N
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
method of packing	TUBE
seal	IP67; WATER PROOF
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER

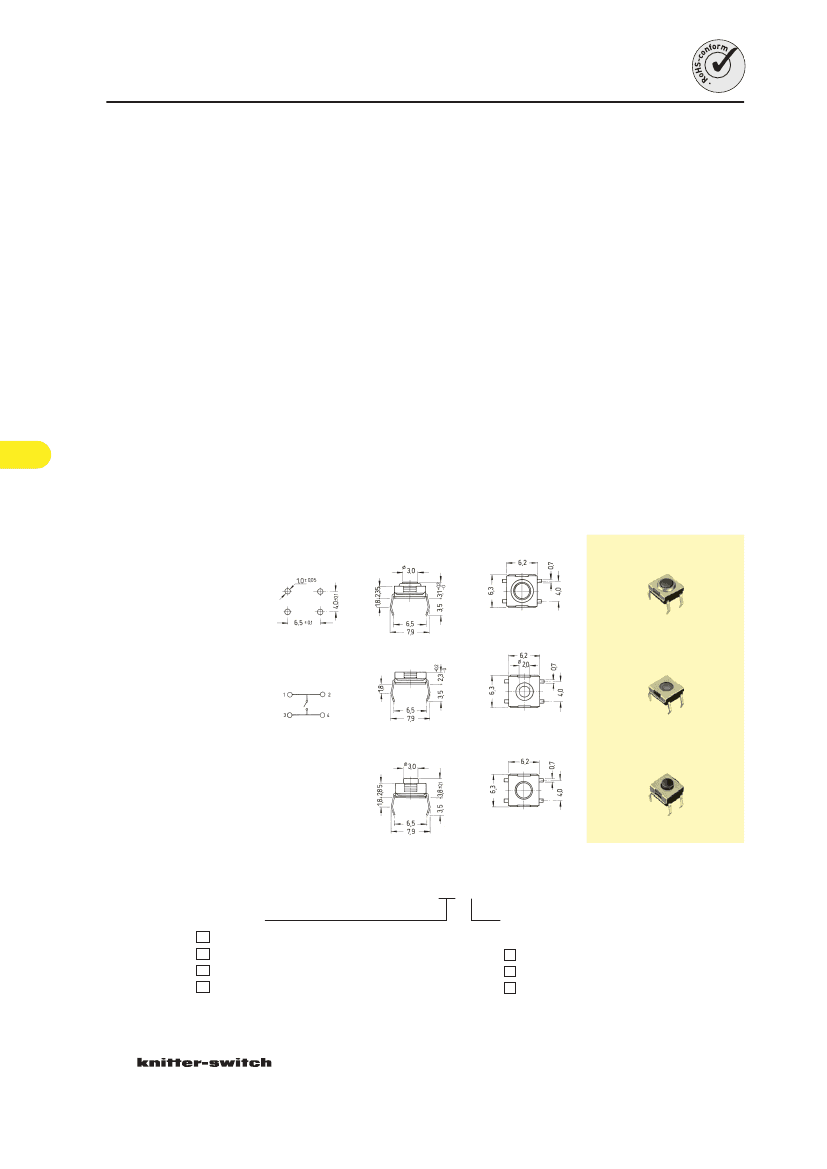

TSE66N Preview

Tact Switches

Specifications:

Contact rating:

Contact resistance:

Insulation resistance:

Dielectric strength:

Operating temperature:

Electrical life:

Operating force:

Contacts:

Terminals:

Material:

12 V DC, 50 mA

< 100 mΩ

> 100 MΩ at 500 V DC

250 V, 50 Hz for the duration of 1 minute

–40 °C to +70 °C

TSE 66 / 68 minimum 100 000 cycles

TSE 69 minimum 500 000 cycles

see ordering code

phosphor bronze, silver-plated

PC terminals brass, silver-plated

cover: stainless steel

base: high-temp. nylon meets UL 94 V–0, washable

stem: TSE 66: nylon – TSE 68/69: silicone rubber

IP 67

on pc-board

hand-soldering – max.: 30 W, 2 sec, 320 °C

wave-soldering – max.: 5 sec, 260 °C

subject to PCB 1.6 mm thickness

75 pcs/tube

Protection:

Mounting:

Soldering conditions:

Packing:

Models:

washable

TSE 66

□

PCB Layout

TSE 68

□

Circuit diagram

TSE 69

□

Ordering code:

Dimension

3.1 mm, travel: 0.25 + 0.2/– 0.1

2.3 mm, travel: 0.25 + 0.2/– 0.1

3.8 mm, travel: 0.45 ± 0.2

Further types on request

TSE

□ □ □

Colour of stem

for operating force:

brown (N)

silver (S)

red

(R)

brown (N)

1.6 N, silver

1.6 N, brown

2.6 N, red

80 |

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
