RK188: DescriptionSP Rocker Switch up to 20A 125VAC (illuminated); File Size117KB，2 Pages; ManufacturerGREATECS; Websitehttp://www.greatecs.com/

Download Datasheet Compare View All

RK188 Overview

SP Rocker Switch up to 20A 125VAC (illuminated)

Preview

Download Datasheet

View All

Rocker Switches

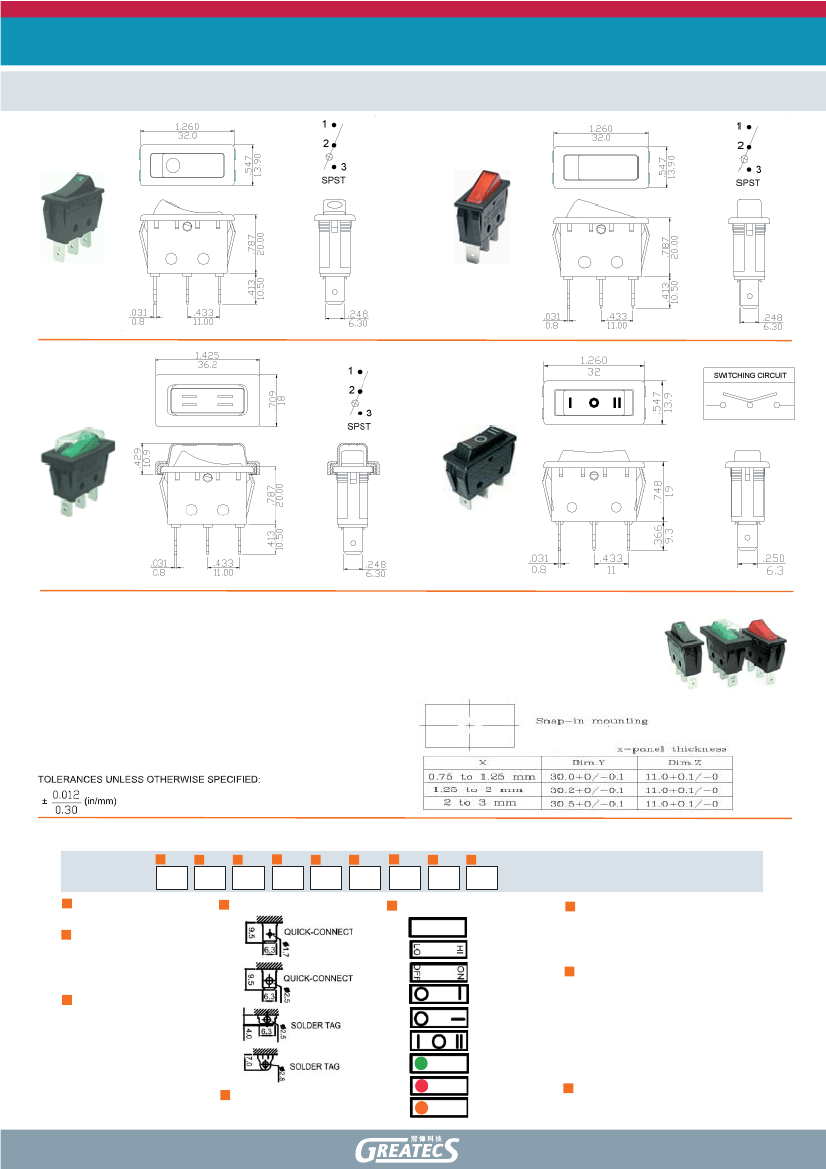

SP Rocker Switch up to 20A 125VAC (illuminated)

RK188 Series

RK188SC1Q1CFAAN

RK188SL1Q1FNACN

RK188SL1Q1CPAFW

RK188SN3Q1CTAAN

General Specifications:

> Rating: 16A125/250VAC, 65°C (ON-OFF-ON) (UL/CUL)

16A125/250VAC 1/4HP (UL, CSA)

20A125VAC (UL)

20A125VAC / 16A250VAC, 3/4HP 125/250VAC T105 (UL/CUL)

16(4)A250V T85/55 1E4, 10(2)A250V T85/55 5E4 (VDE, ENEC)

20(8)A250V T125/55 (VDE, ENEC)

> Initial Contact Resistance: 20m ohm Max.

> Insulation Resistance: 100M ohm Min. at 500VDC

> Dielectric Strength: 1,000 VAC for 1 munite

> Electrical Life: 10,000 cycles (16(4)A250VAC

50,000 cycles (10(2)A250VAC)

> Temperature range: -20°C to +85°C

Materials:

> Base: Nylon 66 UL 94V-2

> Actuator: Nylon 66 /PC, UL 94V-2

> Spring: Piano Wire

> Contacts: Silver Alloy

> Terminals: Silver plated copper

> Lamp: Neon for AC; Tungsten bulb for DC

How to order:

RK188

POLES:

Single Pole

ILLUMINATION:

No Illumination

With Illumination

Circle Len

SWITCHING:

ON-OFF

ON-ON

ON-OFF-ON

MOM-OFF

MOM-ON

MOM-OFF-MOM

MOM-OFF-ON

ON-MOM(OFF)

TERMINAL TYPE:

ACTUATOR MARKING:

BASE COLOR:

Black

Grey

White

ACTUATOR COLOR:

Gray

(only non-illuminated/circle len)

Black

(only non-illuminated/circle len)

White

(only non-illuminated/circle len)

Red

Green

Orange

ACTUATOR:

Curve

Flat

Green Len

Red Len

Orange Len

WATERPROOF:

None

With Waterproof Cap

sales@greatecs.com

www.greatecs.com
