MDU-14-15 datasheet, PDF - EEWORLD Datasheet

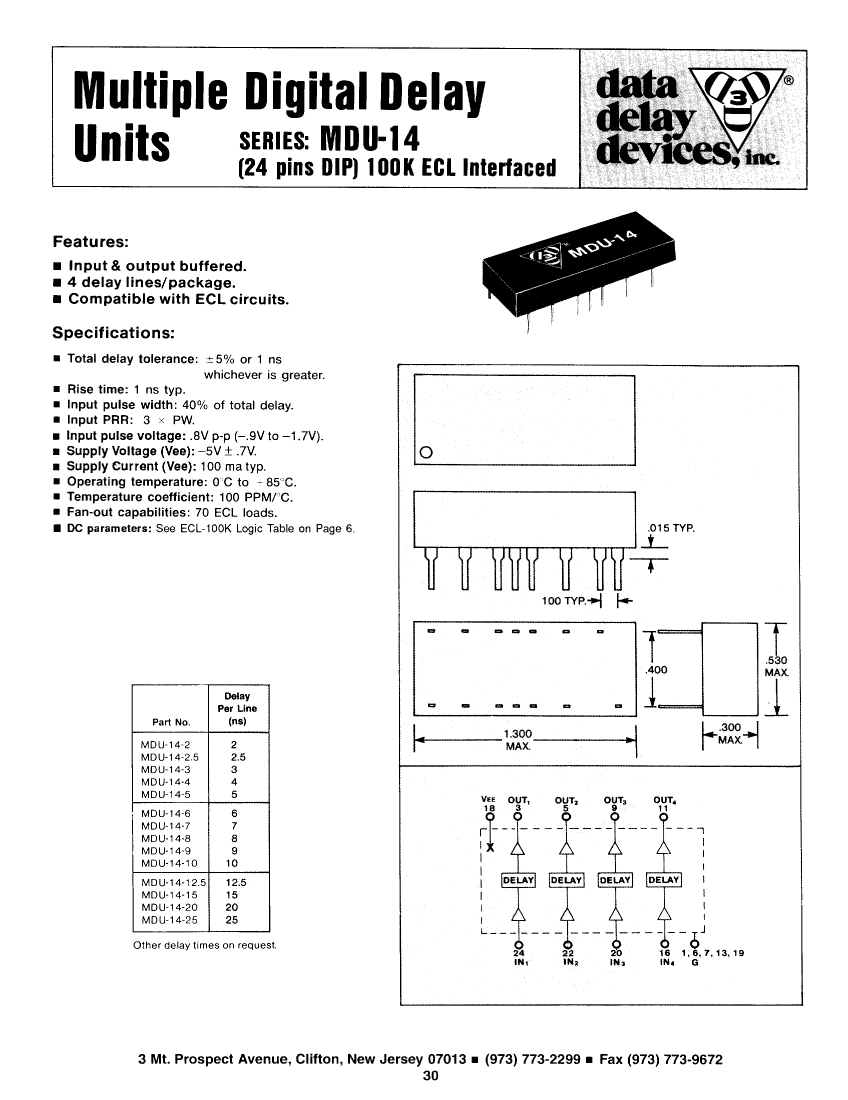

MDU-14-15: DescriptionACTIVE DELAY LINE, TRUE OUTPUT, PDIP14, DIP-24/14; Categorylogic logic; File Size67KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric View All

MDU-14-15 Overview

ACTIVE DELAY LINE, TRUE OUTPUT, PDIP14, DIP-24/14

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Data Delay Devices
Parts packaging code	DIP
package instruction	DIP,
Contacts	24/14
Reach Compliance Code	compliant
Other features	TYP. ICC = 100MA
series	100K
Input frequency maximum value (fmax)	55.5556 MHz
JESD-30 code	R-PDIP-T14
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	4
Number of taps/steps	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	8.001 mm
Maximum supply voltage (Vsup)	5.25 V
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	15 ns
width	10.16 mm
