Slide Switches
Standard Slide Switches
SB5 Series
SPDT
SB5S1A1A1T1_ _
D
Slide Switches
DPDT
SB5D1A1A1T1_ _
SPDT
SB5S1A1A0T6_ _
DPDT
SB5D1A1A0T6_ _
SPDT
SB5S1A1A0T7_ _
DPDT
SB5D1A1A0T7_ _
How to order:
General Specifications:
3
4
5
6
7
8
MATERIALS
» Movable Contact:
AG, GT, UG & UGT: Silver plated over copper alloy
AU & UT: Gold over nickel plated over copper alloy
E
F
G
H
K
0
1
Yellow
Green
Blue
Gray
Brown
MOUNTING EARS:
No Mounting ears
With Mounting Ears
TERMINALS:
Solder Lug
PC Thru-Hole
Quick Connect
18.70 mm high Wire Wrap
24.20 mm high Wire Wrap
10.50 mm high Wire Wrap
26.97 mm high Wire Wrap
Right Angle PC Thru-Hole
Vertical Right Angle
PC Thru-Hole
V-Bracket
AG
AU
UT
GT
UG
UGT
E
N
SB5
S1
S2
S3
D1
D2
A0
A1
A2
A3
A4
A5
A7
A
B
C
D
1
2
1
POLES & SWITCHING:
SP ON-NONE-ON
SP ON-NONE-MOM
SP ON-OFF-ON
DP ON-NONE-ON
DP ON-OFF-ON
ACTUATOR:
1.30 mm high
5.08 mm high
7.24 mm high
9.40 mm high
3.56 mm high
5.08 high, wide
12.32 mm high
ACTUATOR COLOR:
Black (Standard)
White
Red
Orange
6
2
4
5
CONTACT MATERIAL:
Silver
Gold
Gold, tin-lead
Silver, tin-lead
Gold over Silver
Gold over Silver, tin-lead
SEAL:
Epoxy (Standard)
No Epoxy
ROHS & LEAD FREE:
RoHS Compliant (Standard)
RoHS Compliant & Lead Free
» Fixed Terminal:
AG, GT, UG & UGT: Silver plated over copper alloy
AU & UT: Gold over nickel plated over copper alloy
MECHANICAL
» Operating Temperature: -30°C to +85°C
» Mechanical Life: 30,000 cycles
CONTACT RATING
» AG, GT, UG & UGT: 5A120VAC/28VDC
2A250VAC
» AU & UT: 0.4VA max. 20V max. (AC/DC)
ELECTRICAL
» Contact Resistance: 10mΩ max. initial @ 2-4VDC
100mA for silver & gold plated contacts
» Insulation Resistance: 1,000MΩ min.
7
8
3
T1
T2
T3
T51
T52
T53
T54
T6
T7
VS2
blank
V
sales@greatecs.com
www.greatecs.com

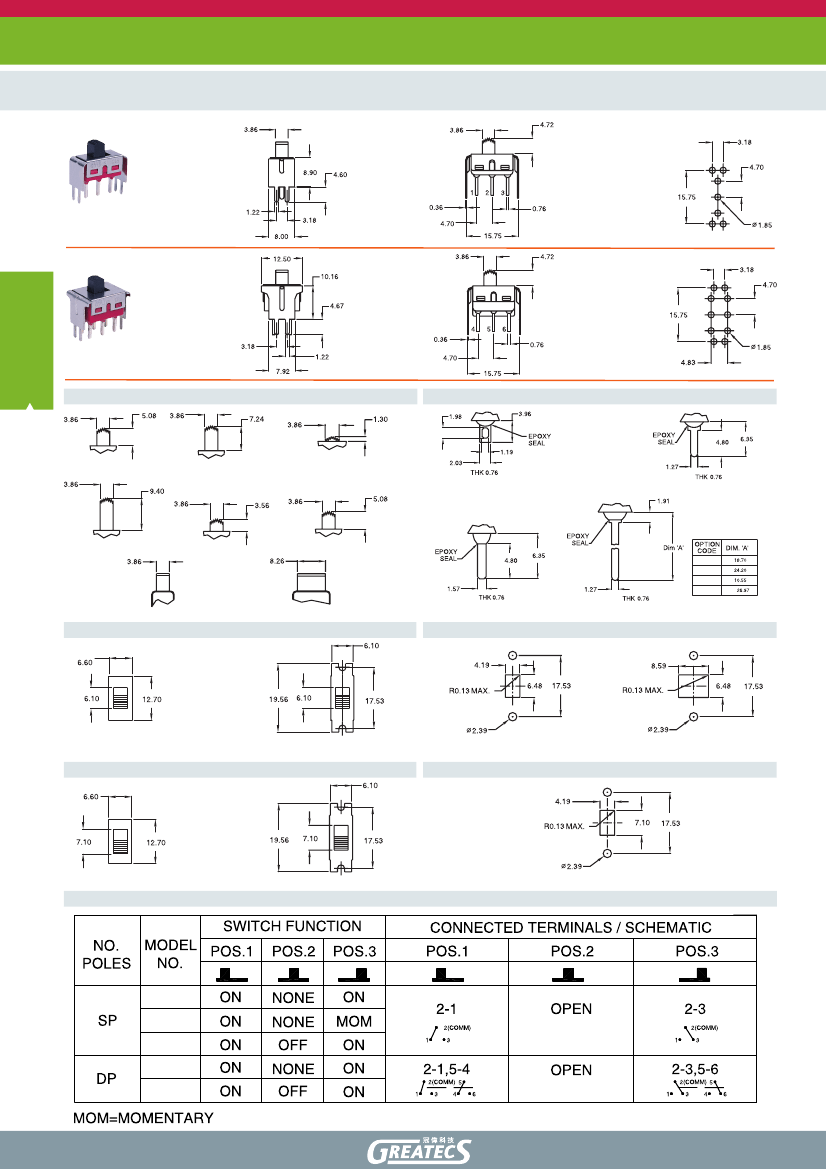

Slide Switches
Standard Slide Switches
SB5 Series
SPDT
SB5S1A1A0VS2_ _
D
Slide Switches
DPDT
SB5D1A1A0VS2_ _
ACTUATOR OPTIONS
TERMINAL OPTIONS
A1
Standard
A2
A0
T1
solder lug
T2
PC thru-hole
A3
A4
A5
T51
T52
T53
T54
Front of A0, A1, A2, A3, A4
Front of A5 (DPDT only)
T3
quick connect
T5
wire wrap
MOUNTING EARS
PANEL MOUNTING
0
without mounting ears
1
with mounting ears
for Actuator A0, A1, A2, A3, A4
for Actuator A5 only
MOUNTING EARS ( 3 POSITIONS ONLY)
PANEL MOUNTING ( 3 POSITIONS ONLY )
0
without mounting ears
1
with mounting ears
for Actuator A0, A1, A2, A3, A4
SWITCH FUNCTION
SB5S1
SB5S2
SB5S3
SB5D1
SB5D2
sales@greatecs.com
www.greatecs.com
