362504K00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 362504K00

362504K00: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug; CategoryThe connector The connector; File Size179KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric Compare View All

362504K00 Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug

362504K00 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compliant
body width	0.591 inch
subject depth	1.181 inch
body length	0.787 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	3000VAC V
maximum insertion force	3.892 N
Minimum insulation diameter	0.059 inch
Insulation resistance	10000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	3625
Plug contact pitch	0.197 inch
Installation option 1	POLARIZED LCK
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Plating thickness	80u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	16 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	4
Evacuation force-minimum value	1.0008 N

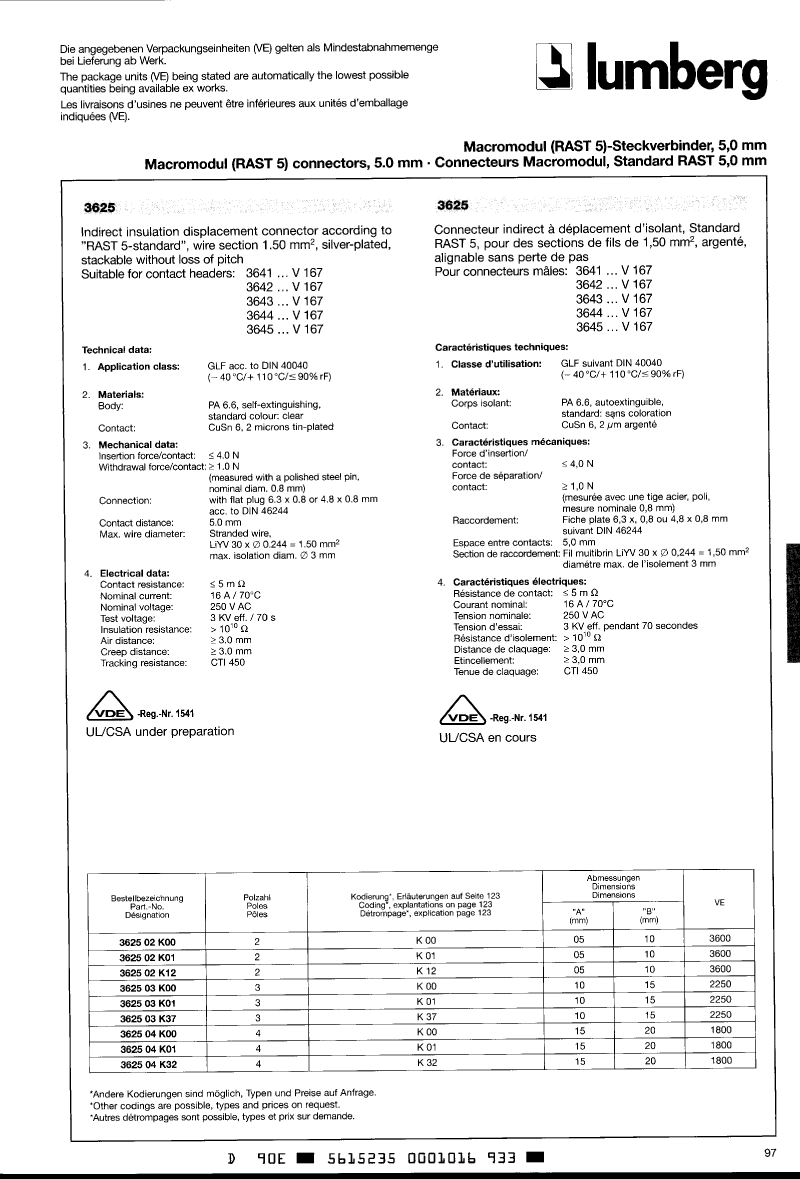

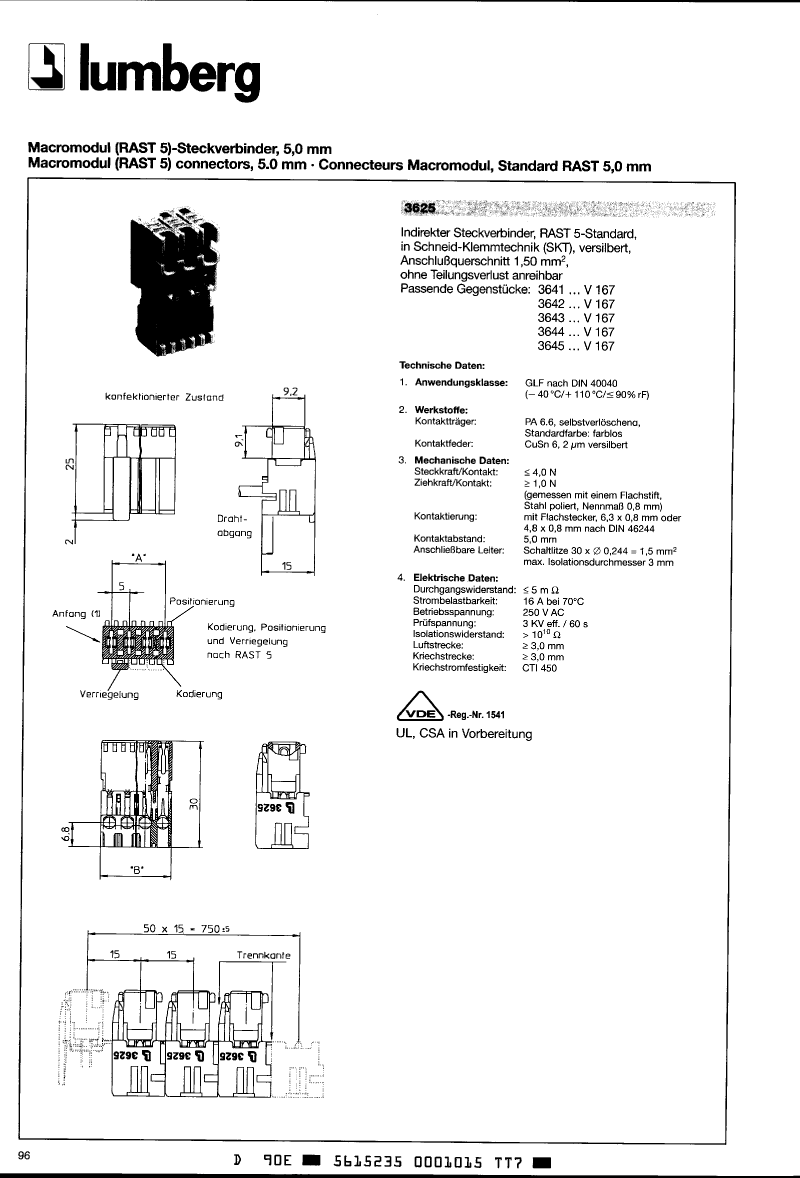

362504K00 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

362504K00 Related Products

	362504K00	362502K01	362502K12	362502K00
Description	Board Connector, 4 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug	Board Connector, 2 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug	Board Connector, 2 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug	Board Connector, 2 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, IDC Terminal, Polarized Lck, Natural Insulator, Plug,
Maker	Lumberg	Lumberg	Lumberg	Lumberg
Reach Compliance Code	compliant	compliant	compliant	compliant
body width	0.591 inch	0.591 inch	0.591 inch	0.591 inch
subject depth	1.181 inch	1.181 inch	1.181 inch	1.181 inch
body length	0.787 inch	0.394 inch	0.394 inch	0.394 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN	SN	SN
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	5 mΩ	5 mΩ	5 mΩ	5 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	3000VAC V	3000VAC V	3000VAC V	3000VAC V
maximum insertion force	3.892 N	3.892 N	3.892 N	3.892 N
Minimum insulation diameter	0.059 inch	0.059 inch	0.059 inch	0.059 inch
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Plug contact pitch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Installation option 1	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Plating thickness	80u inch	80u inch	80u inch	80u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	16 A	16 A	16 A	16 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC
Total number of contacts	4	2	2	2
Evacuation force-minimum value	1.0008 N	1.0008 N	1.0008 N	1.0008 N
Manufacturer's serial number	3625	3625	3625	-
