L806TO3K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L806TO3K

L806TO3K: DescriptionSingle Color LED, Super Orange, Diffused Orange, 19.5mm,; CategoryLED optoelectronic/LED photoelectric; File Size256KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my; Environmental Compliance

Download Datasheet Parametric Compare View All

L806TO3K Overview

Single Color LED, Super Orange, Diffused Orange, 19.5mm,

L806TO3K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	LEDtronics
Reach Compliance Code	unknown
Other features	IC COMPATIBLE
color	SUPER ORANGE
color@wavelength	Amber
Configuration	SEPARATE, 6 ELEMENTS
Maximum forward current	0.03 A
Maximum forward voltage	2.6 V
Lens type	DIFFUSED ORANGE
Nominal luminous intensity	1500.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	12
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	13.8 mm
method of packing	BULK
peak wavelength	611 nm
shape	ROUND
size	19.5 mm
surface mount	YES
Terminal pitch	2.54 mm
perspective	180 deg

Preview

Download Datasheet

View All



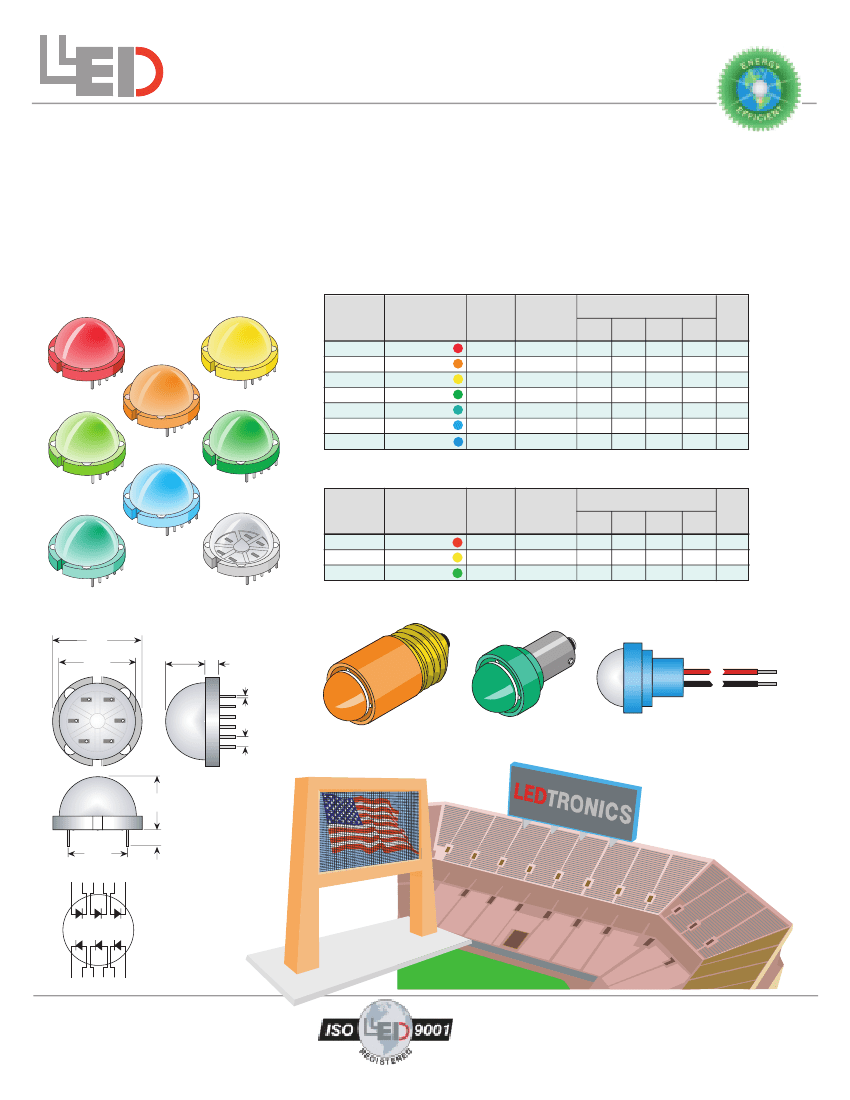

Wide-Angle. Sunlight Visible. Diffused Lens.

20mm Big Dome 6-Chip LED Lamps

Features

Applications

•

Wide-Angle (180º ) Illumination

•

Solid-State, High Shock/Vibration

Resistant

•

12-Pin Dip-Socket Compatible

•

LED Operating Life:

100,000+ Hours (10+ Years)

•

Three-Year Warranty

6-Chip Diffused

MultiChip LEDs

•

Fast Turn On/Off Time

•

IC Compatible

•

Choice of 7 Sunlight Visible Colors

•

Very Low Power Consumption, Super

•

Intensity

New LED Chip Technology: InGaN,

InGaAlP

Super Intensity, Sunlight V isible

Part Number

Emitted

Color

Epoxy Lens

Type

Chip Material

•

Large Dot Matrix Displays

•

Large Status Indicators

•

Dot Matrix Clocks

•

Soft-Glow Night Lights

•

Subdued Landscape Lighting

Electrical-Optical

Data (If = 20mA)

(mcd) Vf (V)

typ

typ/max

(mA)

(nm)

View

Angle

L806TE3K

L806TO3K

L806TY3K

L806TG1K

SP RED

SP ORANGE

SP YELLOW

SP GREEN

Diffused

GaAsP/GaP

InGaAlP

SiC/GaN

2000 2.2/2.6

1500 2.2/2.6

180º0 2.4/2.8

500 2.4/2.8

750 3.5/4.0

1000 3.5/4.0

300 3.5/4.0

630

611

595

574

525

505

470

180º

L806TAG3K A. GREEN

L806TBG3K BLU. GREEN

L806TPB1K SP BLUE

Standard Intensity

Part Number

Emitted

Color

Epoxy Lens

Type

Chip Material

(mA)

Electrical-Optical

Data (If = 20mA)

(mcd) Vf (V)

typ

typ/max

(nm)

View

Angle

L806TR4

L806TY4

L806TG4

HE RED

YELLOW

HE GREEN

Clear

GaAsp/GaP

GaP

150

120

2.2/2.8

2.1/2.8

635

585

568

180º

180º 2.1/2.8

Dimensions

.898

[22.8]

.768

[19.50]

.024

[0.60]

.402

[10.20]

.138

[3.50]

Typical Applications

.100

[2.54]

Series S100 (25mm Screw Base)

Series B600 (15mm SC Bayonet)

Series DB600 (15mm DC Bayonet)

Series L600 (Module)

.543

[13.80]

.157

[4.00]

.600

[15.24]

12 11 10 9 8

3 4

5 6

LEDTRONICS,

INC.

THE FUTURE OF LIGHT



23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424

E-mail: webmaster@ledtronics.com

Website: http://www.ledtronics.com

Log # 129 Rev 2-2001

L806TO3K Related Products

	L806TO3K	L806TG1K	L806TG4	L806TY3K	L806TR4	L806TY4	L806TPB1K
Description	Single Color LED, Super Orange, Diffused Orange, 19.5mm,	Single Color LED, Super Green, Diffused Green, 19.5mm,	Single Color LED, Super Bright Green, Diffused Green, 20mm, ROHS COMPLIANT PACKAGE-12	Single Color LED, Super Yellow, Diffused Yellow, 19.5mm, ROHS COMPLIANT PACKAGE-12	Single Color LED, High Efficiency Red, Diffused, 19.5mm, 12 PIN	Single Color LED, Yellow, Diffused, 20mm, ROHS COMPLIANT PACKAGE-12	Single Color LED, Super Blue, Diffused Blue, 19.5mm, ROHS COMPLIANT PACKAGE-12
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	HIGH RELIABILITY	IC COMPATIBLE	HIGH RELIABILITY	HIGH RELIABILITY
color	SUPER ORANGE	SUPER GREEN	SUPER BRIGHT GREEN	SUPER YELLOW	HIGH EFFICIENCY RED	YELLOW	SUPER BLUE
Configuration	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS
Maximum forward current	0.03 A	0.03 A	0.025 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	DIFFUSED ORANGE	DIFFUSED GREEN	DIFFUSED GREEN	DIFFUSED YELLOW	DIFFUSED	DIFFUSED	DIFFUSED BLUE
Nominal luminous intensity	1500.0 mcd	500.0 mcd	200.0 mcd	900.0 mcd	180.0 mcd	40.0 mcd	90.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	12	12	12	12	12	12	12
Maximum operating temperature	80 °C	80 °C	85 °C	80 °C	80 °C	85 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	13.8 mm	13.8 mm	13.5 mm	13.7 mm	13.8 mm	13.5 mm	13.7 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	611 nm	574 nm	562 nm	595 nm	635 nm	587 nm	468 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	19.5 mm	19.5 mm	20 mm	19.5 mm	19.5 mm	20 mm	19.5 mm
surface mount	YES	YES	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	15.24 mm	15.24 mm	2.54 mm
perspective	180 deg	180 deg	120 deg	180 deg	180 deg	120 deg	130 deg
Is it lead-free?	-	-	Lead free	Lead free	Lead free	Lead free	-
package instruction	-	-	ROHS COMPLIANT PACKAGE-12	ROHS COMPLIANT PACKAGE-12	12 PIN	ROHS COMPLIANT PACKAGE-12	ROHS COMPLIANT PACKAGE-12
