CXP82200-U01Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CXP82200-U01Q

CXP82200-U01Q: DescriptionMicrocontroller, 8-Bit, 10MHz, CMOS, CQFP100, PIGGY BACK, CERAMIC, QFP-100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size186KB，6 Pages; ManufacturerSONY; Websitehttp://www.sony.co.jp; Environmental Compliance

Download Datasheet Parametric View All

CXP82200-U01Q Overview

Microcontroller, 8-Bit, 10MHz, CMOS, CQFP100, PIGGY BACK, CERAMIC, QFP-100

CXP82200-U01Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SONY
Parts packaging code	QFP
package instruction	AQFP,
Contacts	100
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	8
maximum clock frequency	10 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-CQFP-G100
JESD-609 code	e4
length	22.3 mm
Number of I/O lines	72
Number of terminals	100
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
PWM channel	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	AQFP
Package shape	RECTANGULAR
Package form	FLATPACK, PIGGYBACK
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	10.44 mm
speed	10 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Gold (Au)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	10
width	16.3 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

CXP82200-U01Q Preview

CXP82200

CMOS 8-bit Single Chip Microcomputer

evaluator type

For the availability of this product, please contact the sales office.

Description

The CXP82200 is a CMOS 8-bit single chip micro-

computer of piggyback/evaluator combined type,

which is developed for evaluating the function of the

CXP82220/82224.

100 pin PQFP (Ceramic)

Piggyback/

Features

•

Wide-range instruction system (213 instructions) to

cover various types of data

— 16-bit operation/multiplication and division/

Boolean bit operation instructions

•

Minimum instruction cycle

400ns at 10MHz operation

122µs at 32kHz operation

•

Applicable EPROM

LCC type 27C128, LCC type 27C256

(Maximum 24K bytes are available.)

•

Incorporated RAM capacity 704 bytes (Including fluorescent display data area)

•

Peripheral functions

— A/D converter

8-bit, 8-channel, successive approximation method

(Conversion time of 32µs/10MHz)

— Serial interface

Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel

8-bit clock sync type, 1 channel

— Timer

8-bit timer

8-bit timer/counter

19-bit time base timer

16-bit capture timer/counter

32kHz timer/counter

— Fluorescent display panel controller/driver

Maximum 384 segment display possible

1 to 16-digit dynamic display

Dimmer function

High voltage drive output (40V)

On-chip pull-down resistor (Mask option)

Hardware key scan function (Maximum 16

8 key matrix compatible)

— Remote control reception circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO

— PWM output

14 bits, 1 channel

— CTL duty detection circuit

— High-speed output circuit

Four RTG outputs

•

Interruption

19 factors, 15 vectors, multi-interruption possible

•

Standby mode

Sleep/stop

•

Package

100-pin ceramic QFP

Note)

Mask option depends on the type of the CXP82200. Refer to the Products List for details.

Structure

Silicon gate CMOS IC

Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by

any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the

operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.

–1–

E93847A78-PS

CXP82200

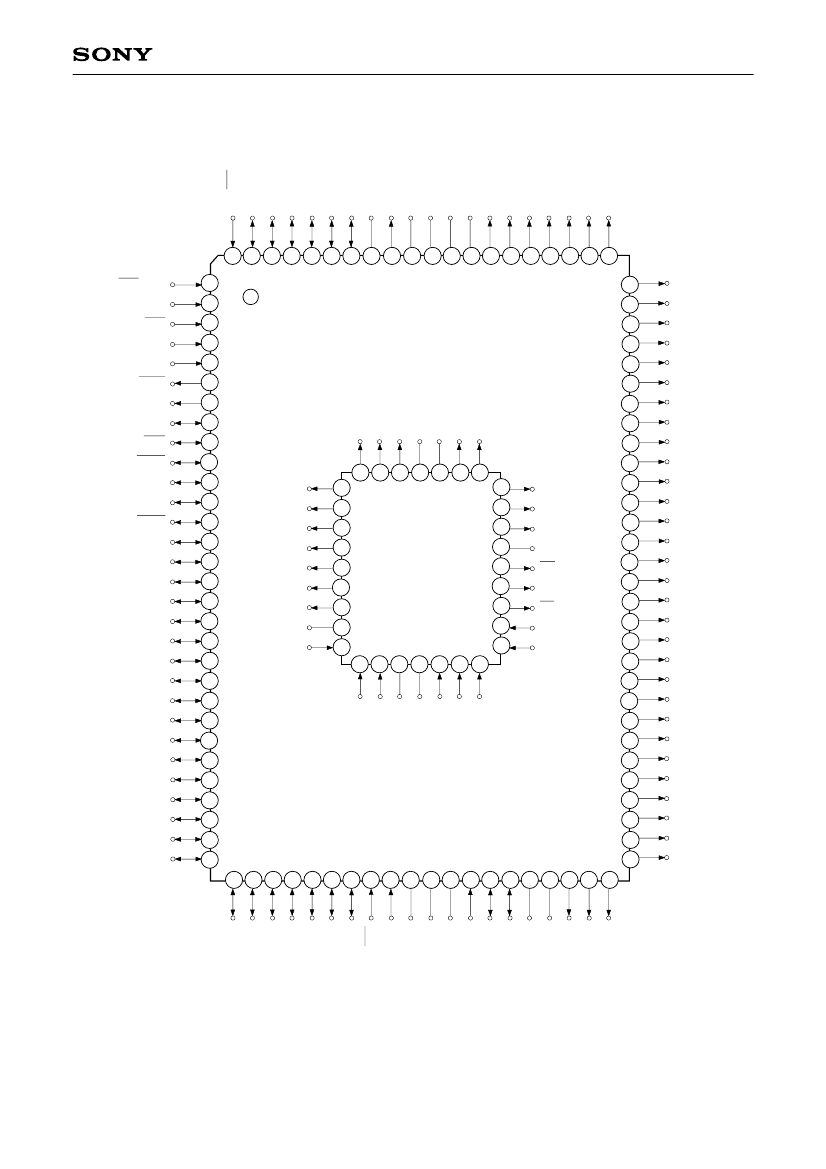

Pin Assignment in Piggyback Mode

PE0/EC0/INT0

PG3/RTO3

PG2/RTO2

PG1/RTO1

PG0/RTO0

PG7

PG6

PG5

PG4

Vss

FDP

100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81

PE1/EC1/INT1

PE2/INT2

PE3/INT3/NMI

PE4/RMC

PE5/CTL

PE6/PWM

PE7/T0/DD0/ADJ

PB0/CINT

PB1/CS0

PB2/SCK0

PB3/SI0

PB4/SO0

PB5/SCK1

PB6/SI1

PB7/SO1

PC0/KR0

PC1/KR1

PC2/KR2

PC3/KR3

PC4/KR4

PC5/KR5

PC6/KR6

PC7/KR7

PH0

PH1

PH2

PH3

PH4

PH5

PH6

T8/S31

T9/S30

T10/S29

T11/S28

T12/S27

T13/S26

T14/S25

T15/S24

PI7/S23

PI6/S22

PI5/S21

PI4/S20

PI3/S19

PI2/S18

PI1/S17

PI0/S16

PF7/S15

PF6/S14

PF5/S13

PF4/S12

PF3/S11

PF2/S10

PF1/S9

PF0/S8

PD7/S7

PD6/S6

PD5/S5

PD4/S4

PD3/S3

A12

A15

14 15 16 17 18 19 20

32 31 30

A11

A10

A14

A13

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

GND

PA7/AN7

Note)

1. NC (Pin 90) is always connected to V

2. Vss (Pins 41 and 91) are both connected to GND.

–2–

PA0/AN0

PA1/AN1

PA2/AN2

PA3/AN3

PA4/AN4

PA5/AN5

PA6/AN6

PD0/S0

PD1/S1

PD2/S2

EXTAL

REF

XTAL

RST

PH7

TEX

Vss

CXP82200

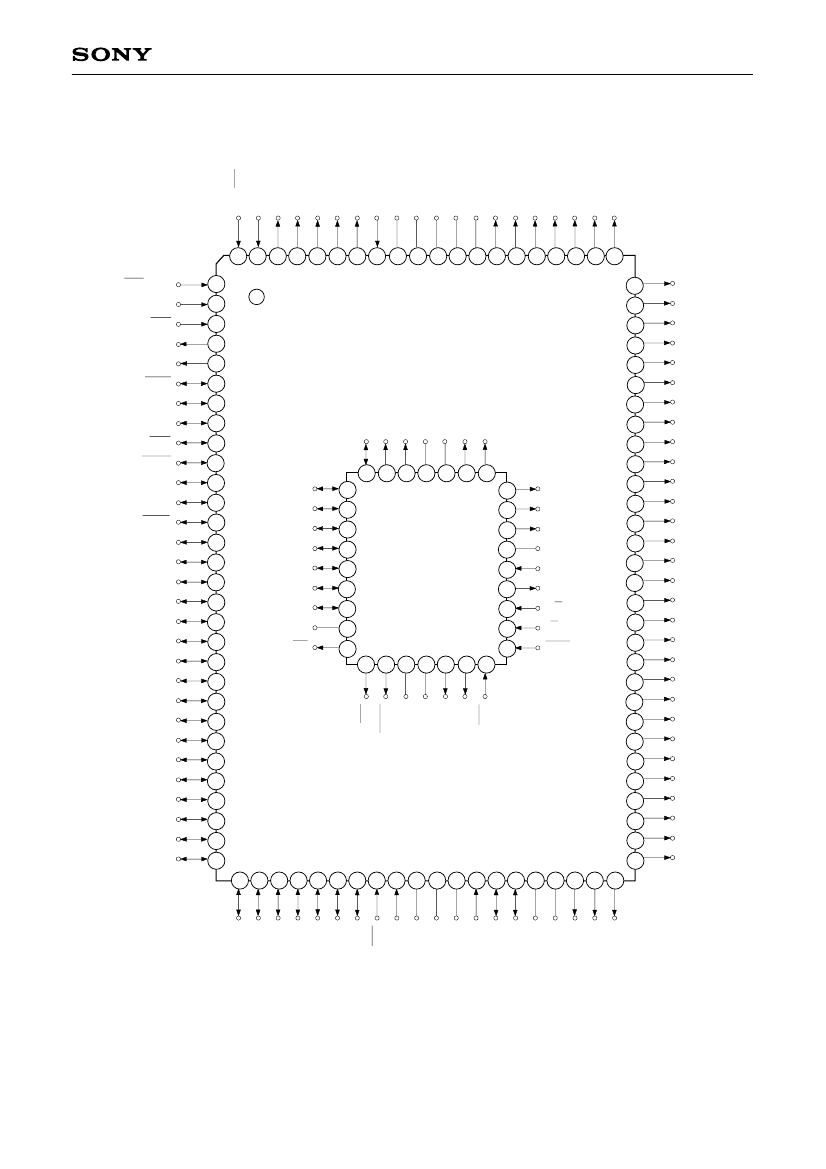

Pin Assignment in Evaluator Mode

PE0/EC0/INT0

PG3/RTO3

PG2/RTO2

PG1/RTO1

PG0/RTO0

PG7

PG6

PG5

PG4

Vss

FDP

100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81

PE1/EC1/INT1

PE2/INT2

PE3/INT3/NMI

PE4/RMC

PE5/CTL

PE6/PWM

PE7/T0/DD0/ADJ

PB0/CINT

PB1/CS0

PB2/SCK0

PB3/SI0

PB4/SO0

PB5/SCK1

PB6/SI1

PB7/SO1

PC0/KR0

PC1/KR1

PC2/KR2

PC3/KR3

PC4/KR4

PC5/KR5

PC6/KR6

PC7/KR7

PH0

PH1

PH2

PH3

PH4

PH5

PH6

T8/S31

T9/S30

T10/S29

T11/S28

T12/S27

T13/S26

T14/S25

T15/S24

PI7/S23

PI6/S22

PI5/S21

PI4/S20

PI3/S19

PI2/S18

PI1/S17

PI0/S16

PF7/S15

PF6/S14

PF5/S13

PF4/S12

PF3/S11

PF2/S10

PF1/S9

PF0/S8

PD7/S7

PD6/S6

PD5/S5

PD4/S4

PD3/S3

A7/D7

A12

A15

A6/D6

A5/D5

A4/D4

A3/D3

A2/D2

A1/D1

A0/D0

1 32 31 30

A11

HALT

A10

E/P

I/T

MON

14 15 16 17 18 19 20

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

SYNC

GND

RST

A14

A13

PA7/AN7

Note)

1. NC (Pin 90) is always connected to V

2. Vss (Pins 41 and 91) are both connected to GND.

–3–

PA0/AN0

PA1/AN1

PA2/AN2

PA3/AN3

PA4/AN4

PA5/AN5

PA6/AN6

PD0/S0

PD1/S1

PD2/S2

EXTAL

REF

XTAL

RST

PH7

TEX

Vss

CXP82200

EPROM Read Timing

(Ta = –20 to +75°C, Vcc = 4.5 to 5.5V, Vss = 0V reference)

Item

Address

→

Data

Input delay time

Address

→

Data

Hold time

Symbol

Pins

A0 to A15

D0 to D7

A0 to A15

D0 to D7

Min.

Max.

120

Unit

ACC

0.8V

A0 to A15

Address data

0.2V

ACC

0.8V

Input data

0.2V

D0 to D7

Products List

Products

Option item

Mask

CXP82220

Package

ROM capacitance

Pull-up resistance for reset pin

Power-on reset circuit

Pull-down resistance for high voltage drive pin

CXP82224

Piggyback/evaluator

CXP82200-U01Q

100-pin ceramic PQFP

EPROM 24K bytes

Existent

Non-existent

Only port for display

100-pin plastic QFP

20K bytes

24K bytes

Existent/Non-existent

Non-existent

Existent/Non-existent

–4–

CXP82200

Piggyback mode/evaluator mode can be switched as shown below.

Piggyback mode

Piggyback/evaluator product

Evaluator mode

Pin 1 marking

LCC type EPROM

Pin 1 marking

Pin 1 index

Note)

CPU Probe

Note) Evaluation cap should be

connected to CPU probe.

–5–

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
