CXP84716/84720/84724
CMOS 8-bit Single Chip Microcomputer
Description
The CXP84716/84720/84724 is a CMOS 8-bit micro-
computer integrating on a single chip an A/D converter,
serial interface, timer/counter, time base timer, capture
timer/counter, FRC capture unit, high-precision timing
pattern generation circuit, PWM output, and the like
besides the basic configurations of 8-bit CPU, ROM,
RAM, and I/O port.
The CXP84716/84720/84724 also provides the
sleep/stop functions that enable to execute the power-
on reset function and lower the power consumption.
Structure
Silicon gate CMOS IC
100 pin QFP (Plastic)
100 pin LQFP (Plastic)

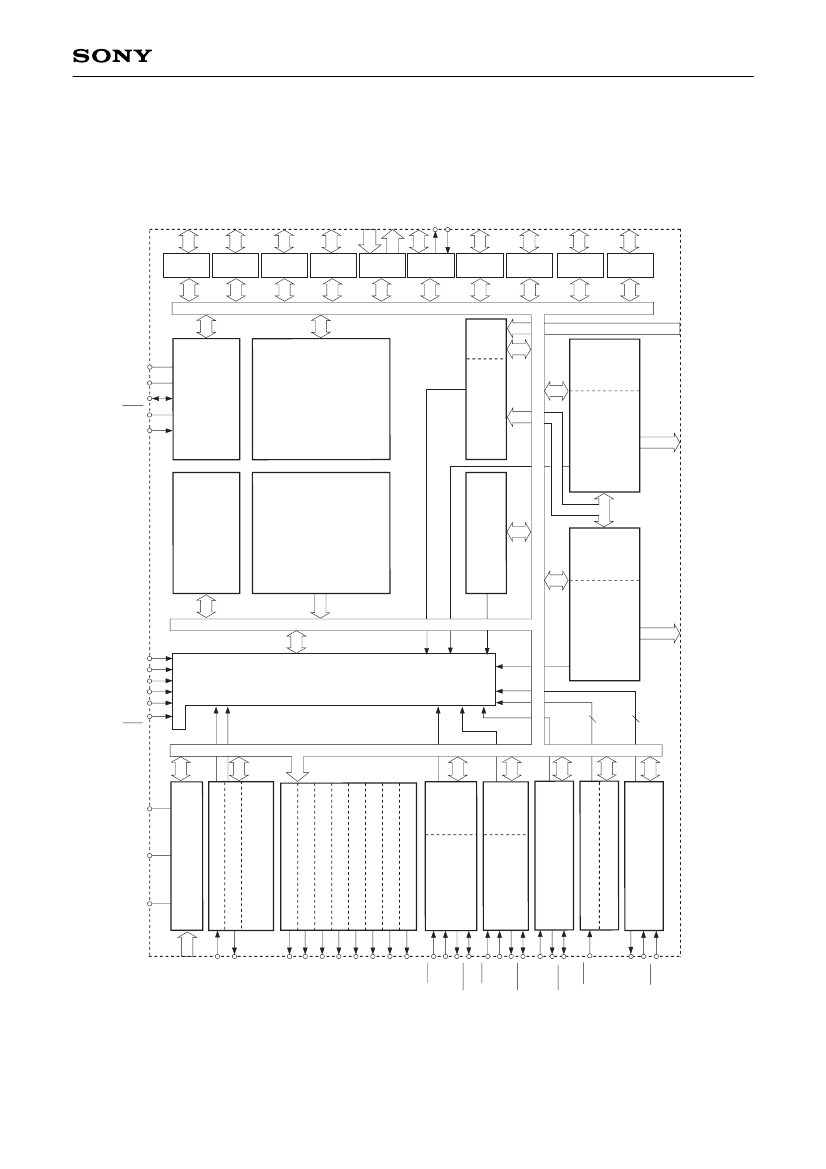

Features
•
A wide instruction set (213 instructions) which covers various types of data.
— 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
•
Minimum instruction cycle
•
Incorporated ROM capacity
250ns at 16MHz operation (4.5 to 5.5V)
333ns at 12MHz operation (3.0 to 5.5V)
16K bytes (CXP84716)
20K bytes (CXP84720)
24K bytes (CXP84724)
1120 bytes
•
Incorporated RAM capacity
•
Peripheral functions
— A/D converter
•
•
•
•
8 bits, 8 channels, successive approximation method
(Conversion time 1.6µs at 16MHz)
— Serial interface
Srart-stop synchronization (UART), 1 channel
Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 2 channels
8-bit clock syncronization (MSB/LSB first selectable), 1 channel
— Timer
8-bit timer, 8-bit timer/counter, 19-bit time base timer,
16-bit capture timer/counter
— FRC capture unit
Incorporated 24-bit and 6-stage FIFO
— High-precision timing pattern generation circuit
PPG: maximum of 11 pins, 16 stages programmable, 2 channels
— PWM output
8 bits, 8 channels
Interruption
19 factors, 15 vectors, multi-interruption possible
Standby mode
Sleep/stop
Package
100-pin plastic QFP/LQFP
Piggyback/evaluator
CXP84700
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
–1–
E96Z13B1Y-PS
CXP84716/84720/84724

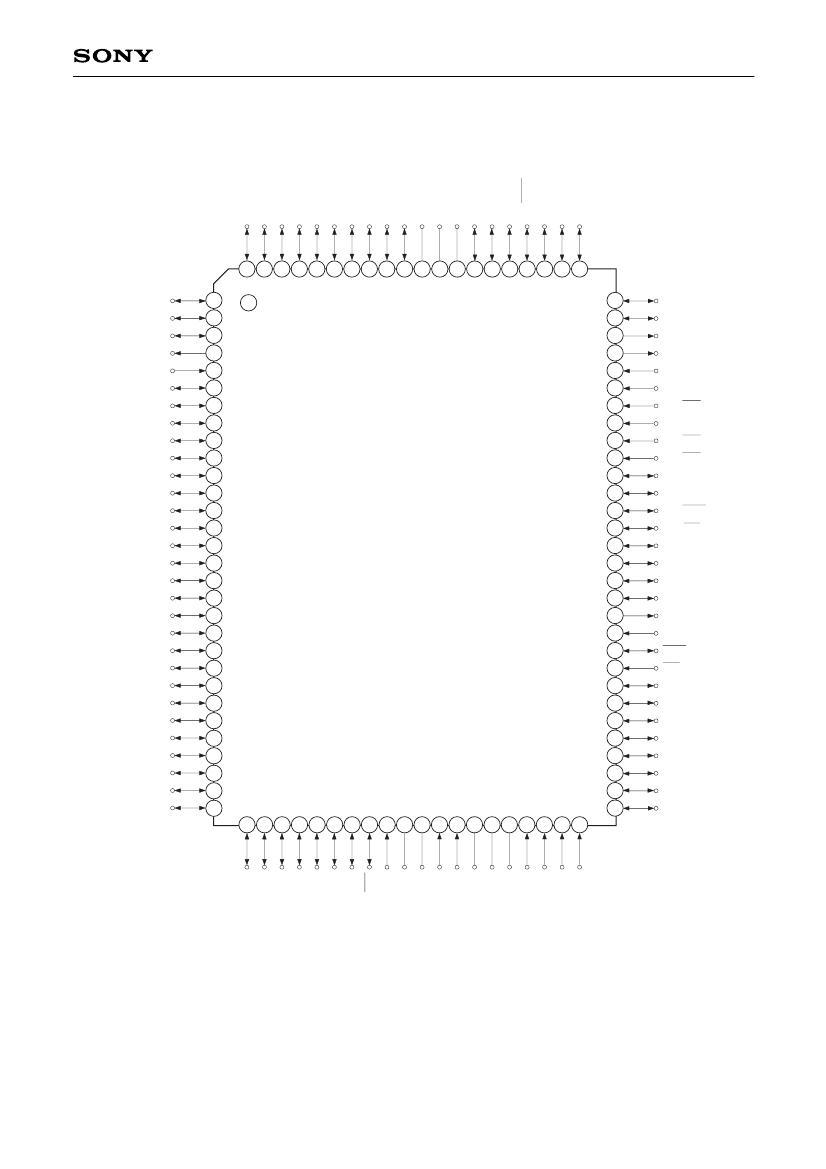

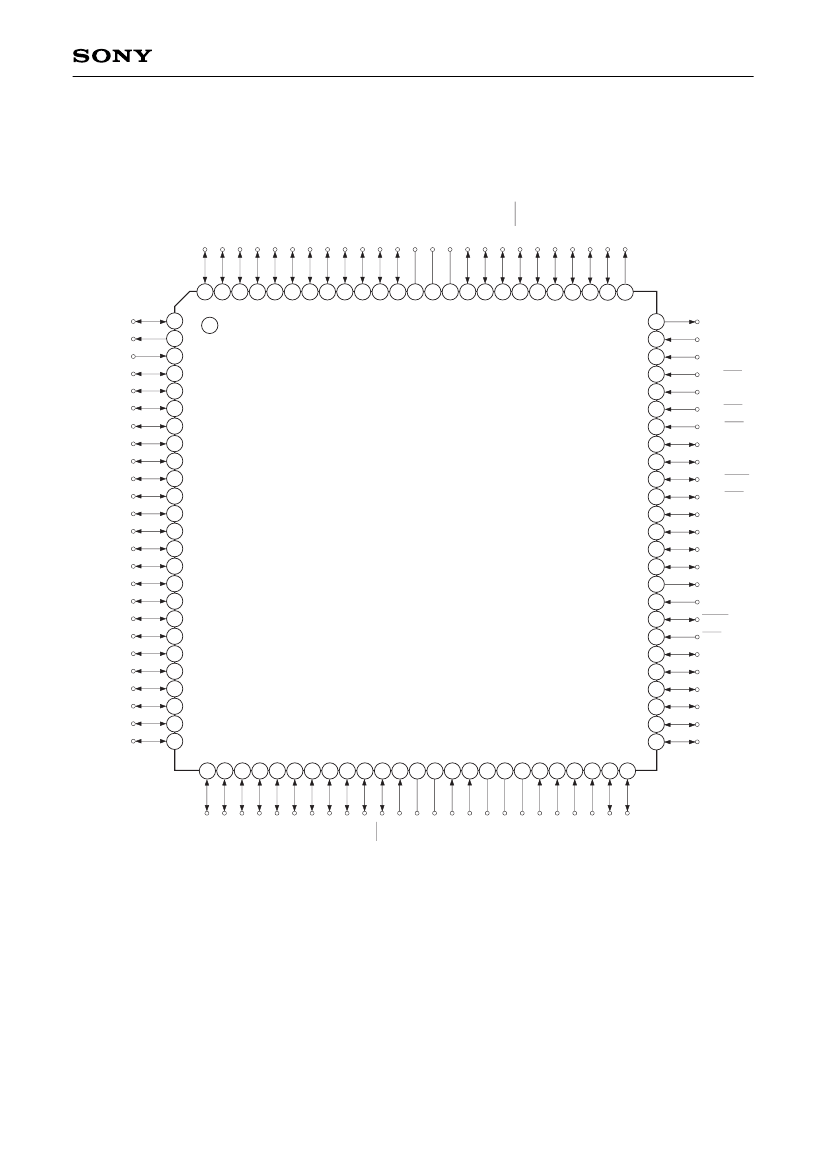

Pin Description
Symbol
AN0
to
AN3
Input
I/O
Analog inputs to A/D converter.
(4 pins)
(Port A)
8-bit I/O port. I/O can be set in
a unit of single bits.
Incorporation of pull-up
resistor can be set through the
software in a unit of 4 bits.
(8 pins)
Description
PA0/AN4
to
PA3/AN7
I/O/Input
Analog inputs to A/D converter.
(4 pins)
PA4 to PA7
PB0/CINT
PB1 to PB3
PB4/CS1
PB5/SCK1
PB6/SI1
PB7/SO1
I/O
I/O/Input
I/O
I/O/Input
I/O/I/O
I/O/Input
I/O/Output
External capture input to 16-bit
timer/counter.
(Port B)
8-bit I/O port. I/O can be set in
a unit of single bits.
Incorporation of pull-up resistor
can be set through the
software in a unit of 4 bits.
(8 pins)
Chip select input for serial interface
(CH1).
Serial clock I/O (CH1).
Serial data input (CH1).
Serial data output (CH1).
PC0 to PC7
I/O
(Port C)
8-bit I/O port. I/O can be set in a unit of single bits. Can drive 12mA sink
current. Incorporation of pull-up resistor can be set through the software in
a unit of 4 bits.
(8 pins)
(Port D)
8-bit I/O port. I/O can be set in
a unit of single bits.
Incorporation of pull-up resistor
can be set through the software
in a unit of 4 bits.
Data is gated with PPO contents
by OR-gate and they are output.
(8 pins)
PD0/PPO0
to
PD7/PPO7
I/O/Real-time
output
PPO0 to PPO7 outputs for programmable
pattern generator (PPG0). Functions as
high-precision real-time pulse output port.
(PPG0: 11 pins; PPG1: 11 pins)
PE0/EC0
PE1/EC1
PE2
PE3/NMI
PE4 to PE5
PE6
PE7/TO
Input/Input
Input/Input
Input
Input/Input
Input
Output
Output/Output
(Port E)
8-bit port. Lower 5 bits are for
input; upper 2 bits are for
output.
(8 pins)
External event inputs for timer/counter.
(2 pins)
Non-maskable interruption request.
Rectangular wave output for 16-bit
timer/counter.
–5–
