D38815GQ

Description
Crystal Filter, 1 Function(s), 38.85MHz, 7.5kHz BW(delta f), Monolithic, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN
CategoryAnalog mixed-signal IC    filter
File Size113KB,1 Pages
ManufacturerDaishinku Corp.
Websitehttp://www.kds.info/
Environmental Compliance
Download Datasheet Parametric View All

D38815GQ Overview

Crystal Filter, 1 Function(s), 38.85MHz, 7.5kHz BW(delta f), Monolithic, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN

D38815GQ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerDaishinku Corp.
Reach Compliance Codeunknown
Other features4 POLE; TAPE AND REEL
Maximum attenuation frequency (+/- delta f)25 kHz
Attenuation at maximum frequency35 dB
Bandwidth (+/- delta f)7.5 kHz
Center frequency or cutoff frequency (fo/fc)38.85 MHz
structureMONOLITHIC
filter typeCRYSTAL FILTER
high1.3 mm
Input/output impedance920 OHM//2.5
Maximum insertion loss4 dB
JESD-609 codee4
length7 mm
Manufacturer's serial numberD38815GQ
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
physical sizeL7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Terminal surfaceGold (Au)
width5 mm

D38815GQ Preview

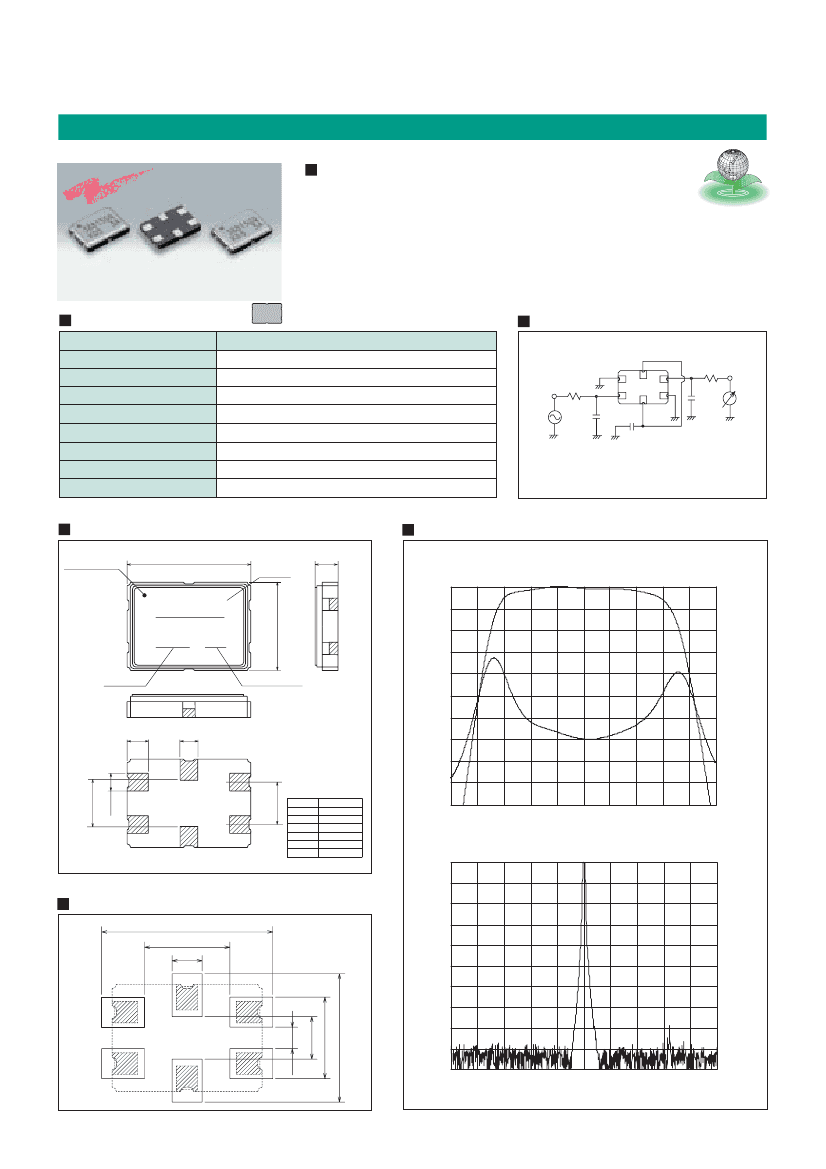

SMD Type Monolithic Crystal Filters
DSF753SDF 4POLE
(Fundamental; 35MHz∼130MHz)
NEW
Features
SMD type with dimensions 7.0×5.0×1.3. Miniature
 and lightweight (0.15g).
4 pole characteristics in one package.
Excellent guaranteed attenuation characteristics.
High reliability against shock and vibration.
Suitable for mobile phones and radio communications.
Actual size
Completely Lead-Free
Generic Specification
Type
Nominal Frequency
Pass Bandwidth
Attenuation Bandwidth
Ripple
Insertion Loss
Guaranteed Attenuation
Terminal Impedance
Operating Temperature Range
D38815GQ
38.850MHz
±7.5kHz min./ 3dB
±25kHz max./ 35dB
1.0 dB max.
4.0 dB max.
70 dB min.
920Ω//2.5 pF Cc= 7.5 pF
−20∼ +70℃
Measurement Circuit
R
R
50Ω
S.G
Ct
Cc
Ct
50Ω
L.M
External coupling capacitor is required.
Packing Unit : 1000pcs./reel(φ180) Consult our sales representative for other specifications.
Dimensions[mm]
INPUT MARK
7.0±0.2
Type
1.3±0.2
Characteristics Chart(
D38815GQ
CH1
CH2
log MAG
delay
1dB
10μs
K S  A
D 3
Logo
Lot No.
1.2
#2
1.0
#3
#4
2.54
2.6
1.0
5.0±0.2
Pin No.
Signal
#1
INPUT
#2
GND.
#3
Connect with #6
#4
OUTPUT
#5
GND.
#6
Connect with #3
385
8 1 GQ
CH:1& CH2 CENTER 38.850MHz
SPAN 25kHz
#1
#6
#5
CH1 logMAG 10dB/
Recommended Land Pattern
8.0
4.0
1.4
[mm]
3.94
1.14
2.0
6.0
CH1 CENTER 38.850MHz
SPAN 2MHz
