DB(Z) 055135, DBF 050166
Vishay Draloric
Feed-Through Capacitors with R 16 High Q Ceramic
DB 055135 20 KV
P
DBZ 055135 20 KV
P
25
±
1
(0.984
±
0.04)
DBF 050166 25 KV
P
22
±
2
(0.866
±
0.08)
84
±
2
22
±
2
(3.31
±
0.08)
(0.268
±
0.197)
210
±
5 (8.27
±
0.20)
4
+1
(0.157
+ 0.04
)
ø 75
(2.952 DIA)
M10 Thread (Both ends)
5/16-18 UNC Thread (Both ends)
62
±
2
(2.441
±
0.08)
65
±
2
(2.559
±
0.08)
135
±
2
(5.315
±
0.08)
2 (0.08)
ø 82
(3.228 DIA)
135
±
2
(5.315
±
0.08)
ø 55
(2.165 DIA)
173
±
2
(6.881
±
0.08)
150
0.08
(5.906
+ 0.04
)
-
166
±
3
(6.54
±
0.12)
2
(0.08)
1
(0.04)
+2
-1
Ø 50
(1.969 DIA)
SW 17 (0.669 HEX)
M10 Thread
(Both ends)
SW 17
(0.669 HEX)
25
±
1
(0.984
±
0.04)
Ø 96
(3.780 DIA)
130
±
0.5 (5.118
±
0.02)
110
±
0.5 (4.331
±
0.02)
100
±
0.5 (3.937
±
0.02)
5.315
±
0.02)
6.496
±
0.02)
9.5
±
0.3
(0.374
±
0.012)
60°
86
±
0.5 (3.386
±
0.02)
45°
135
±
0.5 (
165
±
0.5 (
45°
60°
5.5
Holes
(0.217
+ 0.007
)
+ 0.2
6.3
+ 0.3
Holes
(0.248
+ 0.012
)

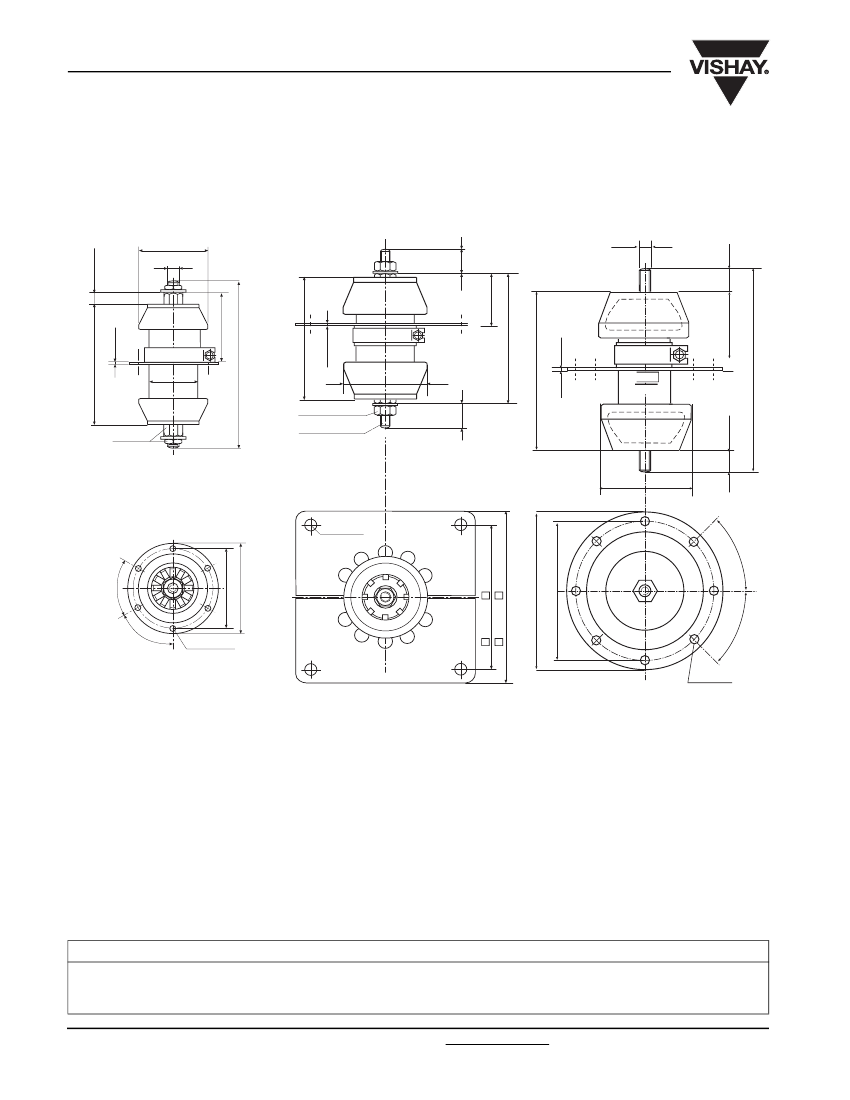

• Dimensions in millimeters (inches)
MODEL:
These capacitor feature a Q-Factor greater than 10 000
which makes it well suited in operating frequency range
from 0.1 MHz up to 30 MHz where high voltages and
currents are present.
FINISH:
Noble metal electrodes completely lacquered at model
DB 055135. Contoured rims glazed.
DBF model only has additional moisture protection (silicone
rubber) at both the contoured rims.
MATERIAL:
Capacitor elements made from Class 1 ”High Q” ceramic
dielectric with noble metal electrodes.
Connection terminals: Copper/brass, silver plated.
MARKING:
Type designator, Capacitance value and tolerance, Rated
voltage, Production date code, Ceramic material code,
DRALORIC Logo
ACCESSORIES ADDED:
Hex. nuts/screws and washers (DB, DBZ 055135 only).
ORDERING INFORMATION
DBZ 055135
MODEL
www.vishay.com
1
20 KVp
RATED VOLTAGE
100 pF
CAPACITANCE VALUE
± 10 %
TOLERANCE
R 16 High Q
CERAMIC
Document Number: 22107
Revision: 21-Feb-02
For technical questions contact: powcap@vishay.com
Legal Disclaimer Notice
