ST280CH04C3L datasheet, PDF - EEWORLD Datasheet

ST280CH04C3L: DescriptionSilicon Controlled Rectifier, 1130A I(T)RMS, 185000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-200AB, APUK-2; CategoryAnalog mixed-signal IC Trigger device; File Size177KB，8 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

ST280CH04C3L Overview

Silicon Controlled Rectifier, 1130A I(T)RMS, 185000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-200AB, APUK-2

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
Parts packaging code	BUTTON
package instruction	DISK BUTTON, O-MEDB-N2
Contacts	2
Reach Compliance Code	compliant
Shell connection	ISOLATED
Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	600 mA
JEDEC-95 code	TO-200AB
JESD-30 code	O-MEDB-N2
JESD-609 code	e0
Maximum leakage current	75 mA
On-state non-repetitive peak current	6000 A
Number of components	1
Number of terminals	2
Maximum on-state current	185000 A
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	1130 A
Maximum repetitive peak off-state leakage current	75000 µA
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

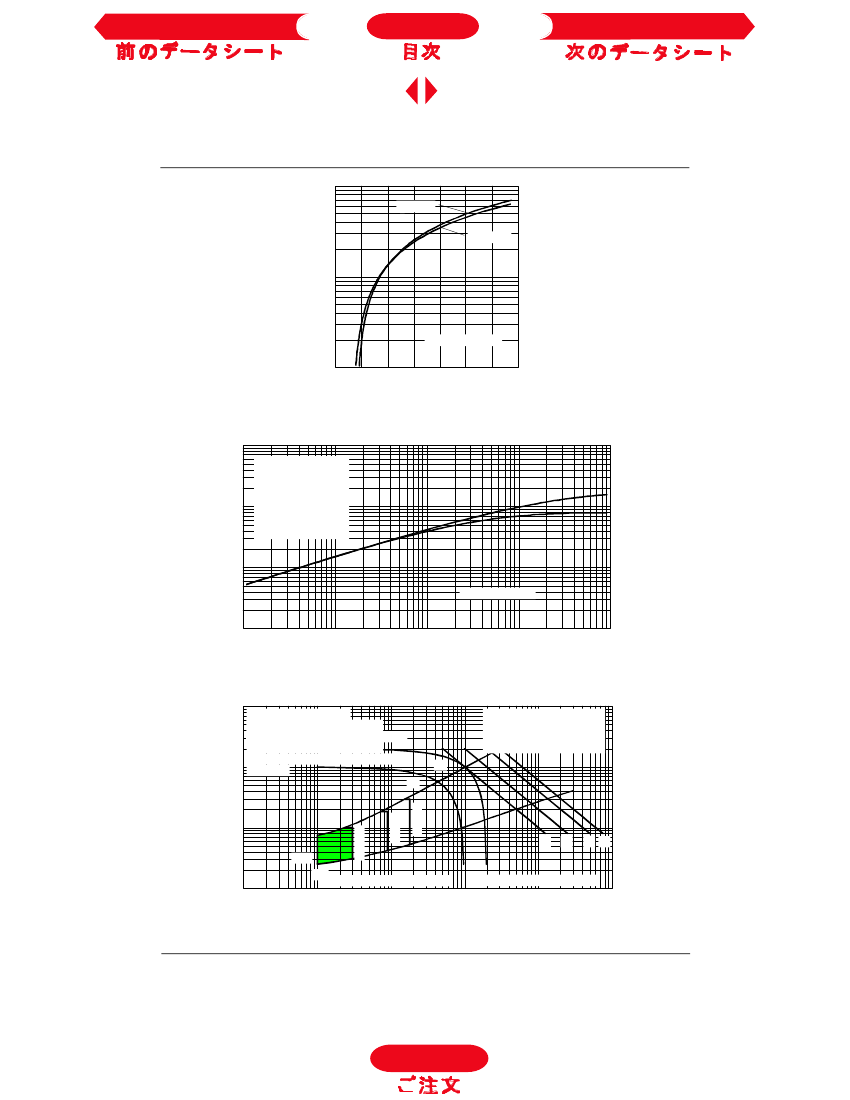

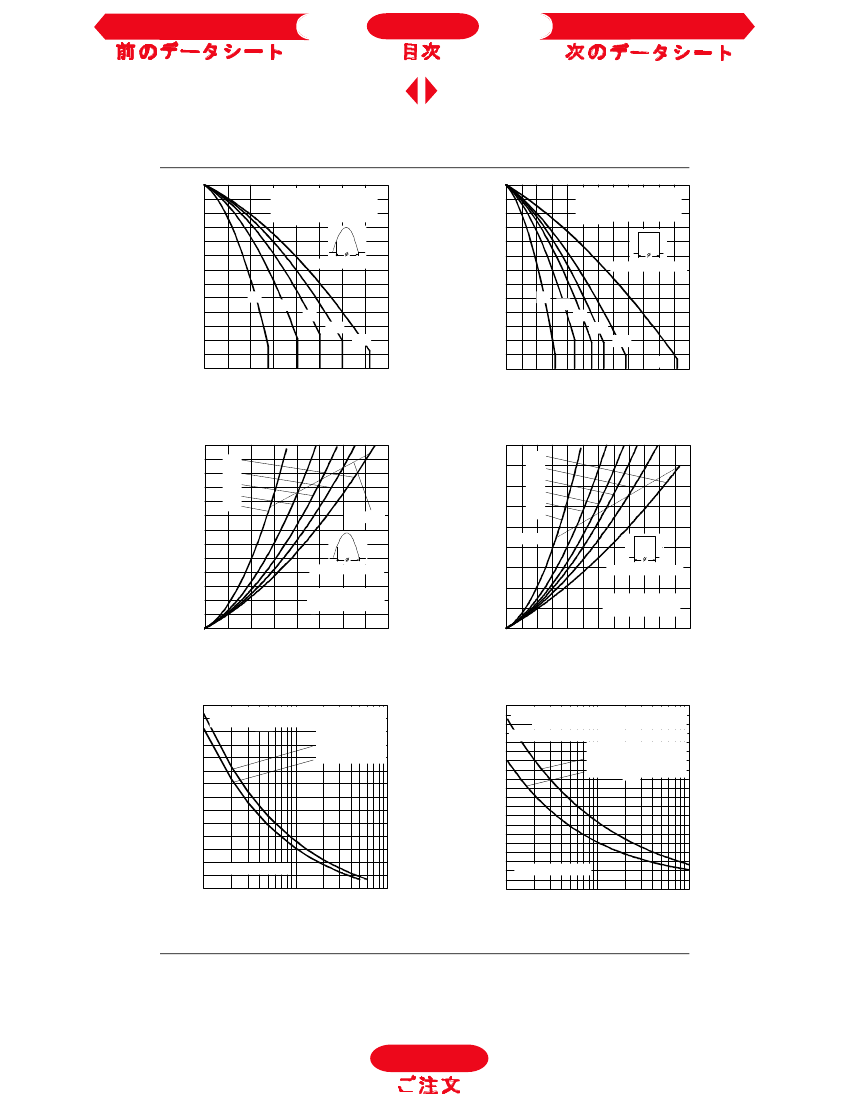

Previous Datasheet

Index

Next Data Sheet

DISCRETE POWER DIODES and THYRISTORS

DATA BOOK

D-302
