High surge current capability, ideal for printed circuit board
Mechanical Data
Terminal
Case
Polarity
Mounting position
Reverse Voltage
Forward Current
: Plated leads solderable per MIL-STD 202E, Method 208C
: UL-94 Class V-0 recognized Flane Retardant Epoxy
: Polarity symbol marked on body
: Any
: 600 Volts
: 4 Amperes
Maximum Ratings And Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Characteristic
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Output Current
@ T
c
= 138°C (with heatsink)
Peak Forward Surge Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load (JEDEC Method)
Maximum Forward Voltage at 4A DC
I
2
t Rating for Fusing (t<8.3ms)
Typical Thermal Resistance
without heatsink
with heatsink
without heatsink
@ T
a
= 25°C
@ T
a
= 125°C
Symbol
V
rrm
V
rms
V
dc
I
(AV)
I
fsm
V
f
I
2
t
R
θJA
R
θJC
R
θJL
I
r
T
j
T
sTg
Values
600
420
600
4
A
135
0.92
76
55
127
15
10
500
-55 to +150
V
A
2
s
°C/W
μA
°C
V
Unit
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Operating Temperature Range
Storage Temperature Range
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <1>
25/09/19
V1.0
Glass Passivated
Bridge Rectifier

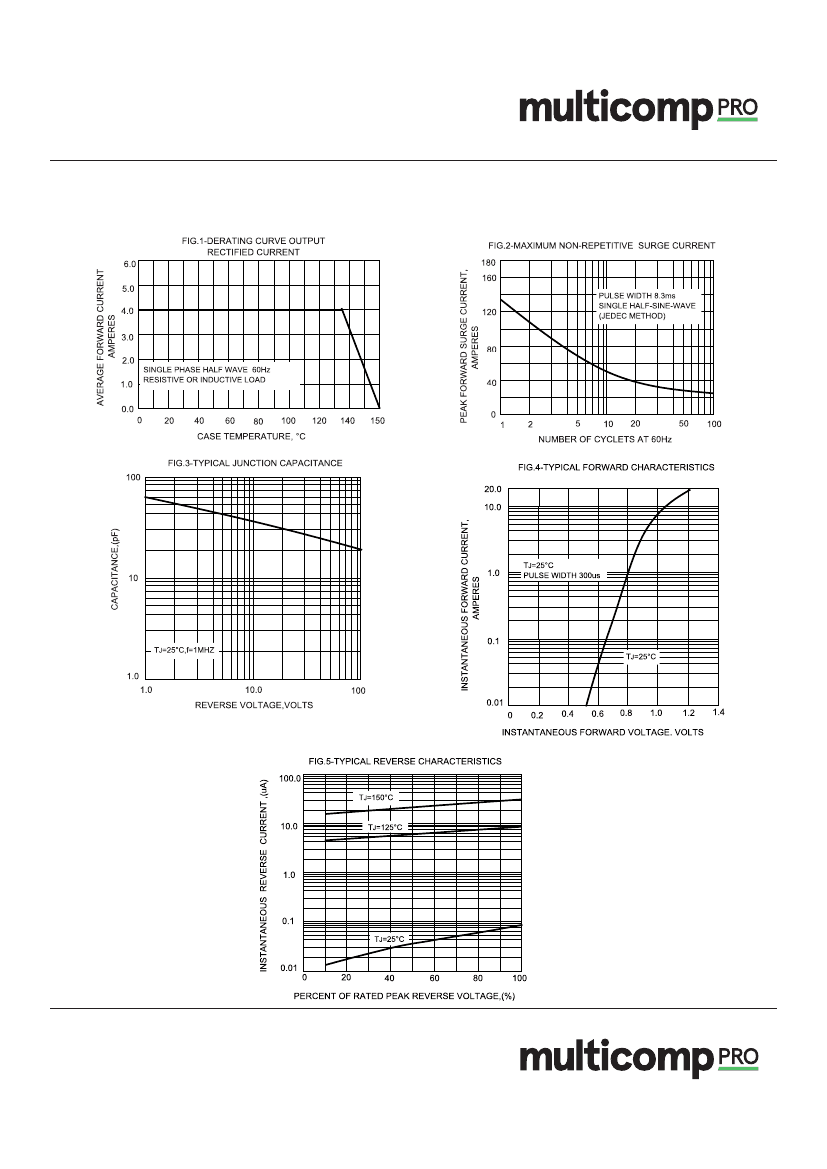

Rating and Characteristic Curves
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <2>
25/09/19
V1.0
Glass Passivated
Bridge Rectifier
Dimension:
Dimensions : Inches (Millimetres)
Part Number Table
Description
Glass Passivated Bridge Rectifier
Part Number
D4KB6L
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for
the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness,
any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make
any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or
where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its
negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
