SK30DGDL066ET

Description
3-phase bridge rectifier + brake chopper + 3-phase bridge inverter
CategoryDiscrete semiconductor    The transistor
File Size1009KB,5 Pages
ManufacturerSEMIKRON
Websitehttp://www.semikron.com
Environmental Compliance
Download Datasheet Parametric Compare View All

SK30DGDL066ET Overview

3-phase bridge rectifier + brake chopper + 3-phase bridge inverter

SK30DGDL066ET Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSEMIKRON
package instructionFLANGE MOUNT, R-XUFM-P23
Contacts23
Manufacturer packaging codeCASE T 49
Reach Compliance Codecompli
Is SamacsysN
Other featuresUL RECOGNIZED
Shell connectionISOLATED
Maximum collector current (IC)35 A
Collector-emitter maximum voltage600 V
ConfigurationCOMPLEX
Gate-emitter maximum voltage20 V
JESD-30 codeR-XUFM-P23
Number of components7
Number of terminals23
Maximum operating temperature175 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Certification statusNot Qualified
surface mountNO
Terminal formPIN/PEG
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsPOWER CONTROL
Transistor component materialsSILICON
Nominal off time (toff)274 ns
Nominal on time (ton)27 ns
VCEsat-Max1.85 V
Base Number Matches1

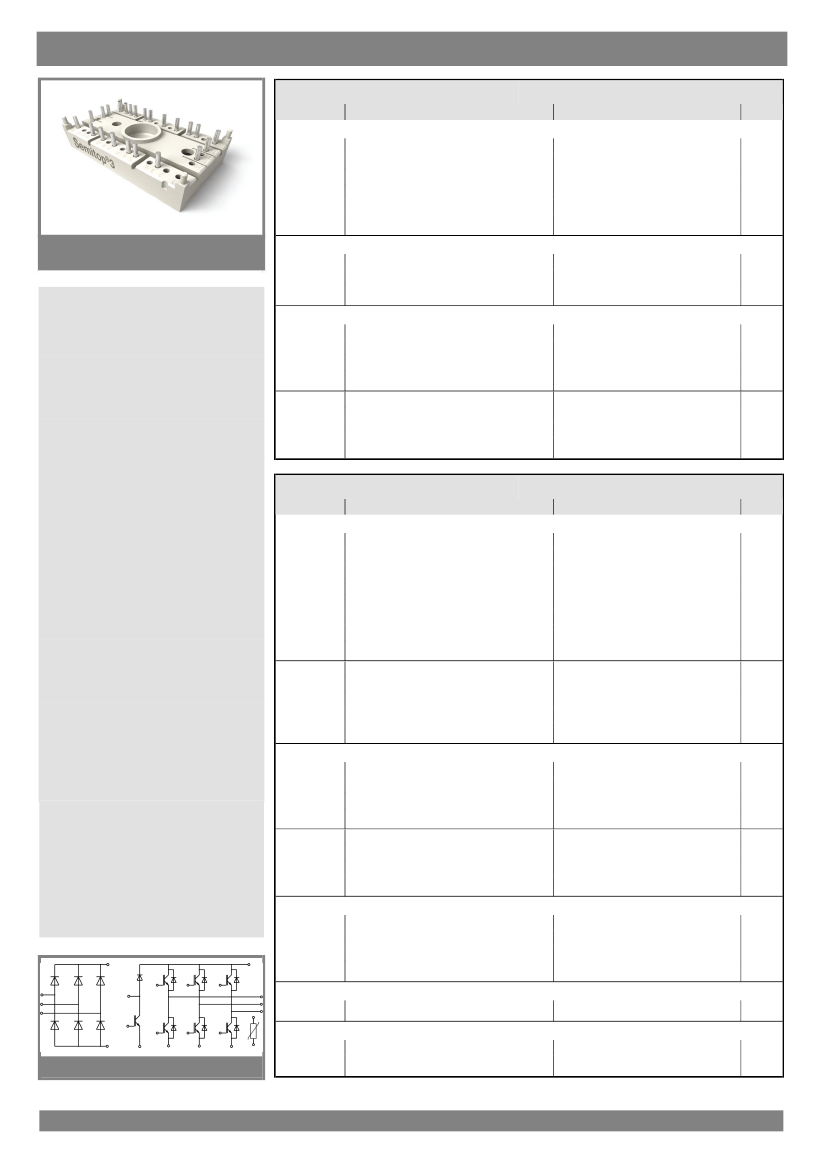

SK 30 DGDL 066 ET
CONVERTER, INVERTER, BRAKE
Absolute Maximum Ratings
Symbol Conditions
IGBT - Inverter, chopper
Values
Units
SEMITOP
®
3
3-phase bridge rectifier +
brake chopper + 3-phase
bridge inverter
SK 30 DGDL 066 ET
Diode - Inverter, chopper
Diode - Rectifier
Target Data
Features

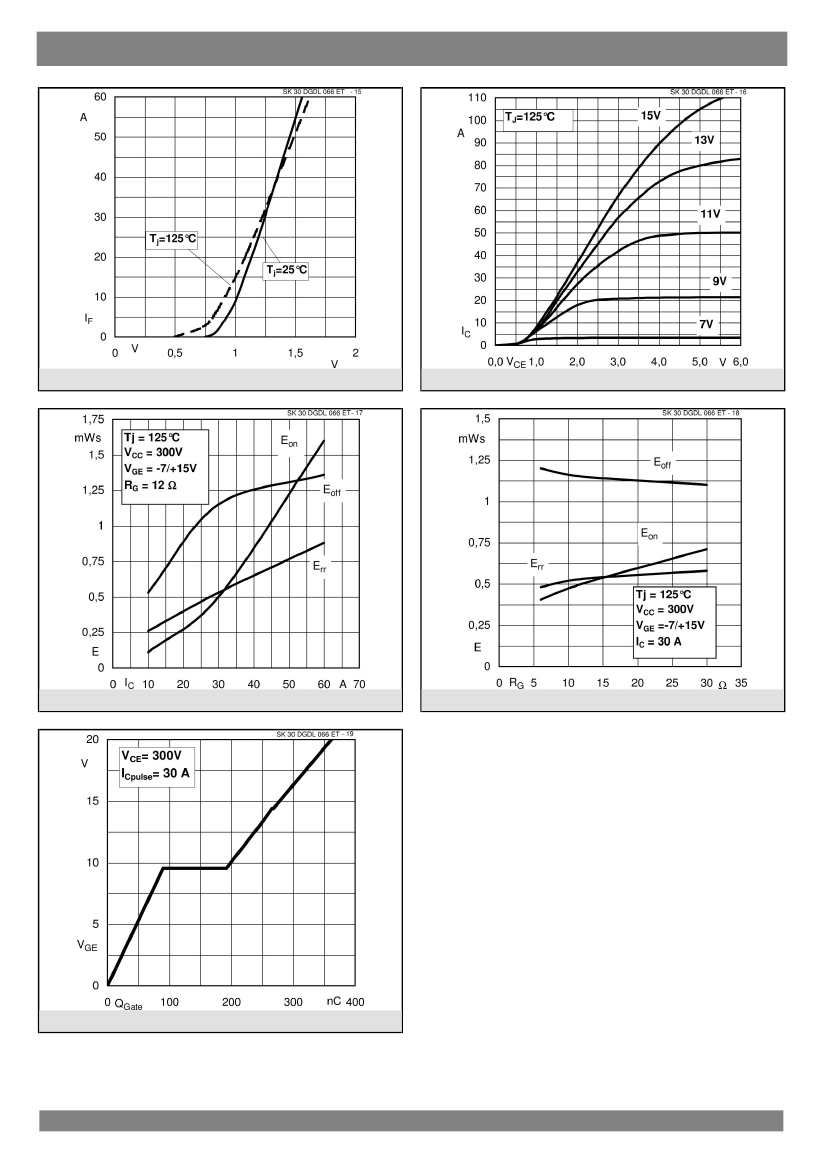

Characteristics
Symbol Conditions
IGBT - Inverter, chopper
min.
typ.
max.
Units
Typical Applications*
Remarks
Diode - Inverter, chopper
Diode rectifier

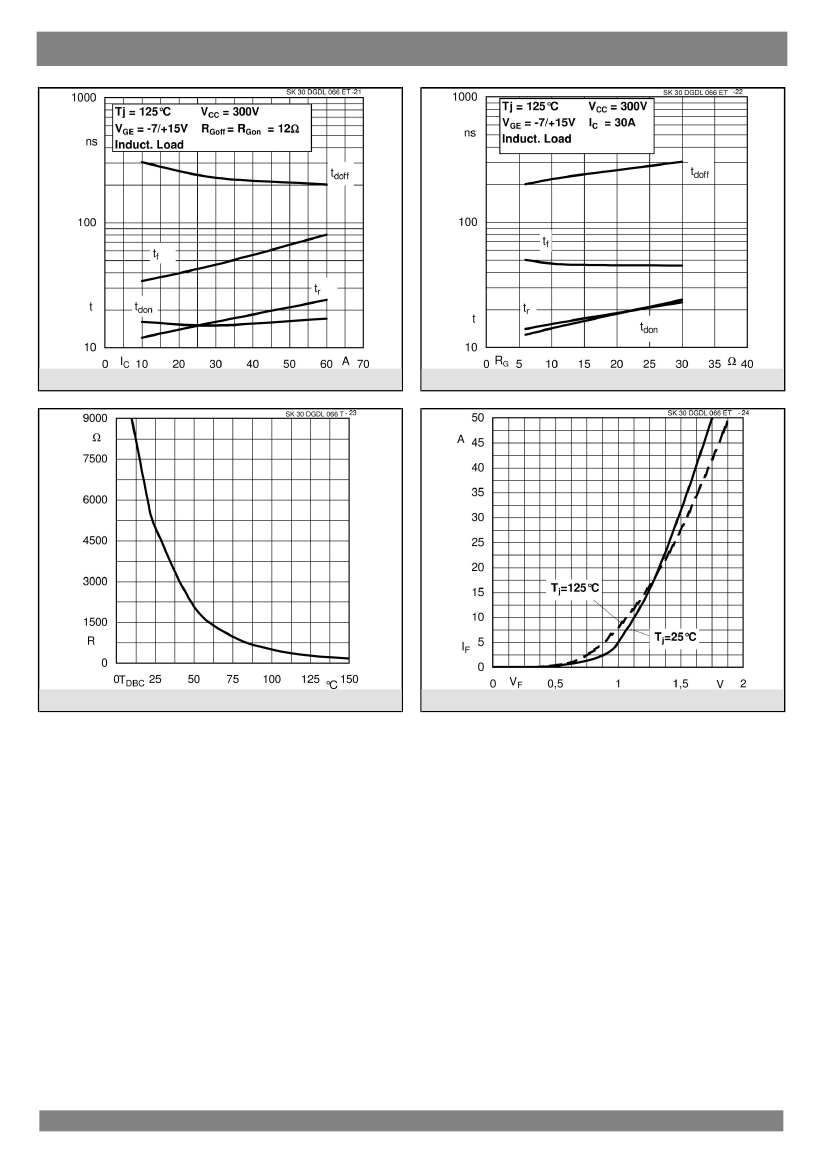

Temperature Sensor

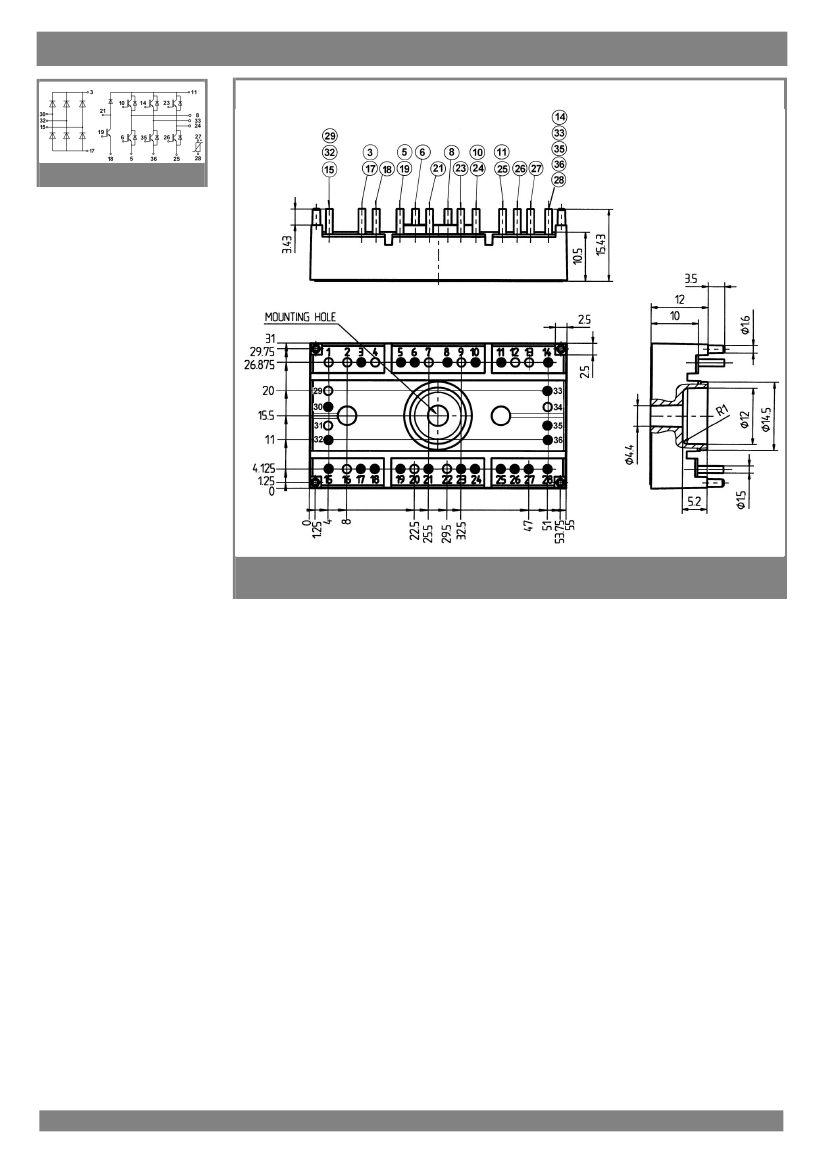

Mechanical Data
DGDL - ET
1
16-01-2009 DIL
© by SEMIKRON
