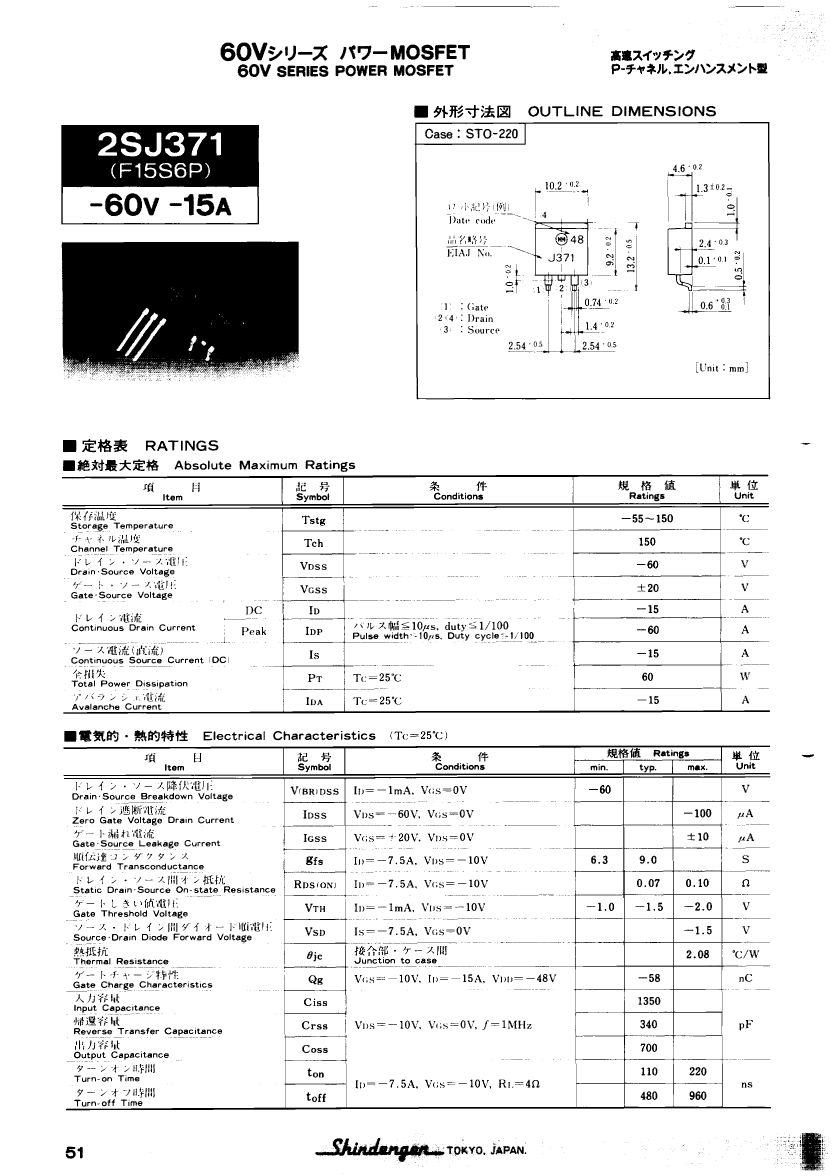

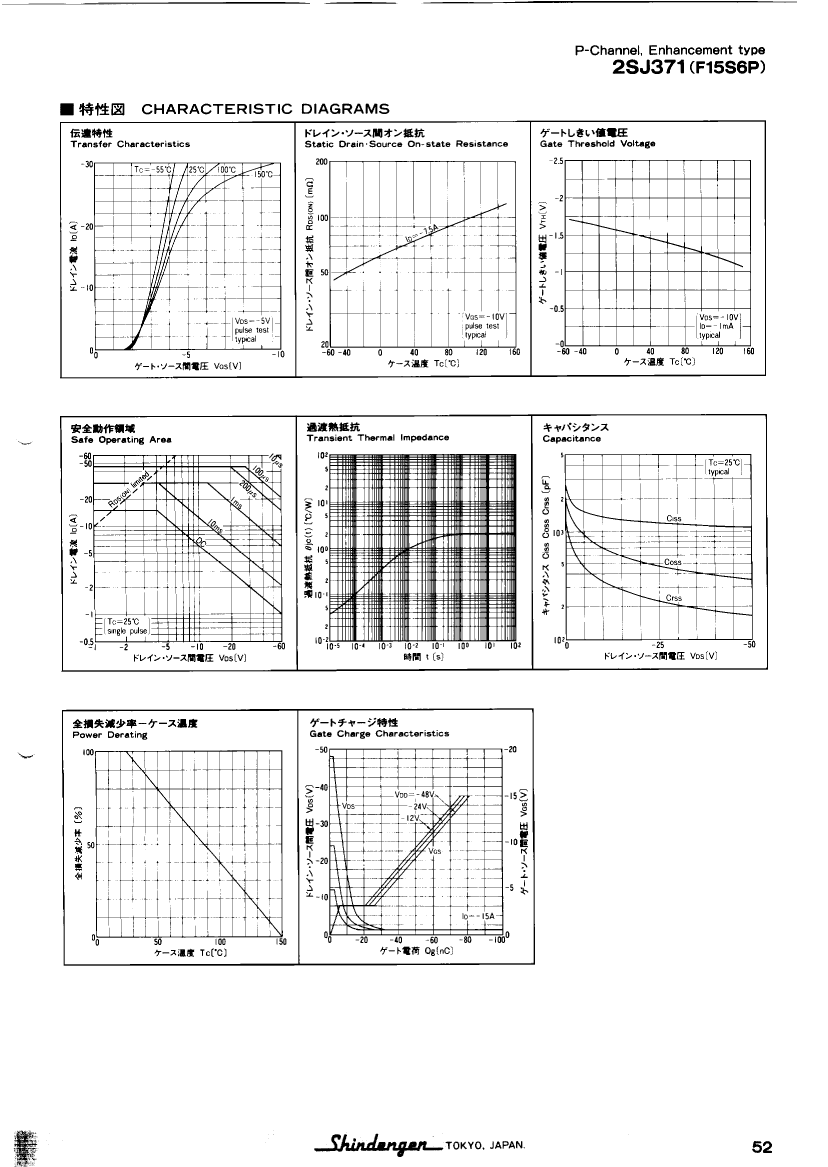

F15S6P-4072: DescriptionPower Field-Effect Transistor, 15A I(D), 60V, 0.1ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, STO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size113KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

F15S6P-4072 Overview

Power Field-Effect Transistor, 15A I(D), 60V, 0.1ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, STO-220, 3 PIN

F15S6P-4072 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
Parts packaging code	SFM
package instruction	SMALL OUTLINE, R-PSSO-G2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	DRAIN
Configuration	SINGLE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	15 A
Maximum drain-source on-resistance	0.1 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	P-CHANNEL
Maximum pulsed drain current (IDM)	60 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Transistor component materials	SILICON

Preview

Download Datasheet

View All

F15S6P-4072 Related Products

	F15S6P-4072	2SJ371-4072	2SJ371-4102	2SJ371-4062	F15S6P-4100	F15S6P-4102	F15S6P-4062
Description	Power Field-Effect Transistor, 15A I(D), 60V, 0.1ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, STO-220, 3 PIN	Power Field-Effect Transistor, 15A I(D), 60V, 0.1ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, STO-220, 3 PIN	Power Field-Effect Transistor, 15A I(D), 60V, 0.1ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, STO-220, 3 PIN	Power Field-Effect Transistor, 15A I(D), 60V, 0.1ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, STO-220, 3 PIN	Power Field-Effect Transistor, 15A I(D), 60V, 0.1ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, STO-220, 3 PIN	Power Field-Effect Transistor, 15A I(D), 60V, 0.1ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, STO-220, 3 PIN	Power Field-Effect Transistor, 15A I(D), 60V, 0.1ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, STO-220, 3 PIN
Parts packaging code	SFM	SFM	SFM	SFM	SFM	SFM	SFM
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum drain-source breakdown voltage	60 V	60 V	60 V	60 V	60 V	60 V	60 V
Maximum drain current (ID)	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Maximum drain-source on-resistance	0.1 Ω	0.1 Ω	0.1 Ω	0.1 Ω	0.1 Ω	0.1 Ω	0.1 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL
Maximum pulsed drain current (IDM)	60 A	60 A	60 A	60 A	60 A	60 A	60 A
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	SHINDENGEN	-	-	-	SHINDENGEN	SHINDENGEN	SHINDENGEN
Base Number Matches	-	1	1	1	1	-	-
