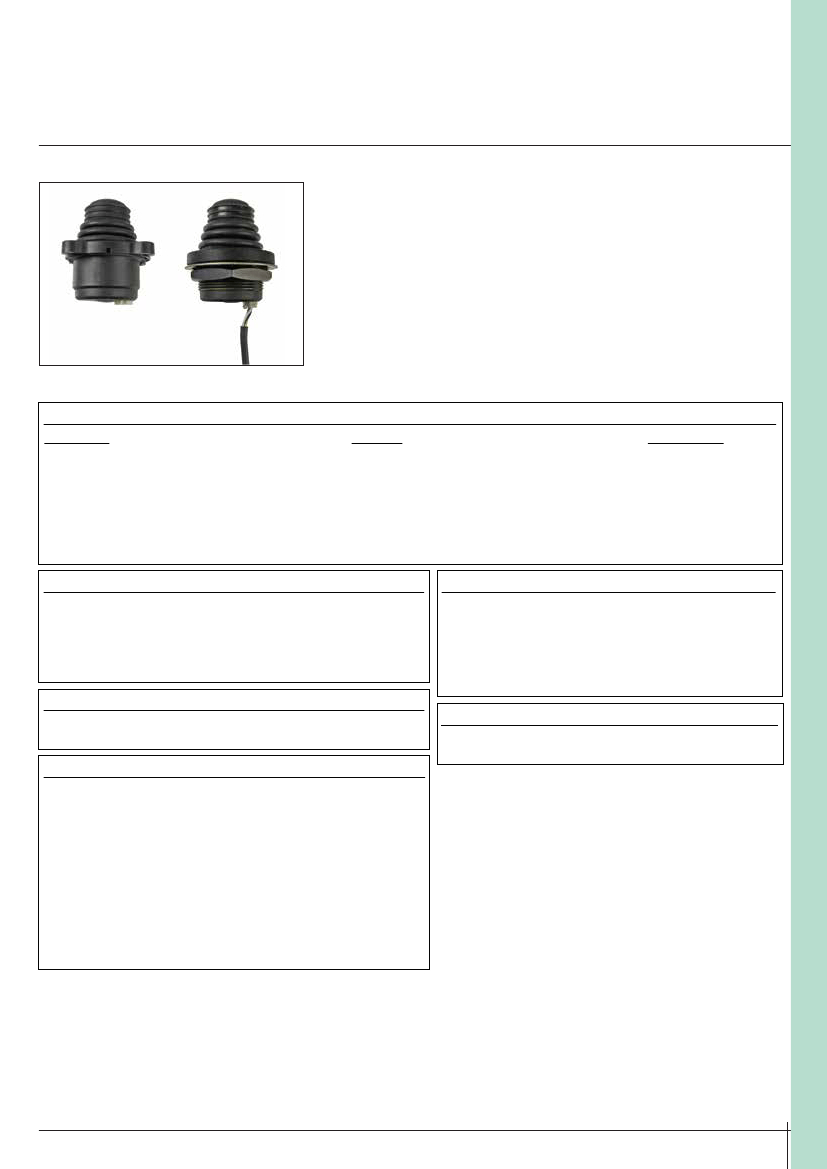

Sealed 5-way switch based miniature joystick

HS series

Distinctive features and specifications



5-way with center pushbutton option

Positive tactile feedback

MOM-OFF-MOM action

Threaded bush mount option

Sealed to IP68 and IP69K

Connectorized housing

CURRENT/VOLTAGE RATING WITH RESISTIVE LOAD

CONTACT

• Gold plated (G)

• Silver plated (S)

• Mechanical life

• Insulation resistance

• Voltage withstand

• Contact resistance

• Electrical function

MECHANICAL

–

RATING

LIFECYCLES

10mA @ 30VDC

– 200,000 operations

100mA @ 30VDC

– 100,000 operations

300,000 operations

Min 100MΩ (250VDC by insulation resistance meter)

500VAC for 1 minute

Max 200mΩ (by YHP4328A)

MOM-OFF-MOM

TERMINATION

• Operating Force: 5.56N±0.53N (1.25lbf±0.12lbf)

• Maximum Vertical Load: 200N (45lbf)

• Maximum Horizontal Load: 150N (33.7lbf)

• Lever travel: 30° (±15 )

• Mass/weight:

17g (0.0375lb) (Option HS1DXXXA)

ENVIRONMENTAL

• Manufacturer: Molex

• Manufacturer part number: 501331-0607

• Product range: Pico-Clasp ™

• Circuits: Six

• Pitch: 1.00mm

• Mating connector: Molex 501330-0600

OPTIONAL MATING HARNESS

• Sealing: IP68, IP69K²

• Operating temperature: -25 C to +80 C

(-13°F to +176°F)

PUSHBUTTON SWITCH (Option 6 Handle)

• Wire type : 28AWG 25cm PTFE

• Connector: Molex 501330-0600

• Electrical life: 100,000 cycles

• Rating: 50 mA,12VDC

• Terminal: Brass with silver plating

• Contact resistance: 100 milliohms max.

• Insulation resistance: 100 megohms min. 500VDC

• Dielectric strength: 250VAC /1 minute

• Contact arrangement: 1 pole 1 throw

• Operation force: 1.5lbf

• Stop strength: Max 3kgf vertical static load for 15 seconds

• Operating temperature: -25 C to +70 C

(-13°F to +158°F)

• Storage temperature: -30 C to +85 C

(-22°F to +185°F)

NOTES:

Force applied to the top of the castle cap.

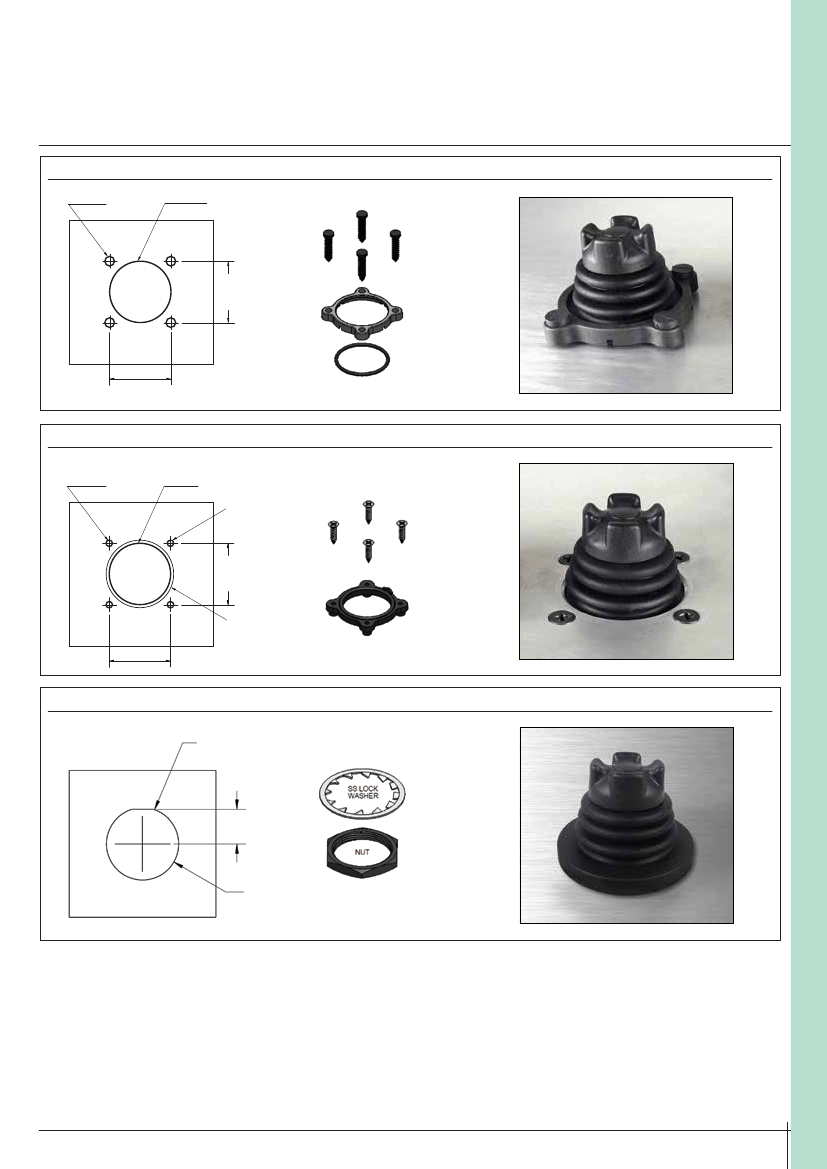

All options are IP68 and IP69K rated, however Drop-in mounting does not prevent panel ingress.

The HS Series tactile toggle switch is fitted with a six terminal Molex (501331-0607) connector. A mating harness is not included,

but may be specified at the time of order for an additional charge. The 4-function harness is part number 505-508. The 5-function

harness, necessary for the Option 6 Handle is part number 505-509.

All values are nominal.

Note: The company reserves the right to change specifications without notice.
