2SC2732ECTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC2732ECTR

2SC2732ECTR: DescriptionUHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, MPAK-3; CategoryDiscrete semiconductor The transistor; File Size111KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

2SC2732ECTR Overview

UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, MPAK-3

2SC2732ECTR Parametric

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.02 A
Collector-based maximum capacity	0.8 pF
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	1000 MHz
Base Number Matches	1

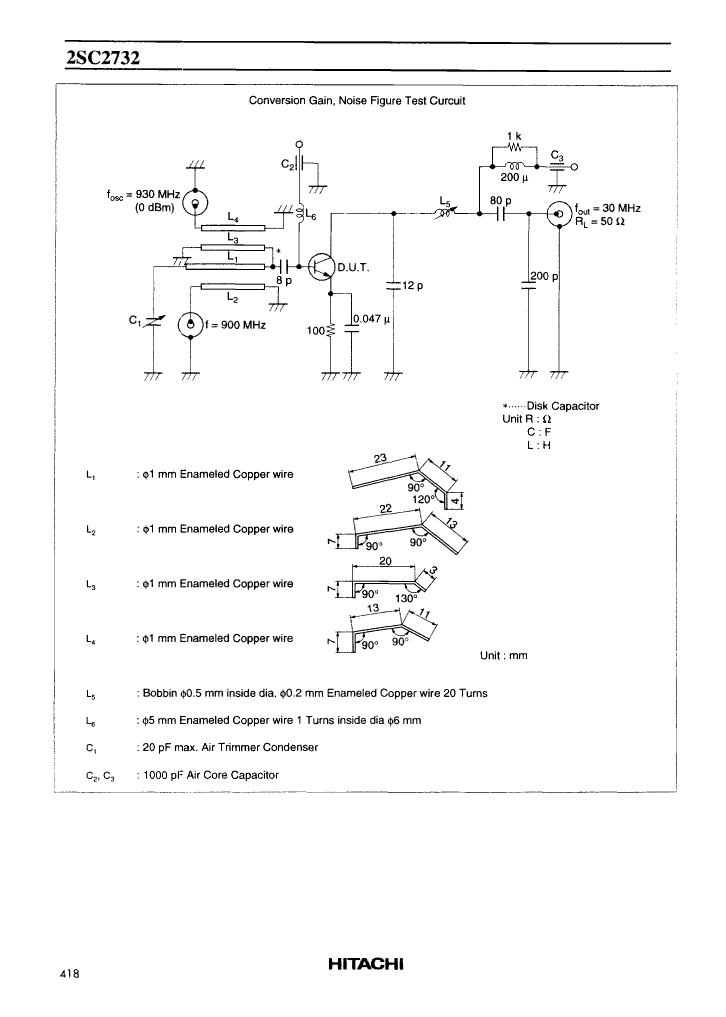

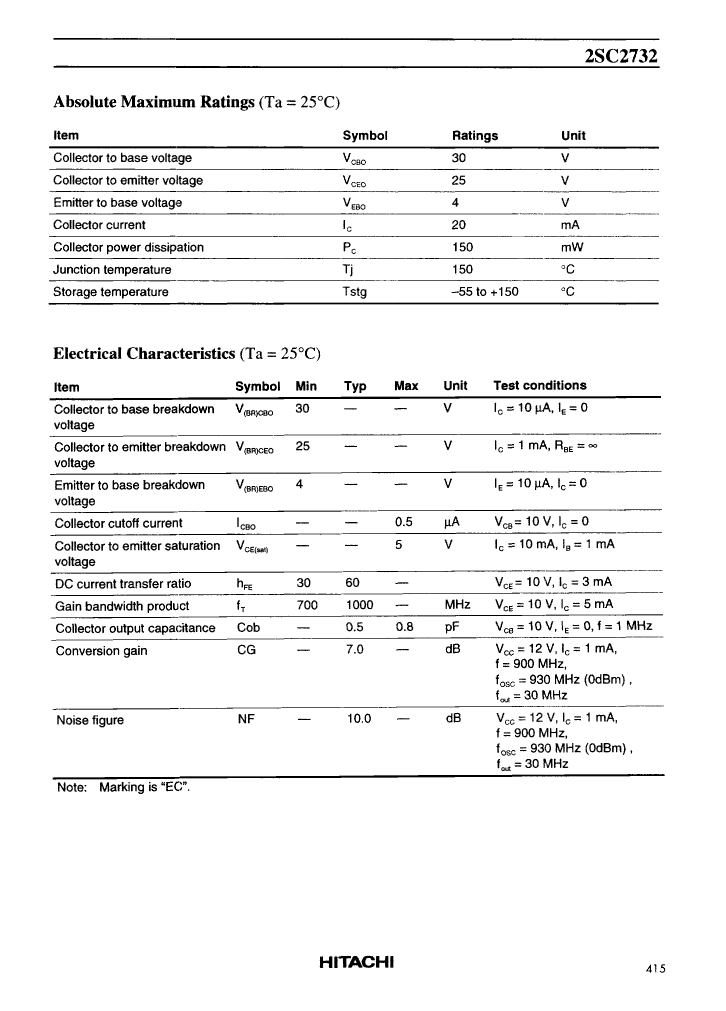

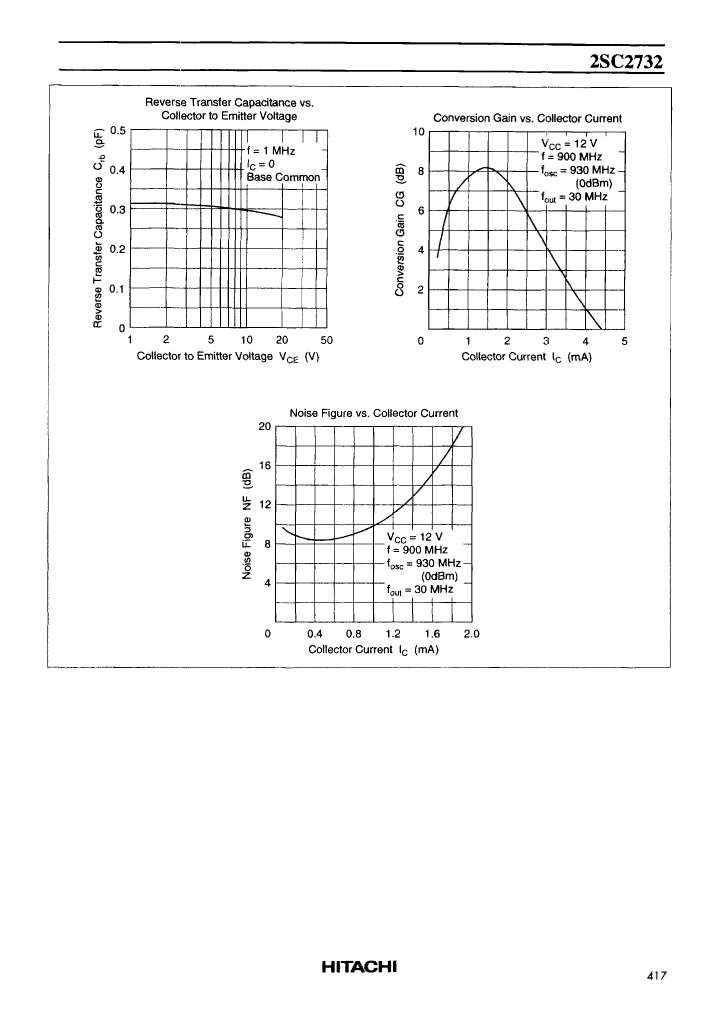

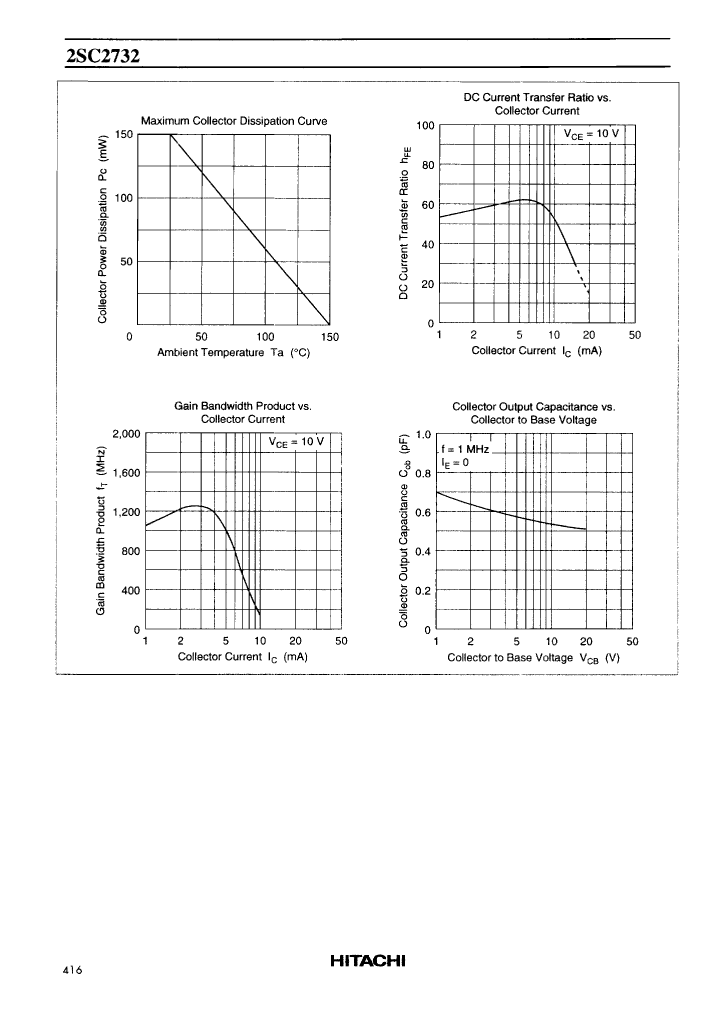

Preview

Download Datasheet

View All

2SC2732ECTR Related Products

	2SC2732ECTR	2SC2732ECTL	2SC2732ECUR	2SC2732ECUL	2SC2732EC01
Description	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, MPAK-3	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, MPAK-3	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, MPAK-3	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, MPAK-3	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, MPAK-3
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Contacts	3	3	3	3	3
Reach Compliance Code	unknow	unknow	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Collector-based maximum capacity	0.8 pF	0.8 pF	0.8 pF	0.8 pF	0.8 pF
Collector-emitter maximum voltage	25 V	25 V	25 V	25 V	25 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	1000 MHz	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Base Number Matches	1	1	1	1	-
