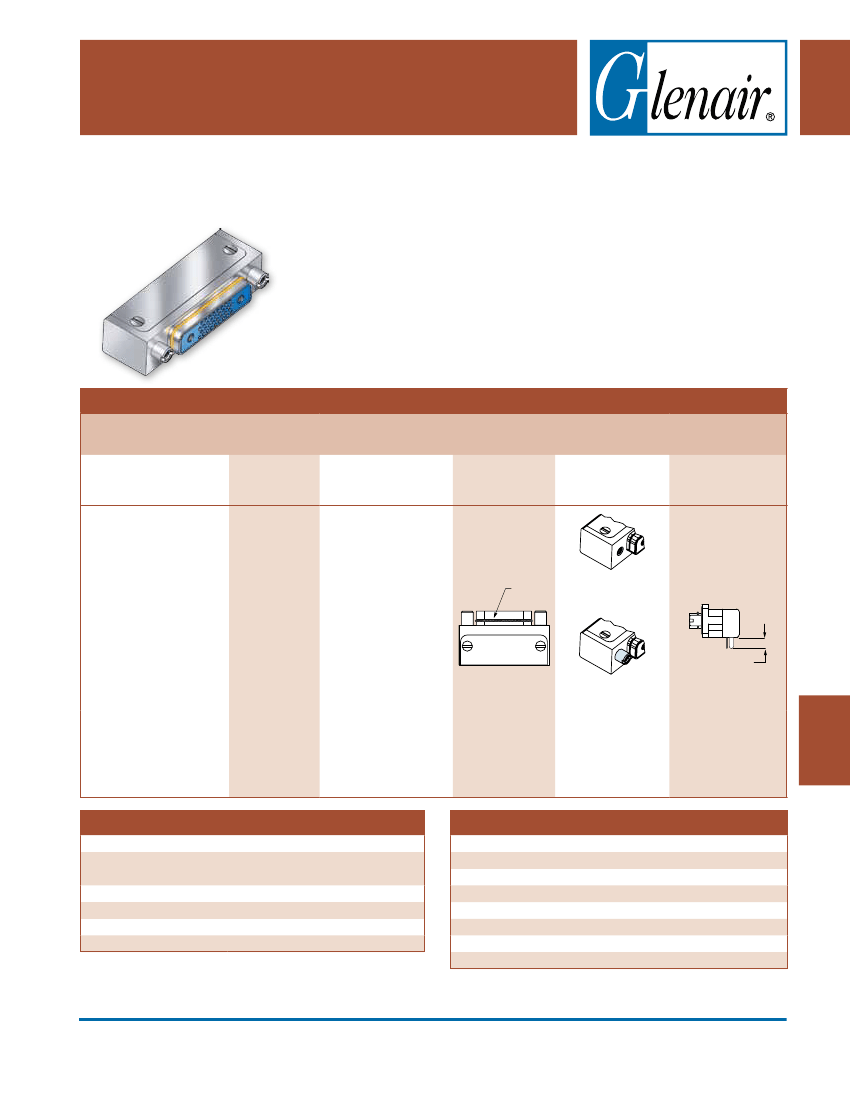

How To order
790-042S Right Angle PCB Free-Standing Plugs
SoCkET CoNTACTS WITH PCB TERMINATIoN
Free-standing rugged right angle headers feature gold-plated PC tail contacts
for thru-hole printed circuit board termination. Not for panel mounting. Contacts
are permanently installed and are sealed with epoxy. Shells are aluminum alloy.
EMI shroud improves shielding performance. Threaded board mounting holes
and integral standoffs simplify installation. Available in 29 different contact
arrangements, these connectors feature size #23 signal contacts along with
#16 and #12 power contacts for up to 23 amps current rating. Optional EMI
spring improves shell-to-shell conductivity and shielding performance. Mates
with 790-024p cable receptacles.
Sample Part Number
HoW To oRDER
790-042S
Part Number
Right Angle Plug with
90° PC Tail Contacts
for Termination to
Backplanes or Flexible
Circuits
L-6P6
Shell Size -
Insert
Arrangements
See Table 1
for Available
Insert
Arrangements
M
E
P
Hardware
option
A
PC Tail Length
.125 Inch (3.2 mm.)
Shell Finish
Electroless Nickel
general purpose
applications
EMI Spring
EMI Spring
No Spring
EMI
SPRING
790-042S
M
E
A
B
N
1000 Hour Grey™
maximum corrosion
protection and durability
(non-reflective grey)
Nickel-PTFE
MT
No Hardware
N
.250 inch (6.4 mm.)
tactical applications
(non-reflective black)
Zinc-Nickel with
Black Chromate
ZNU
Additional shell
finishes are listed on
page C-9.
Note:
EMI Spring
is not
compatible
with chromate
finishes
including
cadmium and
zinc-nickel
PC TAIL
LENGTH
Female Jackpost
P
SPECIFICATIoNS
Current Rating
Dielectric Withstanding
Voltage
Insulation Resistance
Operating Temperature
Shock
Vibration
#23 5 AMPS, #16 13 A., #12 23 A.
#23 500 VAC RMS, #12 and #16
1800 VAC RMS
5000 megohms minimum
-65° C. to +150° C.
300 g.
37 g.
MATERIALS AND FINISHES
Shell
Contacts
Insulator
PCB Tray
EMI Shroud
Hardware
Panel Gasket
Encapsulant
Aluminum alloy
Copper alloy, gold plated
Liquid crystal polymer (LCP)
Thermoplastic
Aluminum alloy
300 series stainless steel
Fluorosilicone, conductive
Epoxy
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
G-21
Series 79
90°°
°
PCB
Connectors
790-042S
Right Angle PCB Terminated
Free-Standing Plugs, Socket Contacts
G
790-042S
Right Angle PCB Terminated
Free-Standing Plugs, Socket Contacts
How To Order

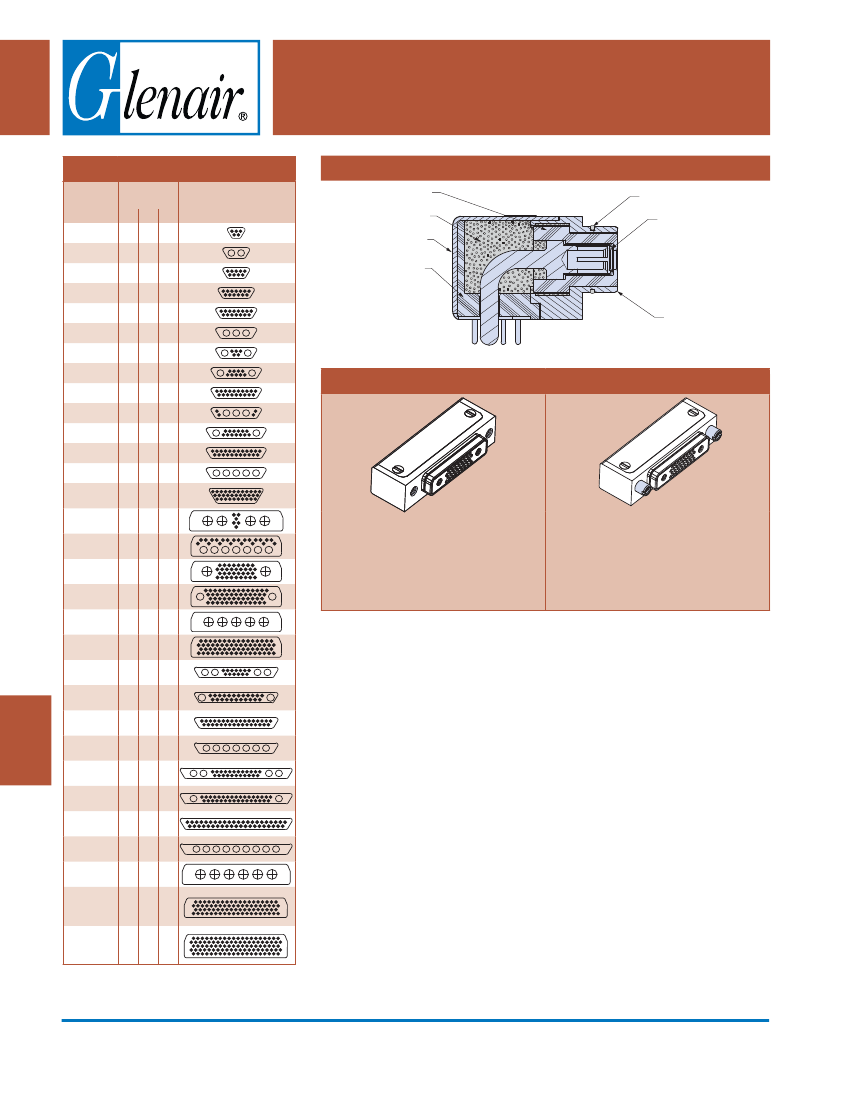

Table I Contact Arrangements
Layout
A-5
B-2P2
B-9
C-13
D-15
D-3P3
D-7P2
E-11P2
E-19
E-7P3
F-23
F-5P5
G-33
H-10P4
33
6
4
5
9
19
4
23
5
3
9
13
15
3
2
2
SHELL
Contact
Quantity
#23 #16 #12
5
2
TRAY
Series 79
90° PCB
Connectors
Face View
F-15P2
13 2
H-29P7
22 7
H-36P2
34
H-54P2
52 2
H-5P5
H-66
66
5
2
CROSS-SECTIONAL VIEW OF 790-042S
INSULATOR
EPOXY
EMI SHROUD
EMI SPRING
SOCKET CONTACT
TABLE 2 HARDWARE OPTION
N
No Mating Hardware
Connector is supplied with threaded holes.
Shell sizes H and L have #6-32 threads, other
sizes have #4-40 threads. Thread depth is
.150" (3.8).
P
Jackposts
Connector is supplied with non-removable
stainless steel jackposts. Shell sizes H and
L have #4-40 UNC thread, other sizes have
#2-56 thread.
J-17P4
13 4
J-25P2
23 2
G
J-33
J-7P7
33
7
K-27P4
23 4
K-35P2
33 2
K-43
K-9P9
L-6P6
L-78
M-102
78
102
43
9
6
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
G-22
