SIGC06T60G
IGBT Chip
FEATURES:
•
600V Trench & Field Stop technology
•
low V
CE(sat)
•
low turn-off losses
•
short tail current
•
positive temperature coefficient
•
easy paralleling
3
This chip is used for:
•
power module
•
discrete components
Applications:
•
drives
•
white goods
•
resonant applications
C
G
E
Chip Type
SIGC06T60G
V
CE
600V
I
Cn
10A
Die Size
2.44 x 2.42 mm
2
Package
sawn on foil
Ordering Code
Q67050-
A4344-A101
MECHANICAL PARAMETER:
Raster size
Emitter pad size
Gate pad size
Area total / active
Thickness
Wafer size
Flat position
Max. possible chips per wafer
Passivation frontside
Emitter metallization
Collector metallization
Die bond
Wire bond
Reject ink dot size
Recommended storage environment
2.44 x 2.42
1.558 x 1.577
0.361 x 0.513
5.9 / 3.6
70
150
0
2485 pcs
Photoimide
3200 nm AlSiCu
1400 nm Ni Ag –system
suitable for epoxy and soft solder die bonding
electrically conductive glue or solder
Al, <500µm
∅
0.65mm ; max 1.2mm
store in original container, in dry nitrogen,
< 6 month at an ambient temperature of 23°C
mm
µm
mm
deg
2
mm
2
Edited by INFINEON Technologies AI PS DD CLS, L7521A, Edition 2, 27.01.2005
SIGC06T60G
MAXIMUM RATINGS:
Parameter
Collector-emitter voltage,
T
j= 25
°C
DC collector current, limited by T
jmax
Pulsed collector current, t
p
limited by T
jmax
Gate emitter voltage
Operating junction and storage temperature
SC data, V
GE
= 15V, V
CC
= 360V
1)
Symbol
V
C E
I
C
I
cpuls
V
GE
T
j
, T
s t g
Tvj = 150°C
Tvj = 25°C
tp
Value
600
1)
Unit
V
A
A
V
°C
µs
30
±20
-40 ... +175
6
8
depending on thermal properties of assembly
STATIC CHARACTERISTICS (tested on chip),
T
j=25
°C,
unless otherwise specified
Parameter
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
Gate-emitter threshold voltage
Zero gate voltage collector current
Gate-emitter leakage current
Integrated gate resistor
Symbol
V
(BR)CES
V
CE(sat)
V
GE(th)
I
CES
I
GES
R
Gint
Conditions
min.
V
GE
=0V , I
C
= 2mA
V
GE
=15V, I
C
=10A
I
C
=150µA , V
GE
=V
CE
V
CE
=600V , V
GE
=0V
V
CE
=0V , V
GE
=20V
none
600
1.1
5.0
1.5
5.8
1.9
6.5
0.6
300
µA
nA
Ω
V
Value
typ.
max.
Unit
ELECTRICAL CHARACTERISTICS
(verified by design/characterization):
Parameter
Input capacitance
Output capacitance
Reverse transfer capacitance
Symbol
C
i s s
C
o s s
C
r s s
Conditions
V
C E
= 2 5 V ,
V
GE
= 0 V ,
f
=1MHz
Value
min.
typ.
551
40
17
max.
Unit
pF
SWITCHING CHARACTERISTICS
(verified by design/characterization), inductive load
Parameter
Turn-on delay time
Rise time
Turn-off delay time
Fall time
2)
Symbol
t
d(on)
t
r
t
d(off)
t
f
Conditions
T
j
= 1 2 5
°
C
V
C C
= 30 0 V ,
I
C
=10A ,
V
GE
= - 1 5 / 1 5 V ,
R
G
= 2 7Ω
Value
min.
typ.
12
13
120
130
2)
max.
Unit
ns
values also influenced by parasitic L- and C- in measurement and package.
Edited by INFINEON Technologies AI PS DD CLS, L7521A, Edition 2, 27.01.2005
SIGC06T60G

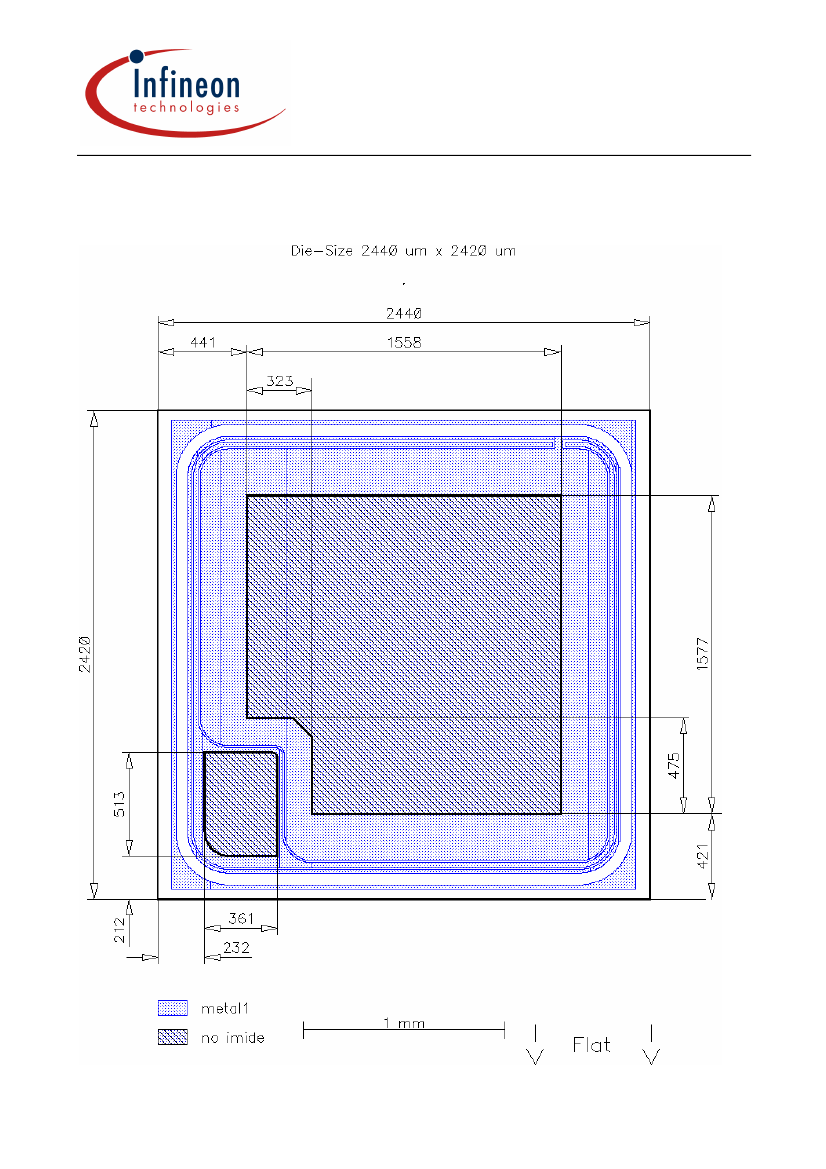

CHIP DRAWING:
Edited by INFINEON Technologies AI PS DD CLS, L7521A, Edition 2, 27.01.2005
SIGC06T60G
FURTHER ELECTRICAL CHARACTERISTICS:
This chip data sheet refers to the
device data sheet
DESCRIPTION:
AQL 0,65 for visual inspection according to failure catalog
Electrostatic Discharge Sensitive Device according to MIL-STD 883
Test-Normen Villach/Prüffeld
Published by
Infineon Technologies AG,
Bereich Kommunikation
St.-Martin-Strasse 53,
D-81541 München
© Infineon Technologies AG 2004
All Rights Reserved.
