563F03W3104GB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 563F03W3104GB

Preview

563F03W3104GB: DescriptionD Subminiature Connector, 3 Contact(s), Male, Solder Terminal, Plug; CategoryThe connector; File Size22KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

563F03W3104GB Overview

D Subminiature Connector, 3 Contact(s), Male, Solder Terminal, Plug

563F03W3104GB Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

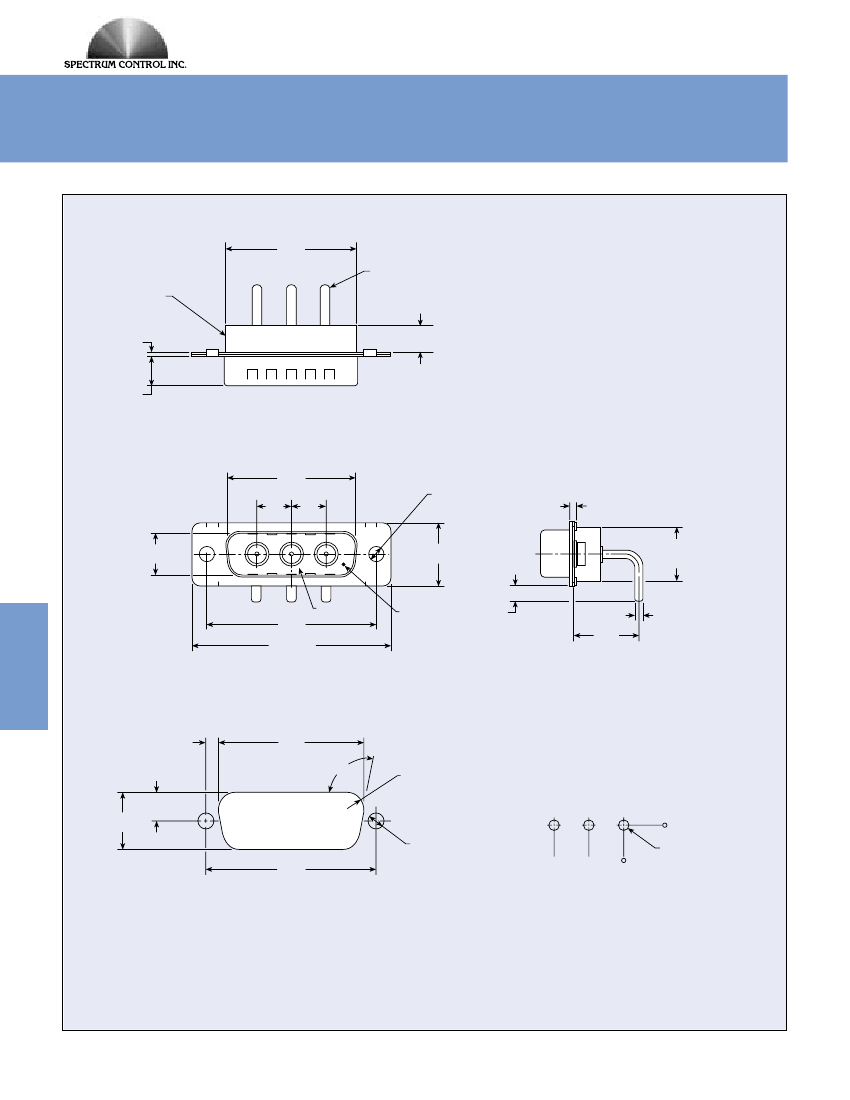

Filtered Combo D-Subminiature Connectors

3W3

Plug - Right Angle

.995

(25.27)

Contact

3 Plc.

Plug Assembly

.036±.010

(0.92±0.25)

.217

(5.50)

.233±.006

(5.92±0.15)

.995

(25.27)

.269

(6.83)

Typ.

Ø

.120

(3.05)

2 Plc.

.055±.020

(1.40±0.51)

.329

(8.36)

.500±.015

(12.70±0.38)

.425

(10.80)

Max.

Mating Face

1.312

(33.32)

1.541±.015

(39.14±0.38)

Epoxy

.125±.025

(3.18±0.64)

Typ.

.500

(12.70)

2 Plc.

ø .0625±.0010

(1.588±0.025)

2 Plc.

Filtered Connectors

.089

(2.26)

1.134

(28.80)

100° Typ.

.130

(3.30)

4 Plc.

.449

(11.40)

.225

(5.72)

Ø

1.312

(33.32)

.120

(3.05)

2 Plc.

.538

(13.66)

.269

(6.83)

ø .077

(1.96)

ø .004

(.01)

3 Plc.

Recommended Panel Cutout

Only represents a few of our available configurations. Consult factory for more information.

Dimensions in inches

(mm)

172

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
