FRM240D

Description
Power Field-Effect Transistor, 16A I(D), 200V, 0.24ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA
CategoryDiscrete semiconductor    The transistor
File Size326KB，8 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

FRM240D Overview

Power Field-Effect Transistor, 16A I(D), 200V, 0.24ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA

FRM240D Parametric

Parameter NameAttribute value
MakerFairchild
package instructionFLANGE MOUNT, O-MBFM-P2
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage200 V
Maximum drain current (ID)16 A
Maximum drain-source on-resistance0.24 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-204AA
JESD-30 codeO-MBFM-P2
Number of components1
Number of terminals2
Operating modeENHANCEMENT MODE
Package body materialMETAL
Package shapeROUND
Package formFLANGE MOUNT
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)48 A
Certification statusNot Qualified
surface mountNO
Terminal formPIN/PEG
Terminal locationBOTTOM
transistor applicationsSWITCHING
Transistor component materialsSILICON

FRM240D Preview

FRM240D, FRM240R,
FRM240H
June 1998
16A, 200V, 0.24 Ohm, Rad Hard,
N-Channel Power MOSFETs
Package
TO-204AA
Features
Title
RM2
D,
M2
R,
M2
H)
b-
t
A,
0V,
4
m,
d
rd,
an-
wer
OS-
Ts)
utho
ey-
rds
ter-
rpo-
on,
mi-
n-
ctor,
A,
0V,
4
m,
d
rd,
• 16A, 200V, RDS(on) = 0.24
Ω
• Second Generation Rad Hard MOSFET Results From New Design Concepts
• Gamma
-
-
-
-
-
Meets Pre-Rad Specifications to 100KRAD(Si)
Defined End Point Specs at 300KRAD(Si) and 1000KRAD(Si)
Performance Permits Limited Use to 3000KRAD(Si)
Survives 3E9RAD(Si)/sec at 80% BVDSS Typically
Survives 2E12 Typically If Current Limited to IDM
• Gamma Dot
• Photo Current
• Neutron
- 5.0nA Per-RAD(Si)/sec Typically
- Pre-RAD Specifications for 1E13 Neutrons/cm
2
- Usable to 1E14 Neutrons/cm
2
Description
The Intersil Corporation has designed a series of SECOND GENERATION hard-
ened power MOSFETs of both N and P channel enhancement types with ratings
from 100V to 500V, 1A to 60A, and on resistance as low as 25m
Ω
. Total dose hard-
ness is offered at 100K RAD(Si) and 1000KRAD(Si) with neutron hardness rang-
ing from 1E13n/cm
2
for 500V product to 1E14n/cm
2
for 100V product. Dose rate
hardness (GAMMA DOT) exists for rates to 1E9 without current limiting and 2E12
with current limiting.
This MOSFET is an enhancement-mode silicon-gate power field effect transistor of
the vertical DMOS (VDMOS) structure. It is specially designed and processed to
exhibit minimal characteristic changes to total dose (GAMMA) and neutron (n
o
)
exposures. Design and processing efforts are also directed to enhance survival to
heavy ion (SEE) and/or dose rate (GAMMA DOT) exposure.
This part may be supplied as a die or in various packages other than shown above.
Reliability screening is available as either non TX (commercial), TX equivalent of
MIL-S-19500, TXV equivalent of MIL-S-19500, or space equivalent of
MIL-S-19500. Contact the Intersil High-Reliability Marketing group for any desired
deviations from the data sheet.
Symbol
Absolute Maximum Ratings
(TC = +25
o
C) Unless Otherwise Specified
FRM240D, R, H
200
200
16
10
48
±
20
125
50
1.00
48
16
48
-55 to +150
300
UNITS
V
V
A
A
A
V
W
W
W/
o
C
A
A
A
o
C
o
C
Drain-Source Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VDS
Drain-Gate Voltage (RGS = 20k
Ω
). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VDGR
Continuous Drain Current
TC = +25
o
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ID
TC = +100
o
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ID
Pulsed Drain Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IDM
Gate-Source Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VGS
Maximum Power Dissipation
TC = +25
o
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PT
TC = +100
o
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PT
Derated Above +25
o
C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inductive Current, Clamped, L = 100
µ
H, (See Test Figure) . . . . . . . . . . . . . . . . . . . . . . . . . . ILM
Continuous Source Current (Body Diode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IS
Pulsed Source Current (Body Diode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ISM
Operating And Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TJC, TSTG
Lead Temperature (During Soldering)
Distance > 0.063 in. (1.6mm) From Case, 10s Max . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TL
©2001 Fairchild Semiconductor Corporation
FRM240D, FRM240R, FRM240H Rev. A
FRM240D, FRM240R, FRM240H
Pre-Radiation Electrical Specifications
TC = +25
o
C, Unless Otherwise Specified
LIMITS
PARAMETER
Drain-Source Breakdown Volts
Gate-Threshold Volts
Gate-Body Leakage Forward
Gate-Body Leakage Reverse
Zero-Gate Voltage
Drain Current
Rated Avalanche Current
Drain-Source On-State Volts
Drain-Source On Resistance
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Gate-Charge Threshold
Gate-Charge On State
Gate-Charge Total
Plateau Voltage
Gate-Charge Source
Gate-Charge Drain
Diode Forward Voltage
Reverse Recovery Time
Junction-To-Case
Junction-To-Ambient
SYMBOL
BVDSS
VGS(th)
IGSSF
IGSSR
IDSS1
IDSS2
IDSS3
IAR
VDS(on)
RDS(on)
td(on)
tr
td(off)
tf
QG(th)
QG(on)
QGM
VGP
QGS
QGD
VSD
TT
R
θ
jc
R
θ
ja
Free Air Operation
ID = 16A, VGD = 0
I = 16A; di/dt = 100A/
µ
s
VDD = 100V, ID = 16A
IGS1 = IGS2
0
≤
VGS
≤
20
TEST CONDITIONS
VGS = 0, ID = 1mA
VDS = VGS, ID = 1mA
VGS = +20V
VGS = -20V
VDS = 200V, VGS = 0
VDS = 160V, VGS = 0
VDS = 160V, VGS = 0, TC = +125
o
C
Time = 20
µ
s
VGS = 10V, ID = 16A
VGS = 10V, ID = 10A
VDD = 100V, ID = 16A
Pulse Width = 3
µ
s
Period = 300
µ
s, Rg = 25
Ω
0
≤
VGS
≤
10 (See Test Circuit)
MIN
200
2.0
-
-
-
-
-
-
-
-
-
-
-
-
1.5
29
57
3
7
15
0.6
-
-
-
MAX
-
4.0
100
100
1
0.025
0.25
48
4.03
0.240
52
264
ns
280
148
8
116
228
16
28
nc
60
1.8
400
1.0
30
V
ns
o
C/W
UNITS
V
V
nA
nA
mA
A
V
Ω
nc
V
V
DD
ELECTRONIC SWITCH OPENS
WHEN I
AS
IS REACHED
V
DS
L
V
DS
+
CURRENT I
TRANSFORMER
AS
R
L
-
V
GS
= 12V
DUT
0V
R
GS
0V
t
P
50Ω
VARY t
P
TO OBTAIN
REQUIRED PEAK I
AS
V
GS
≤
20V
DUT
50Ω
+
V
DD
-
50V-150V
FIGURE 1. RESISTIVE SWITCHING TEST CIRCUIT
FIGURE 2. UNCLAMPED ENERGY TEST CIRCUIT
©2001 Fairchild Semiconductor Corporation
FRM240D, FRM240R, FRM240H Rev. A
FRM240D, FRM240R, FRM240H
Post-Radiation Electrical Specifications
TC = +25
o
C, Unless Otherwise Specified
LIMITS
PARAMETER
Drain-Source
Breakdown Volts
(Note 4, 6)
(Note 5, 6)
Gate-Source
Threshold Volts
(Note 4, 6)
(Note 3, 5, 6)
Gate-Body
Leakage Forward
(Note 4, 6)
(Note 5, 6)
Gate-Body
Leakage Reverse
(Note 2, 4, 6)
(Note 2, 5, 6)
Zero-Gate Voltage
Drain Current
(Note 4, 6)
(Note 5, 6)
Drain-Source
On-State Volts
(Note 1, 4, 6)
(Note 1, 5, 6)
Drain-Source
On Resistance
(Note 1, 4, 6)
(Note 1, 5, 6)
NOTES:
1. Pulse test, 300
µ
s max
2. Absolute value
3. Gamma = 300KRAD(Si)
4. Gamma = 10KRAD(Si) for “D”, 100KRAD(Si) for “R”. Neutron = 1E13
5. Gamma = 1000KRAD(Si). Neutron = 1E13
6. Insitu Gamma bias must be sampled for both VGS = +10V, VDS = 0V and VGS = 0V, VDS = 80% BVDSS
7. Gamma data taken 7/9/90 on TA 17642 devices by GE ASTRO SPACE; EMC/SURVIVABILITY LABORATORY; KING OF PRUSSIA, PA
19401
8. Single event drain burnout testing by Titus, J.L., et al of NWSC, Crane, IN at Brookhaven Nat. Lab. Dec 11-14, 1989
9. Neutron derivation, Intersil Application note AN-8831, Oct. 1988
SYMBOL
BVDSS
BVDSS
VGS(th)
VGS(th)
IGSSF
IGSSF
IGSSR
IGSSR
IDSS
IDSS
VDS(on)
VDS(on)
RDS(on)
RDS(on)
TYPE
FRM240D, R
FRM240H
FRM240D, R
FRM240H
FRM240D, R
FRM240H
FRM240D, R
FRM240H
FRM240D, R
FRM240H
FRM240D, R
FRM240H
FRM240D, R
FRM240H
TEST CONDITIONS
VGS = 0, ID = 1mA
VGS = 0, ID = 1mA
VGS = VDS, ID = 1mA
VGS = VDS, ID = 1mA
VGS = 20V, VDS = 0
VGS = 20V, VDS = 0
VGS = -20V, VDS = 0
VGS = -20V, VDS = 0
VGS = 0, VDS = 160V
VGS = 0, VDS = 160V
VGS = 10V, ID = 16A
VGS = 16V, ID = 16A
VGS = 10V, ID = 10A
VGS = 14V, ID = 10A
MIN
200
190
2.0
1.5
-
-
-
-
-
-
-
-
-
-
MAX
-
-
4.0
4.5
100
200
100
200
25
100
4.03
6.05
0.240
0.360
UNITS
V
V
V
V
nA
nA
nA
nA
µ
A
µ
A
V
V
Ω
Ω
©2001 Fairchild Semiconductor Corporation
FRM240D, FRM240R, FRM240H Rev. A
FRM240D, FRM240R, FRM240H

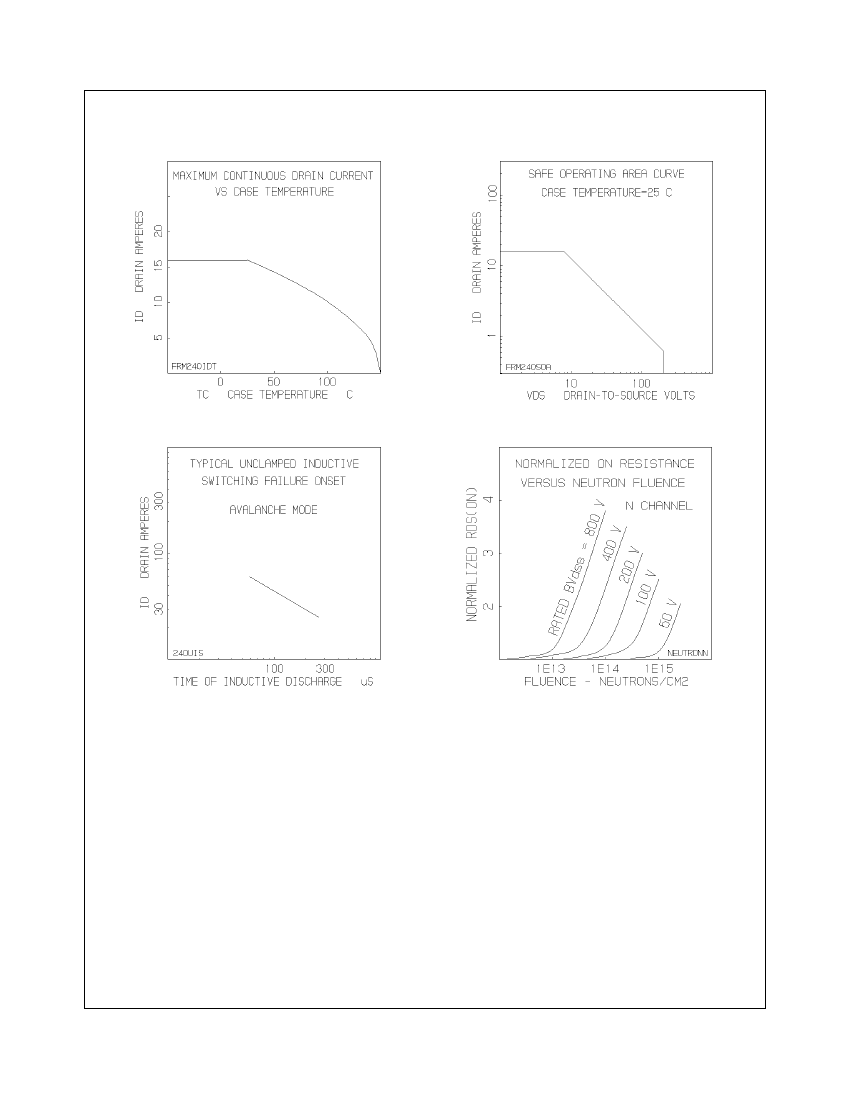

Typical Performance Characteristics
©2001 Fairchild Semiconductor Corporation
FRM240D, FRM240R, FRM240H Rev. A
FRM240D, FRM240R, FRM240H
Typical Performance Characteristics
(Continued)
©2001 Fairchild Semiconductor Corporation
FRM240D, FRM240R, FRM240H Rev. A
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

FRM240D Related Products

FRM240D FRM240R
Description Power Field-Effect Transistor, 16A I(D), 200V, 0.24ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA Power Field-Effect Transistor, 16A I(D), 200V, 0.24ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA
Maker Fairchild Fairchild
package instruction FLANGE MOUNT, O-MBFM-P2 FLANGE MOUNT, O-MBFM-P2
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 200 V 200 V
Maximum drain current (ID) 16 A 16 A
Maximum drain-source on-resistance 0.24 Ω 0.24 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code TO-204AA TO-204AA
JESD-30 code O-MBFM-P2 O-MBFM-P2
Number of components 1 1
Number of terminals 2 2
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE
Package body material METAL METAL
Package shape ROUND ROUND
Package form FLANGE MOUNT FLANGE MOUNT
Polarity/channel type N-CHANNEL N-CHANNEL
Maximum pulsed drain current (IDM) 48 A 48 A
Certification status Not Qualified Not Qualified
surface mount NO NO
Terminal form PIN/PEG PIN/PEG
Terminal location BOTTOM BOTTOM
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON

Recommended Resources

Typical Schmitt trigger circuit diagram

Photoelectric conversion remote control circuit of glass bottle counter

Crystal oscillator composed of TTL integrated circuit a

50MHz, 10W transmitter

555 bus door closing automatic annunciator circuit

High security electronic lock circuit (T630/T631)

I2C bus problem of launchpad [serial communication LCD]
I want to use a serial communication LCD. Can the Nokia 5110 I used before be changed to a serial communication LCD? ! ! ! ? ? If not, can you recommend a better serial communication LCD? It's all bec...
wuqingyou Microcontroller MCU
Question + After adding .C file to TI C2000 project and compiling, the program does not run normally? ? ! !
[size=5]I have a question: When I add other .C files to the TI C2000 project and compile it, the program does not run normally. The MAIN() function does not call other .C file functions. I exclude oth...
qinkaiabc Microcontroller MCU
New problem (no idea yet...)
Some time ago, I used Keil to write a password keyboard program, and used the Weifu emulator to burn the program into the microcontroller (a password keyboard board I made myself). But now my teacher ...
364908957 Embedded System
How to distinguish USB audio device in Windows 2000
My USB audio device can correctly display the USB device name in XP, but it is displayed as USB Audio Device XX in Windows 2000. And other USB audio devices are also displayed as USB audio device XX i...
king315 Embedded System
Why are all villains so stupid?
Those villains in novels rack their brains to harm the protagonist. I think they are really weak in intelligence. Don’t they know what the protagonist’s halo is? What I am saying is not that you shoul...
led2015 Talking
Pipeline Leakage Monitor Based on Sound Waves
Pipeline Leakage Monitor Based on Sound WavesAuthor: Jason YooIntroductionLeakage in urban water supply pipelines causes great losses to the country every year. This product is a water pipe leakage mo...
JasonYoo DigiKey Technology Zone
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. PWC2512-2M94JT1
  2. 614-87-314-31-012101
  3. DVHF28515TFH
  4. EEL-56-20P29
  5. MPM22PDA333B
  6. GMSM2-30S-5C4-2.000B
  7. MB30x5S
  8. D12AHR09M5PE
  9. P6SMBJ28
  10. MMBD717T/R7
  11. 1N5249D
  12. A3961WVA-5P-V0-BK-C1618D437

Popular Articles

  1. Function of material level switch
  2. Intel plans to spend 80 billion euros to build factories in Europe over ten years
  3. Detailed explanation of the application of low-speed autonomous vehicles in public transportation in the United States
  4. 51 single chip microcomputer 8x8LED dot matrix screen cyclically displays numbers 0~9
  5. Exynos4412 uses DDR2 memory
  6. HBM3 memory: a breakthrough towards higher bandwidth
  7. Alps Alpine and Furuno jointly launch the UMSZ6 series of GNSS modules to achieve high-precision positioning
  8. A large number of netizens reported that they could not log in to WeChat on their computers
  9. Multiple ways to realize free port communication between Siemens S7-200PLC and PC
  10. Precise current measurement in modern electronic circuits: Comparison of different measurement methods for board-level monitoring

Technical ResourceMore

  1. FM3817 Bluetooth module information
  2. Portmon communication port monitoring software
  3. Network security prevention system for university data centers
  4. NSJS16R1 Learning Board Quick Learning Guide
  5. Main parameters of 73 commonly used color TV line tubes and power tubes
  6. Principle and Application of Eight-Channel 13-Bit Digital-to-Analog Converter MAX547
  7. Summary of Commonly Used Chip Resistors
  8. Design of temperature management system based on single chip microcomputer
  9. Wide Area Network.ppt
  10. ADXRS150 ic datasheet

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 944  1157  1578  496  2395  19  24  32  10  49
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
