8301601XA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 8301601XA

8301601XA: DescriptionProgrammable Timer, 1 Timer(s), CMOS, CDIP28, CERAMIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size591KB，16 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

8301601XA Overview

Programmable Timer, 1 Timer(s), CMOS, CDIP28, CERAMIC, DIP-28

8301601XA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
External data bus width	8
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
length	35.179 mm
Number of digits	8
Number of terminals	28
Number of timers	1
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.699 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE

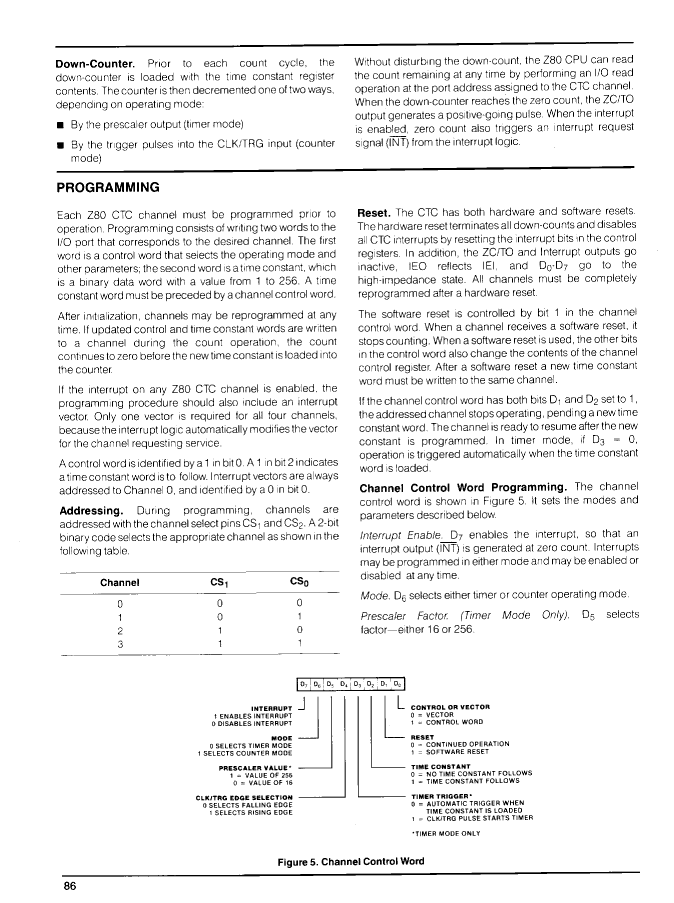

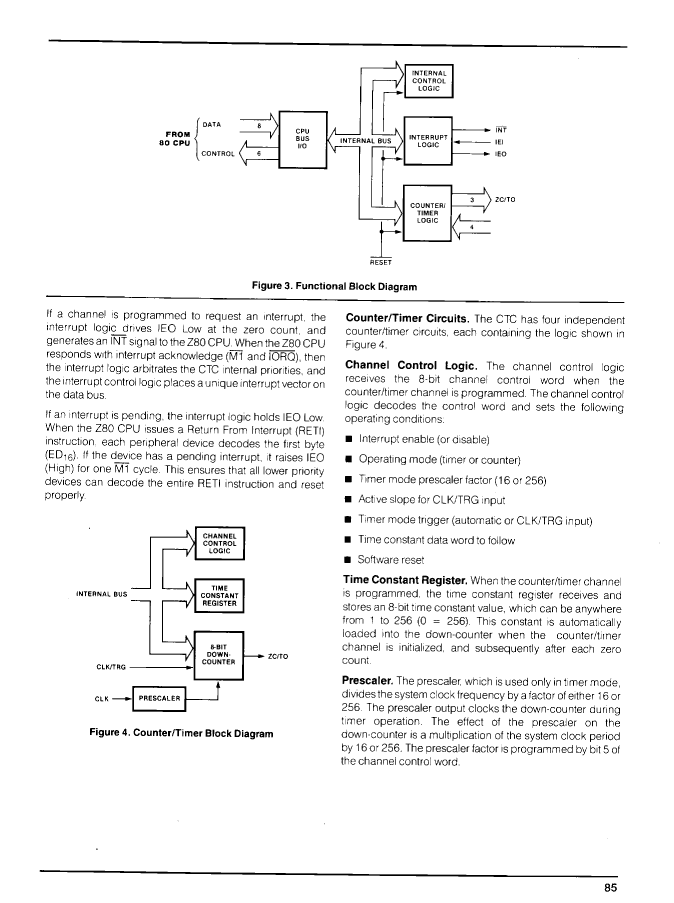

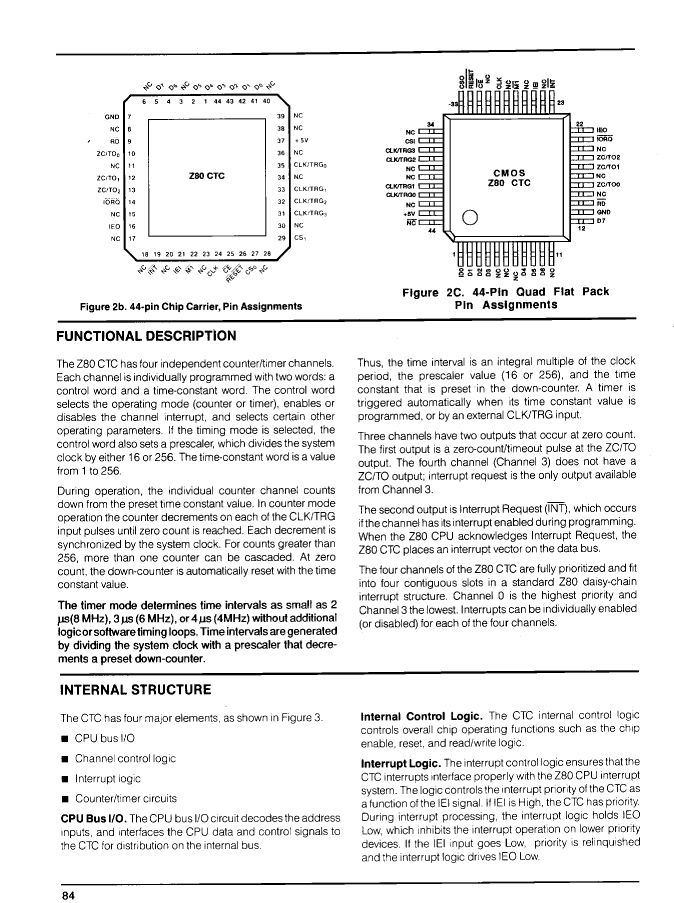

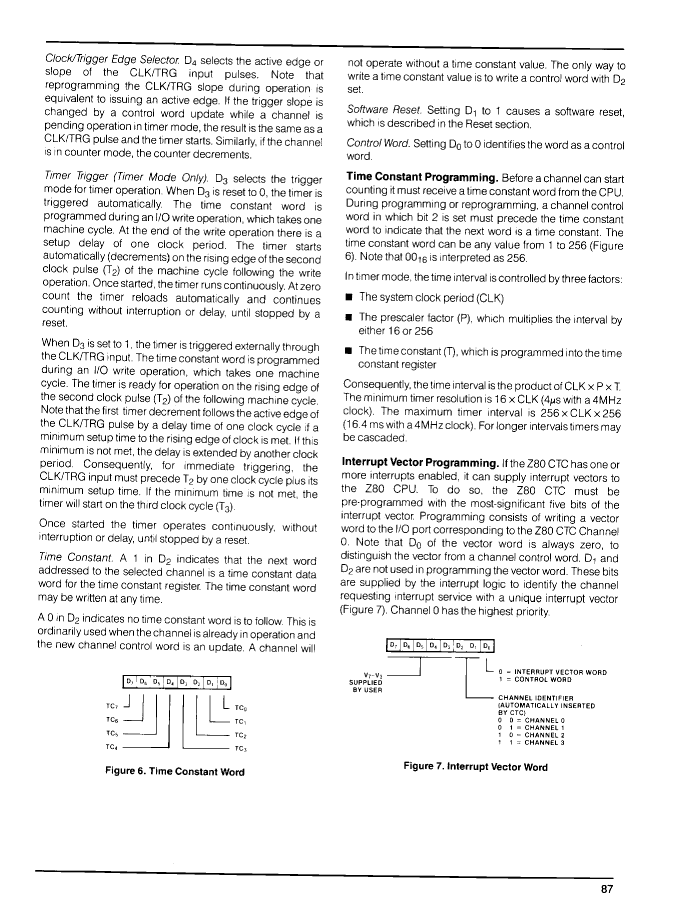

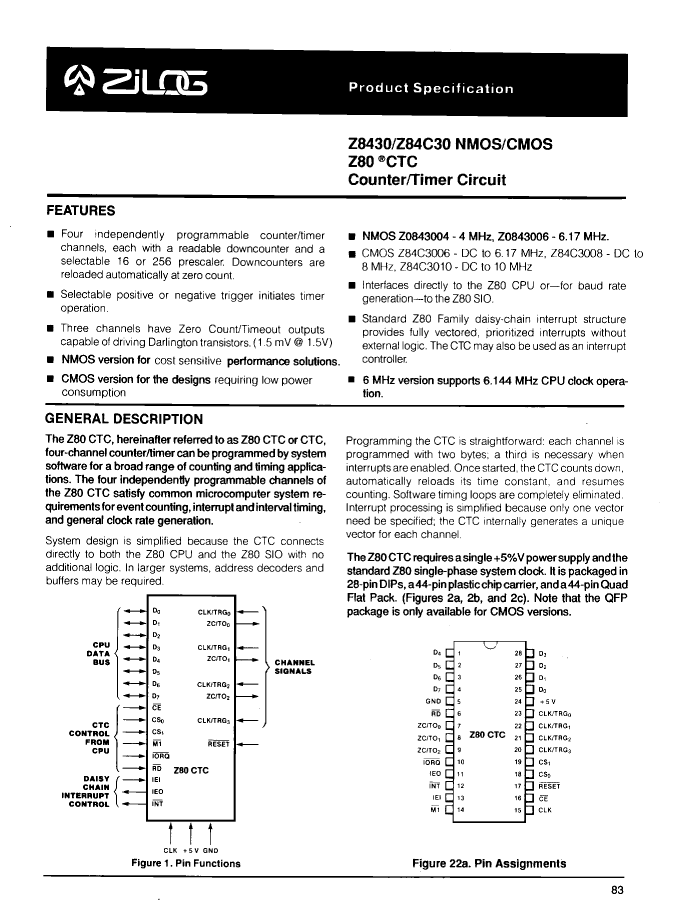

Preview

Download Datasheet

View All

8301601XA Related Products

	8301601XA	5962-8951501XA	Z0843004CMB	8301602XA	Z0843002CMB	Z84C3006CMB
Description	Programmable Timer, 1 Timer(s), CMOS, CDIP28, CERAMIC, DIP-28	Programmable Timer, 1 Timer(s), CMOS, CDIP28, CERAMIC, DIP-28	Programmable Timer, 1 Timer(s), NMOS, CDIP28, CERAMIC, DIP-28	Programmable Timer, 1 Timer(s), CMOS, CDIP28, CERAMIC, DIP-28	Programmable Timer, 1 Timer(s), NMOS, CDIP28, CERAMIC, DIP-28	Programmable Timer, 4 Timer(s), CMOS, CDIP28, CERAMIC, DIP-28
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,
Contacts	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
External data bus width	8	8	8	8	8	8
JESD-30 code	R-CDIP-T28	R-CDIP-T28	R-CDIP-T28	R-CDIP-T28	R-CDIP-T28	R-CDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0
length	35.179 mm	35.179 mm	35.179 mm	35.179 mm	35.179 mm	35.179 mm
Number of digits	8	8	8	8	8	8
Number of terminals	28	28	28	28	28	28
Number of timers	1	1	1	1	1	4
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.699 mm	4.699 mm	4.699 mm	4.699 mm	4.699 mm	4.699 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	NMOS	CMOS	NMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible
Maker	Zilog, Inc.	-	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
