70238-985 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 70238-985

70238-985: DescriptionBoard Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size655KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

70238-985 Overview

Board Connector, 8 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal

70238-985 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	6 mm
Termination type	PRESS FIT
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

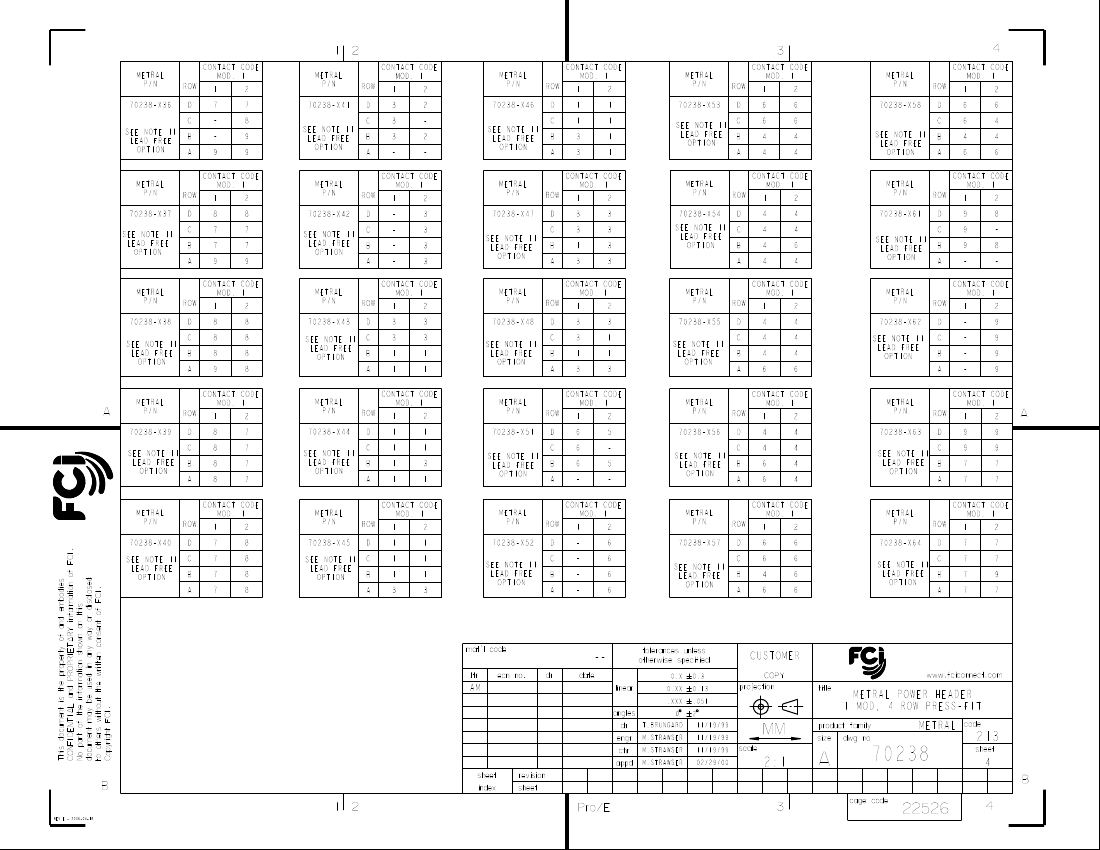

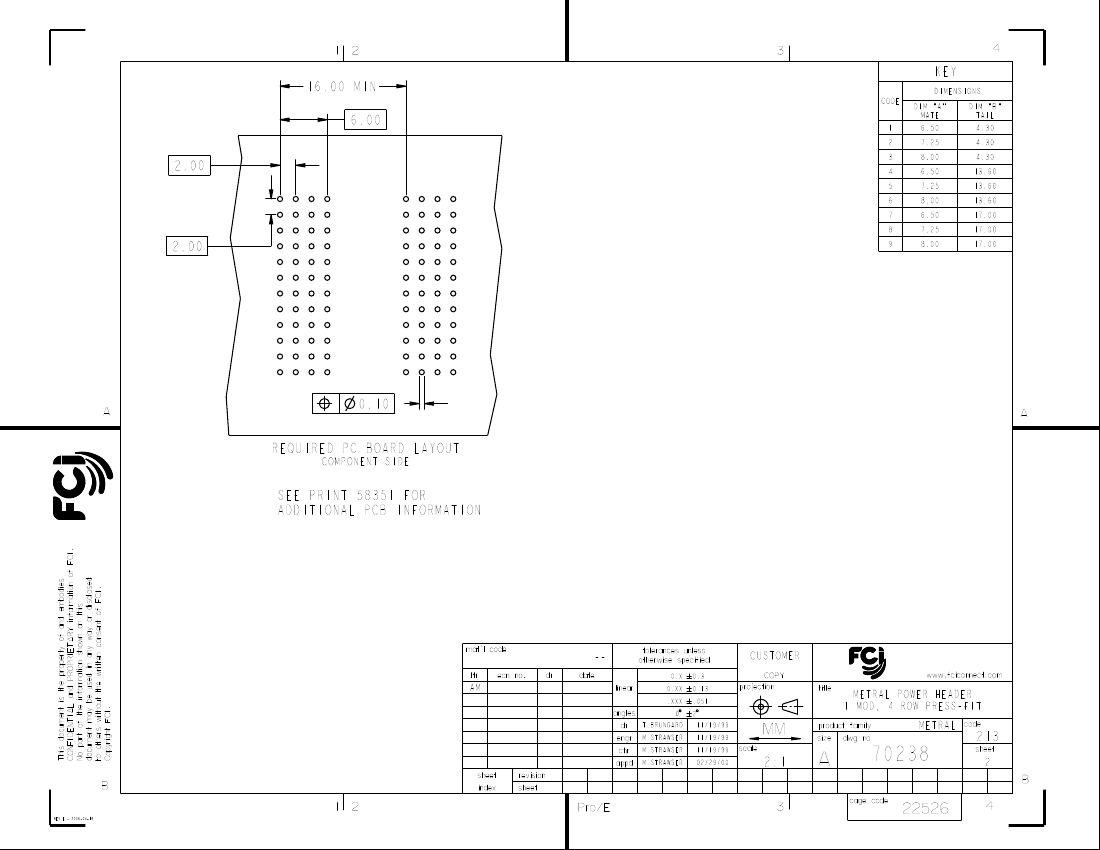

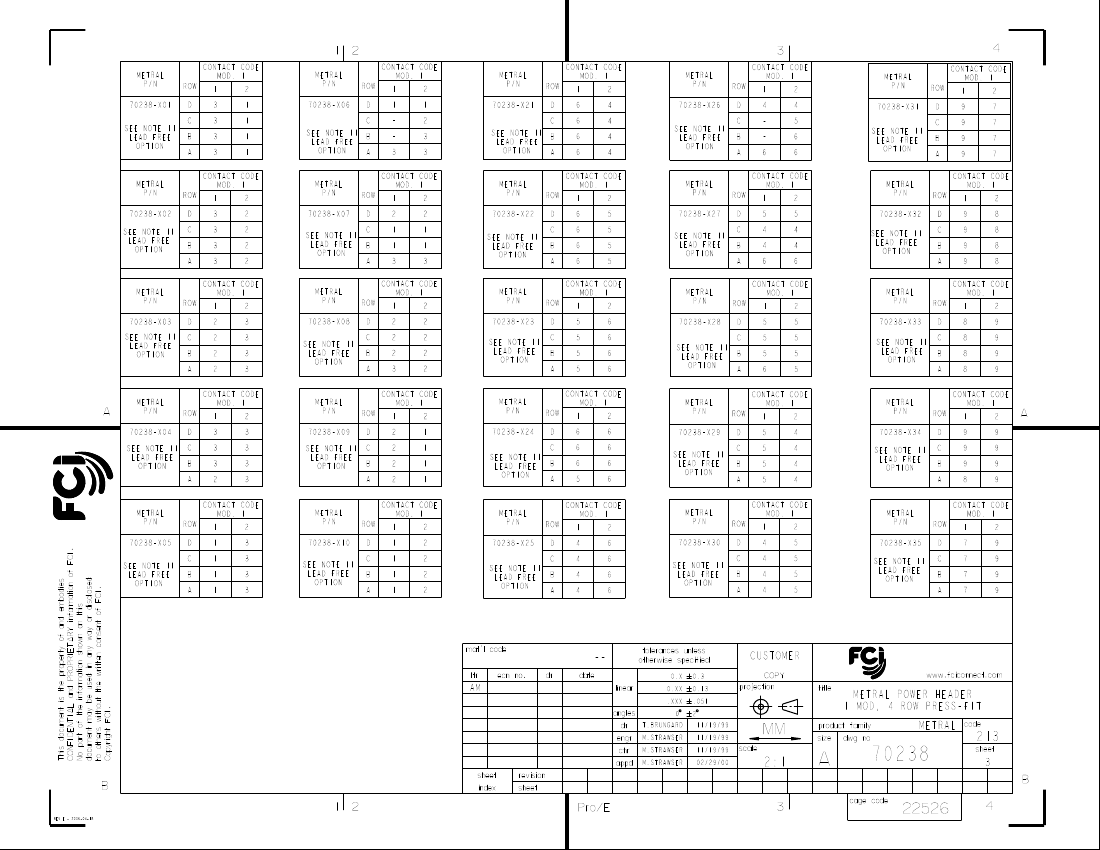

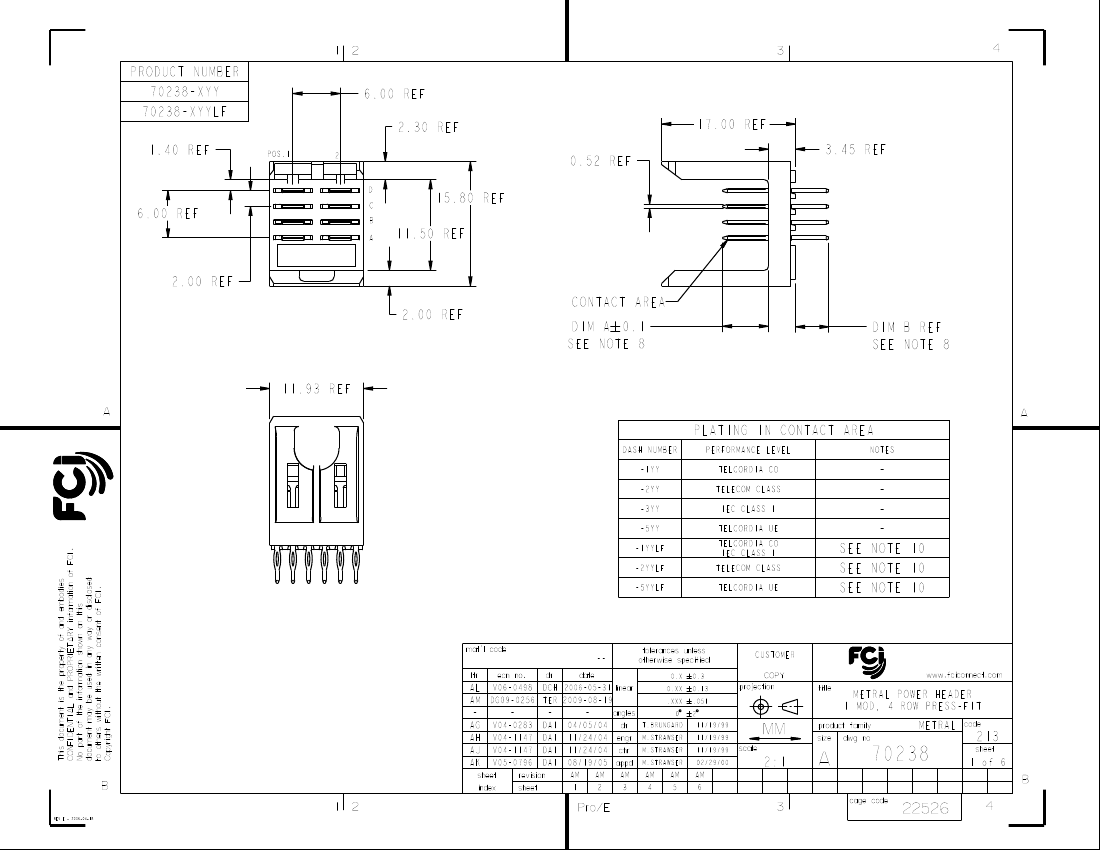

PRODUCT NUMBER

70238-XYY

70238-XYYLF

2.30 REF

1.40 REF

POS.1

6.00 REF

17.00 REF

0.52 REF

3.45 REF

6.00 REF

15.80 REF

11.50 REF

2.00 REF

CONTACT AREA

DIM A 0.1

SEE NOTE 8

DIM B REF

SEE NOTE 8

11.93 REF

PLATING IN CONTACT AREA

DASH NUMBER

-1YY

-2YY

-3YY

-5YY

-1YYLF

-2YYLF

-5YYLF

CONFIDENTIAL and PROPRIETARY information of FCI.

PERFORMANCE LEVEL

TELCORDIA CO

TELECOM CLASS

IEC CLASS 1

TELCORDIA UE

TELCORDIA CO

IEC CLASS 1

TELECOM CLASS

TELCORDIA UE

NOTES

SEE NOTE 10

This document is the property of and embodies

to others without the written consent of FCI.

document may be used in any way or disclosed

No part of the information shown on this

mat'l code

ltr

ecn no.

date

linear

tolerances unless

otherwise specified

CUSTOMER

COPY

projection

title

www.fciconnect.com

0.X

0.XX

.XXX

angles

engr

chr

appd

0.3

0.13

.051

V06-0498

DG09-0256

DCH

2006-05-31

TER 2009-08-19

V04-0283

V04-1147

V05-0796

sheet

DAI

04/05/04

11/24/04

08/19/05

Pro/E

METRAL POWER HEADER

1 MOD, 4 ROW PRESS-FIT

METRAL

code

dwg no

T.BRUNGARD

M.STRAWSER

11/19/99

02/29/00

scale

product family

size

2:1

70238

cage code

213

sheet

1 of 6

sheet

revision

REV E - 2006-04-18

index

22526

PDM: Rev:AM

STATUS:

Released

Printed: Sep 16, 2009
