BAS19
Elektronische Bauelemente
FEATURES
RoHS Compliant Product
A suffix of "-C" specifies halogen & lead-free
Surface Mount Switching Diode
A
L
3
·
·
·
·
Fast Switching Speed
Surface Mount Package Ideally Suited for
Automatic Insertion
For General Purpose Switching Applications
High Conductance
3
Top View
1
2
B S
V
G
C
3
CATHODE
1
ANODE
1
2
D
H
K
J
MAXIMUM RATINGS
Rating
Continuous Reverse Voltage
Peak Forward Current
Peak Forward Surge Current
Symbol
VR
IF
IFM(surge)
Value
120
200
500
Unit
Vdc
mAdc
mAdc
SOT-23
Dim
A
B
C
D
Min
2.800
1.200
0.890
0.370
1.780
0.013
0.085
0.450
0.890
2.100
0.450
Max
3.040
1.400
1.110
0.500
2.040
0.100
0.177
0.600
1.020
2.500
0.600
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation FR– 5 Board(1)
TA = 25°C
Derate above 25°C
Thermal Resistance, Junction to Ambient
Total Device Dissipation
Alumina Substrate,(2) TA = 25°C
Derate above 25°C
Thermal Resistance, Junction to Ambient
Junction and Storage Temperature
Symbol
PD
Max
225
1.8
R
q
JA
PD
556
300
2.4
R
q
JA
TJ, Tstg
417
– 55 to +150
Unit
mW
mW/°C
°C/W
mW
mW/°C
°C/W
°C
G
H
J
K
L
S
V
All Dimension in mm
DEVICE MARKING
BAS19 = JP
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic
Symbol
Min
Max
Unit
OFF CHARACTERISTICS
Reverse Voltage Leakage Current
(VR = 100 Vdc,TJ = 25
O
C)
(VR = 100 Vdc, TJ = 150°C)
(VR = 25 Vdc, TJ = 150°C)
Reverse Breakdown Voltage
(IBR = 100
µAdc)
Forward Voltage
(IF = 1.0 mAdc)
(IF = 10 mAdc)
(IF = 100 mAdc)
(IF = 200 mAdc)
Diode Capacitance
(VR = 0, f = 1.0 MHz)
Reverse Recovery Time
(IF = IR = 30 mAdc, RL = 100
Ω)
1.FR–5 = 1.0 X 0.75 X 0.062 in.
2.Alumina = 0.4 X 0.3 X 0.024 in. 99.5% alumina.
IR
—
—
—
V(BR)
VF
—
—
—
—
CD
—
715
855
1000
1250
5.0
50
mV
120
0.1
100
40
—
µAdc
Vdc
pF
ns
trr
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 1 of 2
Elektronische Bauelemente
Surface Mount Switching Diode
BAS19
IF
820
Ω
+10 V
2.0 k
100
µH
0.1
µF
DUT
50
Ω
Output
Pulse
Generator
50
Ω
Input
Sampling
Oscilloscopes
VR
Input Signal
90%
IR
I
R(REC) = 1.0 mA
Output Pulse
(IF = IR = 10 mA;
Measured
at I
R(REC) = 1.0 mA)
IF
0.1
µF
tr
10%
tp
t
trr
t
Notes: 1. A 2.0 kΩ variable resistor adjusted for a Forward Current (IF) of 10 mA.
Notes:
2. Input pulse is adjusted so IR(peak) is equal to 10 mA.
Notes:
3. tp » trr

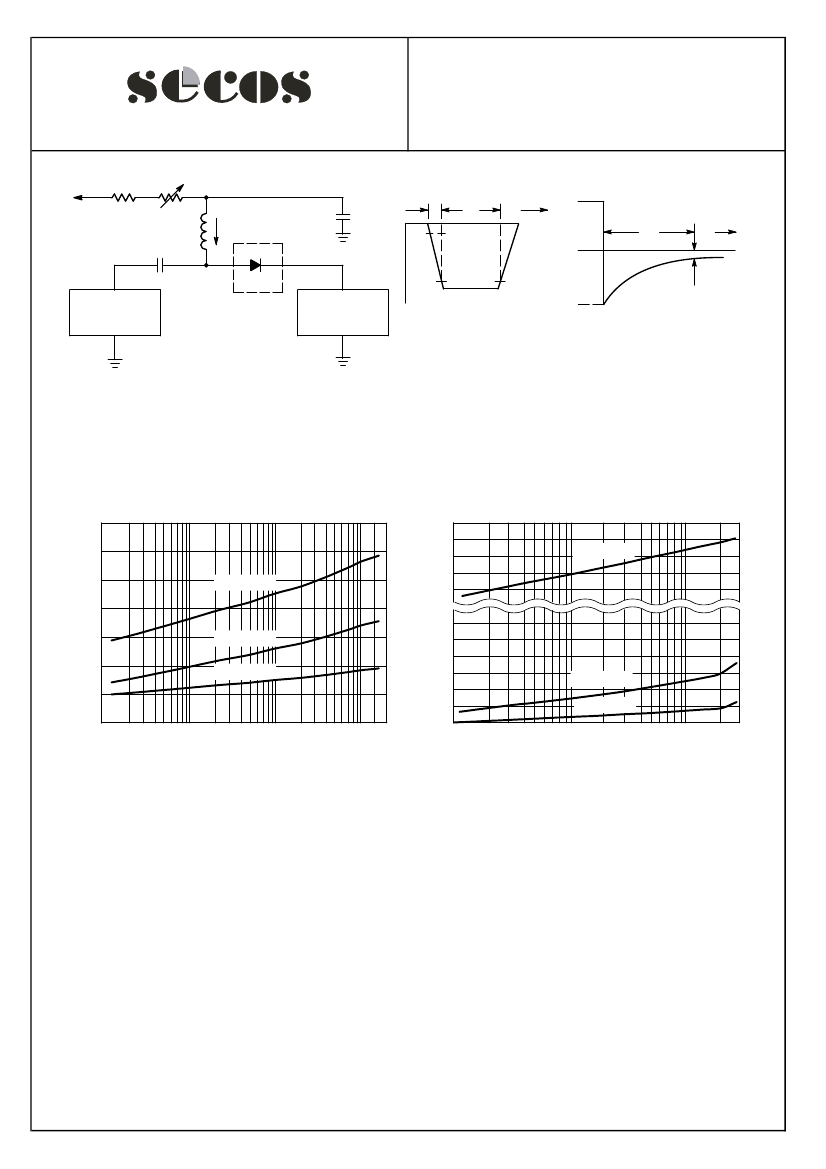

Figure 1. Recovery Time Equivalent Test Circuit
3500
3000
2500
Forward Voltage (mV)
2000
1500
1000
500
0
0.1
0.2
0.5
1
2
5
10
20
50
100
200
TA = 155°C
TA = 25°C
TA = –55°C
7000
6000
5000
Reverse Current (nA)
4000
3000
6
5
4
3
2
1
0
1
2
5
10
Forward Current (mA)
TA = 155°C
TA = 25°C
TA = –55°C
20
50
100
200 300
Reverse Voltage (V)
Figure 2. Forward Voltage
Figure 3. Reverse Leakage
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page
2
of 2
