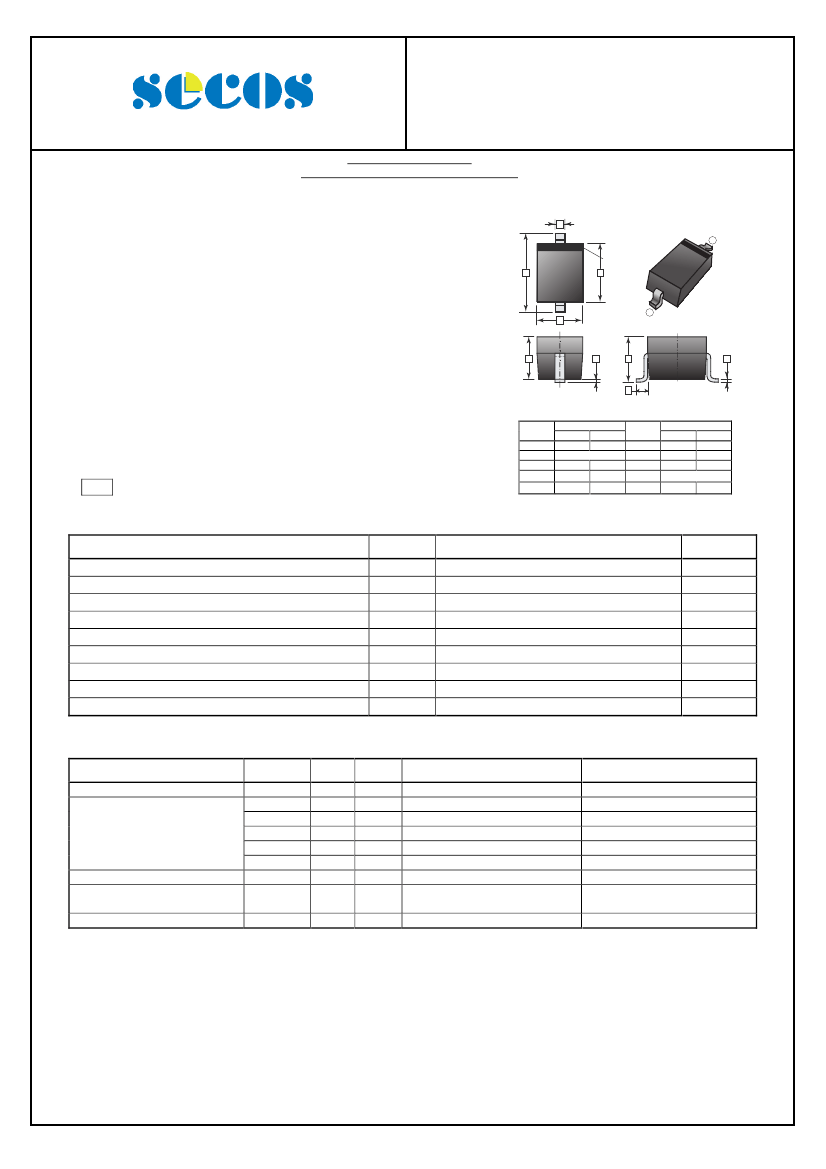

BAT54P
Elektronische Bauelemente
Plastic-Encapsulate Diodes
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATUERS
Low Turn-on Voltage
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and ESD Protection
D
SOD-123
1
Cathode Band
H
G
2
F
C
B
A
E
J
REF.
A
B
C
D
E
MARKING
L9
Millimeter
Min.
Max.
1.05
1.25
0.10 REF.
1.05
1.15
0.45
0.65
0.08
0.15
REF.
F
G
H
J
Millimeter
Min.
Max.
1.50
1.70
2.60
2.80
3.55
3.85
0.50 REF.
MAXIMUM RATINGS
(at Ta = 25°C unless otherwise specified)
PARAMETER
DC Blocking Voltage
RMS reverse Voltage
Average Rectified Output Current
Forward continuous Current
Repetitive peak Forward Current
Forward Surge Current
Power Dissipation
Thermal Resistance Junction to Ambient Air
Junction Temperature, Storage Temperature
SYMBOL
V
R
V
R(RMS)
I
O
I
F
I
FRM
I
FSM
P
d
R
θJA
T
J
, T
STG
VALUE
30
21
100
200
300
600
300
625
125, -65~125
UNIT
V
mA
mA
mA
mA
mW
K/W
°
C
°
C
ELECTRICAL CHARACTERISTICS
(at Ta = 25°C unless otherwise specified)
PARAMETERS
Reverse Breakdown Voltage
SYMBOL MIN. MAX.
V
(BR)R
V
F1
V
F2
V
F3
V
F4
V
F5
I
R
t
RR
C
T
30
240
320
400
500
1000
2.0
5.0
10
UNIT
V
mV
mV
mV
mV
mV
µA
ns
pF
TEST CONDITIONS
I
R
= 100µA
I
F
= 0.1mA
I
F
= 1.0 mA
I
F
= 10 mA
I
F
= 30 mA
I
F
= 100 mA
V
R
= 25V
I
F
= 10mA, I
R
= 10mA to 1mA
R
L
= 100
V
R
=1V, f=1MHz
Forward Voltage
Peak Reverse Current
Reverse Recovery Time
Capacitance between Terminals
09-Nov-2009 Rev. A
Page 1 of 2
BAT54P
Elektronische Bauelemente
Plastic-Encapsulate Diodes

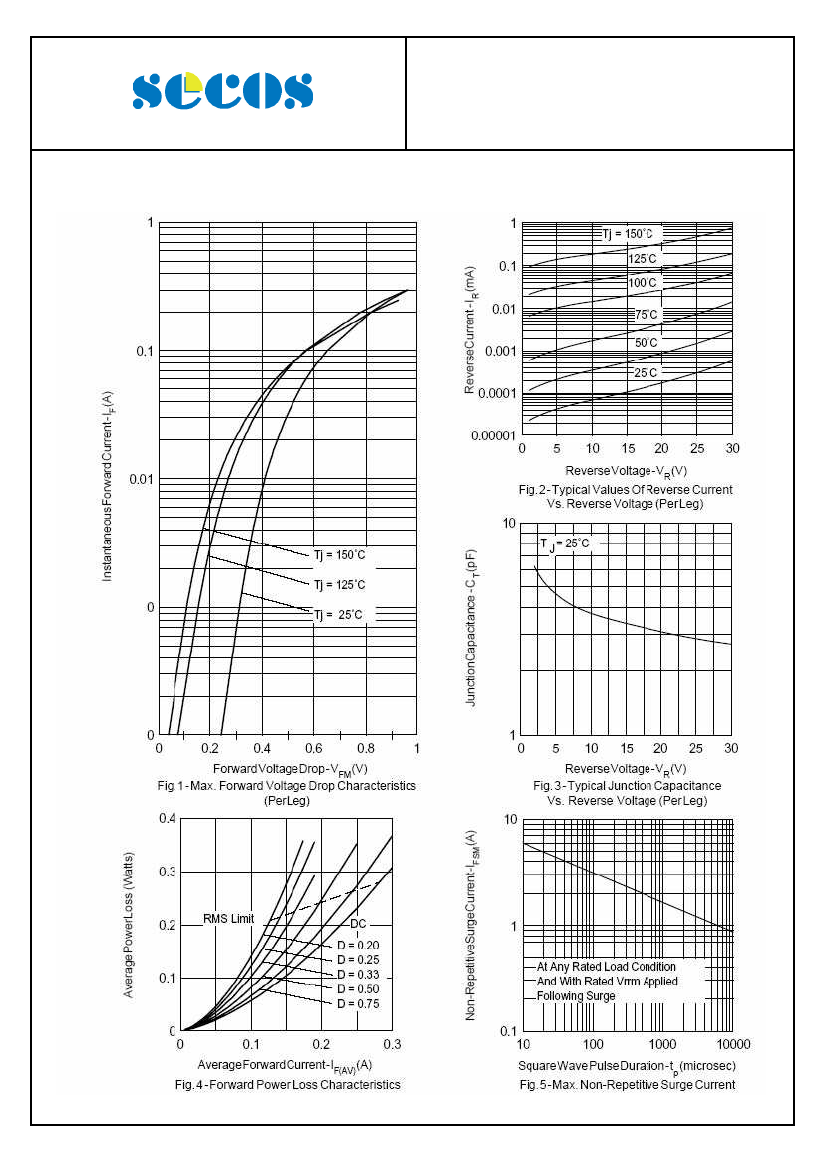

RATINGS AND CHARACTERISTIC CURVES
