AUED14N45BE2: DescriptionAudio/RCA Connector, 14 Pole(s), Solid Lead Terminal, Receptacle; CategoryThe connector The connector; File Size11MB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

AUED14N45BE2 Overview

Audio/RCA Connector, 14 Pole(s), Solid Lead Terminal, Receptacle

AUED14N45BE2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Body diameter	0.551 inch
Body/casing type	RECEPTACLE
Configuration	1X1 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	10 mΩ
DIN compliance	NO
Dielectric withstand voltage	707VAC V
Durability	10000 Cycles
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Installation type	PANEL
Number of connectors	ONE
Number of poles	14
Number of ports	1
Options	GENERAL PURPOSE
Rated current (signal)	1.5 A
Shell material	STAINLESS STEEL
Termination type	SOLDER

Preview

Download Datasheet

View All

JUPITER

Audio Miniature

Connectors

Applications

VHF radiocommunications

vehicular, manpack, airborne and

hand-held versions

Description

Miniature audio connectors with a push-pull

coupling system.

Thanks to this latching concept and low

profile, they enable an intensive use even in

harsh conditions.

Standards

French MOD : spec. SEFT n° 2559

Characteristics

Mechanical

• Shells have 5 polarizing key positions

• Receptacle and plug housings

in stainless steel

• Shelf cleaning contacts

• Contact material : copper alloy

plating : gold over nickel

• Cable strain relief :

- torque

: 12 cycles

- tensile force : 400 N

- bending

: 30000 cycles

• Free fall of plug with cable : 1,5 meter

• Endurance :

10000 mating/unmating

• Transverse load

: 400 N

• Breaking strength of plug : 800 N

• Axial mating force

≥

130 N

• Axial demating force

≥

20 N

• Vibrations :

55 Hz to 2000 Hz at 10 g (6 hours)

• Bump : 4000 bumps severity 40 g

• Shocks : 12 shocks severity 100 g

Electrical

•

Contact resistance

≤

10 MΩ

Insulation resistance

≥

1000 MΩ

Crosstalk

≤

50 dB

Voltage rating : > 500 Vrms, 50 Hz

Shell to shell continuity

: < 10 MΩ

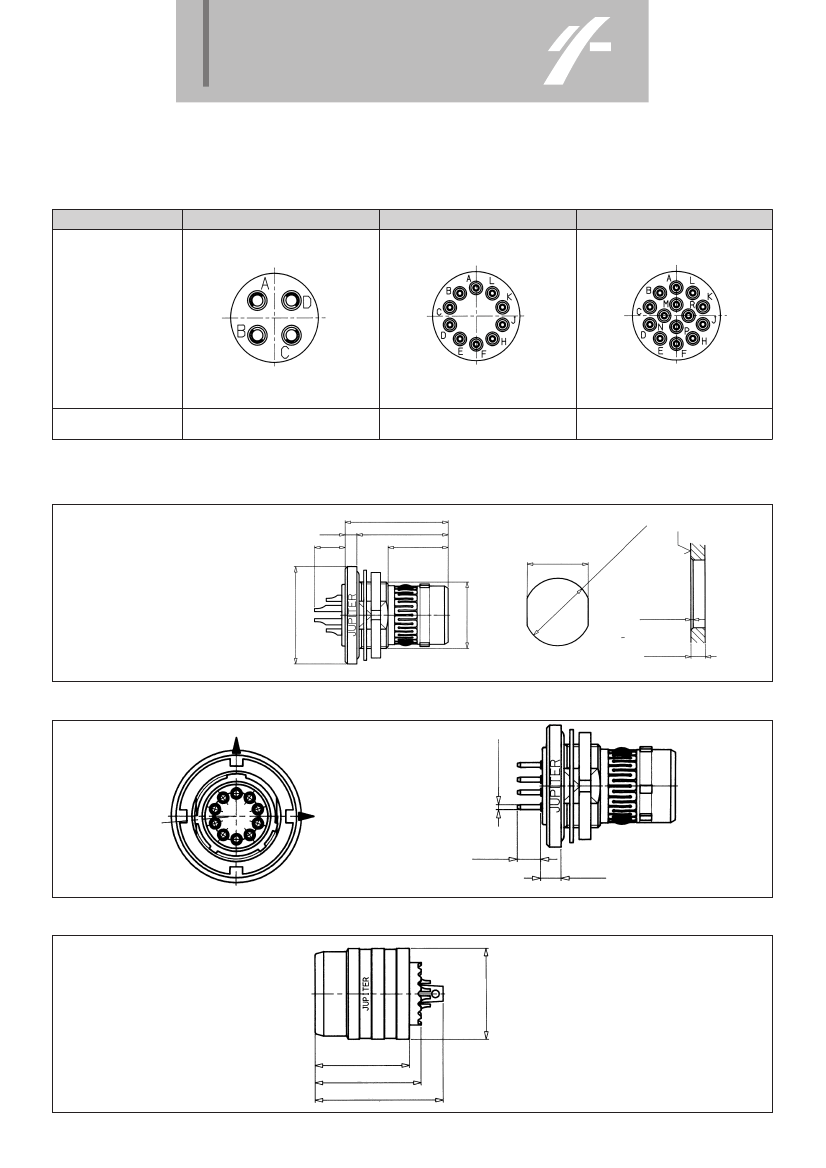

Contacts characteristics

insert

Ø solder bucket current rating

1.4

10 and 14

0.85

1.5 A

Climatic

• Climatic category 434 :

-55°C to +126°C, 56 days in damp heat

• Salt spray : 96 hours duration

• Sealing : 28 PSI, 2 bars

Resistance to fluids

fluid

Fuel

Hydraulic

Lubricating Oils

Cleaning

type

Petroleum Based

Naval Diesel

Turbine

designation

ISO 1817 Liquid B

OM-15, NATO H-515, OX-30

OMD-113, NATO 0-278

OX-38, NATO-149

Trichloroethane

Isopropyl alcohol

Methanol / Ethanol

AL-11, NATO S-737

AL-34, NATO S-1746

De-Icing

Isopropanol

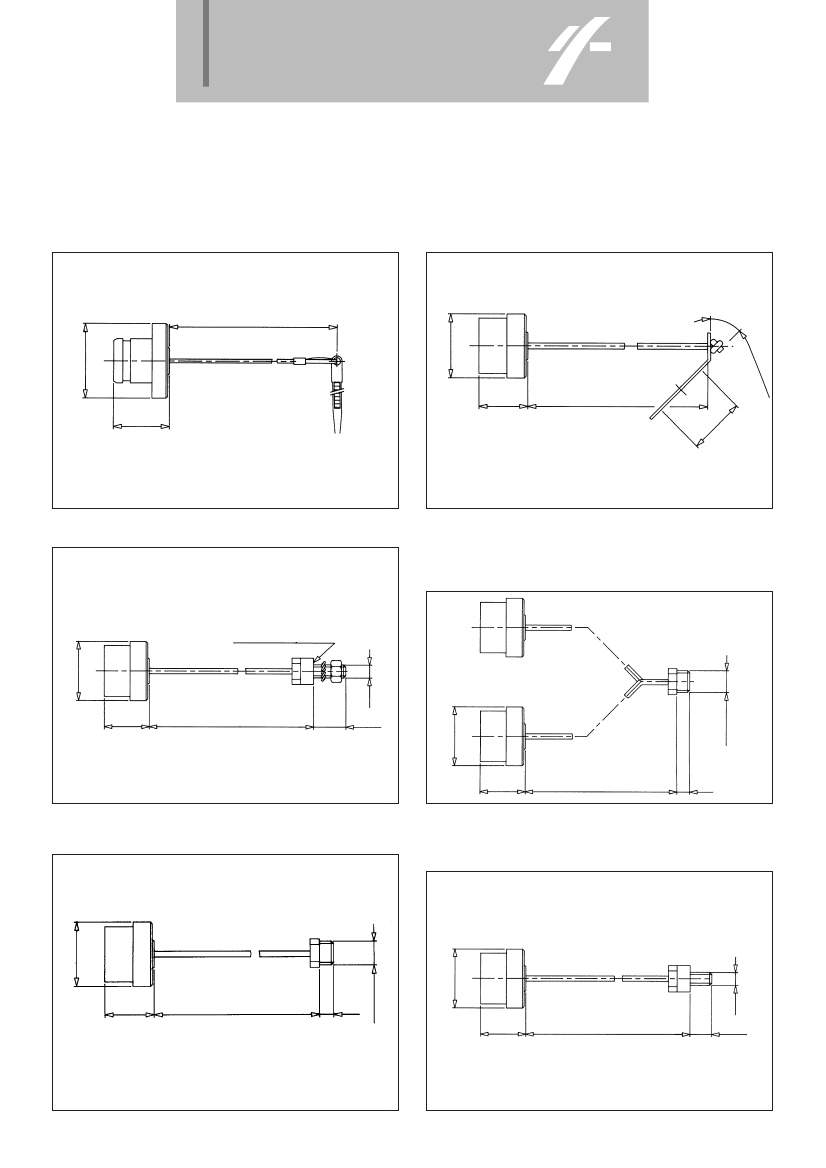

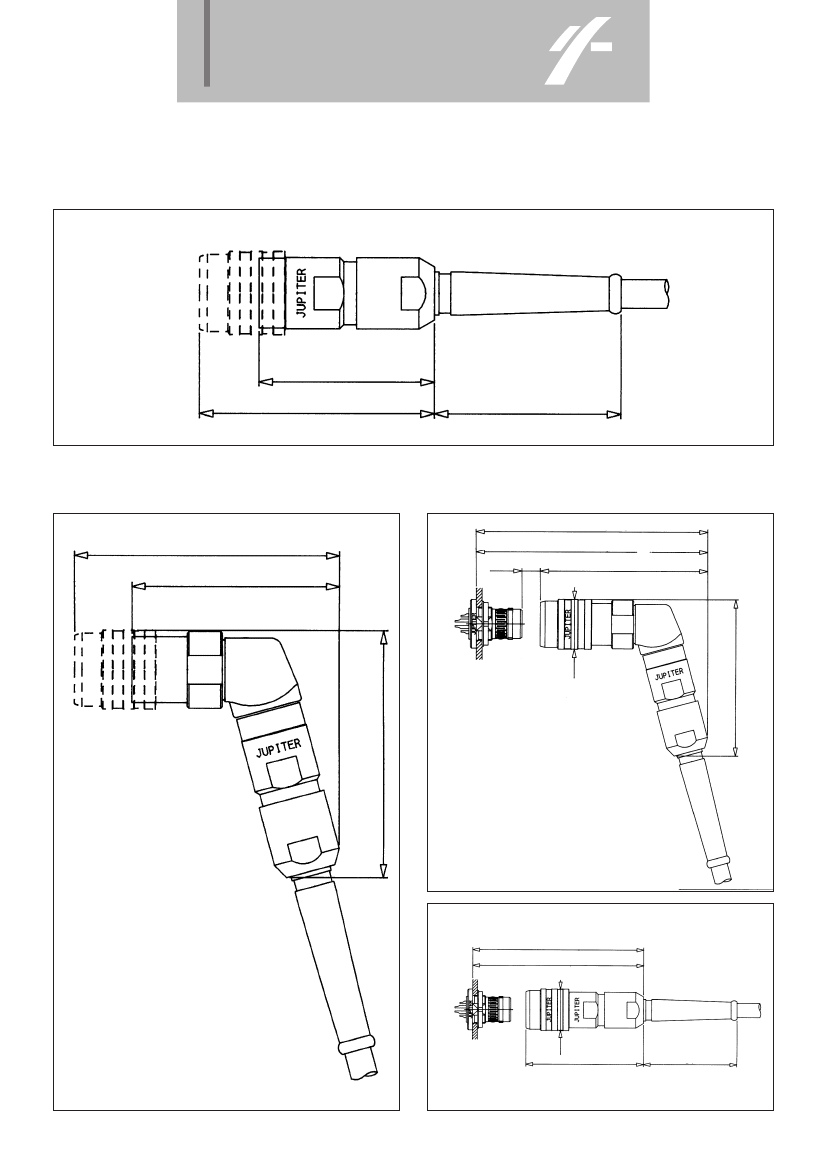

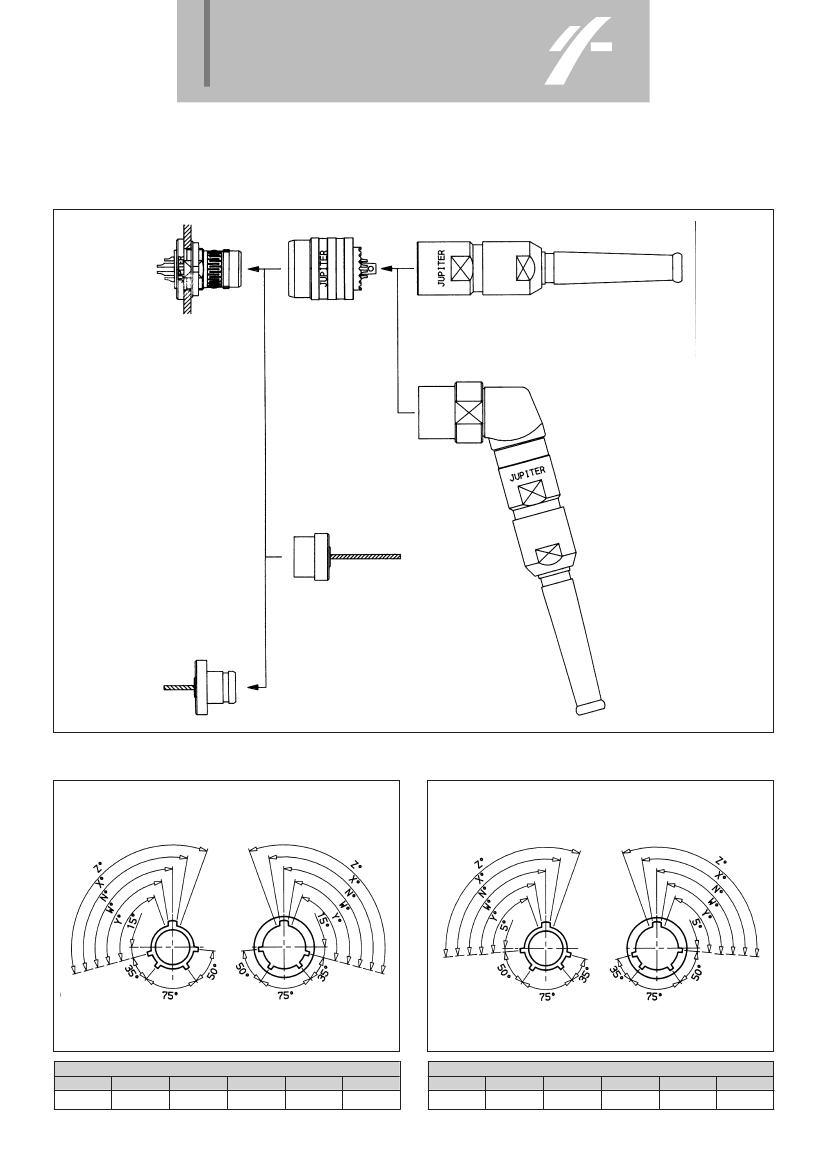

Ordering information

connectors series

shell type

accessory

contact layout

housing key polarization

cable outer diameter

covering cap

F -

plug

E -

receptacle

D -

straight backshell

C -

elbow backshell

04, 10

N, W, X, Y

and

1/10 mm - 70, 60, 45

without -

no indication

plug -

receptacle -

thru’ panel mounting

obstructed hole mounting (M5)

ring attachment

2 receptacle caps with mounting inside same obstructed hole

obstructed hole mounting (M3)

211
