LM224DR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM224DR2

LM224DR2: DescriptionOperational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14, PLASTIC, SO-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size219KB，8 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

LM224DR2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LM224DR2	-	-	View	Buy Now

LM224DR2 Overview

Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14, PLASTIC, SO-14

LM224DR2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	PLASTIC, SO-14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.3 µA
Minimum Common Mode Rejection Ratio	70 dB
Nominal Common Mode Rejection Ratio	85 dB
Maximum input offset voltage	7000 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
Negative supply voltage upper limit	-16 V
Nominal Negative Supply Voltage (Vsup)
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal slew rate	0.6 V/us
Supply voltage upper limit	16 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	25000
width	3.9 mm

Preview

Download Datasheet

View All

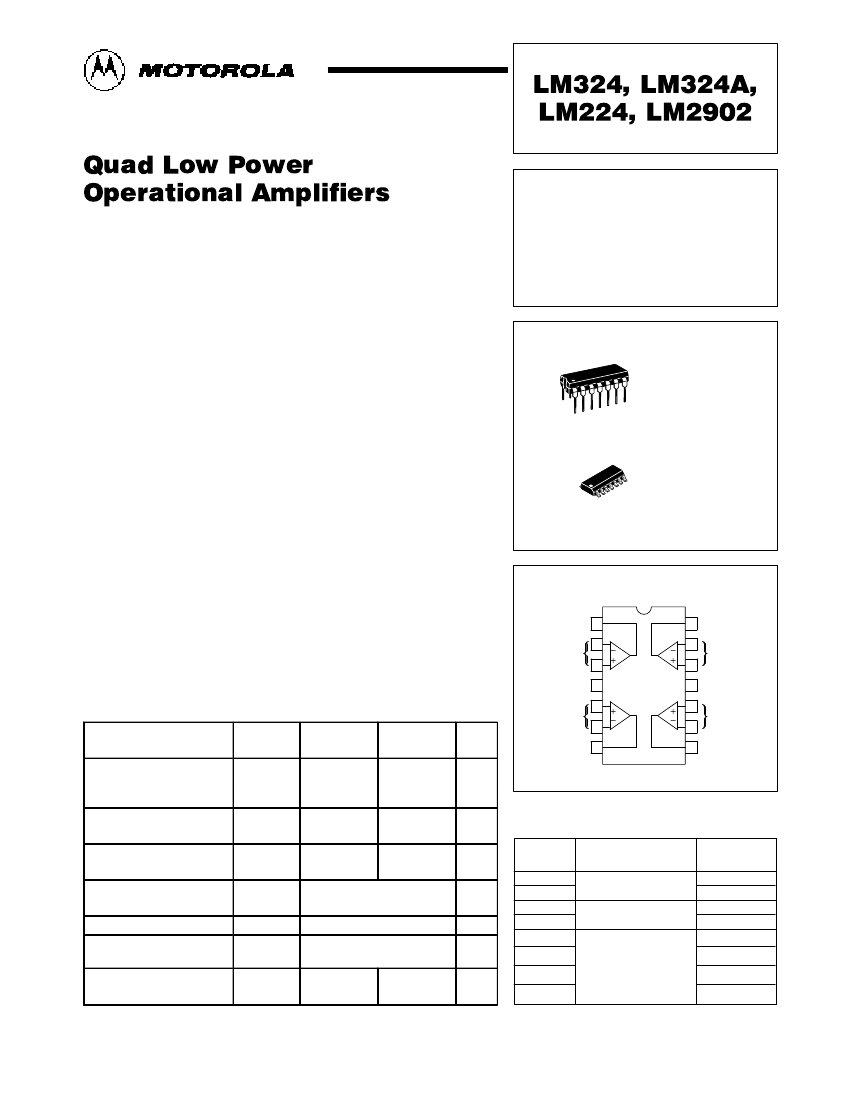

Order this document by LM324/D

LM324, LM324A,

LM224, LM2902

Quad Low Power

Operational Amplifiers

The LM324 series are low–cost, quad operational amplifiers with true

differential inputs. They have several distinct advantages over standard

operational amplifier types in single supply applications. The quad amplifier

can operate at supply voltages as low as 3.0 V or as high as 32 V with

quiescent currents about one–fifth of those associated with the MC1741 (on

a per amplifier basis). The common mode input range includes the negative

supply, thereby eliminating the necessity for external biasing components in

many applications. The output voltage range also includes the negative

power supply voltage.

•

Short Circuited Protected Outputs

QUAD DIFFERENTIAL INPUT

OPERATIONAL AMPLIFIERS

SEMICONDUCTOR

TECHNICAL DATA

•

True Differential Input Stage

Single Supply Operation: 3.0 V to 32 V

Low Input Bias Currents: 100 nA Maximum (LM324A)

Four Amplifiers Per Package

Internally Compensated

Common Mode Range Extends to Negative Supply

Industry Standard Pinouts

ESD Clamps on the Inputs Increase Ruggedness without Affecting

Device Operation

N SUFFIX

PLASTIC PACKAGE

CASE 646

(LM224, LM324,

LM2902 Only)

D SUFFIX

PLASTIC PACKAGE

CASE 751A

(SO–14)

PIN CONNECTIONS

Out 1

Inputs 1

Out 4

Inputs 4

)

VCC

VEE, Gnd

Inputs 3

Out 3

MAXIMUM RATINGS

(TA = + 25°C, unless otherwise noted.)

Rating

Power Supply Voltages

Single Supply

Split Supplies

Input Differential Voltage

Range (See Note 1)

Input Common Mode

Voltage Range

Output Short Circuit

Duration

Junction Temperature

Storage Temperature

Range

Operating Ambient

Temperature Range

NOTE: 1. Split Power Supplies.

Inputs 2

Symbol

VCC

VCC, VEE

VIDR

VICR

tSC

Tstg

LM224

LM324,A

±16

±32

–0.3 to 32

LM2902

±13

±26

–0.3 to 26

Unit

Vdc

Out 2

(Top View)

Vdc

ORDERING INFORMATION

Vdc

Device

LM2902D

LM2902N

LM224D

LM224N

LM324AD

LM324AN

LM324D

LM324N

Motorola, Inc. 1995

Operating

Temperature Range

TA = –40° to +105°C

TA = –25° to +85°C

Continuous

150

–65 to +150

–25 to +85

0 to +70

–40 to +105

°C

Package

SO–14

Plastic DIP

SO–14

Plastic DIP

SO–14

Plastic DIP

SO–14

Plastic DIP

TA = 0° to +70°C

MOTOROLA ANALOG IC DEVICE DATA

LM224DR2 Related Products

	LM224DR2	LM324N	LM324DR2
Description	Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14, PLASTIC, SO-14	Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDIP14, PLASTIC, DIP-14	Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDSO14, PLASTIC, SO-14
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	PLASTIC, SO-14	DIP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.3 µA	0.5 µA	0.5 µA
Minimum Common Mode Rejection Ratio	70 dB	65 dB	65 dB
Nominal Common Mode Rejection Ratio	85 dB	70 dB	70 dB
Maximum input offset voltage	7000 µV	9000 µV	9000 µV
JESD-30 code	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14
JESD-609 code	e0	e0	e0
length	8.65 mm	18.86 mm	8.65 mm
Negative supply voltage upper limit	-16 V	-16 V	-16 V
Number of functions	4	4	4
Number of terminals	14	14	14
Maximum operating temperature	85 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	4.69 mm	1.75 mm
Nominal slew rate	0.6 V/us	0.6 V/us	0.6 V/us
Supply voltage upper limit	16 V	16 V	16 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	1000 kHz	1000 kHz	1000 kHz
Minimum voltage gain	25000	15000	15000
width	3.9 mm	7.62 mm	3.9 mm
