MLB-451616-0470PN datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> MLB-451616-0470PN

MLB-451616-0470PN: DescriptionPassive Filter; CategoryAnalog mixed-signal IC filter; File Size578KB，11 Pages; ManufacturerKitagawa Electronics

Download Datasheet Parametric View All

MLB-451616-0470PN Overview

Passive Filter

MLB-451616-0470PN Parametric

Parameter Name	Attribute value
Maker	Kitagawa Electronics
package instruction	1806
Reach Compliance Code	unknown
shell code	1806
structure	Chip Bead
Maximum DC resistance	0.09 Ω
maximum frequency	100 MHz
minimum frequency	100 MHz
high	1.6 mm
length	4.5 mm
Material	Ferrite
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TR
physical size	L4.5XB1.6XH1.6 (mm)/L.1772XB.063XH.063 (inch)
Rated current	2 A
series	MLB-451616
width	1.6 mm

Preview

Download Datasheet

View All

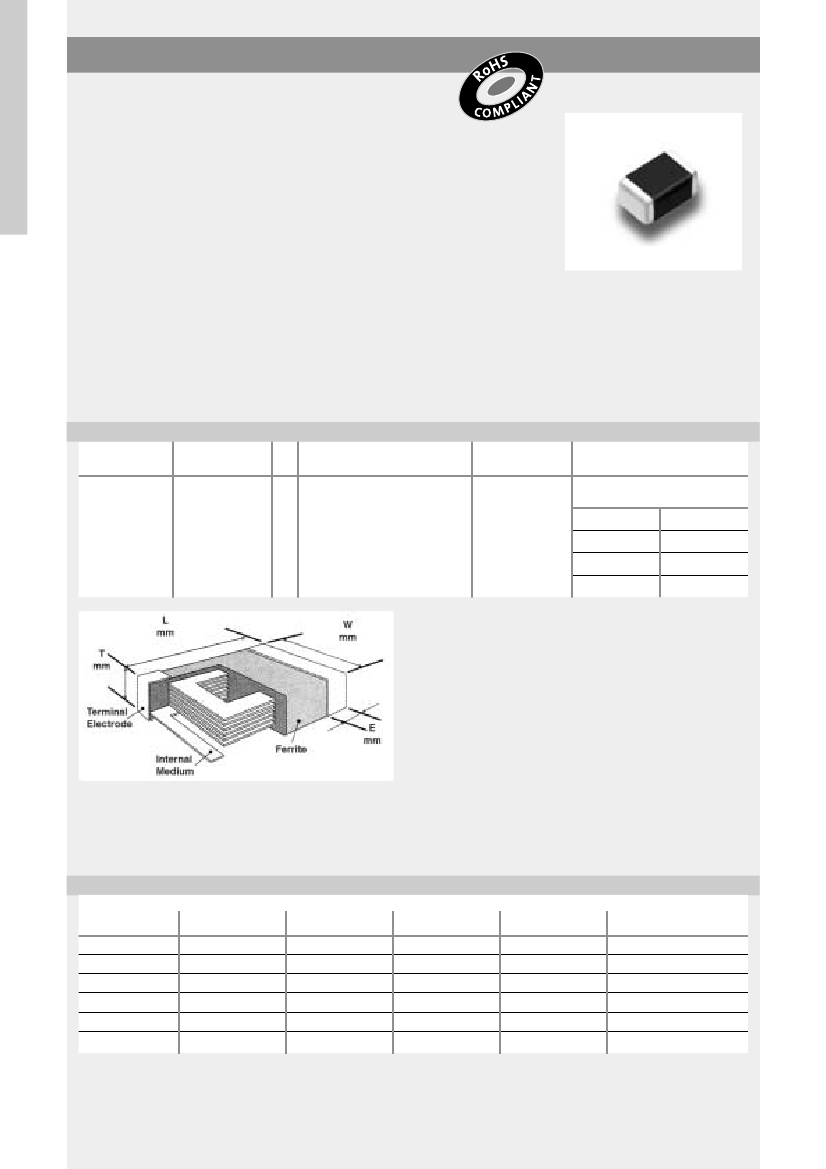

M U LT I LA Y E R T Y P E

HIGH CURRENT FERRITE CHIP BEAD

MULTILAYER

•

Impedance Range: 30 to 1300

Ω.

Operating Temperature Range: -55°C to +125°C.

Soldering Method: Reflow or Wave Soldering, suitable for lead free soldering.

Packaging Method: Tape & Reel (per EIA Specifications).

Storage Temperature: max. 40°C, RH 70%.

ROHS compliant.

Features

• Combination of high frequency noise suppression with capability of handling high current.

• Current ratings up to 6 Amps with low DCR.

Application Field

• High current DC power lines, Circuits where a Stable ground in unavailable.

Part Number Code

MLB

Series Name

160808 -

Size Code

0060

Impedance

(ex.0010 =10

Ω

± 25%)

Classification

Rated Current

(A, B, and P) L= 1000mA Q= 3000mA

M= 1500mA R= 4000mA

N= 2000mA U= 5000mA

P= 2500mA W= 6000mA

Shape and Dimensions

Size code

0603

0805

1206

1210

1806

1812

Size

160808

201209

311611

322513

451616

453215

Length(L)

1.6±0.15

2.0±0.2

3.2±0.2

4.5±0.25

unit mm

Width (W)

0.8±0.15

1.25±0.2

1.6±0.2

2.5±0.2

1.6±0.2

3.2±0.25

Thickness (T)

0.8±0.15

0.9±0.2

1.1±0.2

1.3±0.2

1.6±0.2

1.5±0.25

Electrode Width (E)

0.3±0.2

0.5±0.3

0.6±0.4

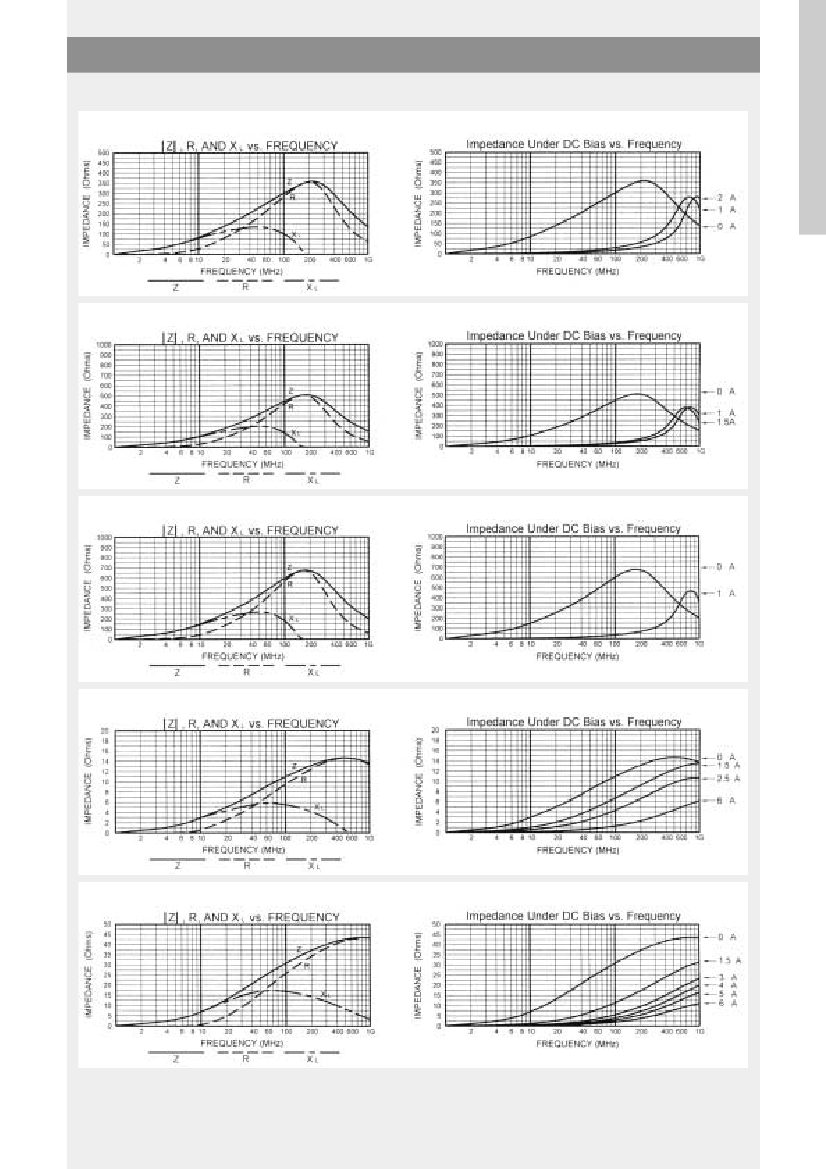

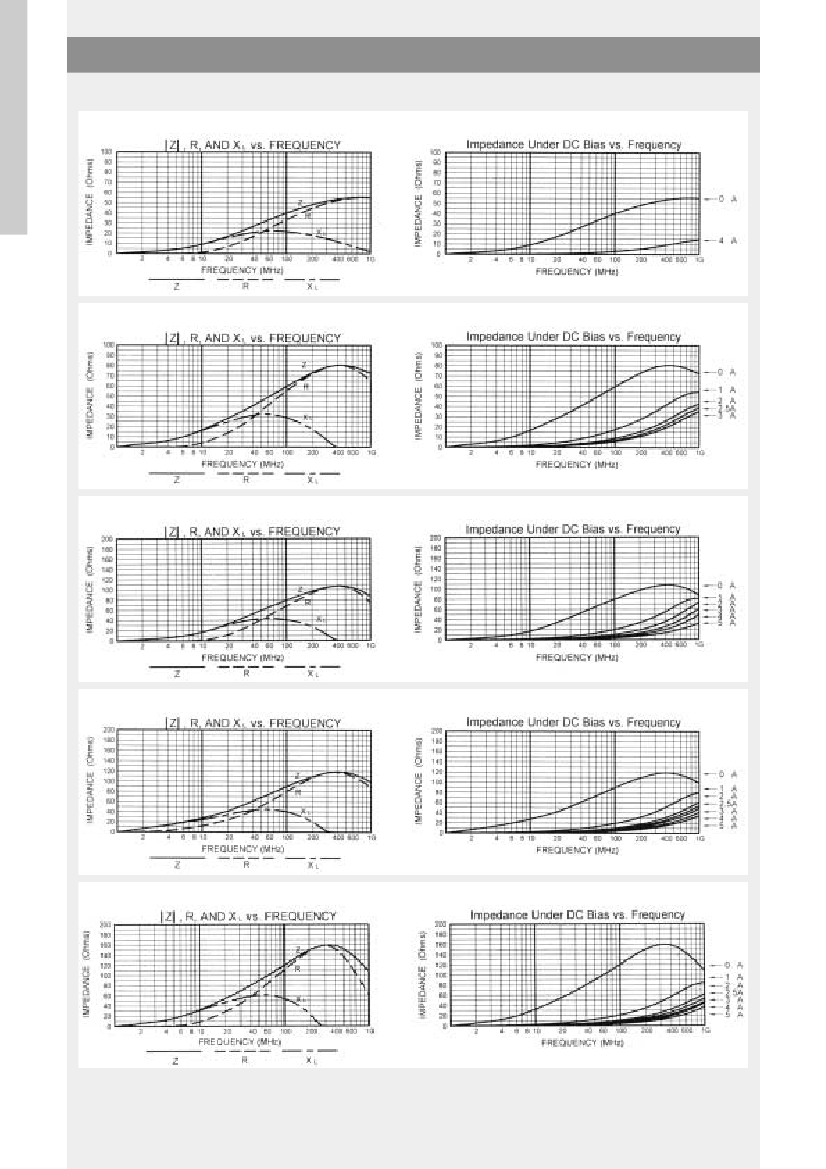

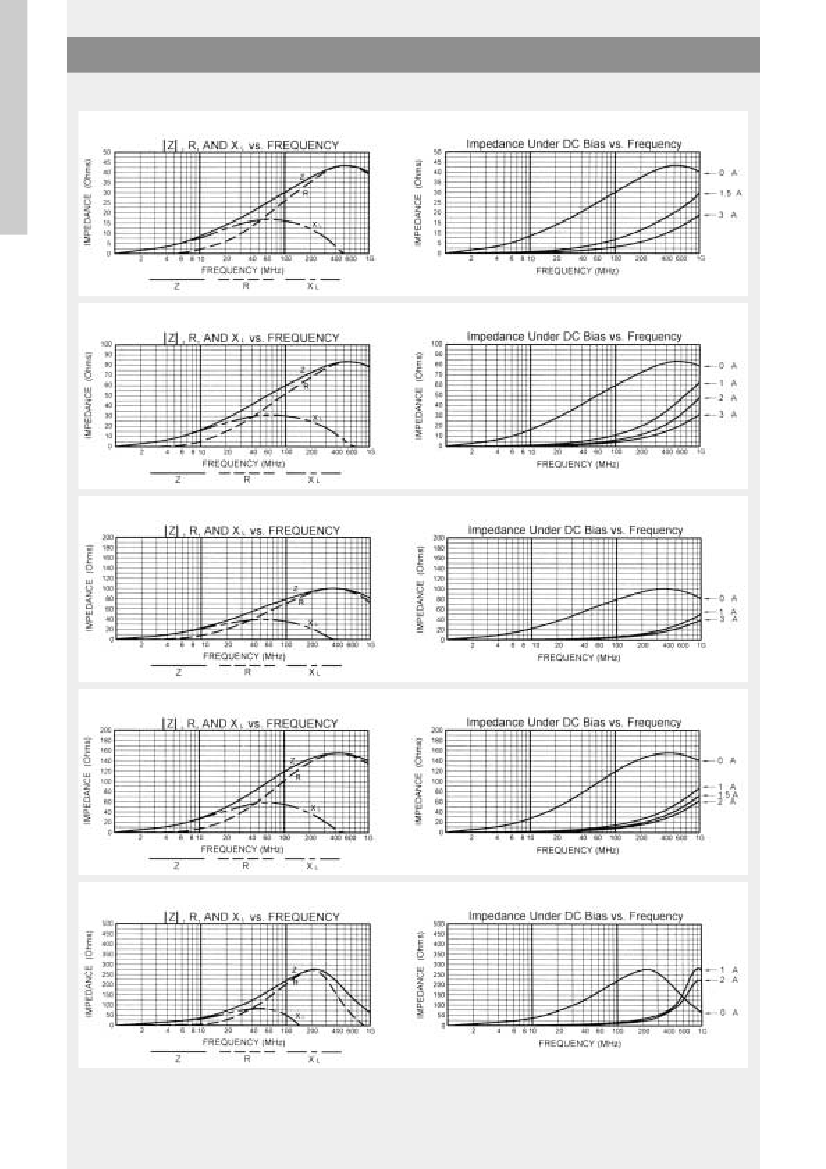

Recommended Resources

Remote control detector circuit diagram

Hybrid rectifier power supply circuit diagram

Simple phase detection circuit

Instrument amplification circuits used in the biomedical field

Isolated amplifier circuit using photodiode and ISOl00

Nickel metal hydride and nickel cadmium battery charger circuit using AICl783 as controller
