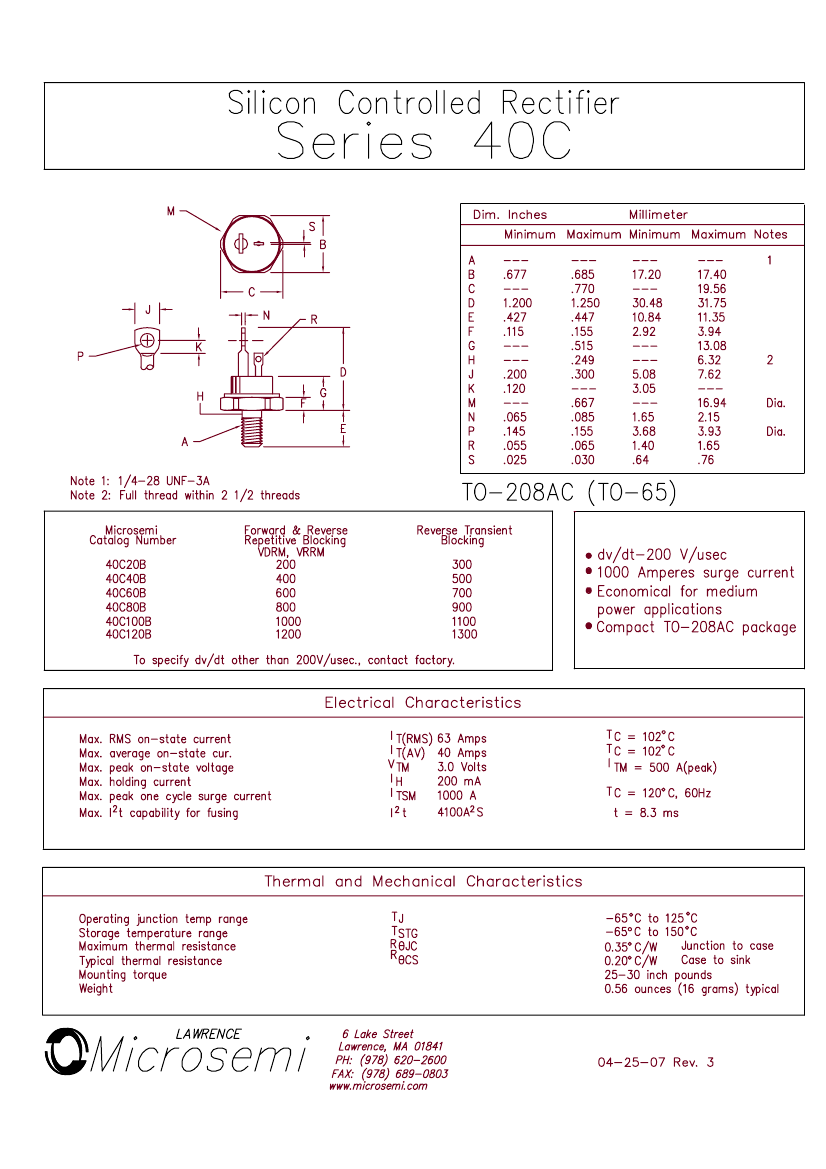

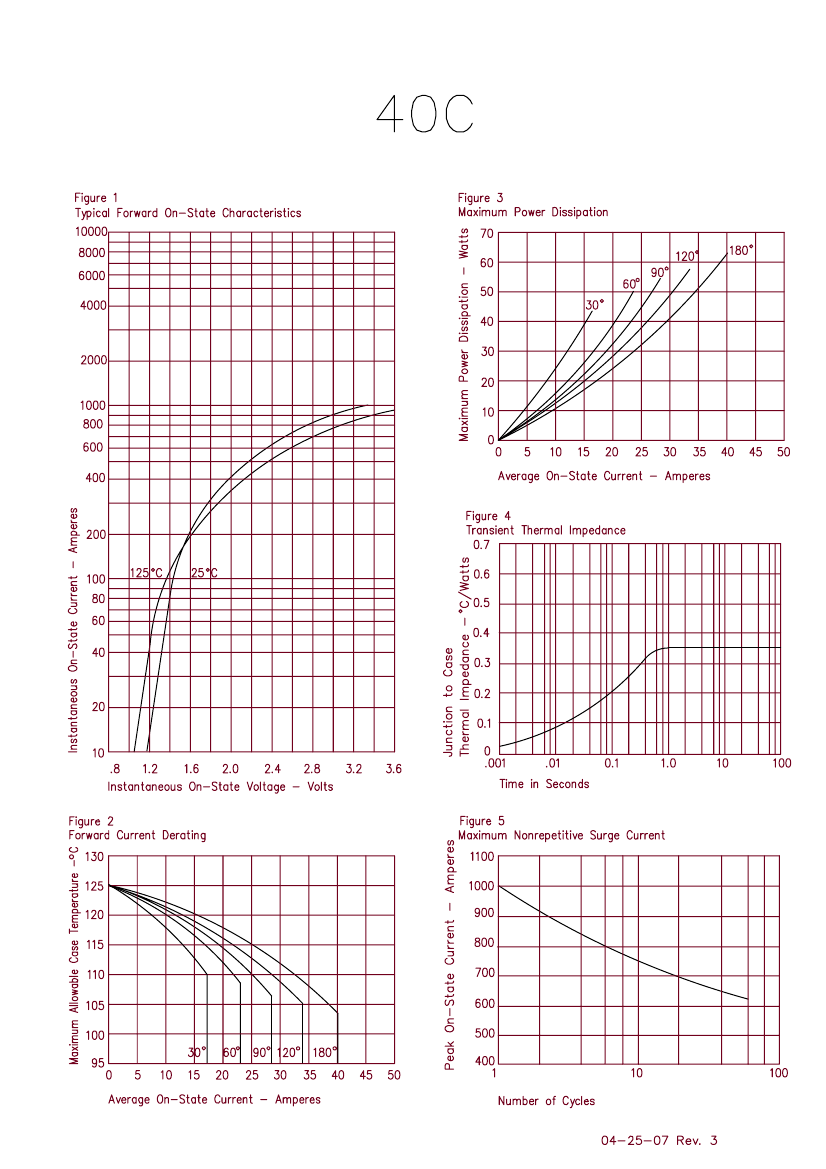

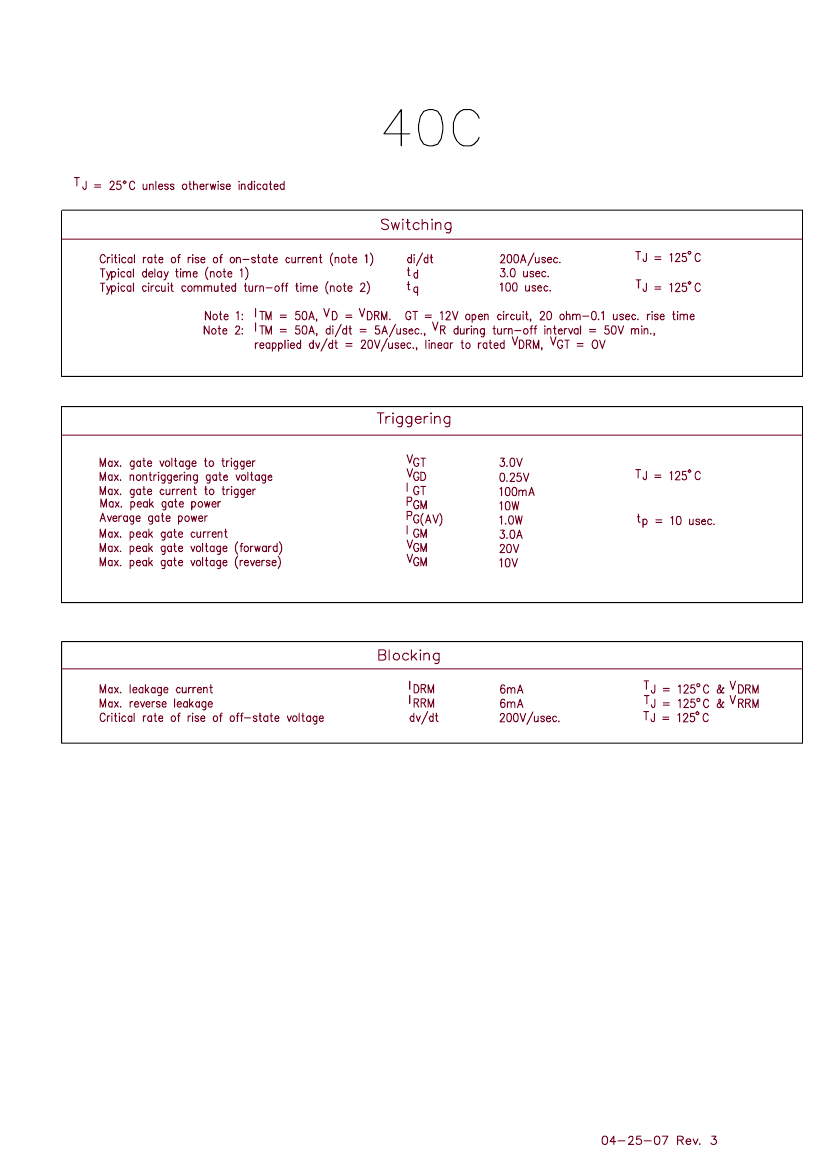

40C120B: DescriptionSilicon Controlled Rectifier; CategoryAnalog mixed-signal IC Trigger device; File Size165KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

40C120B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	40C120B	-	-	View	Buy Now

40C120B Overview

Silicon Controlled Rectifier

40C120B Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	TO-65
package instruction	POST/STUD MOUNT, O-MUPM-D2
Contacts	2
Reach Compliance Code	unknown
Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	200 mA
JEDEC-95 code	TO-208AC
JESD-30 code	O-MUPM-D2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	63 A
Maximum repetitive peak off-state leakage current	6000 µA
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1
