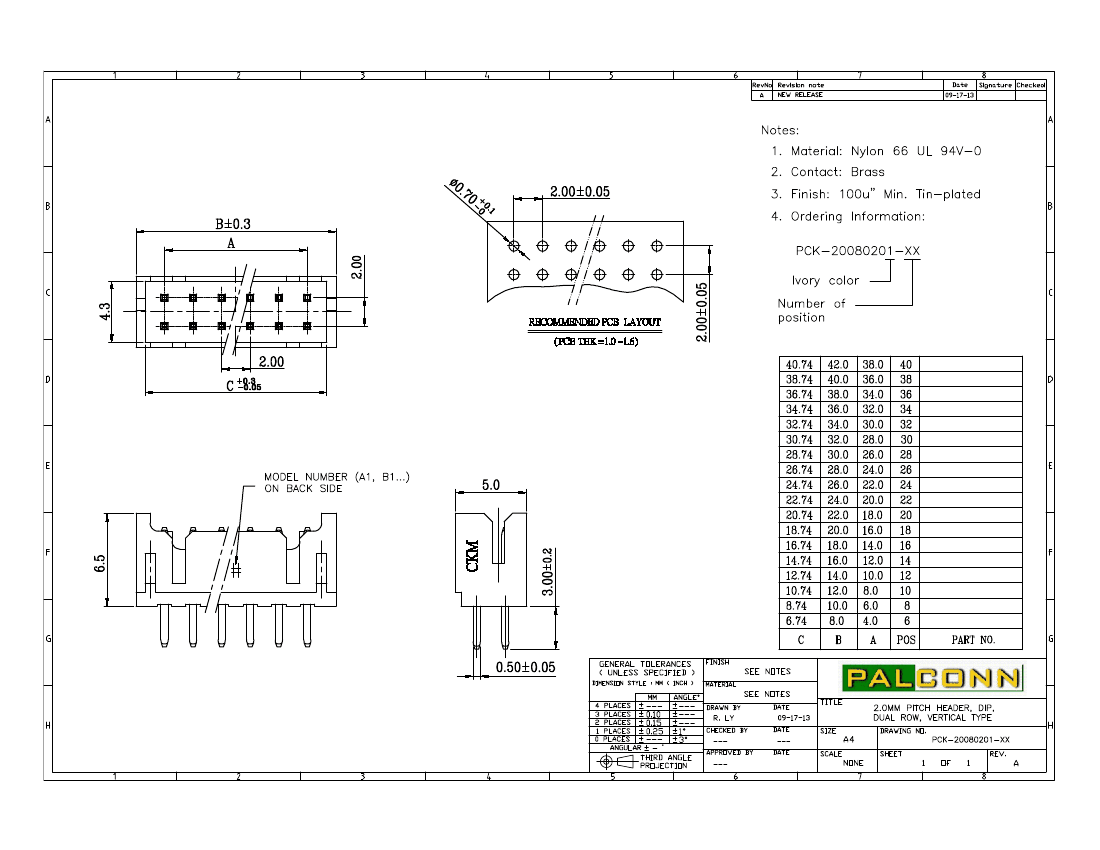

PCK-20080201-14: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerPalPilot; Environmental Compliance

Download Datasheet Parametric Compare View All

PCK-20080201-14 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle

PCK-20080201-14 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PalPilot
Reach Compliance Code	compliant
body width	0.197 inch
subject depth	0.256 inch
body length	0.63 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Bright Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	IVORY
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	PCK
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	14

PCK-20080201-14 Preview

PCK-20080201-40

PCK-20080201-38

PCK-20080201-36

PCK-20080201-34

PCK-20080201-32

PCK-20080201-30

PCK-20080201-28

PCK-20080201-26

PCK-20080201-24

PCK-20080201-22

PCK-20080201-20

PCK-20080201-18

PCK-20080201-16

PCK-20080201-14

PCK-20080201-12

PCK-20080201-10

PCK-20080201-08

PCK-20080201-06

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PCK-20080201-14 Related Products

	PCK-20080201-14	PCK-20080201-26	PCK-20080201-22	PCK-20080201-30	PCK-20080201-32	PCK-20080201-34
Description	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle	Board Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	PalPilot	PalPilot	PalPilot	PalPilot	PalPilot	PalPilot
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
subject depth	0.256 inch	0.256 inch	0.256 inch	0.256 inch	0.256 inch	0.256 inch
body length	0.63 inch	1.102 inch	0.945 inch	1.26 inch	1.339 inch	1.417 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN
Contact completed and terminated	Bright Tin (Sn) - with Nickel (Ni) barrier	Bright Tin (Sn) - with Nickel (Ni) barrier	Bright Tin (Sn) - with Nickel (Ni) barrier	Bright Tin (Sn) - with Nickel (Ni) barrier	Bright Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulator color	IVORY	IVORY	IVORY	IVORY	IVORY	IVORY
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	PCK	PCK	PCK	PCK	PCK	PCK
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	14	26	22	30	32	34
