CPT20010 & CPT20015
A
R
G
Baseplate
A=Common Anode
A
B
C
E
F
G
H
N
Q
R
U
V
W

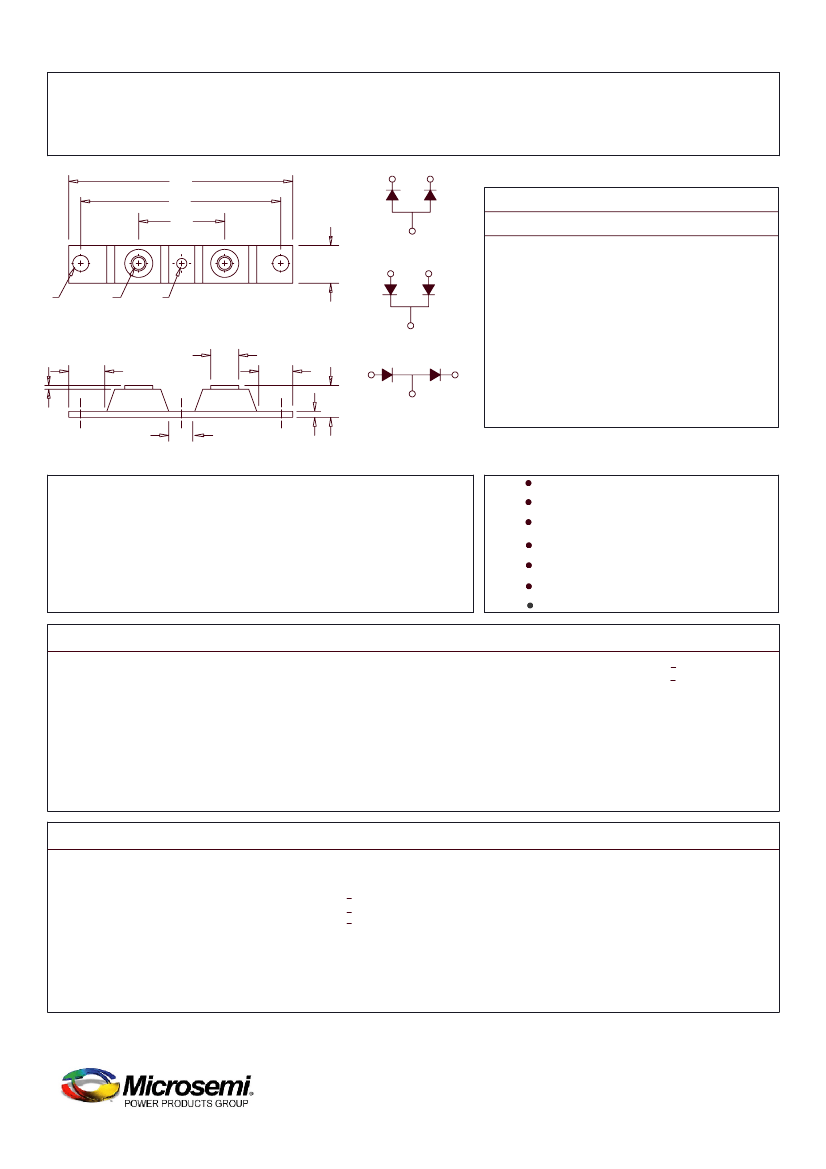

Schottky OR'ing PowerMod
Dim. Inches
Min.
B
Millimeters
Min.
Max.
Notes
---
92.20
20.32
17.78
---
16.00
3.30
3.05
12.95
12.45
34.92 BSC
0.25
---
---
---
7.37
6.99
80.01 BSC
---
15.24
8.64
7.92
4.95
4.57
Max.
Q
N
W
Baseplate
Common Cathode
U
C
Baseplate
D=Doubler
F
U
H
V
E
---
3.630
0.700
0.800
---
0.630
0.120
0.130
0.490
0.510
1.375 BSC
0.010
---
---
---
0.275
0.290
3.150 BSC
0.600
---
0.312
0.340
0.180
0.195
1/4-20
Dia.
Dia.
Notes:
Baseplate: Nickel plated
copper
Schottky Barrier Rectifier
Guard Ring Protection
Low Forward Voltage
200 Amperes/10 to 15 Volts
150°C Junction Temperature
Reverse Energy Tested
ROHS Compliant
Microsemi
Catalog Number
CPT20010*
CPT20015*
Repetitive Peak
Working Peak
Industry
Reverse Voltage Reverse Voltage
Part Number
10V
225CNQ015
15V
10V
15V
*Add Suffix A for Common Anode, D for Doubler
Electrical Characteristics
Average forward current per pkg
Average forward current per leg
Maximum surge current per leg
Maximum repetitive reverse current per leg
Max peak forward voltage per leg
Max peak forward voltage per leg
Max peak reverse current per leg
Max peak reverse current per leg
Typical junction capacitance per leg
l F(AV) 200 Amps
l F(AV) 100 Amps
l FSM 2000 Amps
I R(OV) 2 Amps
V FM .55 Volts
V FM .40 Volts
I RM 3.0 Amps
I RM 10 mA
C J 9200 pF
T C = 125°C, Square wave, R0JC = 0.25°C/W
T C = 125°C, Square wave, R 0JC = 0.5°C/W
8.3ms, half sine, TJ = 150°C
f = 1 KHZ, 25° C, 1µsec square wave
I FM = 200A:T J = 25°C*
I FM = 200A:T J = 150°C*
V RRM,T J = 125°C*
V RRM,T J = 25°C
V R = 5.0V,T J = 25°C
*Pulse test: Pulse width 300 µsec, Duty cycle 2%
Thermal and Mechanical Characteristics
Storage temp range
Operation junction temp range
Max thermal resistance per leg
Max thermal resistance per pkg
Typical thermal resistance (greased)
Terminal Torque
Mounting Base Torque (outside holes)
Mounting Base Torque (center hole)
center bolt must be torqued first
Weight
T STG
TJ
R0 JC
R0 JC
R0 CS
-55°C to 175°C
-55°C to 150°C
Junction to case
0.5°C/W
0.25°C/W Junction to case
0.08°C/W Case to sink
35-50 inch pounds
30-40 inch pounds
8-10 inch pounds
2.8 ounces (75 grams) typical
www.microsemi.com
January, 2010 - Rev. 6
CPT20010 & CPT20015

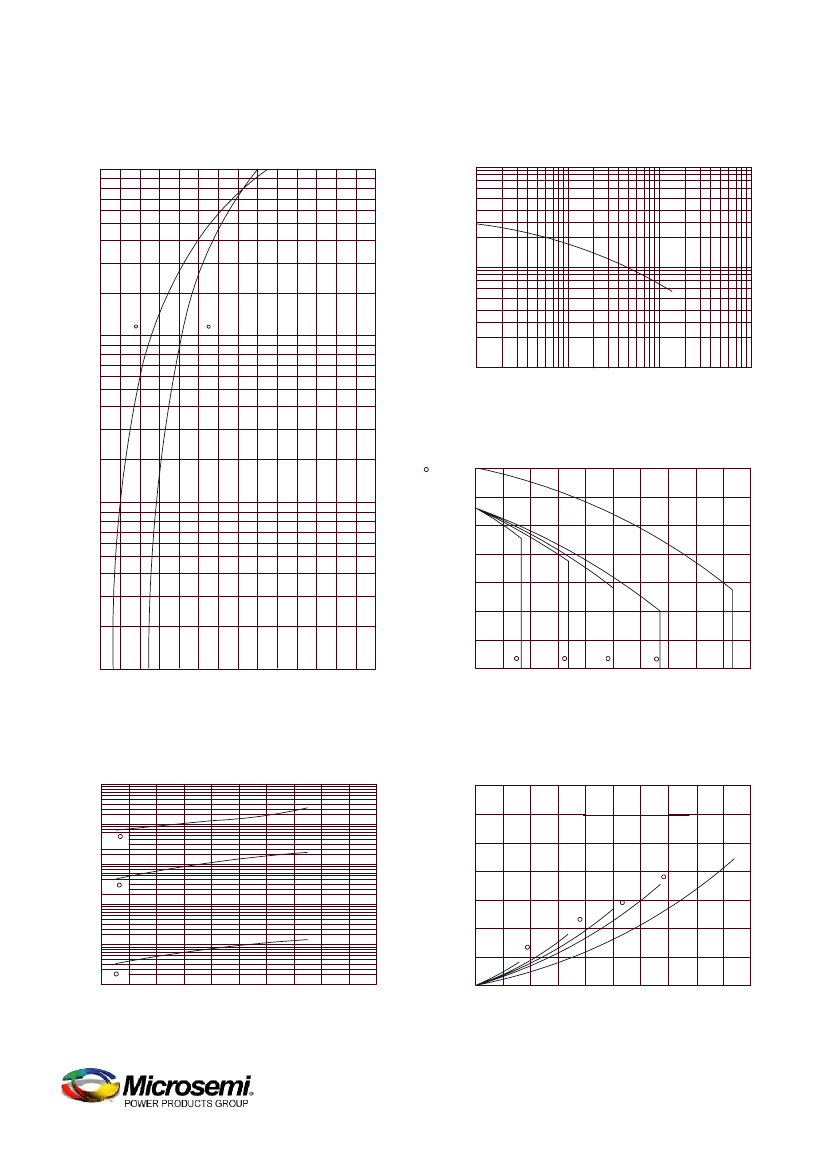

Figure 1
Typical Forward Characteristics - Per Leg
1000
800
600
Junction Capacitance - pF
400
Figure 3
Typical Junction Capacitance - Per Leg
100000
60000
40000
20000
10000
6000
4000
2000
1000
0.1
200
150 C
25 C
100
80
60
40
Instantaneous Forward Current - Amperes
0.5
1.0
5.0
10
50
100
Reverse Voltage - Volts
Figure 4
20
Maximum Allowable Case Temperature - C
Forward Current Derating - Per Leg
150
145
140
135
130
125
120
115
60
0
30
90
120
60
180
90
120
DC
150
10
8.0
6.0
4.0
2.0
1.0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
Instantaneous Forward Voltage - Volts
Average Forward Current - Amperes
Figure 2
Typical Reverse Characteristics - Per Leg
10000
Typical Reverse Current - mA
1000
150 C
100
100 C
10
1.0
0.1
25 C
0
2
4
6
8
10
12
14
16
18
20
Maximum Power Dissipation - Watts
Figure 5
Maximum Forward Power Dissipation - Per Leg
70
60
50
40
30
20
10
0
0
30
60
90
120
150
Average Forward Current - Amperes
60
90
120
180
DC
Reverse Voltage - Volts
www.microsemi.com
January, 2010 - Rev. 6
