RS5RJ2349-T1 datasheet, PDF - EEWORLD Datasheet

RS5RJ2349-T1: DescriptionSwitching Regulator, Voltage-mode, 0.25A, 100kHz Switching Freq-Max, CMOS, PDSO8, SOP-8; CategoryPower/power management The power supply circuit; File Size91KB，6 Pages; ManufacturerRICOH Electronic Devices Co., Ltd.

Download Datasheet Parametric View All

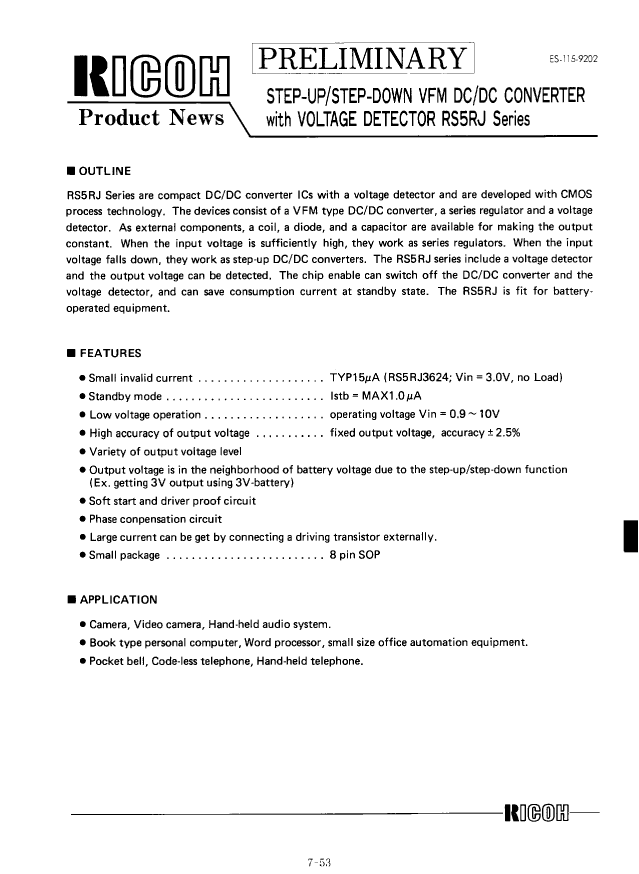

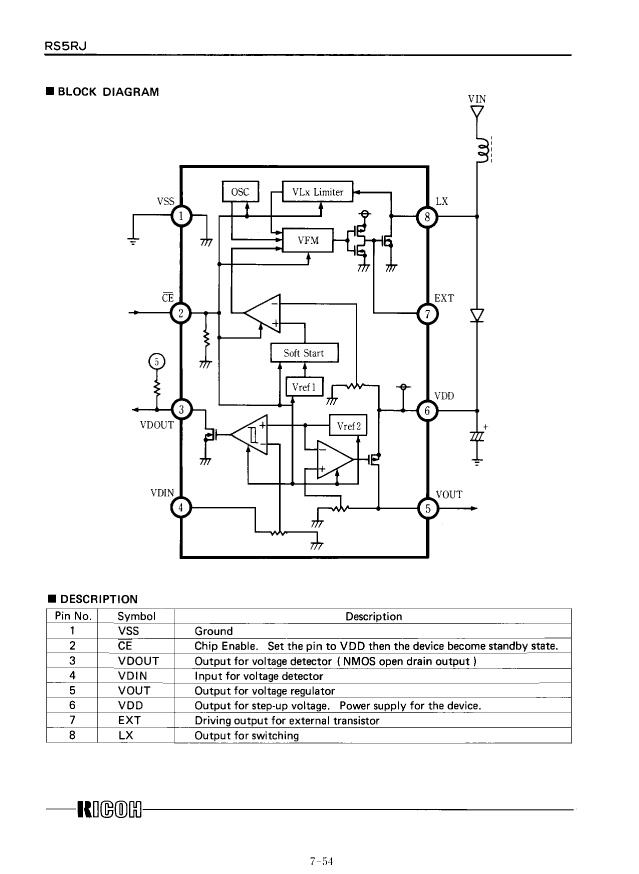

RS5RJ2349-T1 Overview

Switching Regulator, Voltage-mode, 0.25A, 100kHz Switching Freq-Max, CMOS, PDSO8, SOP-8

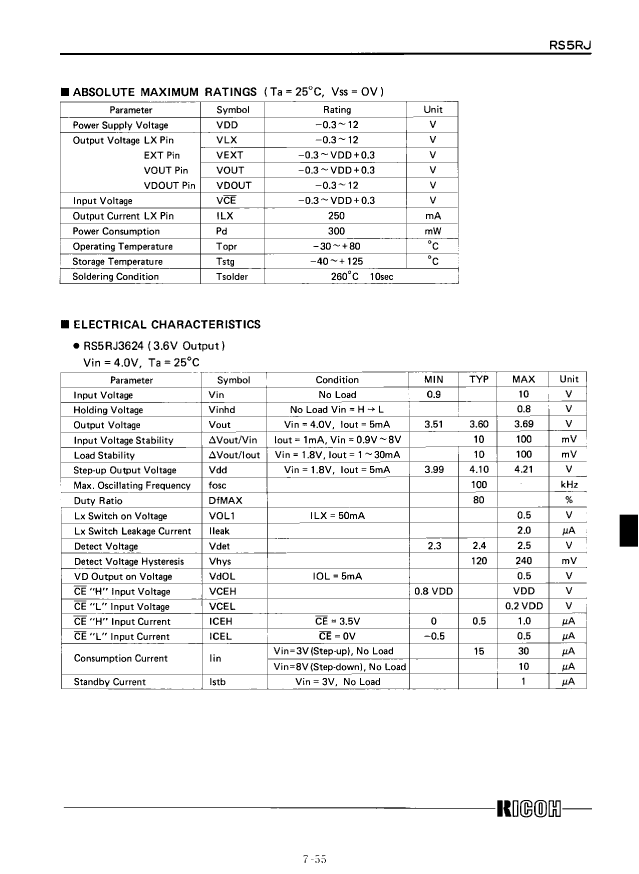

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	RICOH Electronic Devices Co., Ltd.
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DETECTOR VOLTAGE = 4.9 VOLT
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE FREQUENCY MODULATION
Maximum input voltage	10 V
Minimum input voltage	0.9 V
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	5.2 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Maximum output current	0.25 A
Nominal output voltage	2.3 V
Package body material	PLASTIC/EPOXY

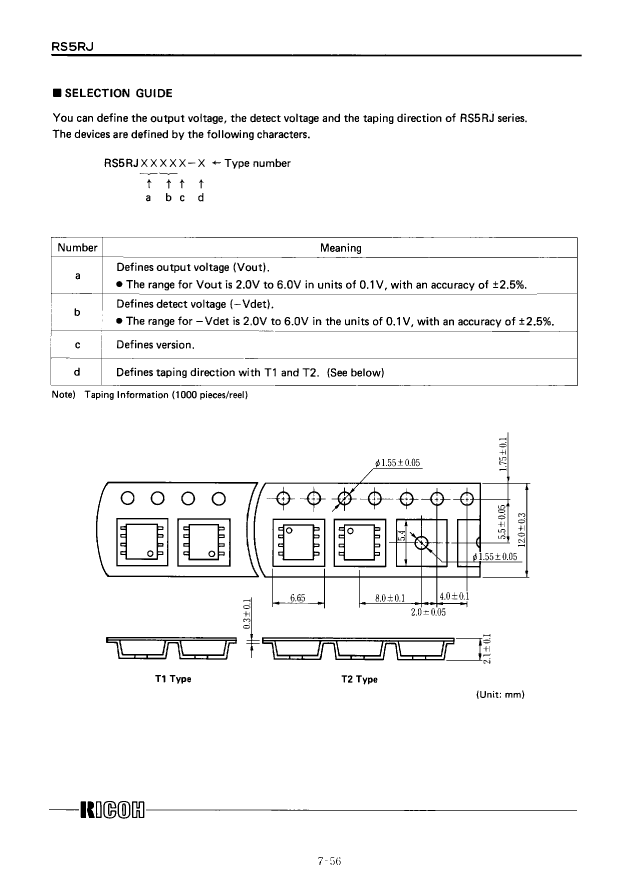

encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.7 mm
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	100 kHz
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
