2SA1682 datasheet, PDF - EEWORLD Datasheet

2SA1682: DescriptionTRANSISTOR,BJT,PNP,300V V(BR)CEO,50MA I(C),SOT-23VAR; CategoryDiscrete semiconductor The transistor; File Size154KB，1 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

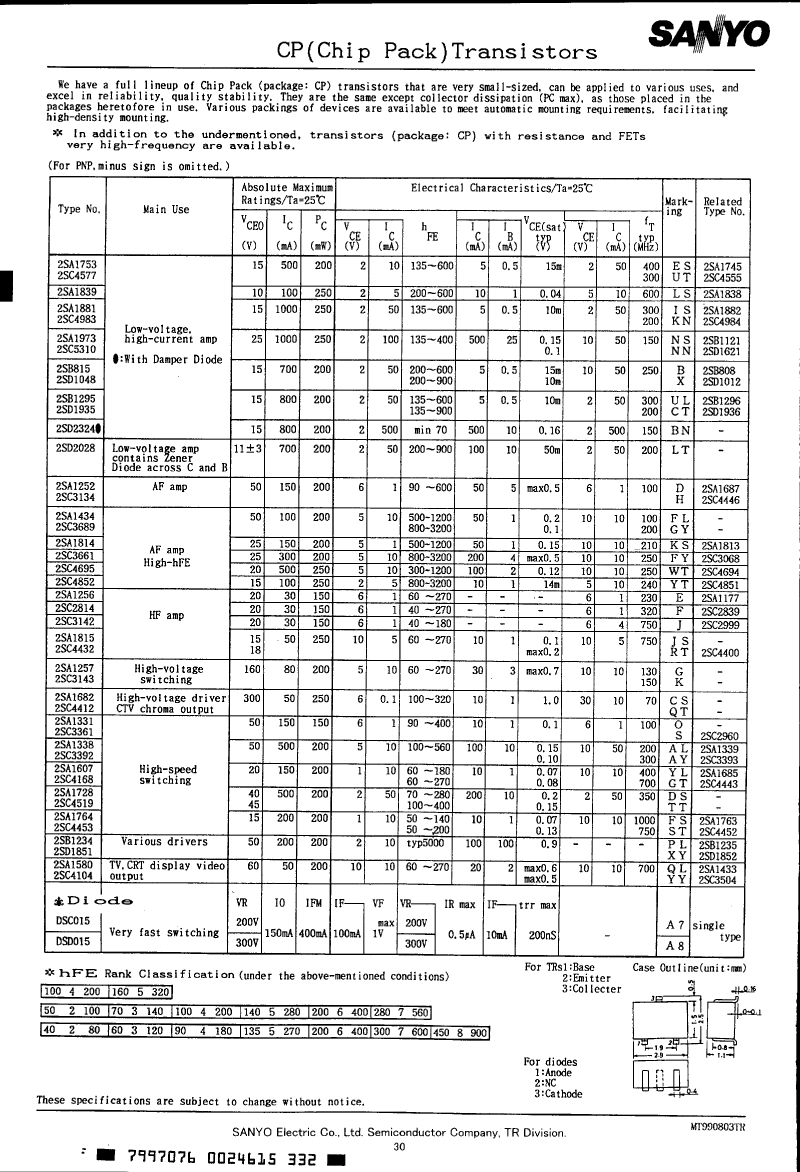

2SA1682 Overview

TRANSISTOR,BJT,PNP,300V V(BR)CEO,50MA I(C),SOT-23VAR

Parameter Name	Attribute value
Reach Compliance Code	compli
Maximum collector current (IC)	0.05 A
Configuration	Single
Minimum DC current gain (hFE)	100
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.25 W
surface mount	YES
Nominal transition frequency (fT)	70 MHz
Base Number Matches	1

	2SA1682	2SC3142	2SC4412	2SA1973	2SC5310	2SA1815	2SA1256	2SC3143
Description	TRANSISTOR,BJT,PNP,300V V(BR)CEO,50MA I(C),SOT-23VAR	TRANSISTOR,BJT,NPN,20V V(BR)CEO,30MA I(C),SOT-23	TRANSISTOR,BJT,NPN,300V V(BR)CEO,50MA I(C),SOT-23VAR	TRANSISTOR,BJT,PNP,25V V(BR)CEO,1A I(C),TO-236AB	TRANSISTOR,BJT,NPN,25V V(BR)CEO,1A I(C),TO-236AB	TRANSISTOR,BJT,PNP,15V V(BR)CEO,50MA I(C),TO-236	TRANSISTOR,BJT,PNP,20V V(BR)CEO,30MA I(C),TO-236	TRANSISTOR,BJT,NPN,160V V(BR)CEO,80MA I(C),SOT-23
Reach Compliance Code	compli	compli	compli	compli	compli	compliant	compliant	compliant
Maximum collector current (IC)	0.05 A	0.03 A	0.05 A	1 A	1 A	0.05 A	0.03 A	0.08 A
Configuration	Single	Single	Single	Single	Single	Single	Single	SINGLE
Minimum DC current gain (hFE)	100	40	100	135	135	60	60	60
Polarity/channel type	PNP	NPN	NPN	PNP	NPN	PNP	PNP	NPN
Maximum power dissipation(Abs)	0.25 W	0.15 W	0.25 W	0.2 W	0.25 W	0.25 W	0.15 W	0.2 W
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Maximum operating temperature	150 °C	125 °C	150 °C	150 °C	150 °C	-	125 °C	125 °C
Nominal transition frequency (fT)	70 MHz	320 MHz	70 MHz	150 MHz	150 MHz	-	-	-
Base Number Matches	1	1	1	1	1	1	1	-
