FST15380_10: Description150 A, 100 V, SILICON, RECTIFIER DIODE, TO-249AA; Categorysemiconductor Discrete semiconductor; File Size119KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Compare View All

FST15380_10 Overview

150 A, 100 V, SILICON, RECTIFIER DIODE, TO-249AA

Preview

Download Datasheet

View All

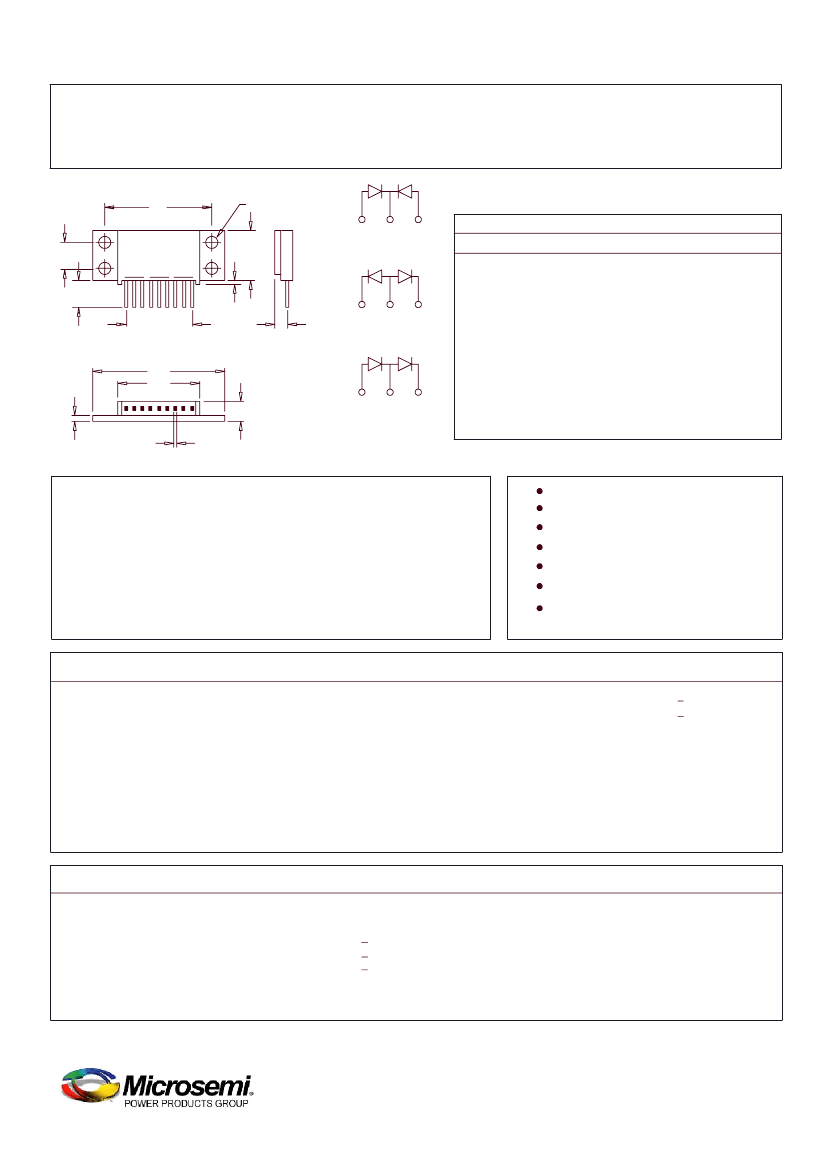

FST15380 - FST153100

A

N 4-PLCS.

1

2

3

Common Cathode

C

1

L

P

1.200

9 Pins eq at .150

F

G

J

1

2

3

D=Doubler

K

1

2

3

A=Common Anode

2

3

E

Dim. Inches

Millimeter

Minimum Maximum Minimum Maximum Notes

A

C

E

F

G

H

J

K

L

M

N

P

1.995

0.495

0.990

2.390

1.490

0.120

---

0.240

0.490

0.040

0.175

0.032

2.005

0.506

1.010

2.410

1.510

0.130

0.400

0.260

0.510

.050

0.195

0.052

50.67

12.57

25.15

60.71

37.85

3.05

---

6.10

12.45

1.02

4.45

0.81

50.93

12.83

25.65

61.21

38.35

3.30

10.16

6.60to Lead C

L

12.95

Square

1.27

Dia

4.95

1.32

Schottky Powermod

H

M

Notes:

Baseplate: Nickel plated copper;

electrically isolated

Pins: Nickel plated copper

Industry

Part Number

153CMQ080

153CMQ100

Microsemi

Catalog Number

FST15380*

FST15390*

FST153100*

Working Peak

Repetitive Peak

Reverse Voltage Reverse Voltage

80V

90V

100V

80V

90V

100V

Schottky barrier rectifier

Guard ring for reverse protection

V RRM - 80 to 100 Volts

High surge capacity

Reverse energy tested

Electrically isolated baseplate

*Add the Suffix A for Common Anode, D for Doubler

ROHS Compliant

Electrical Characteristics

IF(AV) 150 Amps

Average forward current per pkg

IF(AV) 75 Amps

Average forward current per leg

IFSM

1200 Amps

Maximum surge current per leg

I

R(OV) 2 Amps

Max repetitive peak reverse current per leg

VFM

.72 Volts

Max peak forward voltage per leg

VFM

.94 Volts

Max peak forward voltage per leg

IRM

20 mA

Max peak reverse current per leg

IRM

1.5 mA

Max peak reverse current per leg

C

Typical junction capacitance per leg

1500 pF

J

TC = 120°C, Square wave, R 0JC = 0.5°C/W

TC = 120°C, Square wave, R 0JC = 1.0°C/W

8.3 ms, half sine T J = 175°C

f = 1 KHz, 25°C, 1µsec Square wave

I FM = 75A: T J = 125°C*

I FM = 75A: T J = 25°C *

VRRM, T J = 125°C *

VRRM, T J = 25°C

VR = 5.0V, T J = 25°C

*Pulse test: Pulse width 300µsec, Duty cycle 2%

Thermal and Mechanical Characteristics

Storage temp range

Operating junction temp range

Maximum thermal resistance per leg

Maximum thermal resistance per pkg

Typical thermal resistance (greased)

Mounting torque

Weight

T STG

TJ

R OJC

R OCS

-55°C to 175°C

1.0°C/W

Junction to case

0.5°C/W

Junction to case

0.1°C/W

Case to sink

15 - 20 inch pounds maximum

2.5 ounces (71 grams) typical

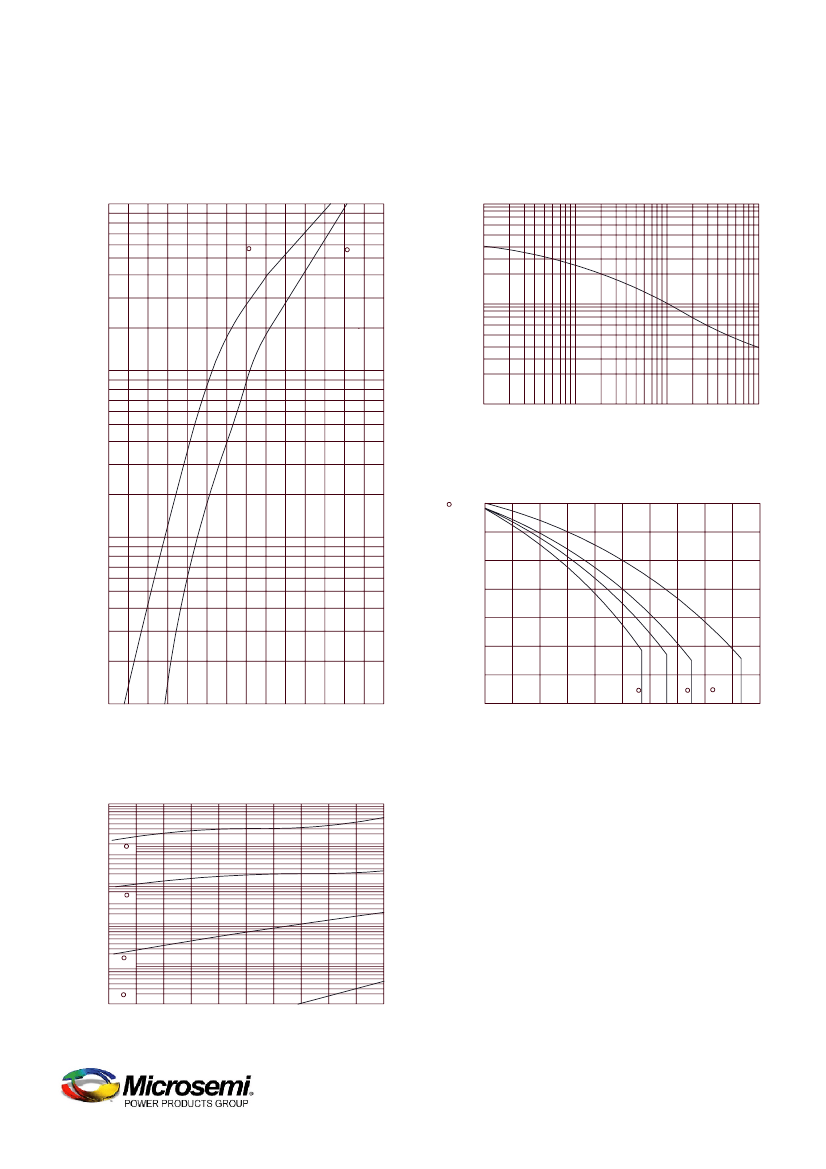

www.microsemi.com

January, 2010 - Rev. 2

FST15380_10 Related Products

	FST15380_10	153CMQ100	153CMQ080	FST15380	FST15390	FST153100
Description	150 A, 100 V, SILICON, RECTIFIER DIODE, TO-249AA	150 A, 100 V, SILICON, RECTIFIER DIODE, TO-249AA	150 A, SILICON, RECTIFIER DIODE, TO-249	75 A, 80 V, SILICON, RECTIFIER DIODE	75 A, 90 V, SILICON, RECTIFIER DIODE	75 A, 100 V, SILICON, RECTIFIER DIODE
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	-	compliant	compliant	unknow	unknown	compliant
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99
application	-	GENERAL PURPOSE	GENERAL PURPOSE	POWER	POWER	GENERAL PURPOSE
Shell connection	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	-	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	-	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	-	R-XSFM-T9	R-XSFM-T9	R-PSFM-T9	R-PSFM-T9	R-XSFM-T9
Maximum non-repetitive peak forward current	-	1200 A	1200 A	1200 A	1200 A	1200 A
Number of components	-	2	2	2	2	2
Phase	-	1	1	1	1	1
Number of terminals	-	9	9	9	9	9
Maximum output current	-	75 A	75 A	75 A	75 A	75 A
Package body material	-	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	100 V	80 V	80 V	90 V	100 V
surface mount	-	NO	NO	NO	NO	NO
technology	-	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	-	1	1	1	1	1
