FW80960RP33 datasheet, PDF - EEWORLD Datasheet

FW80960RP33: DescriptionRISC Microprocessor, 32-Bit, 33.33MHz, MOS, PBGA352, BGA-352; CategoryThe embedded processor and controller Microcontrollers and processors; File Size259KB，19 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

FW80960RP33 Overview

RISC Microprocessor, 32-Bit, 33.33MHz, MOS, PBGA352, BGA-352

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	BGA
package instruction	BGA-352
Contacts	352
Reach Compliance Code	compliant
ECCN code	3A991.A.2
Address bus width	32
bit size	32
boundary scan	YES

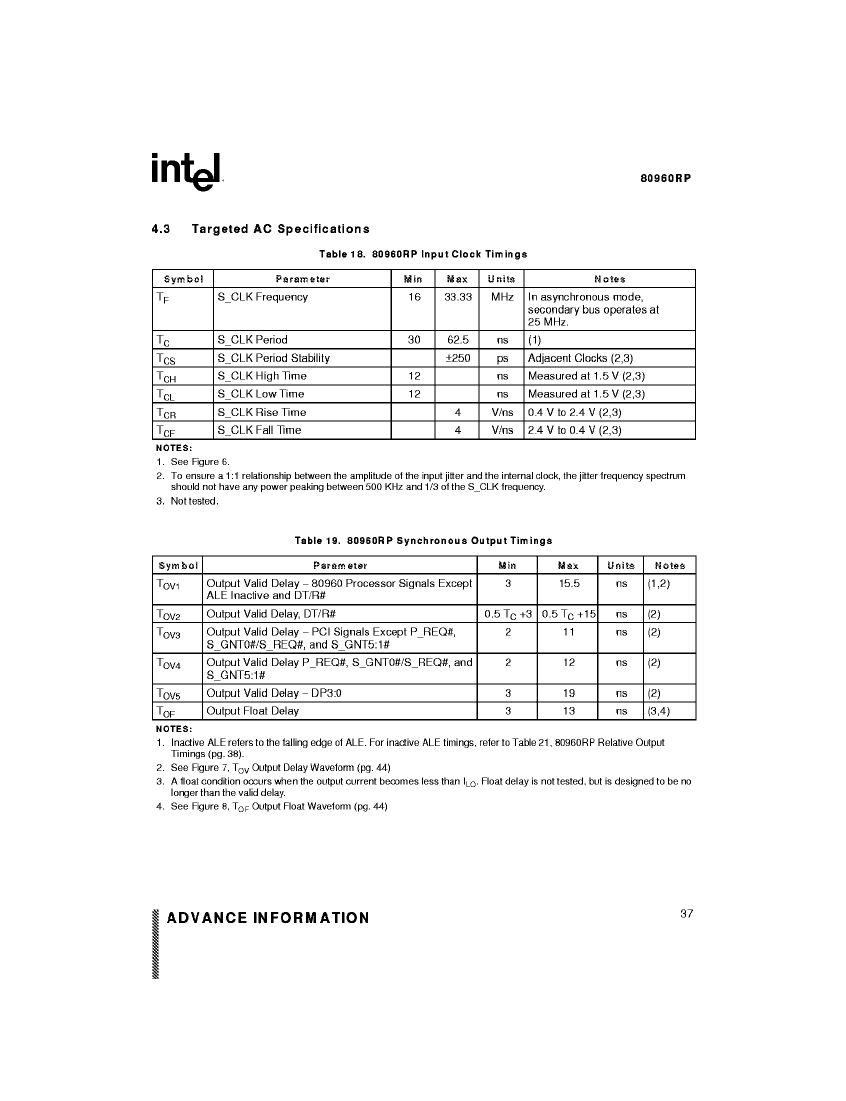

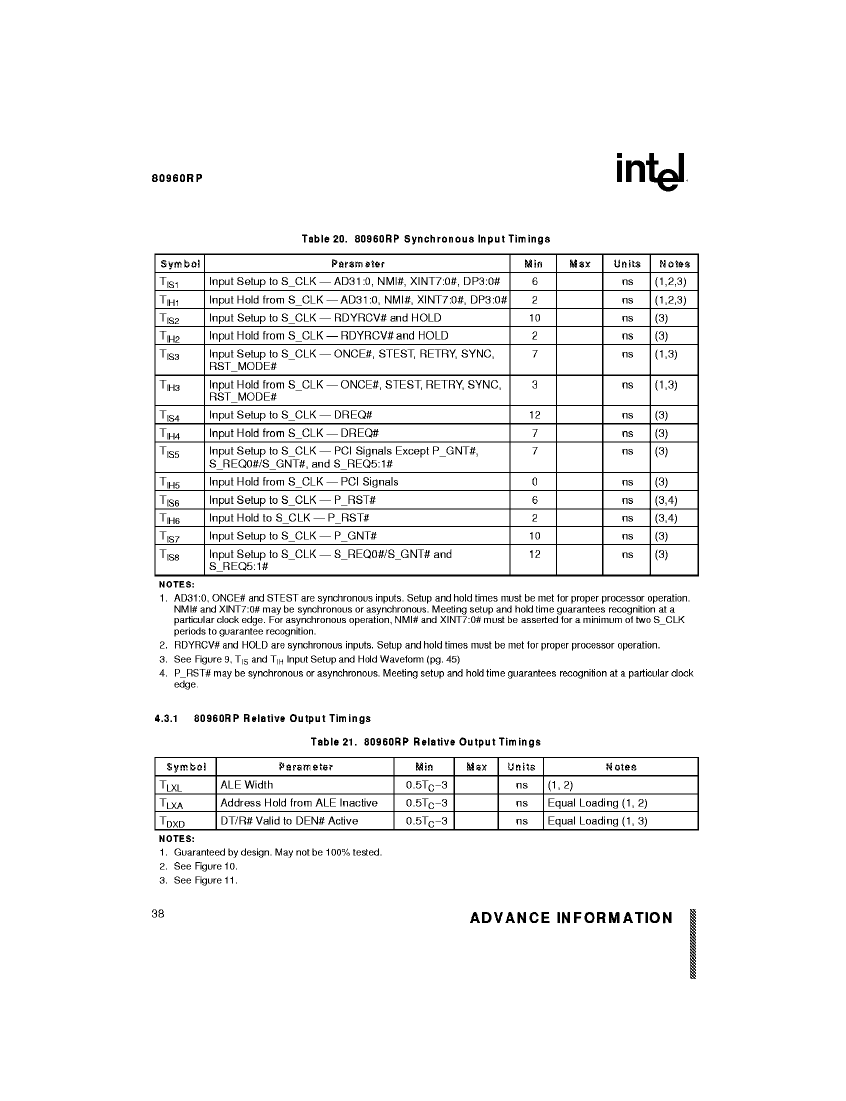

maximum clock frequency	33.33 MHz
External data bus width	32
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PBGA-B352
JESD-609 code	e0
length	35 mm
low power mode	YES
Number of DMA channels	3
Number of external interrupt devices	9
Number of serial I/Os	1
Number of terminals	352
On-chip data RAM width	8
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA352,26X26,50
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

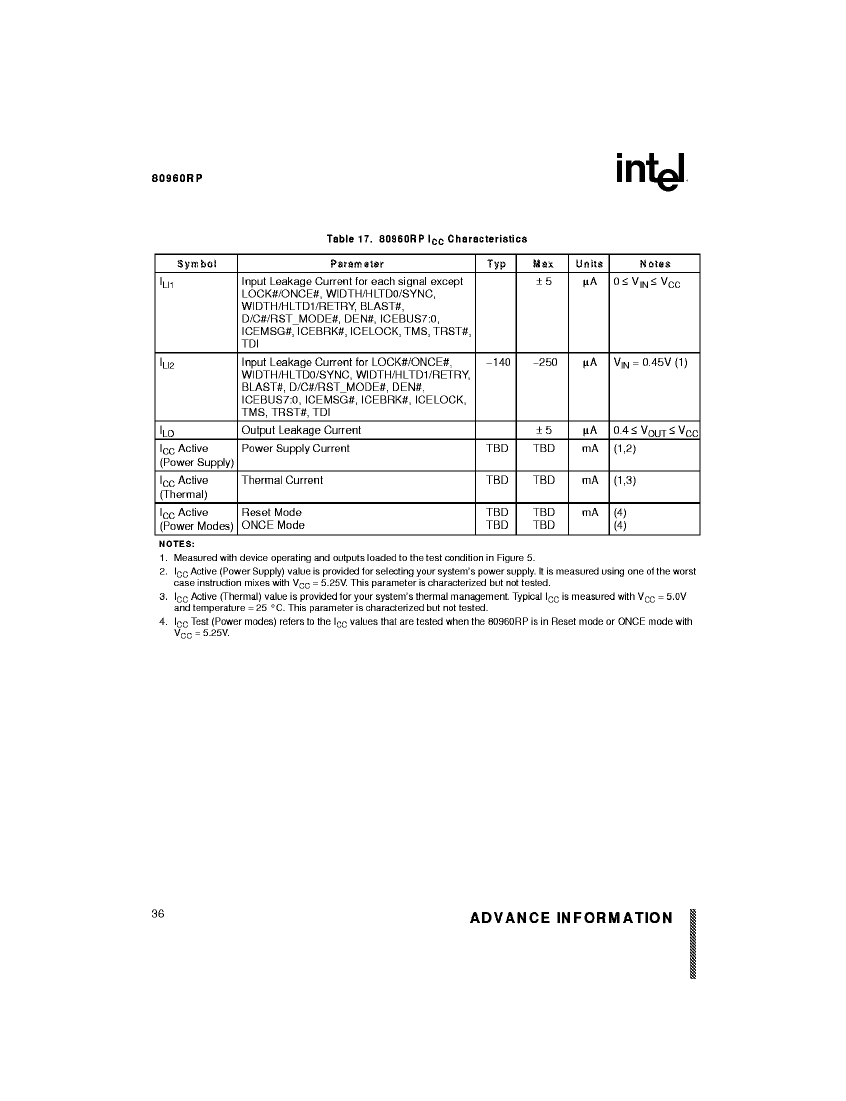

power supply	5 V
Certification status	Not Qualified
RAM (number of words)	512
Maximum seat height	2.52 mm
speed	33.33 MHz

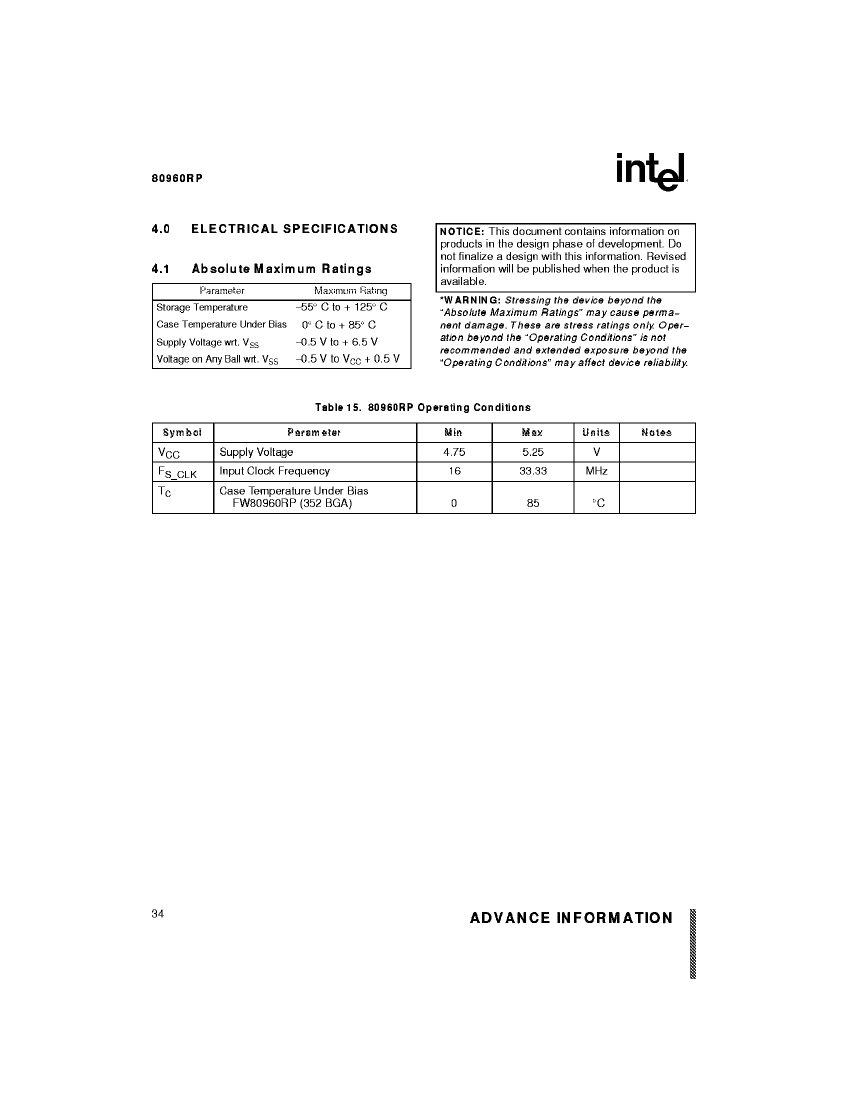

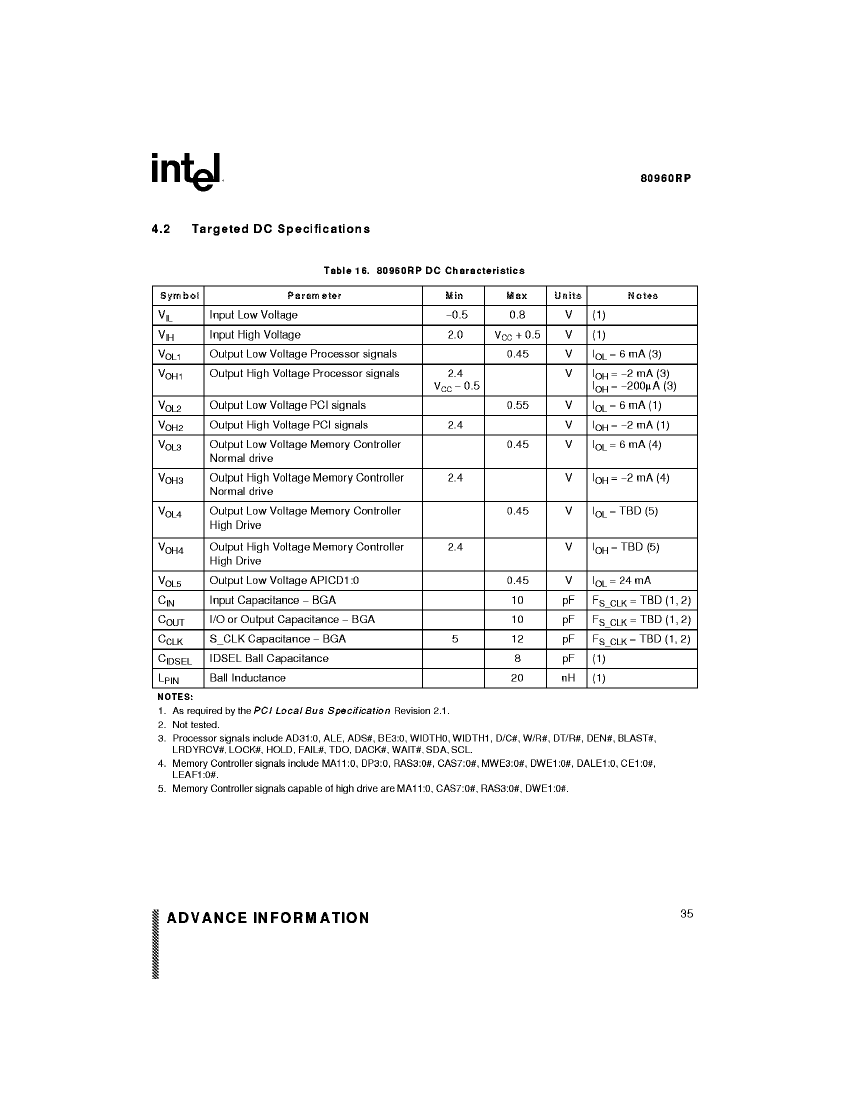

Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	MOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	35 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC

	FW80960RP33	FW80960RP-33
Description	RISC Microprocessor, 32-Bit, 33.33MHz, MOS, PBGA352, BGA-352	32-BIT, 33MHz, MICROPROCESSOR, PBGA352, PLASTIC, BGA-352
Is it Rohs certified?	incompatible	incompatible
Maker	Intel	Intel
Parts packaging code	BGA	BGA
package instruction	BGA-352	BGA, BGA352,26X26,50
Contacts	352	352
Reach Compliance Code	compliant	compliant
Address bus width	32	32
bit size	32	32
boundary scan	YES	YES
External data bus width	32	32
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	S-PBGA-B352	S-PBGA-B352
JESD-609 code	e0	e0
length	35 mm	35 mm
low power mode	YES	YES
Number of DMA channels	3	3
Number of external interrupt devices	9	9
Number of serial I/Os	1	1
Number of terminals	352	352
On-chip data RAM width	8	8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BGA	BGA
Encapsulate equivalent code	BGA352,26X26,50	BGA352,26X26,50
Package shape	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
RAM (number of words)	512	1000
Maximum seat height	2.52 mm	2.52 mm
speed	33.33 MHz	33 MHz
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	MOS	MOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	BALL	BALL
Terminal pitch	1.27 mm	1.27 mm
Terminal location	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	35 mm	35 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR
